Valex Spare Parts for Lathe BV21 520 - 1410555
Genuine Valex spare parts for Lathe BV21 520 - 1410555.
In the following list, look for the Lathe and the respective spare part. Ordered items will be shipped within 7/10 working days.

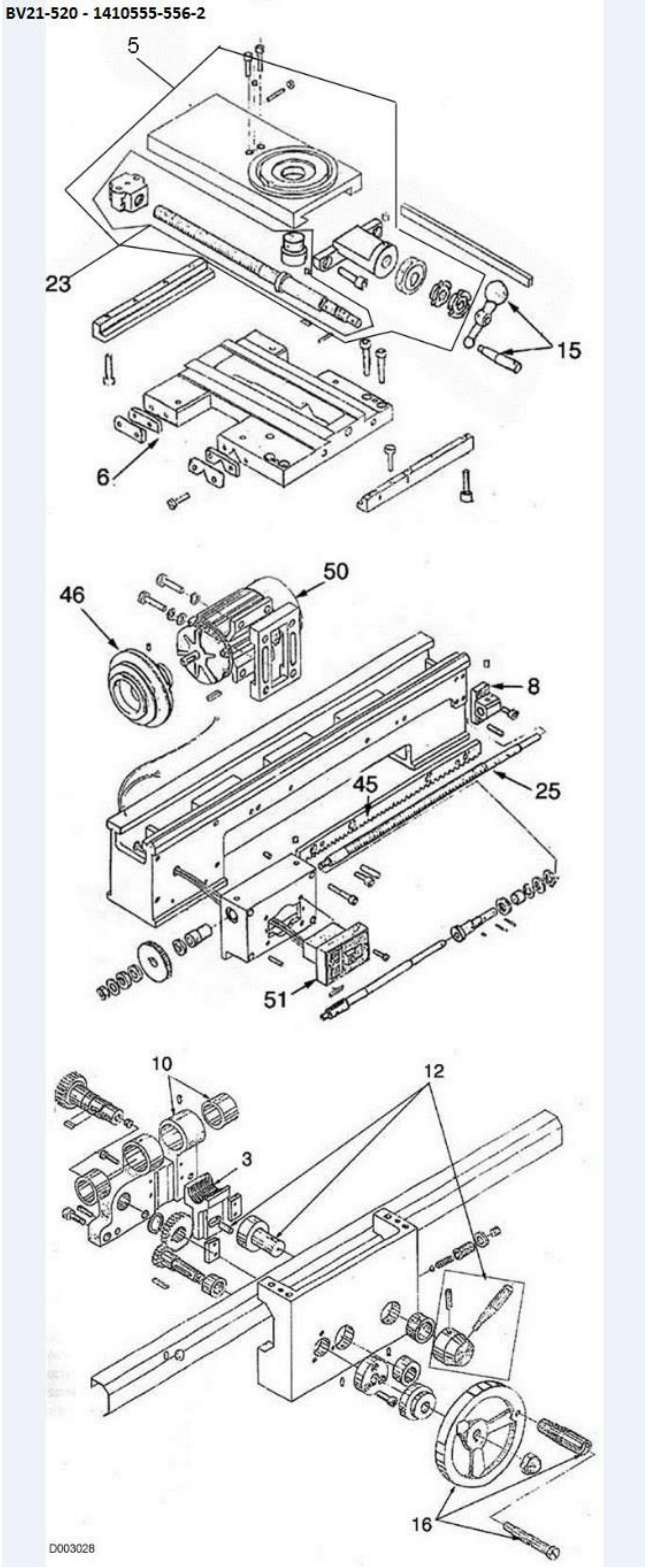

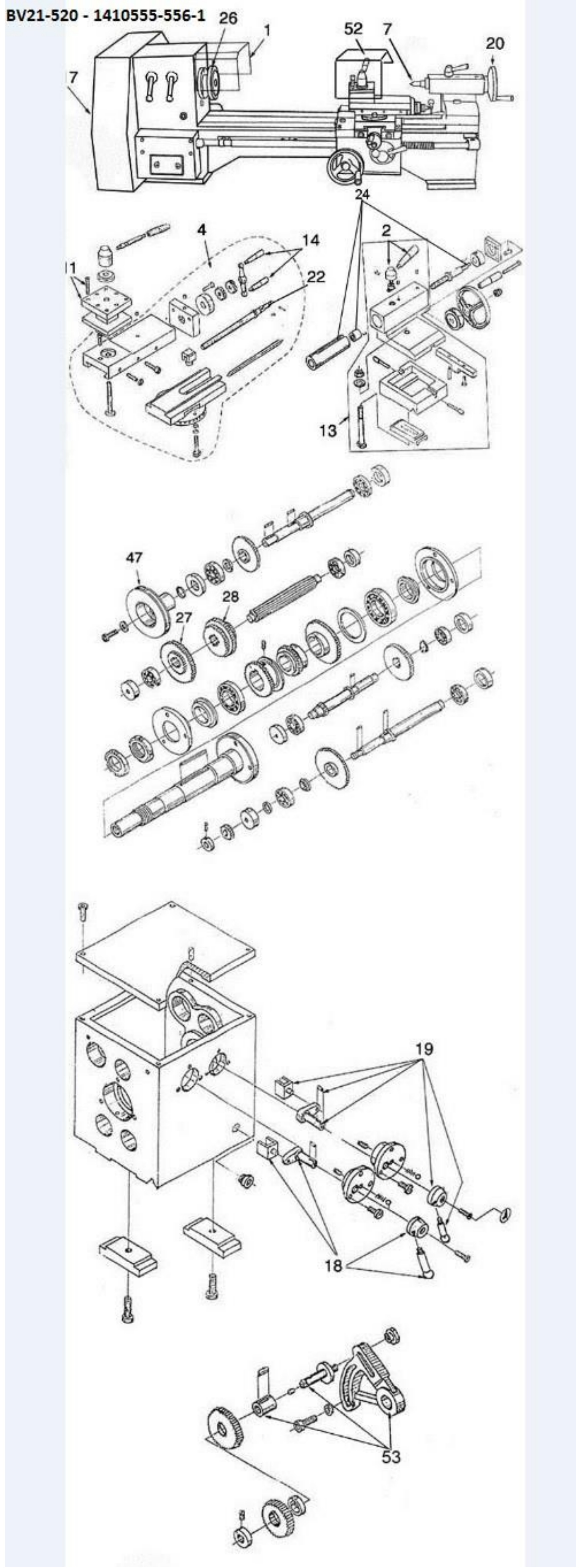

LATHE BV21-520 - 1410555
1
PROTECTION CHUCK
3650040
2
LEVER FIXING TAILSTOCK BV21
5010217
4
SLED LONGITUDINAL
5010295
5
CROSS SLIDE
5010294
6
SLED LONGITUDINAL
5010293
7
TAILSTOCK FIXED X LATHE
5010344
8
BLOCK FOR SCREW SENZAFINE
5010497
10
GUIDE NUT
5010498
11
SUPPORT TOOL
5030300
12
DEVICE ENGAGEMENT ADV. AUT.
5010499
13
SUPPORT TAILSTOCK
5031136
14
WHEEL CART TOWER
5050906
15
WHEEL CART CROSS
5050907
16
WHEEL CART lengthwise.
5061016
17
CARTER CLOSING
5070096
18
DOUBLE CLUTCH WHEEL SPEED.
5051059
19
WHEEL ENGAGEMENT SPEED TRIPLE.
5051060
20
FLYER TAILSTOCK BV 21 520
5051041
21
KEY CHUCK
5950599
22
LONGITUDINAL AXIS CART
5130296
23
ASSE CART CROSS
5130297
25
NUT
5130298
26
CHUCK LATHE X. BV20
5150022
27
GEAR DOUBLE SPEED '
5173135
28
GEAR SPEED TRIPLE '
5173136
46
MOTOR PULLEY
5180195
47
DRIVEN PULLEY
5180196
48
BELT L737 X BV20PLUS
5190091
49
BOX COMPLETE ACCESSORIES
5950898
52
PROTECTION TOWER
3650030
53
SUPPORT X GEAR
5030351
54
LIGHT OIL
3650041
CHUCK 4 JAWS INDEPENDENT
1461377
CHUCK WITH ATTACK CONE M2
1461372
TOOL 11 PCS. X CX150-250-350
1461360
TAILSTOCK ROTARY M2 X CX250 / 350
1461370
TOWER TOOL FAST
1461375
