Valex Spare Parts for Band Saw TN100

SKU: Valex TN100 - 1410142
€33.03
VAT included

Valex Spare Parts for Band Saw TN100

Do you need original Valex spare parts for your TN100 band saw? We supply all the necessary parts, ensuring maximum efficiency and longevity!
Valex Spare Parts for Band Saw TN100
  • Valex Spare Parts for Band Saw TN100
  • Valex Spare Parts for Electric Mitre Saws for Metals
  • Valex Spare Parts for Electric Mitre Saws for Metals

Valex Spare Parts for Band Saw TN100

SKU: Valex TN100 - 1410142 Condition: New
€33.03
VAT included

Valex Spare Parts for Band Saw TN100

Do you need original Valex spare parts for your TN100 band saw? We supply all the necessary parts, ensuring maximum efficiency and longevity!
settings 10 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N VALEX:: VALEX S/N STARTS WITH (14....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

10 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
Band for Band Saw Valex TN100 1452740 Band for Band Saw Valex TN100 €32.43
3
photo_cameraImage coming soon 5070271 CARTER PULLEY €26.92
6
Worm Screw for Band Saw Valex TN100 5172040 Worm Screw for Band Saw Valex TN100 €34.61 Not available for order
13
Rear Blade Driver for Band Saw Valex TN100 5001116 Rear Blade Driver for Band Saw Valex TN100 €28.19 Not available for order
15
photo_cameraImage coming soon 5001117 ADJUSTABLE SUPPORT €27.53
17
Trapezoidal Belt for Band Saw Valex TN100 5190090 Trapezoidal Belt for Band Saw Valex TN100 €18.64
18
photo_cameraImage coming soon 5030295 ENGINE SUPPORT €9.27
21
photo_cameraImage coming soon 3200398 WHEEL ADJUSTMENT blade guide €7.45
23
Switch for Iron Band Saws Valex TN100 7400350 Switch for Iron Band Saws Valex TN100 €30.09
24
photo_cameraImage coming soon 3450189 SEALS €9.27
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 5070271 CARTER PULLEY €26.92
6
Worm Screw for Band Saw Valex TN100 5172040 Worm Screw for Band Saw Valex TN100 €34.61 Not available for order
13
Rear Blade Driver for Band Saw Valex TN100 5001116 Rear Blade Driver for Band Saw Valex TN100 €28.19 Not available for order
15
photo_cameraImage coming soon 5001117 ADJUSTABLE SUPPORT €27.53
17
Trapezoidal Belt for Band Saw Valex TN100 5190090 Trapezoidal Belt for Band Saw Valex TN100 €18.64
18
photo_cameraImage coming soon 5030295 ENGINE SUPPORT €9.27
21
photo_cameraImage coming soon 3200398 WHEEL ADJUSTMENT blade guide €7.45
23
Switch for Iron Band Saws Valex TN100 7400350 Switch for Iron Band Saws Valex TN100 €30.09
24
photo_cameraImage coming soon 3450189 SEALS €9.27
500
Band for Band Saw Valex TN100 1452740 Band for Band Saw Valex TN100 €32.43

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Valex Spare Parts for Band Saw TN100

Valex Genuine spare parts or replacement parts for to repair electric Band Saw for cutting iron and metals TN100 - 1410142.

In the following table, look for the type of the tape saw and the respective parts of the code.
Valex TN100 - 1410142
BAND SAW TN100 - 1410142 Pag.1
# Description Part Num.
1 VICE FLYER 5010290
2 FLYER blade tensioning 5950954
3 CARTER PULLEY 5070271
4 MOTOR PULLEY 5180189
5 DRIVEN PULLEY 5180190
6 WORM 5172040
7 WHEEL HELICAL 3600033
8 PULLEY DRIVE BLADE 5180191
9 DRIVEN PULLEY LAMA - DISCONTINUED 5180192
10 BLADE COMPARTMENT COVER 3050534
11 ASSEMBLY blade tension 5010496
12 FRONT blade guide 5001115
13 REAR blade guide 5001116
14 VICE COMPLETE 5950955
15 ADJUSTABLE SUPPORT 5001117
17 V-BELT 5190090
18 ENGINE SUPPORT 5030295
19 BASE 5950956
21 WHEEL ADJUSTMENT blade guide 3200398
22 ENGINE X TN100 7355125
23 SWITCH X TN100 7400350
24 SEALS 3450189
BLADE BAND METAL 1302X0,65MM 1452740

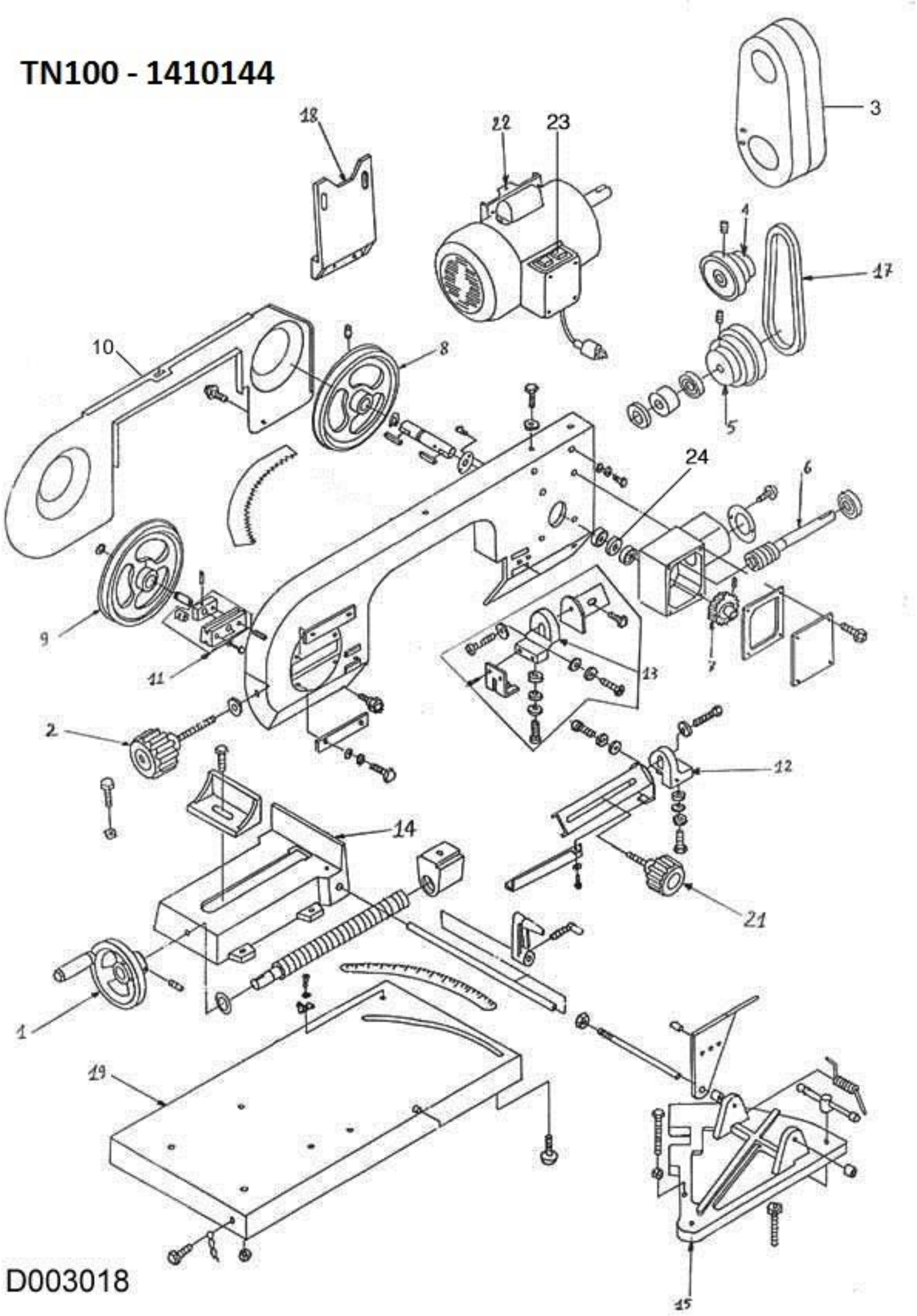

BAND SAW TN100 - 1410144 Pag.2
1 VICE FLYER 5010290
2 FLYER blade tensioning 5950954
3 CARTER PULLEY 5070271
4 MOTOR PULLEY 5180189
5 DRIVEN PULLEY 5180190
6 WORM 5172040
7 WHEEL HELICAL 3600033
8 PULLEY DRIVE BLADE 5180191
9 DRIVEN PULLEY LAMA 5180192
10 BLADE COMPARTMENT COVER 3050534
11 ASSEMBLY blade tension 5010496
12 FRONT blade guide 5001115
13 REAR blade guide 5001116
14 VICE COMPLETE 5950955
15 ADJUSTABLE SUPPORT 5001117
17 V-BELT 5190090
18 ENGINE SUPPORT 5030295
19 BASE 5950956
21 WHEEL ADJUSTMENT blade guide 3200398
22 MOTOR X TN100 7355125
23 SWITCH X TN100 7400350
24 SEALS 3450189
500 BAND METAL 1302X0,65MM 1452740
