Valex Spare Parts for Self-Propelled Lawnmower TST5136

SKU: Valex TST5136 - 1497516
€9.41
VAT included

Valex Spare Parts for Self-Propelled Lawnmower TST5136

VALEX Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Self-Propelled Lawnmower TST5136 - 4 IN 1 - 1497516.
Valex Spare Parts for Self-Propelled Lawnmower TST5136
  • Valex Spare Parts for Self-Propelled Lawnmower TST5136
  • Valex Spare Parts for Self-Propelled Lawnmower TST5136

Valex Spare Parts for Self-Propelled Lawnmower TST5136

SKU: Valex TST5136 - 1497516 Condition: New
€9.41
VAT included

Valex Spare Parts for Self-Propelled Lawnmower TST5136

VALEX Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Self-Propelled Lawnmower TST5136 - 4 IN 1 - 1497516.
settings 32 spare parts

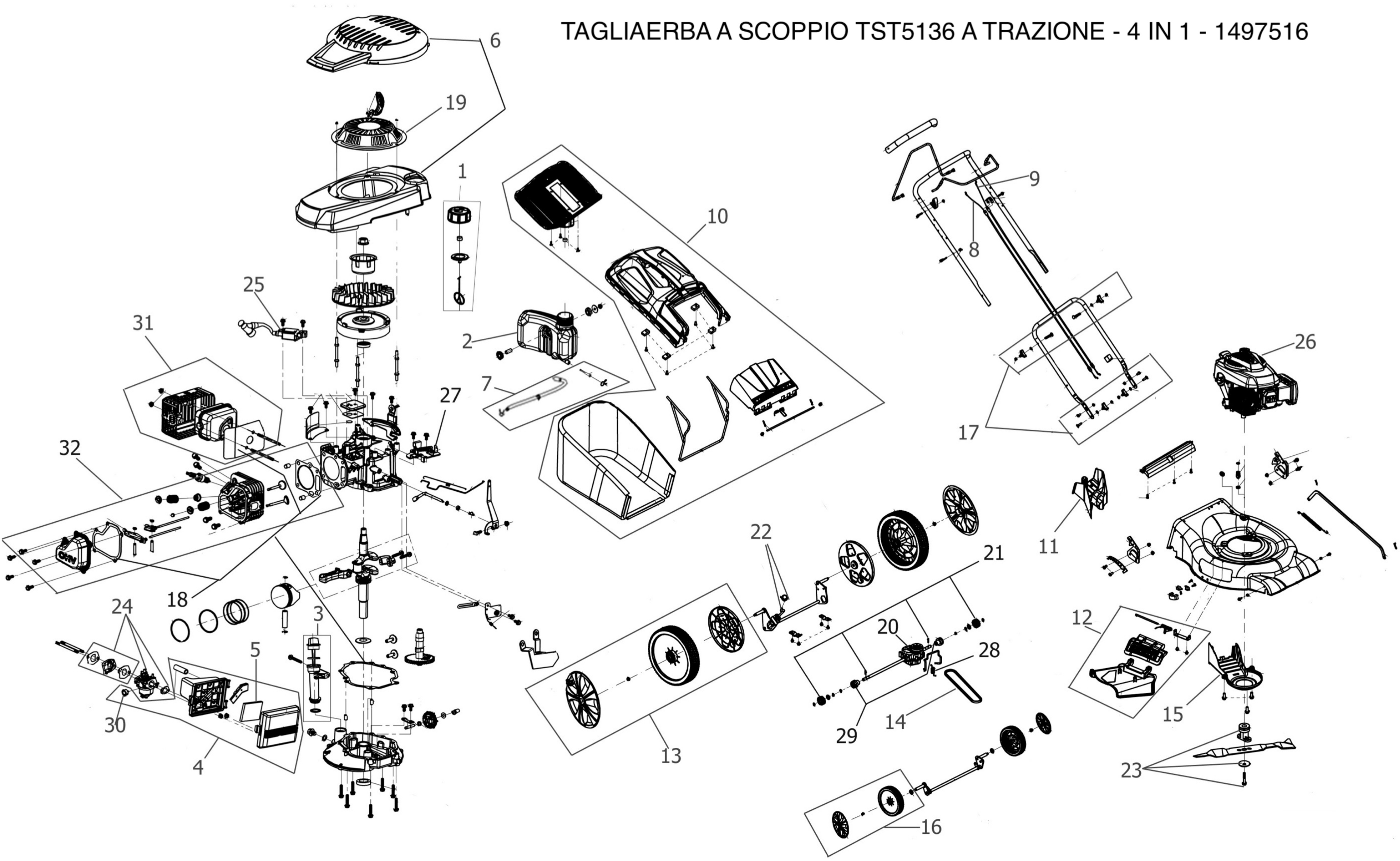

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N VALEX:: VALEX S/N STARTS WITH (14....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

32 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
00001
photo_cameraImage coming soon 3052227 TANK CAP €6.97
00002
photo_cameraImage coming soon 3052228 FLUME €13.28
00003
photo_cameraImage coming soon 3052229 FLUME €13.30
00004
photo_cameraImage coming soon 3052230 AIR CLEANER CASE €20.51
00005
Air Filter for Petrol Lawnomwer Valex 4 IN 1 TST5136 3052231 Air Filter for Petrol Lawnomwer Valex 4 IN 1 TST5136 €6.94
00006
photo_cameraImage coming soon 3052232 ENGINE COVER €23.51
00007
photo_cameraImage coming soon 3052233 FUEL HOSE €8.59
00008
photo_cameraImage coming soon 3052141 TRACTION CABLE €11.43
00009
photo_cameraImage coming soon 3052234 ENGINE BRAKE CABLE €10.30
00010
photo_cameraImage coming soon 3052143 GRASS BAG €89.09
00011
photo_cameraImage coming soon 3052144 CONVEYOR €7.55
00012
photo_cameraImage coming soon 3052145 SIDE DISCHARGE €33.87
00013
photo_cameraImage coming soon 3052147 REAR WHEEL €34.35
00014
V-Belt for Self-Propelled Lawnmower Valex TST5135 3052149 V-Belt for Self-Propelled Lawnmower Valex TST5135 €12.31
00015
photo_cameraImage coming soon 3052151 BELT PROTECTION €10.16
00016
photo_cameraImage coming soon 3052152 FRONT WHEEL €21.19
00017
photo_cameraImage coming soon 3052153 HANDLE FIXING SET €7.32
00018
photo_cameraImage coming soon 3052235 4 ENGINE GASKET SET €17.49
00019
photo_cameraImage coming soon 5001524 RECOIL STARTER ASSY €33.96
00020
photo_cameraImage coming soon 5001398 PROPELLED SET ASSY €153.49
00021
Ratchet Wheels for Self-Propelled Lawnmowers Valex TST4635 - TST5135 5001399 Ratchet Wheels for Self-Propelled Lawnmowers Valex TST4635 - TST5135 €33.52
00022
photo_cameraImage coming soon 5001401 LIFT LEVER €8.34
00023
photo_cameraImage coming soon 5001525 BLADE BOSS ASSY €33.57
00024
photo_cameraImage coming soon 5001526 CARB €53.15
00025
photo_cameraImage coming soon 7357482 IGNITION COIL €24.59
00026
photo_cameraImage coming soon 7357483 1800W AC MOTOR ASSY €208.97
00027
photo_cameraImage coming soon 7357484 MICRO POWER OFF €17.08
00028
photo_cameraImage coming soon 5001405 SPRING €4.57
00029
photo_cameraImage coming soon 5001406 BALL BEARING + ADAPTOR €15.02
00030
photo_cameraImage coming soon 3052171 FUEL TRIGGER MEMBRANE €4.92
00031
photo_cameraImage coming soon 5001527 ENGINE MUFFLER €39.28
00032
photo_cameraImage coming soon 5001528 ENGINE HEAD €93.93

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Valex Spare Parts for Self-Propelled Lawnmower TST5136

VALEX Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Self-Propelled Lawnmower TST5136 - 4 IN 1 - 1497516.

In the following table, choose the type of the Lawnmower and its spare part.
SELF-PROPELLED LAWNMOWER TST5136 - 4 IN 1

SELF-PROPELLED LAWNMOWER TST5136 - 4 IN 1 - 1497516
# Part Num. Dsescription
00001 3052227 TANK CAP
00002 3052228 TANK
00003 3052229 TANK
00004 3052230 AIR CLEANER CASE
00005 3052231 AIR CLEANER
00006 3052232 ENGINE COVER
00007 3052233 FUEL HOSE
00008 3052141 DRIVE CABLE
00009 3052234 ENGINE BRAKE CABLE
00010 3052143 GRASS CATCHER
00011 3052144 CONVEYOR
00012 3052145 SIDE BAFFLE
00013 3052147 REAR WHEEL
00014 3052149 DRIVE BELT
00015 3052151 BELT COVER
00016 3052152 FRONT WHEEL
00017 3052153 HANDLE FIXING KIT
00018 3052235 4 ENGINE GASKET SET
00019 5001524 RECOIL STARTER ASSY
00020 5001398 GEAR CASE
00021 5001399 RATCHET WHEEL SET
00022 5001401 LIFT LEVER
00023 5001525 BLADE BOSS ASSY
00024 5001526 CARBURETOR
00025 7357482 IGNITION COIL
00026 7357483 ENGINE
00027 7357484 MICRO POWER OFF
00028 5001405 TRACTION SPRING
00029 5001406 BEARINGS AND ADAPTERS
00030 3052171 FUEL TRIGGER MEMBRANE
00031 5001527 ENGINE MUFFLER
00032 5001528 ENGINE HEAD
