Valex Spare Parts for Pruner Montana 33

SKU: Valex Montana 33 - 1491974
€24.10
VAT included

Valex Spare Parts for Pruner Montana 33

Valex genuine spare parts or replacement parts for to repair Pruner Montana 33 - 1491974.

Fix Your Pruner Montana 33. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Valex Spare Parts for Pruner Montana 33
  • Valex Spare Parts for Pruner Montana 33
  • Valex Spare Parts for Pruner Montana 33

Valex Spare Parts for Pruner Montana 33

SKU: Valex Montana 33 - 1491974 Condition: New
€24.10
VAT included

Valex Spare Parts for Pruner Montana 33

Valex genuine spare parts or replacement parts for to repair Pruner Montana 33 - 1491974.

Fix Your Pruner Montana 33. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 39 spare parts

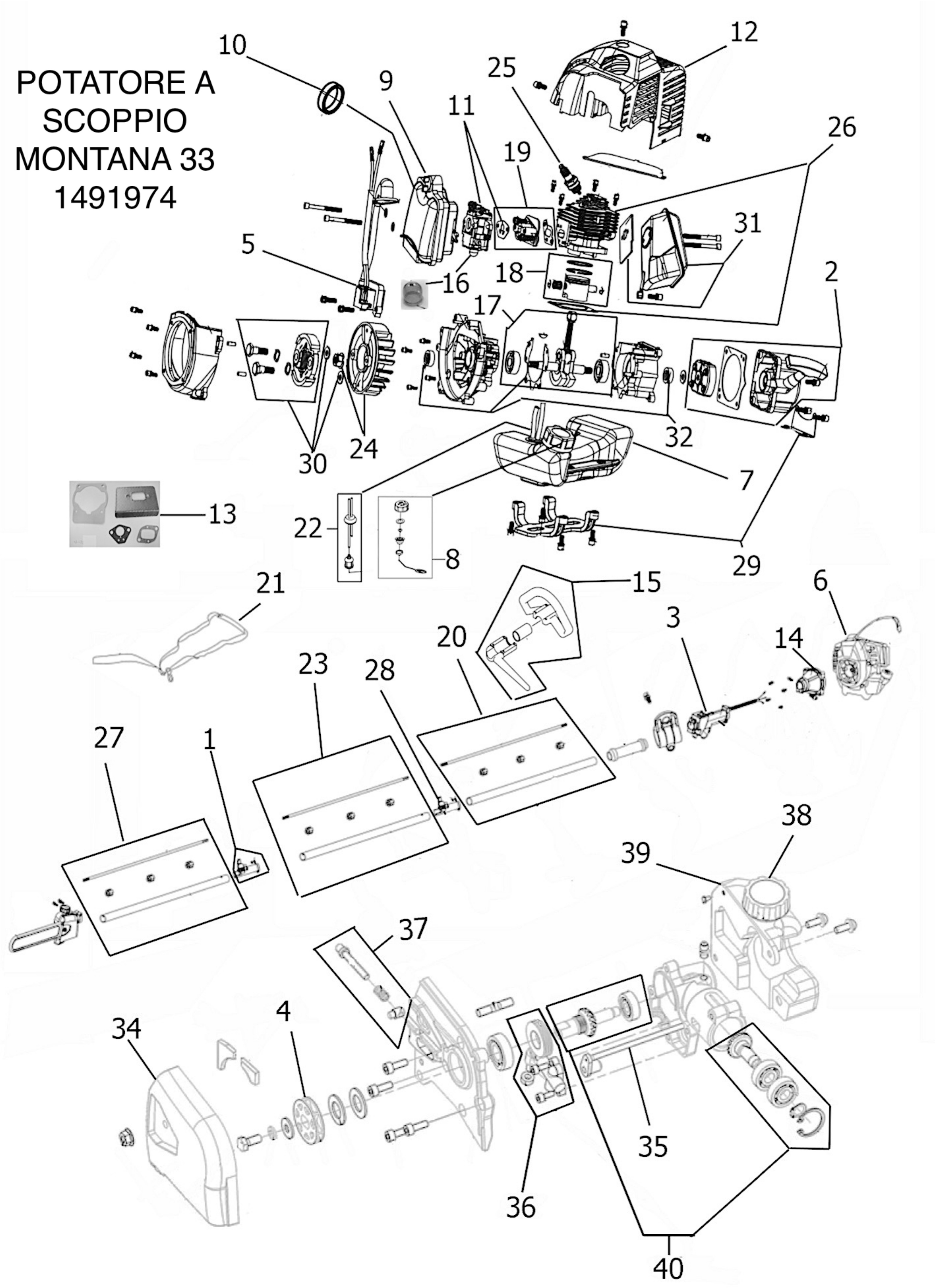

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N VALEX:: VALEX S/N STARTS WITH (14....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

39 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 5173362 PIPE FITTING €22.72
2
Recoil Starter Assy for Brushcutter Valex TEXAS 33 - 43 - 52 5173325 Recoil Starter Assy for Brushcutter Valex TEXAS 33 - 43 - 52 €19.52
3
Throttle Handle Assembly for Brushcutters Valex TEXAS 5173326 Throttle Handle Assembly for Brushcutters Valex TEXAS €31.48
4
photo_cameraImage coming soon 5173363 SPROCKET €8.88
5
photo_cameraImage coming soon 7250368 ENGINE COIL €15.55
6
photo_cameraImage coming soon 7250370 COMPLETE ENGINE €127.29
7
Fuel Tank Ass'y for Brushcutter TEXAS 33 3650259 Fuel Tank Ass'y for Brushcutter TEXAS 33 €22.23
8
Valex TEXAS 33 Fuel Tank Cap 3650261 Valex TEXAS 33 Fuel Tank Cap €7.00
9
photo_cameraImage coming soon 3650262 FILTER BOX €7.53
10
photo_cameraImage coming soon 3650264 AIR FILTER €3.96
11
Carburator for Brushcutter Valex Texas 33 Catalyzed 5173328 Carburator for Brushcutter Valex Texas 33 Catalyzed €43.13
12
photo_cameraImage coming soon 3650265 MOTOR HOUSING €12.42
13
photo_cameraImage coming soon 3650272 GASKET KIT €6.75
14
photo_cameraImage coming soon 5173330 CLUTCH DRUM €35.49
15
photo_cameraImage coming soon 5173331 HANDLE €20.69
16
photo_cameraImage coming soon 3650268 PRIMER PUMP €3.51
17
photo_cameraImage coming soon 5173354 CRANKSHAFT AND ROD €24.81
18
Piston Ass'y for Brushcutter Valex Texas 33 5173332 Piston Ass'y for Brushcutter Valex Texas 33 €17.75
19
Intake Manifold Set for Brushcutter Valex TEXAS 33 5173335 Intake Manifold Set for Brushcutter Valex TEXAS 33 €10.28
20
photo_cameraImage coming soon 5173194 ENGINE DRIVE SHAFT ASSY €48.07
21
photo_cameraImage coming soon 3650269 BELT €24.81
22
Fuel Line Hose for Brushcutter Valex Texas 33 3650270 Fuel Line Hose for Brushcutter Valex Texas 33 €12.16
23
photo_cameraImage coming soon 5173360 DRIVE SHAFT ASSY €64.27
24
photo_cameraImage coming soon 5173347 FLYWHEEL €15.55
25
photo_cameraImage coming soon 7250373 SPARK PLUG €7.23
26
photo_cameraImage coming soon 5173338 CYLINDER AND GASKET €35.89
27
photo_cameraImage coming soon 5173361 PIPE AND SAW SHAFT €48.07
29
photo_cameraImage coming soon 5173343 HOLDER TANK €9.82
30
photo_cameraImage coming soon 5173342 CLUTCH €23.94
31
photo_cameraImage coming soon 5173345 MUFFLER €26.94
32
photo_cameraImage coming soon 3650274 OIL SEAL €6.96
33
photo_cameraImage coming soon 5173350 ACCESSORIES €19.49
34
photo_cameraImage coming soon 3750168 BAR COVER €7.93
35
photo_cameraImage coming soon 3750169 OIL TUBE €6.68
36
photo_cameraImage coming soon 5173365 OIL PUMP €23.77
37
photo_cameraImage coming soon 5173358 CHAIN TENSIONER €5.32
38
photo_cameraImage coming soon 3750170 OIL TANK CAP €5.32
39
photo_cameraImage coming soon 3750171 OIL TANK €11.33
40
photo_cameraImage coming soon 5173359 GEAR CASE €48.07

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Valex Spare Parts for Pruner Montana 33

Fix Your Pruner Montana 33 - 1491974. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, choose the type of the Pruner and its spare part.
Valex Montana 33 - 1491974
PETROL PRUNER MONTANA 33 - 1491974
# Part Num. Description
1 5173362 PIPE FITTING
2 5173325 STARTER ASSY + STARTER CUP
3 5173326 THROTTLE ASSEMBLY
4 5173363 SPROCKET
5 7250368 IGNITION COIL
6 7250370 ENGINE ASSY
7 3650259 TANK
8 3650261 TANK CAP
9 3650262 FILTER BOX
10 3650264 AIR CLEANER
11 5173328 CARBURETOR
12 3650265 CRANKCASE
13 3650272 GASKET SET
14 5173330 CLUTCH ASSY
15 5173331 CENTRAL HANDLE
16 3650268 PRIMER
17 5173354 CRANKSHAFT AND CON ROD
18 5173332 PISTON
19 5173335 INTAKE MANIFOLD
20 5173194 ENGINE DRIVE SHAFT ASSY
21 3650269 HARNESS
22 3650270 FUEL LINE HOSE + FILTER ASS'Y
23 5173360 DRIVE SHAFT ASSY
24 5173347 FLYWHEEL
25 7250373 SPARKPLUG
26 5173338 CYLINDER AND GASKET
27 5173361 PIPE AND SAW SHAFT
28 3750172 PRUNER KNOB
29 5173343 TANK HOLDER
30 5173342 CLUTCH
31 5173345 MUFFLER
32 3650274 OIL SEALS
33 5173350 OUTFIT SCREW
34 3750168 BAR COVER
35 3750169 OIL TUBE
36 5173365 OIL PUMP
37 5173358 CHAIN TENSIONER
38 3750170 OIL TANK CAP
39 3750171 OIL TANK
40 5173359 GEAR CASE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Valex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Valex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Valex Montana 33 - 1491974
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N VALEX:
VALEX S/N STARTS WITH (14....) AND HAVE 7 DIGITS

Specific References

New

Download

Drawing Pruner Montana 33

Drawing Pruner Montana 33

Download (1.02MB)
