Valex s.p.a.

Valex Spare Parts for Drill Press TR16AB - 1421071

SKU: TR16AB - 1421071
€7.39
VAT included

Valex Spare Parts for Drill Press TR16AB - 1421071

Valex original spare parts for to replace broken parts for to fix Drill Press TR16AB - 1421071.

Fix Your Drill Press TR16AB - 1421071. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Valex Spare Parts for Drill Press TR16AB - 1421071
  • Valex Spare Parts for Drill Press TR16AB - 1421071
  • Valex Spare Parts for Drill Press TR16AB - 1421071
Valex s.p.a.

Valex Spare Parts for Drill Press TR16AB - 1421071

SKU: TR16AB - 1421071 Condition: New
€7.39
VAT included

Valex Spare Parts for Drill Press TR16AB - 1421071

Valex original spare parts for to replace broken parts for to fix Drill Press TR16AB - 1421071.

Fix Your Drill Press TR16AB - 1421071. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 30 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N VALEX:: VALEX S/N STARTS WITH (14....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
30 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

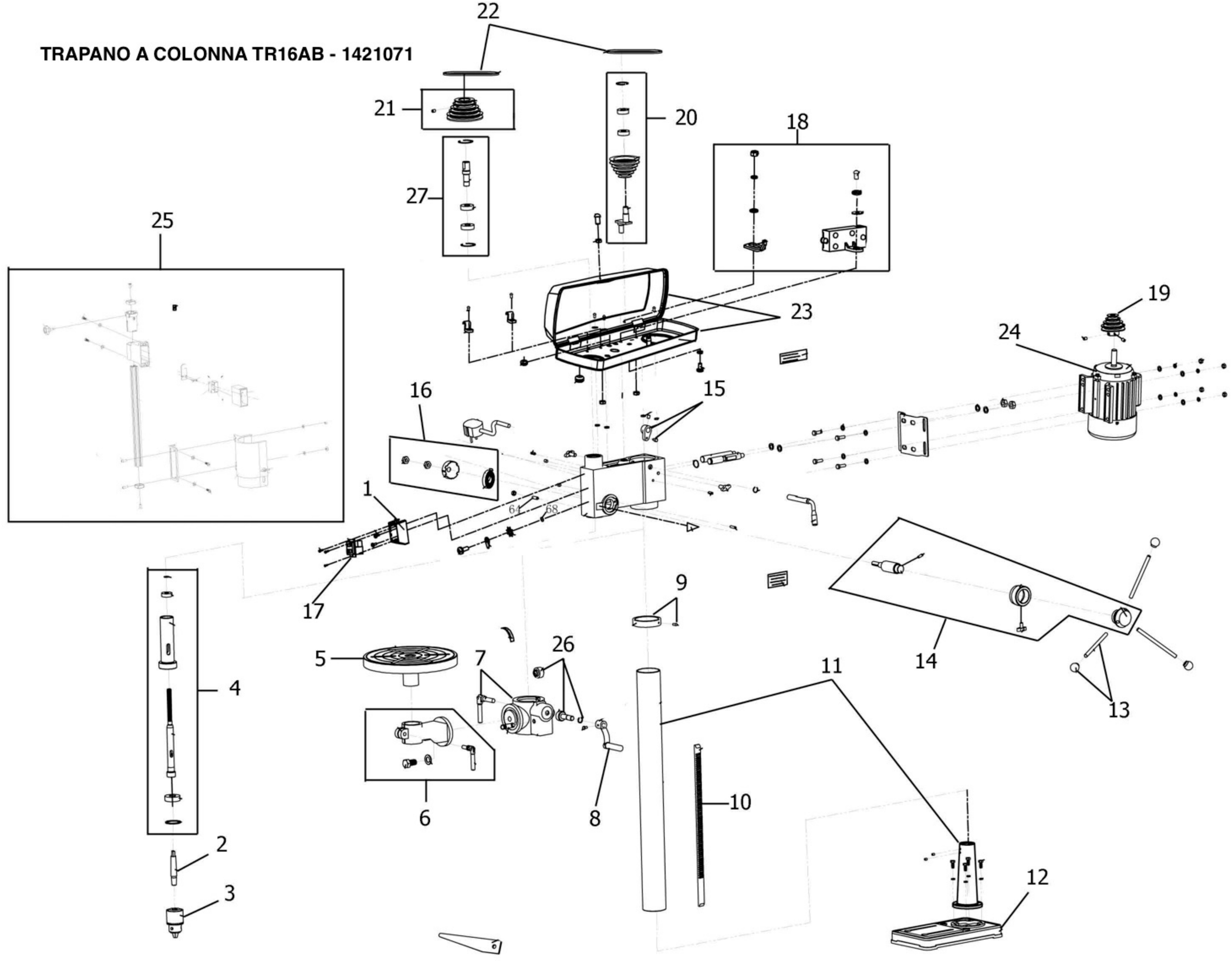

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3000259 SWITCH BOX €11.57
2
 Morse Cone for Drill Press Valex TR16B - TR16AB 5300108 Morse Cone for Drill Press Valex TR16B - TR16AB €14.90
3
 Chuck for Floor Drill Press Valex TR16B 5300096 Chuck for Floor Drill Press Valex TR16B €29.69
4
 Chuck Holder Shaft for Bench Drill Valex TR16B 5300112 Chuck Holder Shaft for Bench Drill Valex TR16B €65.25
5
 photo_cameraImage coming soon 5300113 WORK TABLE €58.71
6
 photo_cameraImage coming soon 5300111 WORK TABLE HOLDER €28.91
7
 photo_cameraImage coming soon 5300114 COLLAR €34.97
8
 photo_cameraImage coming soon 5300097 CRANK €6.09
9
 photo_cameraImage coming soon 5300115 RING RACK €11.57
10
 Rack for Drill Press Valex TR16AB - TR23B 5300138 Rack for Drill Press Valex TR16AB - TR23B €35.00
11
 photo_cameraImage coming soon 5300137 STAND AND FOOT €54.21
12
 photo_cameraImage coming soon 5300171 ANTIVIBRATION Ø40X30 MF M8X25 65SH €62.62
13
 photo_cameraImage coming soon 5300117 LEVER AND HANDLE €10.39
14
 photo_cameraImage coming soon 5300116 CHUCK SHAFT €28.00
15
 photo_cameraImage coming soon 5300118 ECCENTRIC €10.39
16
 Recoil Spring for Drill Press Valex TR16B - TR16AB 5300127 Recoil Spring for Drill Press Valex TR16B - TR16AB €14.90
17
 Switch for Floor Bench Drills Valex TR16RB 7400635 Switch for Floor Bench Drills Valex TR16RB €29.61
18
 photo_cameraImage coming soon 7400637 MICRO SHAFT PULLEY €17.76
19
 Motor Pulley for Floor Bench Drill Valex TR16B 5300120 Motor Pulley for Floor Bench Drill Valex TR16B €25.35
20
 photo_cameraImage coming soon 5300122 PULLEY €19.84
21
 photo_cameraImage coming soon 5300123 DRIVEN PULLEY €24.57
22
 V Belts for Bench Drill Press Valex TRTR16B - TR16AB 3000260 V Belts for Bench Drill Press Valex TRTR16B - TR16AB €20.25
23
 photo_cameraImage coming soon 5300121 PULLEY CASE €24.57
24
 Motor 230V Ass'y for Drill Press Valex TR16B 7400636 Motor 230V Ass'y for Drill Press Valex TR16B €169.65
25
 Chuck Guard for Bench Drill Valex TR16B 3000256 Chuck Guard for Bench Drill Valex TR16B €46.86
26
 photo_cameraImage coming soon 5300129 LIFTING GEAR €10.51
27
 photo_cameraImage coming soon 5300158 SHAFT PULLEY €12.55
501
 Vice Cross for Column Drills 125 mm 1451574 Vice Cross for Column Drills 125 mm €150.16
502
 photo_cameraImage coming soon 1451583 DRILL VICE 100MM €49.19
503
 Drill Press Keyless Drill Chuck With Lock mm 3-16 1461736 Drill Press Keyless Drill Chuck With Lock mm 3-16 €58.20

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Valex Spare Parts for Drill Press TR16AB - 1421071

Valex original spare parts for to replace broken parts for to fix Drill Press TR16AB - 1421071.

Fix Your Drill Press TR16AB - 1421071. All Spares are Ready For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

The following list , look for the Drill Press and respective spare parts.
Drill Press TR16AB - 1421071

DRILL PRESS TR16AB - 1421071
# Description Part Num.
1 SWITCH BOX 3000259
2 MORSE CONE 2/B16 5300108
3 CHUCK 5300096
4 CHUCK SHAFT 5300112
5 WORK TABLE 5300113
6 WORK TABLE SUPPORT 5300111
7 TABLE COLLAR 5300114
8 CRANK 5300097
9 RACK RING 5300115
10 RACK 5300138
11 STAND AND FOOT 5300137
12 BASE 5300171
13 LEVER AND HANDWHEEL 5300117
14 CHUCK SHAFT MOVEMENT 5300116
15 ECCENTRIC 5300118
16 RETURN SPRING 5300127
17 SWITCH 7400635
18 MICRO PULLEYS HOUSING 7400637
19 MOTOR PULLEY 5300120
20 SWIVEL PULLEY 5300122
21 DRIVE PULLEY 5300123
22 BELTS 3000260
23 CARTER PULLEYS 5300121
24 MOTOR 7400636
25 SCHUCK PROTECTION + MICRO 3000256
26 LIFTING GEARS 5300129
27 SHAFT PULLEY 5300158
501 CROSS VICE 125 MM 1451574
502 VICE FOR DRILL 100MM 1451583
503 KEYLESS CHUCK 16MM 1461736

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Valex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Valex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TR16AB - 1421071
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N VALEX:
VALEX S/N STARTS WITH (14....) AND HAVE 7 DIGITS

Specific References

New

Download

Drawing Valex TR16AB 1421071

Drawing Valex TR16AB 1421071

Download (196.19KB)
