Valex s.p.a.

Valex Spare Parts for Drill Press TR13R

SKU: Valex TR13R - 1421061
€35.38
VAT included

Valex Spare Parts for Drill Press TR13R

VALEX Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Drill Press TR13 R - 1421061.
Valex Spare Parts for Drill Press TR13R
  • Online only
  • Valex Spare Parts for Drill Press TR13R
  • Valex Spare Parts for Drill Press TR13R
Valex s.p.a.

Valex Spare Parts for Drill Press TR13R

SKU: Valex TR13R - 1421061 Condition: New
€35.38
VAT included

Valex Spare Parts for Drill Press TR13R

VALEX Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Drill Press TR13 R - 1421061.
settings 17 spare parts

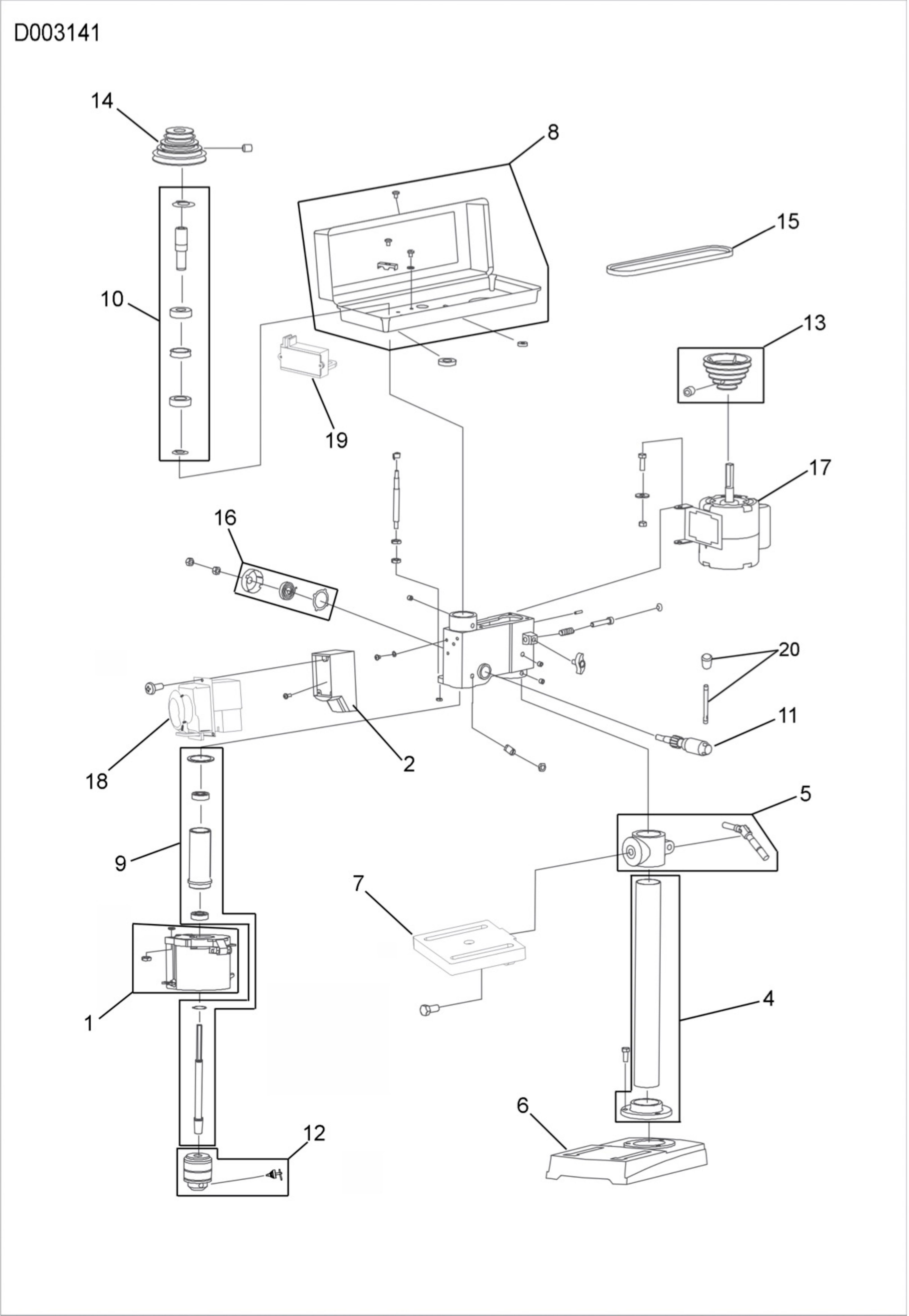

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N VALEX:: VALEX S/N STARTS WITH (14....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
17 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Chuck Guard for Bench Drill Valex TR13R 3000063 Chuck Guard for Bench Drill Valex TR13R €24.49
2
 photo_cameraImage coming soon 3051338 SWITCH BOX X TR13R €8.92
4
 photo_cameraImage coming soon 5010406 COLUMN FOR DRILL €15.12
6
 photo_cameraImage coming soon 5030228 BASE X TR 13 R €23.01
7
 photo_cameraImage coming soon 5030230 WORK PLAN X TR 13 R €17.60
10
 photo_cameraImage coming soon 5130262 HOLDER PULLEY SHAFT X TR13R €18.56
12
 Chuck 1,5-13 mm for Drill Press Valex TR13R 5150028 Chuck 1,5-13 mm for Drill Press Valex TR13R €25.88 Not available for order
13
 Motor Pulley for Floor Bench Drill Valex TR13R 3705100 Motor Pulley for Floor Bench Drill Valex TR13R €18.82
14
 Driven Pulley for Floor Bench Drill Valex TR13R 3705101 Driven Pulley for Floor Bench Drill Valex TR13R €17.75
15
 Trapezoidal Belt for Floor Bench Drill Valex TR13R 5190060 Trapezoidal Belt for Floor Bench Drill Valex TR13R €19.21
16
 photo_cameraImage coming soon 5450580 RETURN SPRING €10.80
17
 photo_cameraImage coming soon 7355090 ENGINE X TR13R €82.36
18
 Switch for Floor Bench Drills Valex TR16R 7400301 Switch for Floor Bench Drills Valex TR16R €52.66
19
 Microswitch for Floor Bench Drills Valex TR13-16-23-32 7400414 Microswitch for Floor Bench Drills Valex TR13-16-23-32 €20.96
20
 photo_cameraImage coming soon 5300073 LEVER AND HANDLE €9.92
501
 photo_cameraImage coming soon 1451577 VICE FOR DRILL 75MM €33.36
502
 Steel Keyless Drill Chuck With Lock mm 1-13 1460909 Steel Keyless Drill Chuck With Lock mm 1-13 €59.56

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Valex Spare Parts for Drill Press TR13R

VALEX Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Drill Press TR13 R - 1421061.

The following list , look for the Drill Press and respective spare parts.
Valex TR13R - 1421061
BENCH DRILL TR13R 1421061
# Description Part Num.
1 CHUCK PROTECTION TR13R 3000063
2 SWITCH BOX X TR13R 3051338
4 COLUMN FOR DRILL 5010406
5 COLLAR PORTA PIANO TR13R 5010407
6 BASE X TR 13 R 5030228
7 WORK PLAN X TR 13 R 5030230
10 HOLDER PULLEY SHAFT X TR13R 5130262
12 CHUCK + KEY X TRAPANO 5150028
13 MOTOR PULLEY 3705100
14 DRIVEN PULLEY 3705101
15 V-BELT 5190060
16 RETURN SPRING 5450580
17 ENGINE X TR13R 7355090
18 SWITCH X TR13 / TR16 R E / R 7400301
19 MICRO SWITCH 7400414
20 LEVER AND HANDLE 5300073
501 VICE FOR DRILL 75MM 1451577
502 KEYLESS CHUCK 13MM 1460909
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Valex websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Valex brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Valex TR13R - 1421061
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N VALEX:
VALEX S/N STARTS WITH (14....) AND HAVE 7 DIGITS

Specific References

New

Download

Diagram Valex TR13R

Diagram Valex TR13R

Download (180.42KB)
