Valex Spare Parts for Lathe Machine MP3 550
Genuine Valex spare parts for Lathe Machine MP3 550 - 1410309.

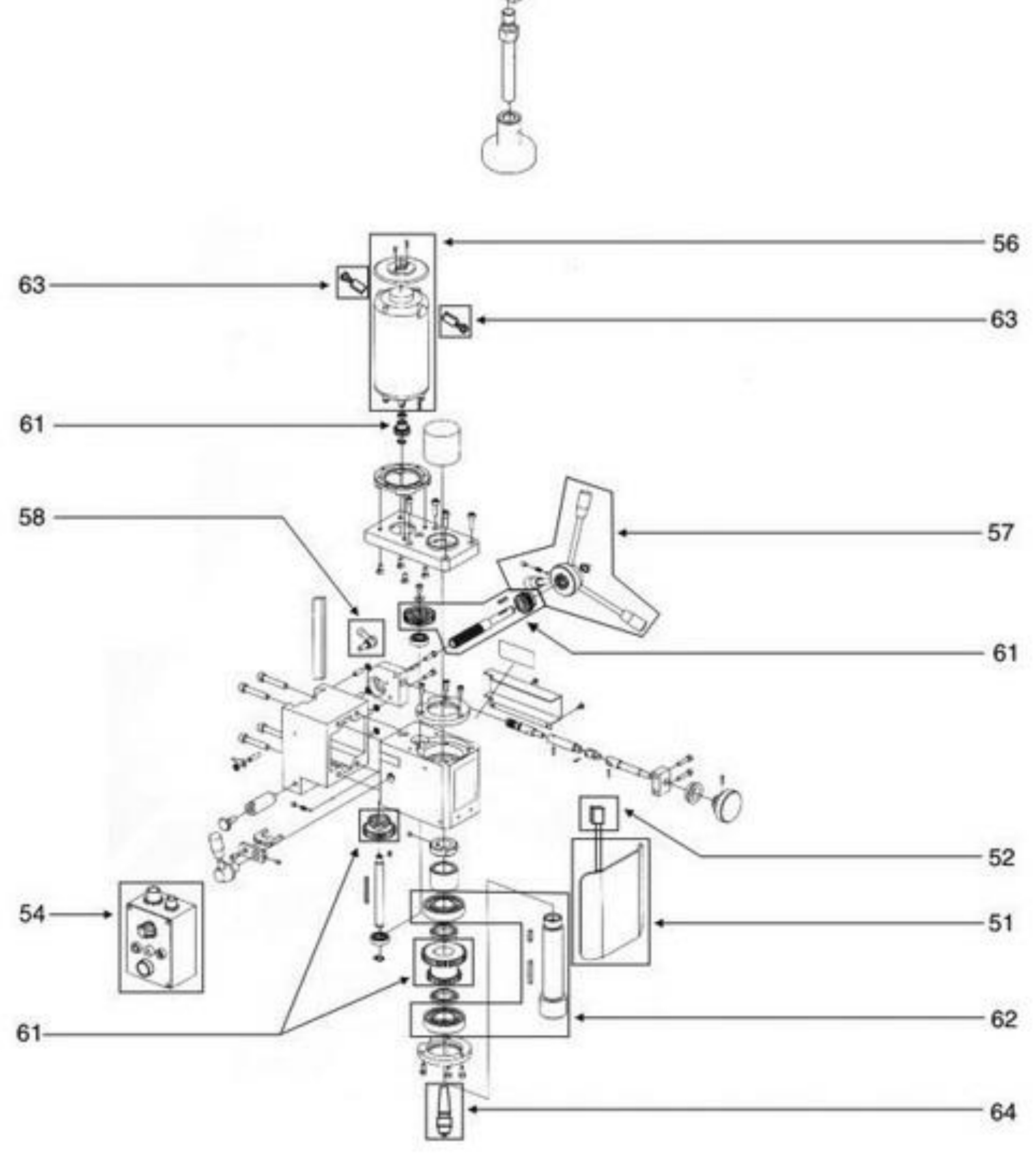

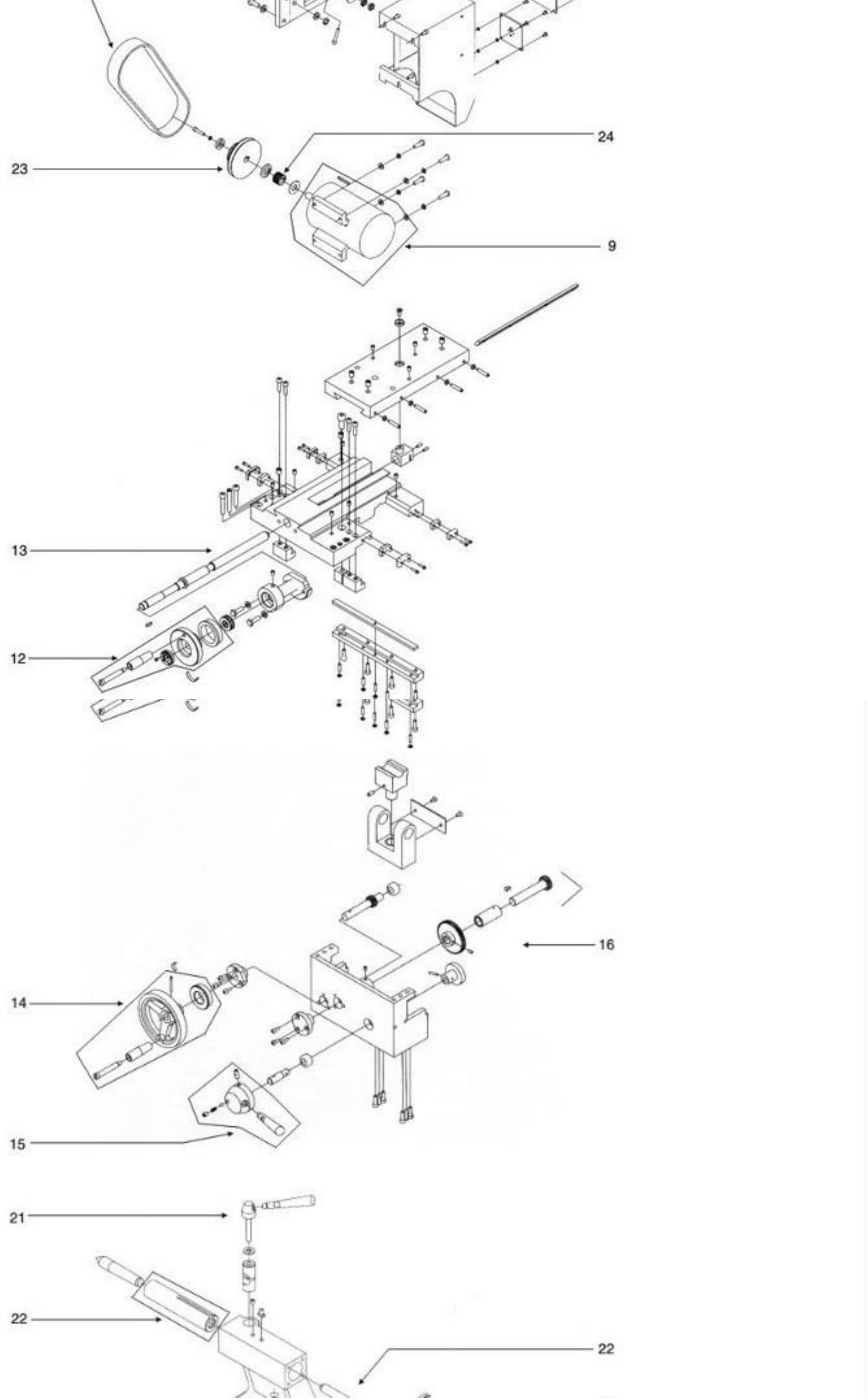

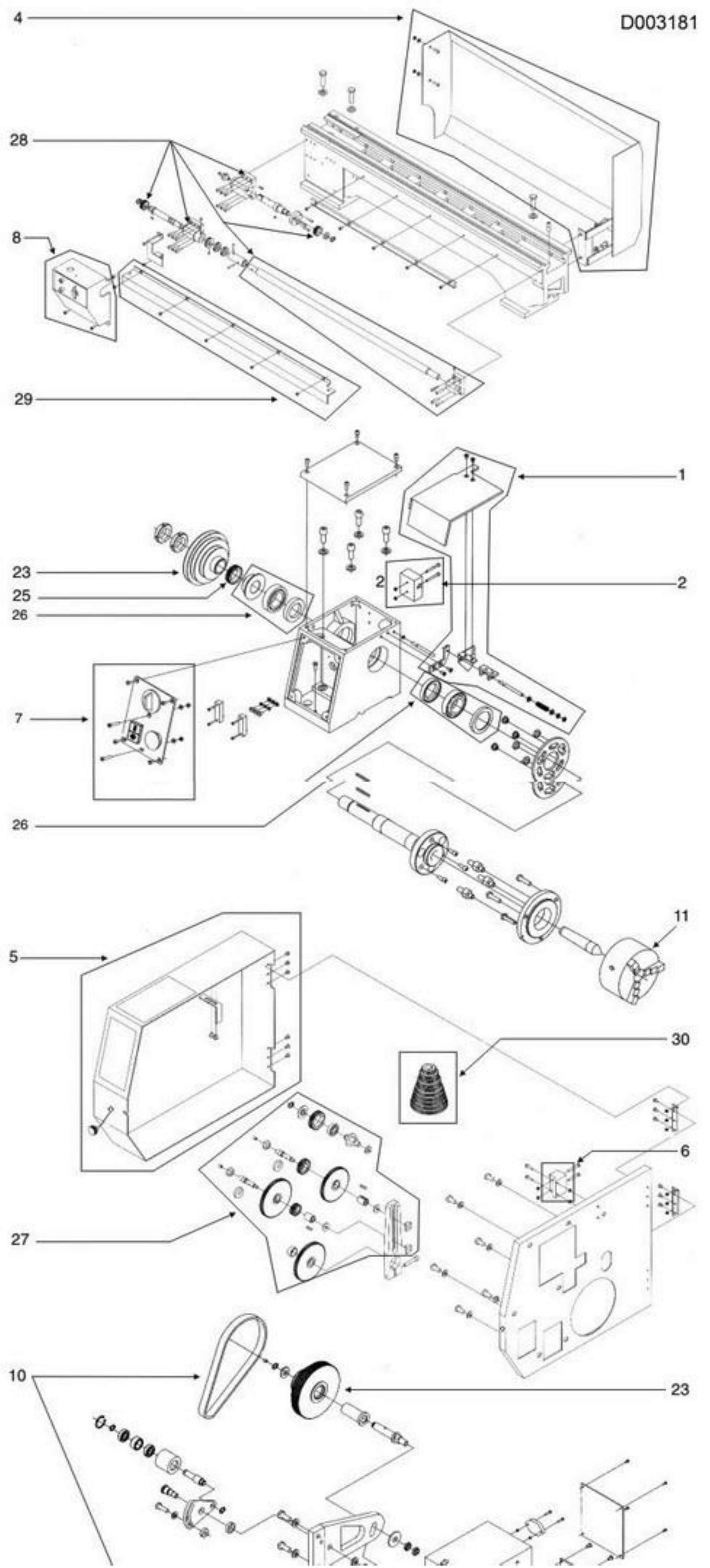

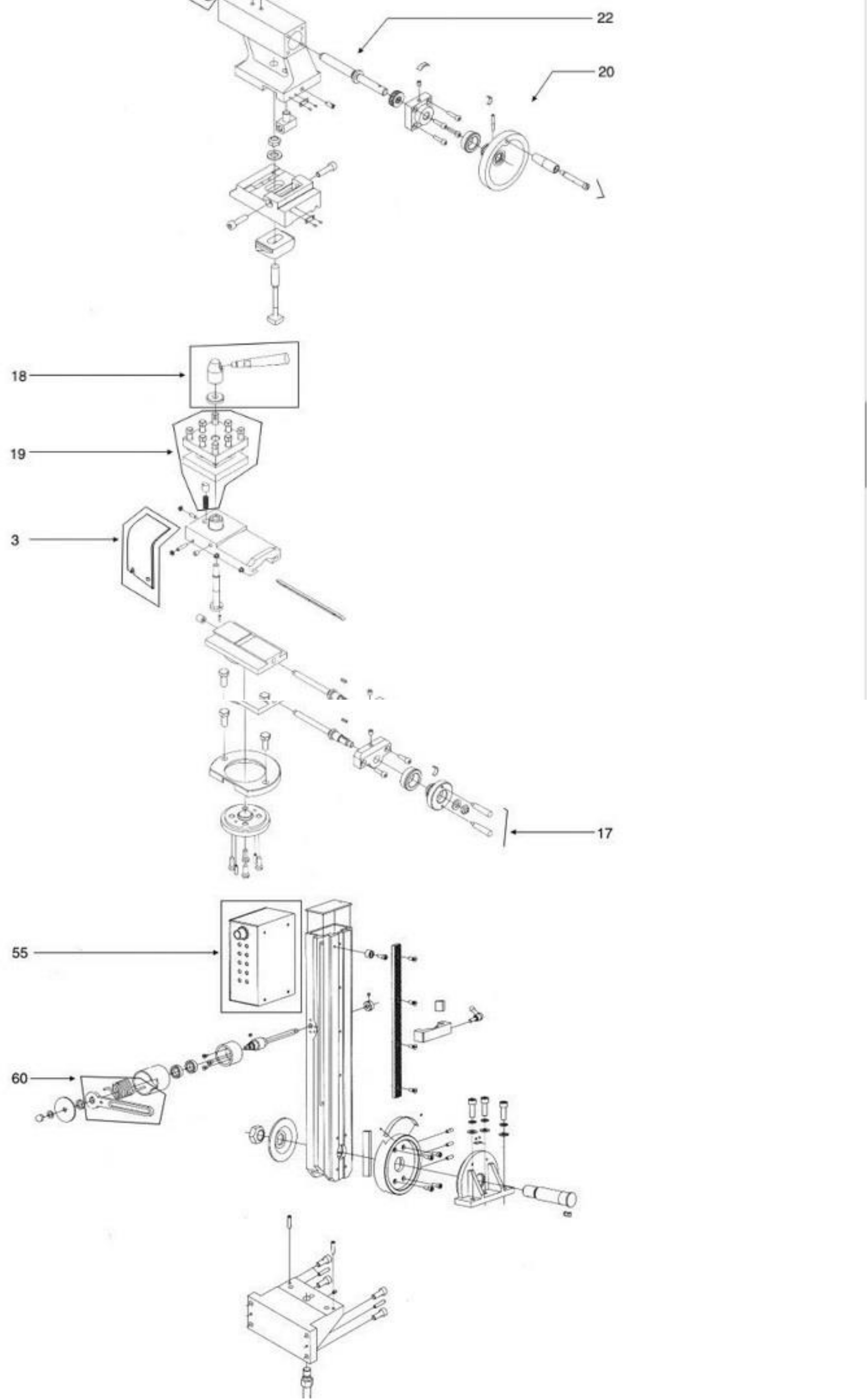

In the following list, look for the Lathe and the respective spare part.
MACHINE MULTIFUNCTION MP3 550-1410309
#
Description
Part Num.
1
PROTECTION CHUCK LATHE
3000201
2
MICROINTER.MANDRINO
7400450
3
PROTECTION TOWER
3000202
4
PROTECTION POST.
5050384
5
CARTER TRANSMISSION
5050385
6
MICROINTER.TRASMISSIONE
7400451
7
CONTROL PANEL TURNING
7400452
8
SWITCH
7400453
9
ENGINE LATHE
7350671
10
TORQUE BELTS
5190129
11
CHUCK 125 MM
5150052
12
WHEEL SLIDE
5951077
13
SCREW SLIDE Trans.
5030384
14
WHEEL CART
5951078
15
LEVER NUT
5951079
16
GROUP TRASMISS.CARRELLO
5030385
17
WHEEL SLIDE
5951080
18
FIXED LEVER TOWER
5951081
19
TOWER TOOL
5030386
20
FLYER TAILSTOCK
5951082
21
LEVER TAILSTOCK
5951083
22
BOAT + SCREW TAILSTOCK
5030387
23
GROUP 3 PULLEY
5180203
24
GEAR MOTOR
5173242
25
GEAR SHAFT MANDR.
5173243
26
BEARING ALB.MANDRINO
5200110
27
INPUT. TRANSMISSION LATHE
5173244
28
GROUP NUT
5030388
29
NUT PROTECTION
5050386
30
GEAR SET LATHE
5173245
51
PROTECTION DRILL CHUCK
3000203
52
Microswitch. CUTTER
7400454
53
PROTECTION TREE CUTTER
5050387
54
CONTROL PANEL CUTTER
7400455
55
SHEET EL.FRESA
7400456
56
MOTOR CUTTER
7350672
57
LEVER VERTICAL
5951084
58
LEVER LOCK
5951085
59
SPEED SHIFT LEVER
5951086
60
SPRING
5455019
61
INGR.TRASMISSIONE CUTTER
5173246
62
BOAT + BEARING CUTTER
5030389
63
COUPLE BRUSHES
7250181
64
CHUCK 13MM
5150053
KEYLESS CHUCK 13MM
1460909
KEYLESS CHUCK 16MM
1460910
TOOL 11 PCS. X CX150-250-350
1461360
TAILSTOCK ROTARY M2 X CX250 / 350
1461370
CHUCK WITH ATTACK CONE M2
1461372
LUNETTA 3 POINT X MP3-550
1461400
CHUCK 4 JAWS INDEPENDENT
1461401
TOWER PORTAUT. FAST 3 CART.
1461402
VICE TIGHTENING QUICK 100MM
1461403
CHUCK CUTTER PLIERS + 7
1461404
CUTTER TOOLS SERIES 7 PIECES
1461405
TOOLS SERIES 6 PIECES
1461425
CUTTER 2 PLATES DIAMETER 30MM
1461581
