Valex Spare Parts for Band Saw SN212P/775

SKU: Valex SN212P/775 - 1410131
€35.32
VAT included

Valex Spare Parts for Band Saw SN212P/775

Valex Genuine spare parts or replacement parts for to repair Band Saw for Wood SN212P/775 - 1410131.

Fix Your Band Saw for Wood SN212P. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Valex Spare Parts for Band Saw SN212P/775
  • Valex Spare Parts for Band Saw SN212P/775
  • Valex Spare Parts for Band Saw SN212P/775

Valex Spare Parts for Band Saw SN212P/775

SKU: Valex SN212P/775 - 1410131 Condition: New
€35.32
VAT included

Valex Spare Parts for Band Saw SN212P/775

Valex Genuine spare parts or replacement parts for to repair Band Saw for Wood SN212P/775 - 1410131.

Fix Your Band Saw for Wood SN212P. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 24 spare parts

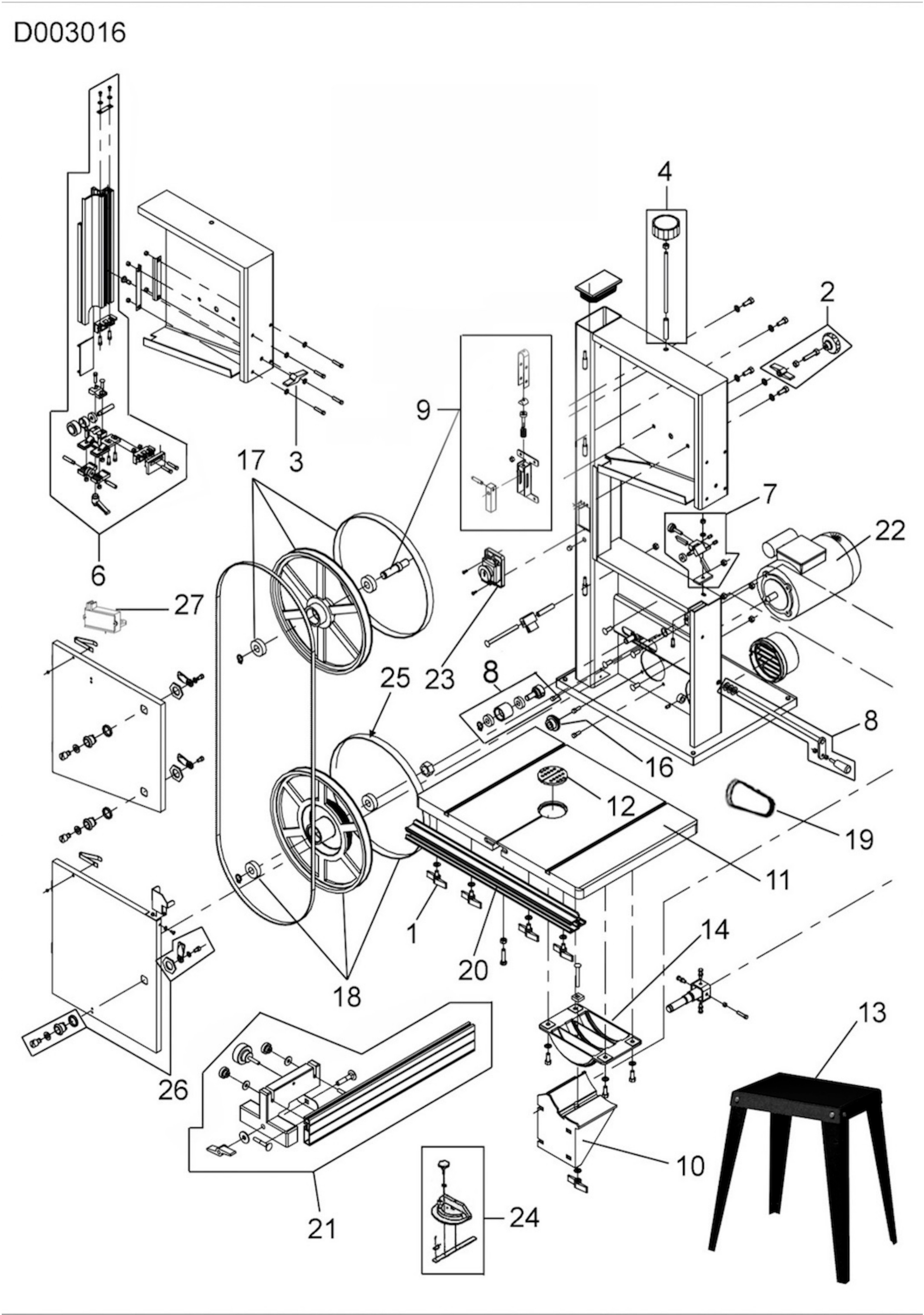

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N VALEX:: VALEX S/N STARTS WITH (14....) AND HAVE 7 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

24 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3200341 KNOB METRIC SCALE €4.35
2
photo_cameraImage coming soon 3200342 TILT KNOB €4.92
3
photo_cameraImage coming soon 3200343 UPPER BLADE GUIDE WHEEL €5.49
4
photo_cameraImage coming soon 3200344 KNOB BLADE TENSIONER €6.89
6
Upper Blade Guide for Wood Bandsaw Valex SN212P 5001085 Upper Blade Guide for Wood Bandsaw Valex SN212P €115.32 Not available for order
7
Lower Blade Guide for Wood Band Saw Valex SN212P 5001086 Lower Blade Guide for Wood Band Saw Valex SN212P €37.02 Not available for order
8
photo_cameraImage coming soon 5010413 ASSEMBLY IDLER SN212P €21.74
9
photo_cameraImage coming soon 5010414 MALE PULL BLADE CPL SN212P GROUP €5.03
10
Working Table Support for Wood Band Saw Valex SN212P 5031241 Working Table Support for Wood Band Saw Valex SN212P €55.26
11
photo_cameraImage coming soon 5031242 PLAN WORK ASSEMBLY X SN 212 P €95.57
12
Work Table Insert for Wood Band Saw Valex SN212P 5031243 Work Table Insert for Wood Band Saw Valex SN212P €7.68
13
photo_cameraImage coming soon 5031244 BASE €33.82
14
Work Bench Support for Wood Band Saw Valex SN212P 5031307 Work Bench Support for Wood Band Saw Valex SN212P €36.72
16
photo_cameraImage coming soon 5180136 PULLEY ENGINE X SN 212 P €18.01
17
photo_cameraImage coming soon 5180137 PULLEY UPPER X SN 212 P €47.84
18
photo_cameraImage coming soon 5180138 LOWER PULLEY X SN 212 P €79.87
19
Belt Spare Part for Bandsaw Valex SN212P - 1410131 5190147 Belt Spare Part for Bandsaw Valex SN212P - 1410131 €24.40
20
photo_cameraImage coming soon 5950870 METRIC SCALE FOR CUTTING €27.86
21
photo_cameraImage coming soon 5950871 PARALLEL CUTTING GUIDE €38.49
23
photo_cameraImage coming soon 7400463 SWITCH €59.87
24
Mitre Gauge for Wood Band Saw Valex SN212P 5951065 Mitre Gauge for Wood Band Saw Valex SN212P €44.62
25
Pulley Rubber Rigs for Wood Band Saw Valex SN212P - 1410131 5190146 Pulley Rubber Rigs for Wood Band Saw Valex SN212P - 1410131 €29.24
26
VALEX Band Saw SN212P Door Lock 5190150 VALEX Band Saw SN212P Door Lock €24.43
500
photo_cameraImage coming soon 1452640 BAND 2264X0,65MM €28.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Valex Spare Parts for Band Saw SN212P/775

Valex Genuine spare parts or replacement parts for to repair Band Saw for Wood SN212P/775 - 1410131.

In the following table, look for the model of Band Saw for Wood and the respective parts of the code.
Valex SN212P/775 - 1410131

Band Saw SN212P/775
# Part Num. Description
1 3200341 METRIC HANDWHEEL
2 3200342 TILTING WHEEL
3 3200343 UPPER BLADE GUIDE WHEEL
4 3200344 HANDWHEEL MALE PULL BLADE
6 5001085 UPPER BLADE GUIDE X SN212 P
7 5001086 LOWER BLADE GUIDE X SN212 P
8 5010413 BELT TENSIONER SN212P
9 5010414 MALE PULL BLADE CPL SN212P GROUP
10 5031241 WORKING TABLE SUPPORT X SN 212P
11 5031242 COMPLETE TABLE X SN 212 P
12 5031243 WORK TABLE INSERT
13 5031244 BASE
14 5031307 WORK TABLE HOLDER
16 5180136 PULLEY MOTOR X SN 212 P
17 5180137 UPPER PULLEY X SN 212 P
18 5180138 LOWER PULLEY X SN 212 P
19 5190147 BELT
20 5950870 METRIC SCALE FOR CUTTING
21 5950871 GUIDE FOR PARALLEL CUTTING
22 7352019 MOTOR X SN212P - NO LONGER AVALAIBLE
23 7400463 SWITCH
24 5951065 GONIOMETER
25 5190146 RIG SET
26 5190150 LOCK
500 1452640 BAND SAW FOR WOOD 2264X0.65MM
