Telwin s.p.a.

Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC

SKU: TECHNOLOGY TIG 222 AC/DC 852031
€7.84
VAT included

Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for inverter TIG, TECHNOLOGY TIG 222 AC/DC - 852031.

TECHNOLOGY TIG 222 AC/DC - 85203
Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC
  • Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC
  • Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC - Drawing
  • Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC - Torch Drawing
  • Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC - Wire Diagram
Telwin s.p.a.

Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC

SKU: TECHNOLOGY TIG 222 AC/DC 852031 Condition: New
€7.84
VAT included

Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for inverter TIG, TECHNOLOGY TIG 222 AC/DC - 852031.

TECHNOLOGY TIG 222 AC/DC - 85203
settings 79 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
77 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

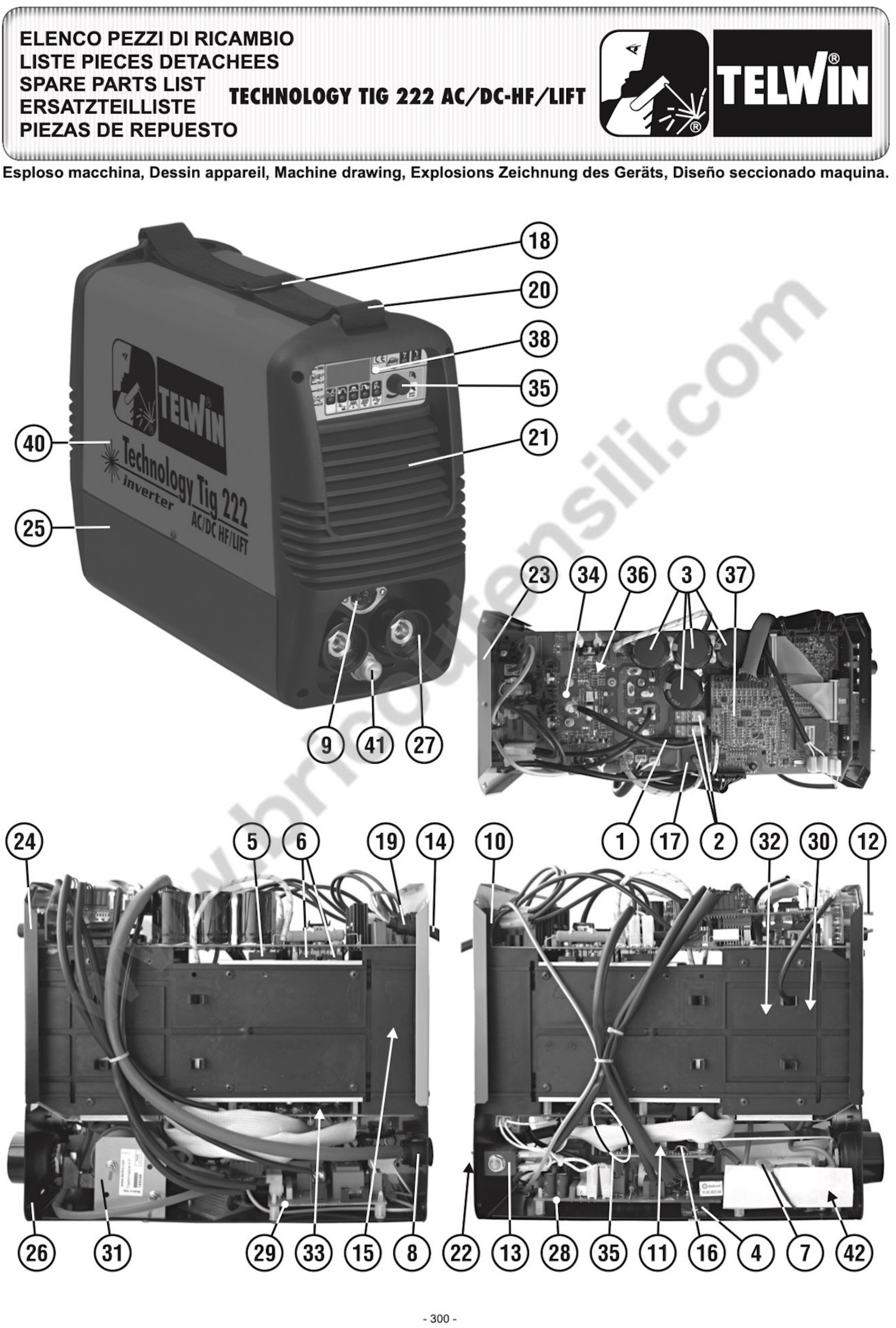

Esploso pagina 1
Pos. Item Price Buy
1
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
2
 photo_cameraImage coming soon 112342 RELAY ' €2.63
3
 Capacitor for Inverter Telwin Force 145 - Technology 186 HD 112514 Capacitor for Inverter Telwin Force 145 - Technology 186 HD €9.02
4
 photo_cameraImage coming soon 113585 SCR €41.10
4
 photo_cameraImage coming soon 802220 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM €17.75
4
 photo_cameraImage coming soon 802222 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM €17.75
4
 photo_cameraImage coming soon 802232 KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM €53.95
4
 photo_cameraImage coming soon 802233 KIT 10 ELETTR.TUNGSTENO CERIUM D.3,2 MM €79.94
4
 photo_cameraImage coming soon 802235 KIT 10 ELETTR.TUNGSTENO PURE D.1,6 MM €21.71
4
 photo_cameraImage coming soon 802236 KIT 10 ELETTR.TUNGSTENO PURE D.2,4 MM €46.13
4
 photo_cameraImage coming soon 802237 KIT 10 ELETTR.TUNGSTENO PURE D.3,2 MM €79.94
4
 photo_cameraImage coming soon 802238 KIT 10 ELETTR.TUNGSTENO PURE D. 4 MM €164.46
5
 Single-Phase Rectifier for Inverter Telwin 144-164 116346 Single-Phase Rectifier for Inverter Telwin 144-164 €6.82
6
 photo_cameraImage coming soon 116521 Igbt €206.74
7
 photo_cameraImage coming soon 120176 CAPACITOR €2.15
8
 photo_cameraImage coming soon 120513 CONTROL CABLE €23.86
9
 photo_cameraImage coming soon 120514 WIRING INTAKE €21.71
10
 Green Switch for Inverter Telwin Tecnica 211/S-Technology 236 HD 121248 Green Switch for Inverter Telwin Tecnica 211/S-Technology 236 HD €5.42
11
 photo_cameraImage coming soon 121342 THERMOSTAT €7.64
12
 Telwin Inverter TIG Welding Machines Plug 3P 722999 Telwin Inverter TIG Welding Machines Plug 3P €13.68
13
 Electrovalve for Inverter Telwin Technology-Technomig-Telmig 122035 Electrovalve for Inverter Telwin Technology-Technomig-Telmig €18.82
14
 photo_cameraImage coming soon 132158 CABLE ALIM. 3G2.5 2 M €7.41
15
 Fan for Inverter Superior 152214 Fan for Inverter Superior €29.08
16
 photo_cameraImage coming soon 152219 SHUNT €4.22
17
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
18
 photo_cameraImage coming soon 322065 BELT BUCKLE €2.31
18
 photo_cameraImage coming soon 722944 BODY TORCH €36.73
19
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
19
 photo_cameraImage coming soon 802249 KIT 3 ELECTRODE DIFFUSERS D.1 MM €7.78
19
 photo_cameraImage coming soon 802250 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM €7.78
19
 photo_cameraImage coming soon 802251 KIT 3 ELECTRODE DIFFUSERS D.2,4 MM €7.78
19
 photo_cameraImage coming soon 802252 KIT 3 SPEAKER ELECTRODE D.3,2 MM €6.68
19
 photo_cameraImage coming soon 802253 KIT 3 SPEAKER ELECTRODE D.4 MM €6.68
20
 photo_cameraImage coming soon 322408 BELT €3.12
21
 Telwin Superior Plasma 60 HF Front Panel 322508 Telwin Superior Plasma 60 HF Front Panel €16.58
23
 photo_cameraImage coming soon 638710 BACK PANEL €14.05
24
 photo_cameraImage coming soon 644884 FRONT PANEL €14.05
25
 photo_cameraImage coming soon 980931 FAN GUIDE €9.03
26
 photo_cameraImage coming soon 645346 BOTTOM €10.99
27
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
28
 photo_cameraImage coming soon 980467 H.F. CARD KIT €114.00
29
 photo_cameraImage coming soon 980472 TORCH PUSHBUTTON CARD KIT €50.90
30
 photo_cameraImage coming soon 980509 POWER TRANSFORMER KIT €98.08
31
 photo_cameraImage coming soon 980510 HF TRANSFORMER KIT €71.81
32
 photo_cameraImage coming soon 980511 OUTPUT INDUCTANCE KIT €42.77
33
 photo_cameraImage coming soon 980512 3 DIODES KIT €88.85
34
 photo_cameraImage coming soon 980515 PRIMARY PCB KIT €350.40
35
 photo_cameraImage coming soon 980516 SECUNDARY PCB KIT €534.46
36
 photo_cameraImage coming soon 980517 DIODES-IGBT-RES. KIT €37.57
37
 Telwin TECHNOLOGY TIG 222 Control Board Kit 980518 Telwin TECHNOLOGY TIG 222 Control Board Kit €218.34
38
 photo_cameraImage coming soon 980519 FRONT PANEL + CARD SET €100.10
39
 photo_cameraImage coming soon 980520 ENCODER KNOB KIT €9.02
40
 photo_cameraImage coming soon 980521 COVER KIT €10.36
41
 photo_cameraImage coming soon 990120 GAS PIPE CONNECTOR KIT €5.82
42
 photo_cameraImage coming soon 990764 KIT SUPPORT CONTROL PCB €48.86
43
 photo_cameraImage coming soon 123467 CABLE 25 MMQ 3 M €21.05
44
 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50
45
 Plug DX 50 for Telwin Welding Machine 712040 Plug DX 50 for Telwin Welding Machine €6.16
46
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
47
 Telwin Gas Regulators for Refilable Bottles 722119 Telwin Gas Regulators for Refilable Bottles €58.24
48
 photo_cameraImage coming soon 742427 ST26 TIG TORCH 4 M 220 A €159.63
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

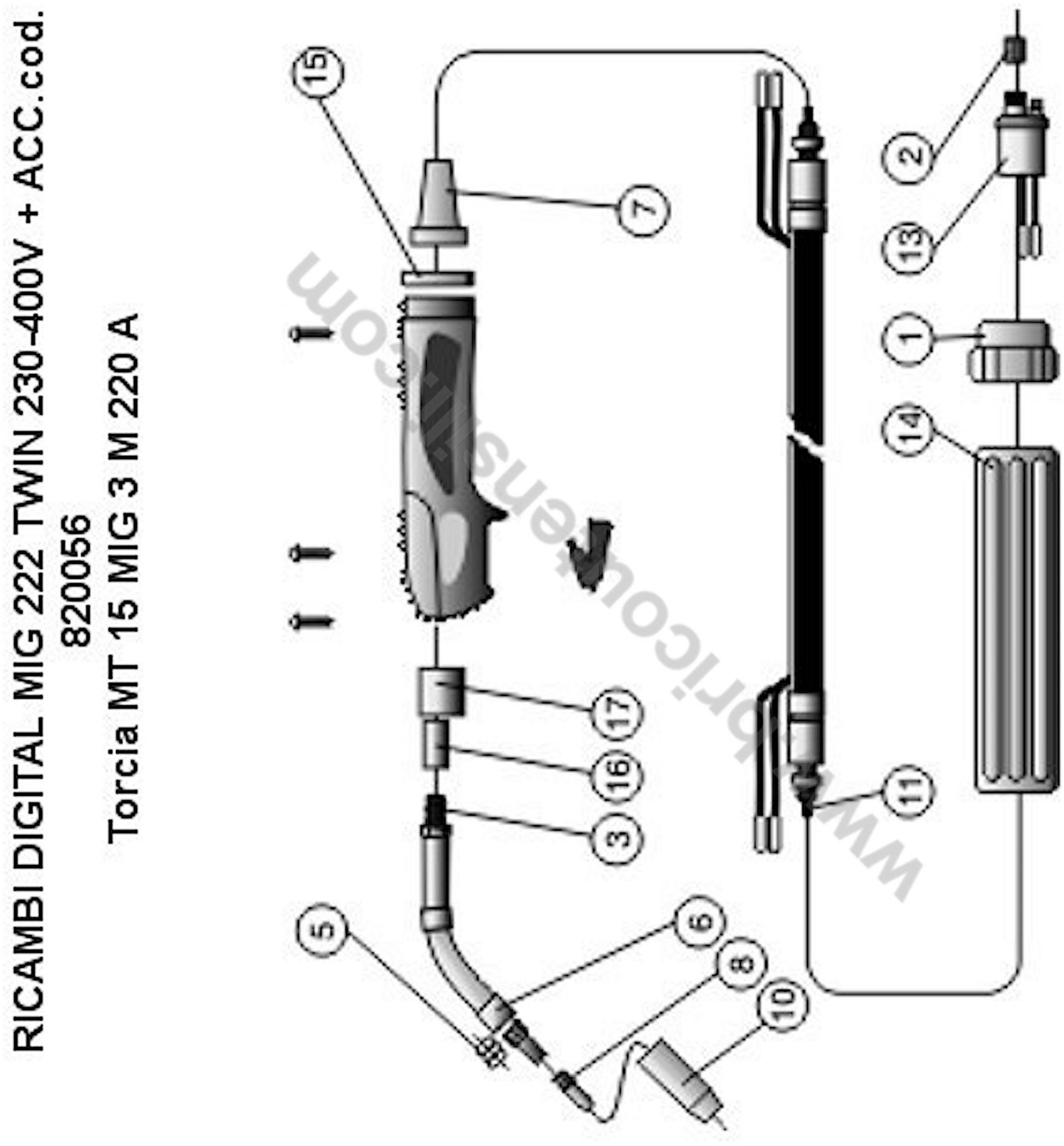

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 802244 KIT 10 CERAMIC NOZZLES NR.4 €9.89
1
 photo_cameraImage coming soon 802245 KIT 10 CERAMIC NOZZLES NR.6 €9.89
1
 photo_cameraImage coming soon 802246 KIT 10 CERAMIC NOZZLES NR.7 €9.89
1
 photo_cameraImage coming soon 802247 KIT 10 CERAMIC NOZZLES NR.8 €7.61
1
 photo_cameraImage coming soon 802248 KIT 10 CERAMIC NOZZLES NR.10 €7.61
2
 Insulator SR 17 for Telwin TIG Torch 722248 Insulator SR 17 for Telwin TIG Torch €8.21
5
 photo_cameraImage coming soon 802239 KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM €3.36
5
 photo_cameraImage coming soon 802240 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM €3.61
5
 photo_cameraImage coming soon 802241 KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM €3.61
5
 photo_cameraImage coming soon 802242 KIT 3 CLAMP ELECTRODE D.3,2 MM SERRA €3.12
5
 photo_cameraImage coming soon 802243 KIT 3 CLAMP ELECTRODE D.4 MM SERRA €3.12
6
 Short Hood SR 17 for Telwin TIG Torch 722192 Short Hood SR 17 for Telwin TIG Torch €4.03
7
 Long Hood SR 17 for Telwin TIG Torch 722193 Long Hood SR 17 for Telwin TIG Torch €17.14
14
 PCB + Button for Torches Telwin TIG 452089 PCB + Button for Torches Telwin TIG €19.37
16
 Long Hood O-Ring 2037 for Telwin TIG Torch 722061 Long Hood O-Ring 2037 for Telwin TIG Torch €0.97
17
 Button for Torches Telwin TIG 742042 Button for Torches Telwin TIG €2.63
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

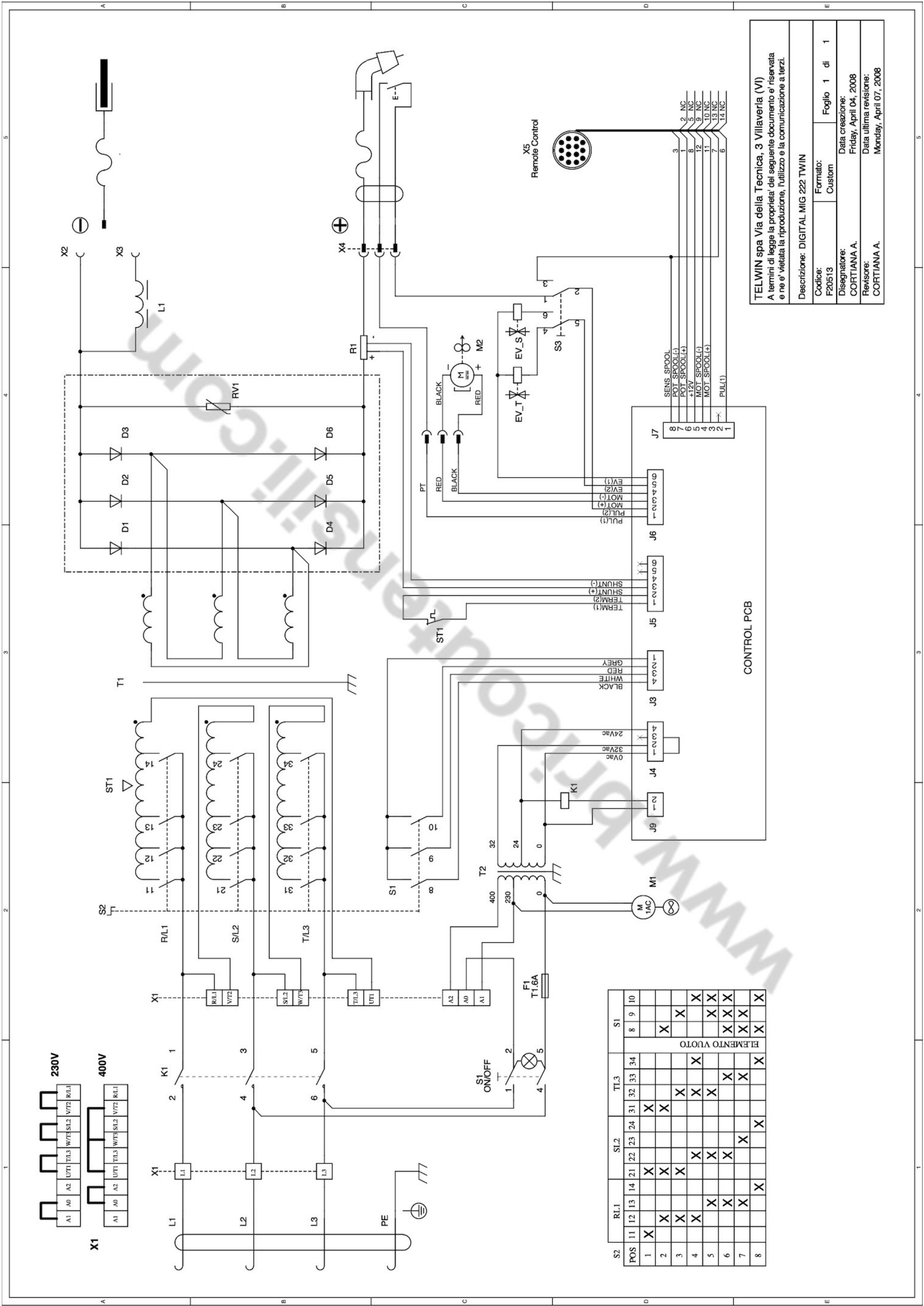

Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Inverter Welding TECHNOLOGY TIG 222 AC/DC

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for inverter TIG, TECHNOLOGY TIG 222 AC/DC - 852031.

In the following table, look for the model of the drill and the respective parts of the code.
TECHNOLOGY TIG 222 AC/DC - 85203
TECHNOLOGY TIG 222 AC/DC-HF/LIFT 230V-852031 Pag.1
# Description Part Num.
1 RESISTANCE 112048
2 RELAIS 112342
3 CAPACITOR 112514
4 SCR 113585
5 RECTIFIER 116346
6 IGBT 116521
7 CAPACITOR 120176
8 CONTROL CABLE 120513
9 SOCKET CABLE 120514
10 SWITCH 121248
11 THERMOSTAT 121342
13 ELECTROVALVE 122035
14 MAINS CABLE 3G2.5 2 M 132158
15 FAN 152214
16 SHUNT 152219
17 CURRENT TRANSFORMER 152230
18 BELT BUCKLE 322065
19 CABLE BUSHING 322112
20 BELT 322408
21 FRAME - FRONT PANEL 322508
22 PIPE FITTING 602052
23 BACK PANEL 638710
24 FRONT PANEL 644884
25 BOTTOM KIT 980931
26 BOTTOM 645346
27 SOCKET DX 50 712036
28 H.F. CARD KIT 980467
29 TORCH PUSHBUTTON CARD KIT 980472
30 POWER TRANSFORMER KIT 980509
31 HF TRANSFORMER KIT 980510
32 OUTPUT INDUCTANCE KIT 980511
33 3 DIODES KIT 980512
34 PRIMARY PCB KIT 980515
35 SECUNDARY PCB KIT 980516
36 DIODES-IGBT-RES. KIT 980517
37 CONTROL BOARD KIT 980518
38 FRONT PANEL + CARD SET 980519
39 ENCODER KNOB KIT 980520
40 COVER KIT 980521
41 GAS PIPE CONNECTOR KIT 990120
42 KIT SUPPORT CONTROL PCB 990764
43 CABLE 25 MMQ 3 M 123467
44 ARGON GAS BOTTLE IT ADAPTOR 432036
45 PLUG DX 50 712040
46 TOLEDO 300 WORK CLAMP 712231
47 GAS REGULATOR 2 MANOMETERS 722119
48 ST26 TIG TORCH 4 M 220 A 742427
TIG TORCH TECHNOLOGY TIG 222 AC/DC-HF/LIFT Pag.2
1 KIT 10 CERAMIC NOZZLES NR.7 802246
1 KIT 10 CERAMIC NOZZLES NR.6 802245
1 KIT 10 CERAMIC NOZZLES NR.8 802247
1 KIT 10 CERAMIC NOZZLES NR.10 802248
1 KIT 10 CERAMIC NOZZLES NR.4 802244
2 INSULATOR 722248
4 KIT 10 PURE TUNGSTEN ELECTR. D.1,6 MM 802235
4 KIT 10 PURE TUNGSTEN ELECTR. D. 4 MM 802238
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM 802222
4 KIT 10 PURE TUNGSTEN ELECTR. D.3,2 MM 802237
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.3,2 MM 802233
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM 802220
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM 802232
4 KIT 10 PURE TUNGSTEN ELECTR. D.2,4 MM 802236
5 KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM 802239
5 KIT 3 ELECTRODE HOLDER CLAMPS D.4 MM 802243
5 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM 802240
5 KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM 802241
5 KIT 3 ELECTRODE HOLDER CLAMPS D.3,2 MM 802242
6 SHORT CAP 722192
7 LONG CAP 722193
9 CONNECTION KIT 50 981443
12 3P PLUG 722999
14 PUSHBOTTON CONTACT 452089
16 OR RING 722061
17 PUSHBOTTON 742042
18 TORCH BODY 722944
19 KIT 3 ELECTRODE DIFFUSERS D.3,2 MM 802252
19 KIT 3 ELECTRODE DIFFUSERS D.2,4 MM 802251
19 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM 802250
19 KIT 3 ELECTRODE DIFFUSERS D.4 MM 802253
19 KIT 3 ELECTRODE DIFFUSERS D.1 MM 802249
TIG WELDING KIT TECHNOLOGY TIG 222 AC/DC-HF/LIFT Pag.3
0 ST26 TIG TORCH 4 M 220 A 742427
0 CABLE 25 MMQ 3 M 123467
0 ARGON GAS BOTTLE IT ADAPTOR 432036
0 GAS REGULATOR 2 MANOMETERS 722119
0 PLUG DX 50 712040
0 TOLEDO 300 WORK CLAMP 712231
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TECHNOLOGY TIG 222 AC/DC 852031
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

TECHNOLOGY TIG 222 AC/DC Drawing

TECHNOLOGY TIG 222 AC/DC Drawing

Download (1.03MB)

You might also like

Single-Phase Rectifier for Inverter Telwin 144-164
Telwin s.p.a. SKU: 116346
Single-Phase Rectifier for Inverter Telwin 144-164
Single-Phase Rectifier for Inverter Telwin 144-164 Genuine spare Telwin, Single Phase Rectifier for Inverter Telwin ADVANCE 187 MV/PFC - TECNICA 144-164 230V - TECNICA TIG 160 DC-HF/LIFT - TECHNOLOGY TIG 185 DC. For the...
AVAILABLE €6.82
Details
Dinse MMQ 25 DX for Telwin Welding Machine
Telwin s.p.a. SKU: 712000
Socket MMQ 25 DX for Telwin Welding Machine
Socket MMQ 25 DX for Telwin Welding Machine Genuine part TELWIN, Panel Fixed Socket MMQ 25N DX, for Inverter Welding Machines Force 145-165-195 - Technica 144-164-151-171-211. Part for the folowing products: - FORCE 145 230V -...
AVAILABLE €2.63
Details
Long Hood SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722193
Long Hood SR 17 for Telwin TIG Torch
Long Hood SR 17 for Telwin TIG Torch Original spare Telwin, Long Hood SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
Last items in stock €17.14
Details
Torch Body SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722204
Torch Body SR 17 for Telwin TIG Torch
Torch Body SR 17 for Telwin TIG Torch Original replacement part Telwin, Assembly Torch Body SR 17 for Torches TIG ERGO. Part for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH...
AVAILABLE €52.85
Details
Short Hood SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722192
Short Hood SR 17 for Telwin TIG Torch
Short Hood SR 17 for Telwin TIG Torch Original replacement part Telwin, Short Hood SR 17 for Torches TIG ERGO. Part for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH...
Last items in stock €4.03
Details
Insulator SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722248
Insulator SR 17 for Telwin TIG Torch
Insulator SR 17 for Telwin TIG Torch Original spare Telwin, Insulator SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
AVAILABLE €8.21
Details
Long Hood O-Ring 2037 for Telwin TIG Torch
Telwin s.p.a. SKU: 722061
Long Hood O-Ring 2037 for Telwin TIG Torch
Long Hood O-Ring 2037 for Telwin TIG Torch Original spare Telwin, Long Hood O-Ring 2037 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 185 DC 230V - TECHNOLOGY TIG 230 DC-HF/LIFT 230V - TECHNOLOGY TIG 182...
AVAILABLE €0.97
Details
Kit IGBT + Diode for Inverter Telwin TECHNOLOGY 188-TIG 230
Telwin s.p.a. SKU: 990918
Kit IGBT + Diode for Inverter Telwin TECHNOLOGY 188-TIG 230
Kit IGBT + Diode for Inverter Telwin TECHNOLOGY 188-TIG 230 Original spare parts Telwin, Kit IGBT + Diode for Inverter machines Telwin TECHNOLOGY 188 CE/GE - TECHNOLOGY TIG 230 DC-HF/LIFT. Part for the following items: - ...
Last items in stock €56.09
Details
Kit Transformer HF for Welding Telwin TECHNOLOGY TIG 185-230
Telwin s.p.a. SKU: 980321
Kit Transformer HF for Welding Telwin TECHNOLOGY TIG 185-230
Kit Transformer HF for Welding Telwin  TECHNOLOGY TIG 185-230 Original Spare Parts Telwin, Kit Transformer HF for Welding Telwin TECHNOLOGY TIG 185-230. Part for the following article : - TECHNOLOGY TIG 185 DC 230V-815956 -...
Last items in stock €86.76
Details
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT
Telwin s.p.a. SKU: 113603
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT Original spare parts Telwin, IGBT for Inverter Machines Telwin TECHNOLOGY TIG 182 - INVERPULSE 425 - 625 MIG/TIG/MMA - SUPERIOR TIG 322 - 422 AC/DC-HF/LIFT Part for the...
AVAILABLE €12.86
Details
Back-Cover for Inverter Telwin Technology Tig 182-230
Telwin s.p.a. SKU: 322694
Back-Cover for Inverter Telwin Technology Tig 182-230
Back-Cover for Inverter Telwin Technology Tig 182-230 Original spare Telwin, Black Back Cover for welding inverter TECHNOLOGY TIG 182 AC/DC-HF/LIFT - TIG 230 DC-HF/LIFT - TECHNOLOGY 236 HD - ALUCAR 5100...
Last items in stock €16.58
Details
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex
Telwin s.p.a. SKU: 121394
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex Telwin Original Part, Potentiometer Knob for Inverter Welding Mastermig 232 Duplex - echnomig 150 DUAL SYNERGIC - TECNICA TIG 160 DC-HF/LIFT. Part for the following products:...
AVAILABLE €0.40
Details
Telwin Inverter TIG Welding Machines Plug 3P
Telwin s.p.a. SKU: 722999
Telwin Inverter TIG Welding Machines Plug 3P
Telwin Inverter TIG Welding Machines Plug 3P Genuine parts Telwin, Plug 3P for Telwin Inverter TIG Welding Machines. Parts for the following products: - TECNICA TIG 160 DC-HF - SUPERIOR TIG 421 DC - SUPERTIG 200 AC/DC-HF -...
Last items in stock €13.68
Details
Telwin Superior Plasma 60 HF Front Panel
Telwin s.p.a. SKU: 322508
Telwin Superior Plasma 60 HF Front Panel
Telwin Superior Plasma 60 HF Front Panel Genuine parts Telwin, Front Panel (Frame) for Superior Plasma 60 HF. Parts for the following products: - SUPERIOR PLASMA 60 HF – 815506 - TECHNOLOGY TIG 222 AC/DC - 85203 - TECH...
AVAILABLE €16.58
Details
Telwin TECHNOLOGY TIG 222 Control Board Kit
Telwin s.p.a. SKU: 980518
Telwin TECHNOLOGY TIG 222 Control Board Kit
Telwin TECHNOLOGY TIG 222 Control Board Kit Genuine parts Telwin, Control Board Kit for TECHNOLOGY TIG 222 AC/DC-HF/LIFT 230V - 852031. Parts for the following products: - TECHNOLOGY TIG 222 AC/DC-HF/LIFT 230V - 852031 - Code...
Last items in stock €218.34
Details
Comments (0)
