Telwin s.p.a.

Telwin Spare Parts for Welding Machine TECNICA 164

SKU: Telwin TECNICA 164 - 815482
€2.03
VAT included

Telwin Spare Parts for Welding Machine TECNICA 164

We supply original TELWIN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Welding Machine TECNICA 164 - 815482.

Telwin TECNICA 164 - 815482
Telwin Spare Parts for Welding Machine TECNICA 164
  • Telwin Spare Parts for Welding Machine TECNICA 164
  • Telwin Spare Parts for Welding Machine TECNICA 164
Telwin s.p.a.

Telwin Spare Parts for Welding Machine TECNICA 164

SKU: Telwin TECNICA 164 - 815482 Condition: New
€2.03
VAT included

Telwin Spare Parts for Welding Machine TECNICA 164

We supply original TELWIN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Welding Machine TECNICA 164 - 815482.

Telwin TECNICA 164 - 815482
settings 20 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
20 spare parts

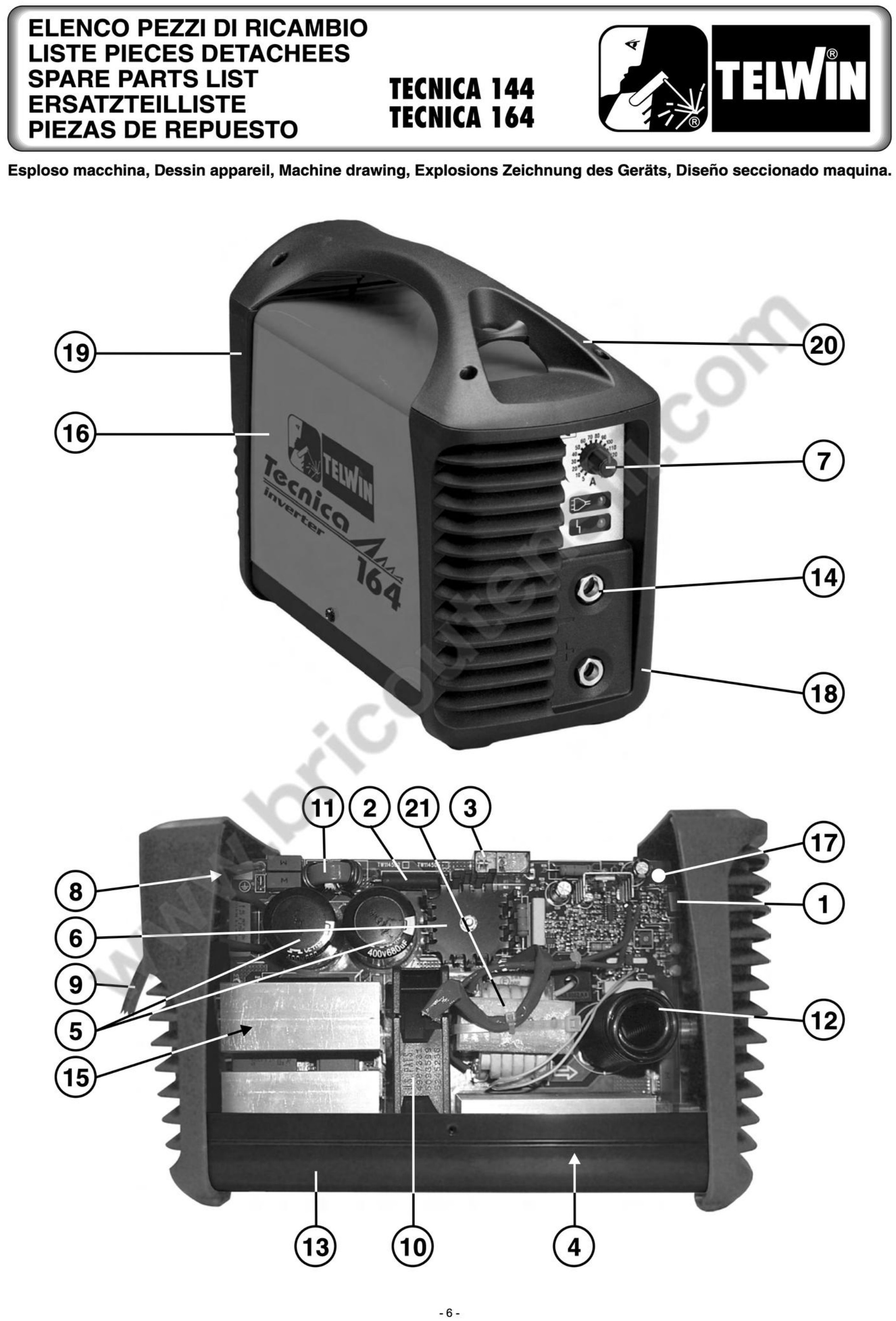

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €4.03
2
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
3
 Relè for Inverter Telwin Tecnica 144-164 113790 Relè for Inverter Telwin Tecnica 144-164 €6.82
4
 Diode 112948 for Inverter Tecnica 151-171-211/S 112948 Diode 112948 for Inverter Tecnica 151-171-211/S €4.34
5
 Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 113122 Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 €10.50
6
 Single-Phase Rectifier for Inverter Telwin 144-164 116346 Single-Phase Rectifier for Inverter Telwin 144-164 €6.82
7
 Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
8
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
9
 photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
10
 Fan for Inverter TIG Force-Superior 152006 Fan for Inverter TIG Force-Superior €13.79
11
 Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.99
12
 photo_cameraImage coming soon 980443 KIT INDUCTOR €25.40
13
 photo_cameraImage coming soon 980345 BOTTOM KIT €10.01
14
 Socket MMQ 25 DX for Telwin Welding Machine 712000 Socket MMQ 25 DX for Telwin Welding Machine €2.63
15
 Kit IGBT + Diode for Inverter Telwin Tecnica 164 990568 Kit IGBT + Diode for Inverter Telwin Tecnica 164 €38.28
17
 photo_cameraImage coming soon 990872 KIT DETAILS €202.13
18
 Front-Cover for Inverter Telwin Tecnica 144-164 322562 Front-Cover for Inverter Telwin Tecnica 144-164 €16.58
19
 Back-Cover for Inverter Telwin Tecnica 144-164 322563 Back-Cover for Inverter Telwin Tecnica 144-164 €16.58
20
 photo_cameraImage coming soon 322564 HANDLE €7.38
22
 photo_cameraImage coming soon 116682 LED (A) 220V-240V €2.04

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Machine TECNICA 164

We supply original TELWIN spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Welding Machine TECNICA 164 - 815482.

In the following table, look for the model of the Welding Machines and the respective parts code.
Telwin TECNICA 164 - 815482
TECNICA 164 230V   cod. 815482
# Part Num. Description
1 112017 Potentiometer
2 112048 RESISTANCE
3 113790 RELAY
4 112948 DIODE
5 113122 CAPACITOR
6 116346 RECTIFIER
7 121395 KNOB
8 122381 SWITCH
9 132155 CABLE ALIM. 3G1.5 2 M SCHUKO PLUG
10 152006 FAN
11 164741 CHOKE FILTER
12 980443 KIT INDUCTOR
13 980345 KIT BASE
14 712000 PLUG R 25
15 990568 KIT IGBT + DIODE
16 980640 KIT COAT
17 990872 KIT DETAILS
18 322562 FRONT
19 322563 BACK
20 322564 HANDLE
21 169573 POWER TRANSFORMER - DISCONTINUED
22 116682 LED
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin TECNICA 164 - 815482
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram TECNICA 164

Diagram TECNICA 164

Download (794.47KB)
