Telwin s.p.a.

Telwin Spare Parts for Charger Dynamic 520 Start

SKU: Telwin Dynamic 520 Start 829383
€4.03
VAT included

Telwin Spare Parts for Charger Dynamic 520 Start

We are Dealers of TELWIN original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Battery Charger Dynamic 520 Start - 829383.

Telwin Dynamic 520 Start 829383
Telwin Spare Parts for Charger Dynamic 520 Start
  • Telwin Spare Parts for Charger Dynamic 520 Start
  • Telwin Spare Parts for Charger Dynamic 520 Start - Diagram
Telwin s.p.a.

Telwin Spare Parts for Charger Dynamic 520 Start

SKU: Telwin Dynamic 520 Start 829383 Condition: New
€4.03
VAT included

Telwin Spare Parts for Charger Dynamic 520 Start

We are Dealers of TELWIN original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Battery Charger Dynamic 520 Start - 829383.

Telwin Dynamic 520 Start 829383
settings 33 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
33 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

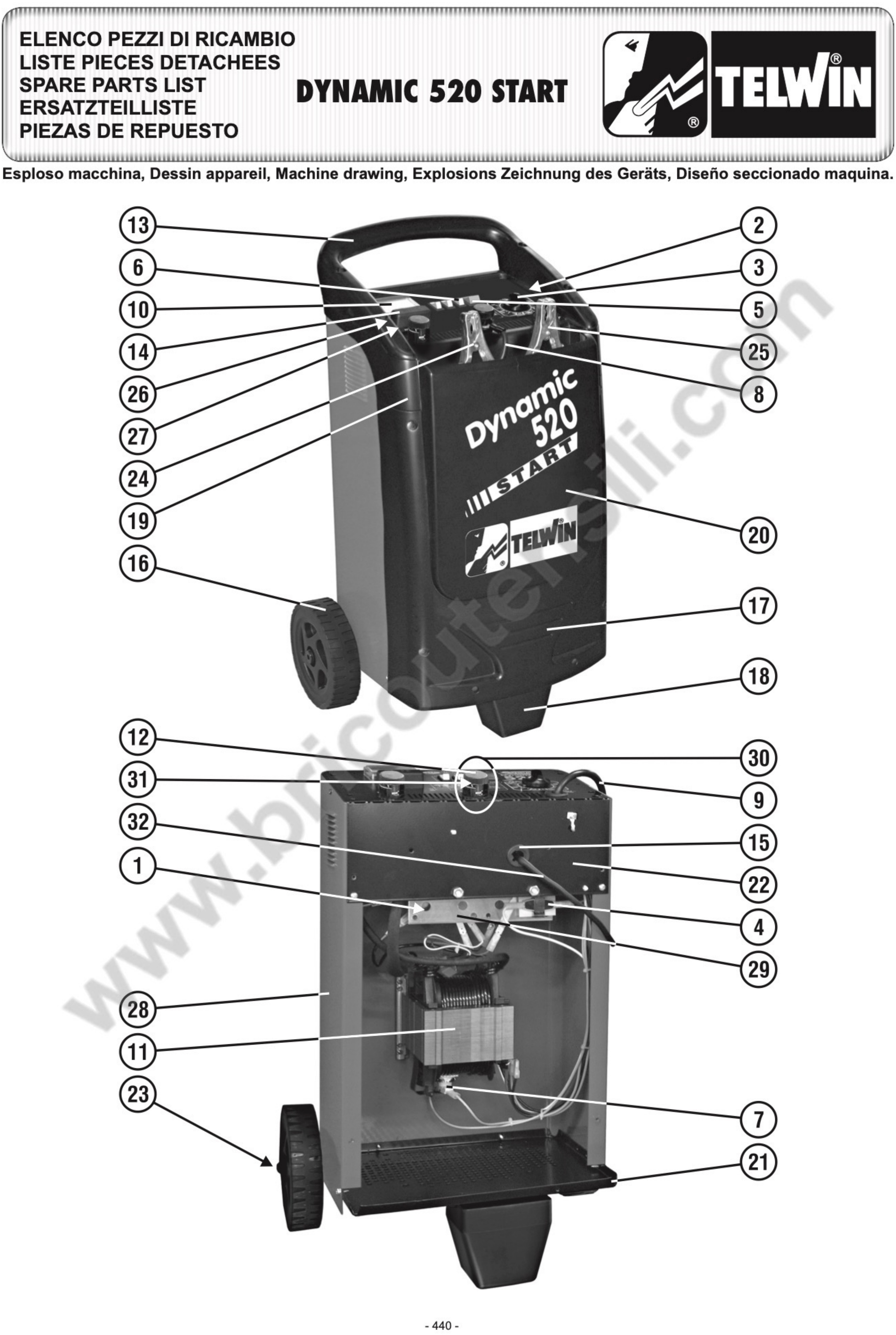

Esploso pagina 1
Pos. Item Price Buy
1
 Protection Rectifier for Welding Telwin Bimax-Telmig 112183 Protection Rectifier for Welding Telwin Bimax-Telmig €4.03
2
 Timer for Charger Telwin Dynamic 520 112218 Timer for Charger Telwin Dynamic 520 €21.67
3
 Timer Knob for Charger Telwin Dynamic - Energy 112296 Timer Knob for Charger Telwin Dynamic - Energy €3.47
4
 photo_cameraImage coming soon 931967 KIT THERMOSTAT €5.21
5
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
6
 0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €1.80
7
 photo_cameraImage coming soon 122900 THERMOSTAT €7.57
8
 photo_cameraImage coming soon 980318 CABLE 16mmq 2M- POSITIVE €17.31
9
 photo_cameraImage coming soon 132009 CABLE ALIM. 3G2.5 2 M SCHUKO PLUG €8.64
10
 Amperometer for Charger Telwin Dynamic 420-520 152248 Amperometer for Charger Telwin Dynamic 420-520 €25.90
11
 photo_cameraImage coming soon 169331 TRANSFORMER €177.35
12
 Handwheel for Charger Telwin Dynamic 220 START 312053 Handwheel for Charger Telwin Dynamic 220 START €1.75
13
 photo_cameraImage coming soon 312399 HANDLE €15.35
14
 Fuse Cover for Charger Telwin Dynamic 220-320-420-520 322051 Fuse Cover for Charger Telwin Dynamic 220-320-420-520 €2.80
15
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
16
 Fixed Wheel D.175MM for Telwin Welding Machines 322201 Fixed Wheel D.175MM for Telwin Welding Machines €15.80
17
 photo_cameraImage coming soon 322796 SPRING (B) €15.01
18
 photo_cameraImage coming soon 322798 PISTON PIN €2.52
19
 photo_cameraImage coming soon 322799 WASHER (C) €7.66
20
 photo_cameraImage coming soon 362052 POCKET €12.67
21
 photo_cameraImage coming soon 644783 FUND €6.01
22
 photo_cameraImage coming soon 981256 DASHBOARD KIT €10.66
23
 photo_cameraImage coming soon 681055 AXLE FOR WHEELS €6.36
24
 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin 712001 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin €2.43
25
 Colorado 150R Positive Clamp 150A for Battery Chargers Telwin 712002 Colorado 150R Positive Clamp 150A for Battery Chargers Telwin €2.23
26
 Kit 20 Fuses 80A for Charger Telwin 802260 Kit 20 Fuses 80A for Charger Telwin €12.40
27
 Fuse Holder for Charger Telwin Dynamic 220-320-420-520 980036 Fuse Holder for Charger Telwin Dynamic 220-320-420-520 €9.20
28
 photo_cameraImage coming soon 980302 BACK PANEL KIT €23.84
29
 Rectifier Kit for Charger Telwin Dynamic 520 990902 Rectifier Kit for Charger Telwin Dynamic 520 €44.90
30
 Clamp D.33 mm Kit for Charger Telwin Dynamic 220-320-420-520 990162 Clamp D.33 mm Kit for Charger Telwin Dynamic 220-320-420-520 €11.50
31
 Insulating Washers Kit for Charger Telwin Dynamic 220-320-420-520 990163 Insulating Washers Kit for Charger Telwin Dynamic 220-320-420-520 €4.03
32
 photo_cameraImage coming soon 980366 CABLE 16mmq 2M- MASS €12.43
33
 Wheels Lock Cap for Inverter Welding Telwin 322102 Wheels Lock Cap for Inverter Welding Telwin €0.45

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Charger Dynamic 520 Start

We are Dealers of TELWIN original spare parts at low at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Battery Charger Dynamic 520 Start - 829383.

Fix Your Battery Charger Dynamic 520 Start. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Battery Chargers and the respective parts of the code.
Telwin Dynamic 520 Start 829383

DYNAMIC 520 START 230V 12-24V - 829383
# Part Num. Description
1 112183 PROTECTION RECTIFIER
2 112218 TIMER
3 112296 KNOB, TIMER
4 931967 THERMOSTAT
5 122381 SWITCH
6 122400 SWITCH
7 122900 THERMOSTAT
8 980318 CABLE 16mmq 2M- POSITIVE
9 132009 CABLE ALIM. 3G2.5 2 M SCHUKO PLUG
10 152248 AMPEROMETER
11 169331 TRANSFORMER
12 312053 HANDWHEEL
13 312399 HANDLE
14 322051 FUSE COVER
15 322112 GLAND
16 322201 WHEEL FENCE
17 322796 FRONT
18 322798 FOOT
19 322799 FRAME
20 362052 POCKET
21 644783 FUND
22 981256 DASHBOARD KIT
23 681055 AXLE FOR WHEELS
24 712001 COLORADO 150B EARTH CLAMP 150A
25 712002 COLORADO 150R POSITIVE CLAMP 150A
26 802260 KIT 20 FUSES 80A
27 980036 FUSE CLAMP
28 980302 KIT RETRO
29 990902 KIT RECTIFIER
30 990162 CLAMP KIT COMPLETE D.33MM
31 990163 KIT PAIR WASHER INSULATING
32 980366 CABLE 16mmq 2M- MASS
33 322102 WHEELS LOCK CAP
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Dynamic 520 Start 829383
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Dynamic 520 Start

Diagram Dynamic 520 Start

Download (348.92KB)
