Telwin Spare Parts for Charger Dynamic 320 Start

Telwin original spare parts for to replace broken parts for to fix Battery Charger Dynamic 320 Start - 829381.

Fix Your Battery Charger. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

31 spare parts

Page 1 View exploded Usually Ships in: 10 BUSYNESS DAYS

Pos.		Item	Price
1		112185 Rectifier Protection for Welding Telwin Bimax 4.135 TURBO	€4.03
2		122308 Kit Thermostat for Charger Telwin DYNAMIC 320	€10.50
3		122477 Green Switch 4 Pin 16A 250V for Chargers Telwin	€5.42
4		122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin	€1.80
5		121069 Thermostat for Charger Telwin DYNAMIC 320-DIGISTART 340	€10.51
6	Image coming soon	980365 CABLE 10mmq 2M- MASS	€9.15
7	Image coming soon	132310 MAINS CABLE 3G1.5 2 M SCHUKO PLUG	€10.71
8	Image coming soon	152020 AMPEROMETER	€23.91
9		169539 230 V Transformer for Charger Telwin Dynamic 320 Start	€156.78
10		312053 Handwheel for Charger Telwin Dynamic 220 START	€1.75
11	Image coming soon	312408 HANDLE	€19.36
12		322051 Fuse Cover for Charger Telwin Dynamic 220-320-420-520	€2.80
13		322112 Cable Busching for Inverter Welding and Battery Charger Telwin	€2.44
14	Image coming soon	322193 WHEELÂ Â Â	€3.51
15		322223 Wheels Lock Cap (Round) for Inverter Welding Telwin	€0.95
16	Image coming soon	322801 FRONT	€11.36
17	Image coming soon	322803 FOOT	€7.12
18	Image coming soon	322804 FRAME	€12.72
19		362051 Front Pocket for Chargers Telwin Dynamic 220-320-420 Start	€8.88
20	Image coming soon	422961 WHEELS AXLE	€4.51
21	Image coming soon	644177 BOTTOM	€3.35
22	Image coming soon	981254 DASHBOARD KIT	€7.11
23		712001 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin	€2.43
24		712002 Colorado 150R Positive Clamp 150A for Battery Chargers Telwin	€2.23
25		802259 Kit 20 Fuses 50A for Charger Telwin	€12.40
26		980036 Fuse Holder for Charger Telwin Dynamic 220-320-420-520	€9.20
27	Image coming soon	980301 BACK PANEL KIT	€16.09
28		990685 Rectifier Kit for Charger Telwin Dynamic 320-Digistart 340	€34.72
29		990162 Clamp D.33 mm Kit for Charger Telwin Dynamic 220-320-420-520	€11.50
30		990163 Insulating Washers Kit for Charger Telwin Dynamic 220-320-420-520	€4.03
31		980317 Cable 10MMQ 2M- Positive for Charger Telwin DYNAMIC 320	€13.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Charger Dynamic 320 Start

Telwin original spare parts for to replace broken parts for to fix Battery Charger Dynamic 320 Start - 829381.

Battery charger and starter for charging free electrolyte batteries (WET) with a voltage of 12 / 24V and the quick start of all types of cars, vans, light trucks.

In the following table, look for the model of the Battery Charger and the respective parts of the code.

DYNAMIC 320 START 230V 12-24V - 829381
#	Part Num.	Description
1	112185	PROTECTION RECTIFIER
2	122308	KIT THERMOSTAT
3	122477	SWITCH
4	122400	SWITCH
5	121069	THERMOSTAT
6	980365	CABLE 10mmq 2M- MASS
7	132310	CABLE ALIM. 3G1.5 2 M SCHUKO PLUG
8	152020	AMPEROMETER
9	169539	TRANSFORMER
10	312053	HANDWHEEL
11	312408	HANDLE
12	322051	FUSE COVER
13	322112	GLAND
14	322193	WHEEL
15	322223	CAP LOCK WHEEL
16	322801	FRONT
17	322803	FOOT
18	322804	FRAME
19	362051	POCKET
20	422961	AXLE FOR WHEELS
21	644177	FONDALINO
22	981254	DASHBOARD KIT
23	712001	COLORADO 150B MASS CLAMP 150A
24	712002	COLORADO 150R POSITIVE CLAMP 150A
25	802259	KIT 20 FUSES 50A
26	980036	CLAMP FUSE
27	980301	KIT RETRO
28	990685	KIT RECTIFIER
29	990162	CLAMP KIT COMPLETE D.33MM
30	990163	KIT PAIR WASHER INSULATING
31	980317	CABLE 10mmq 2M- POSITIVE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase.All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Dynamic 320 Start - 829381

Available 11 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

Condition New

Download

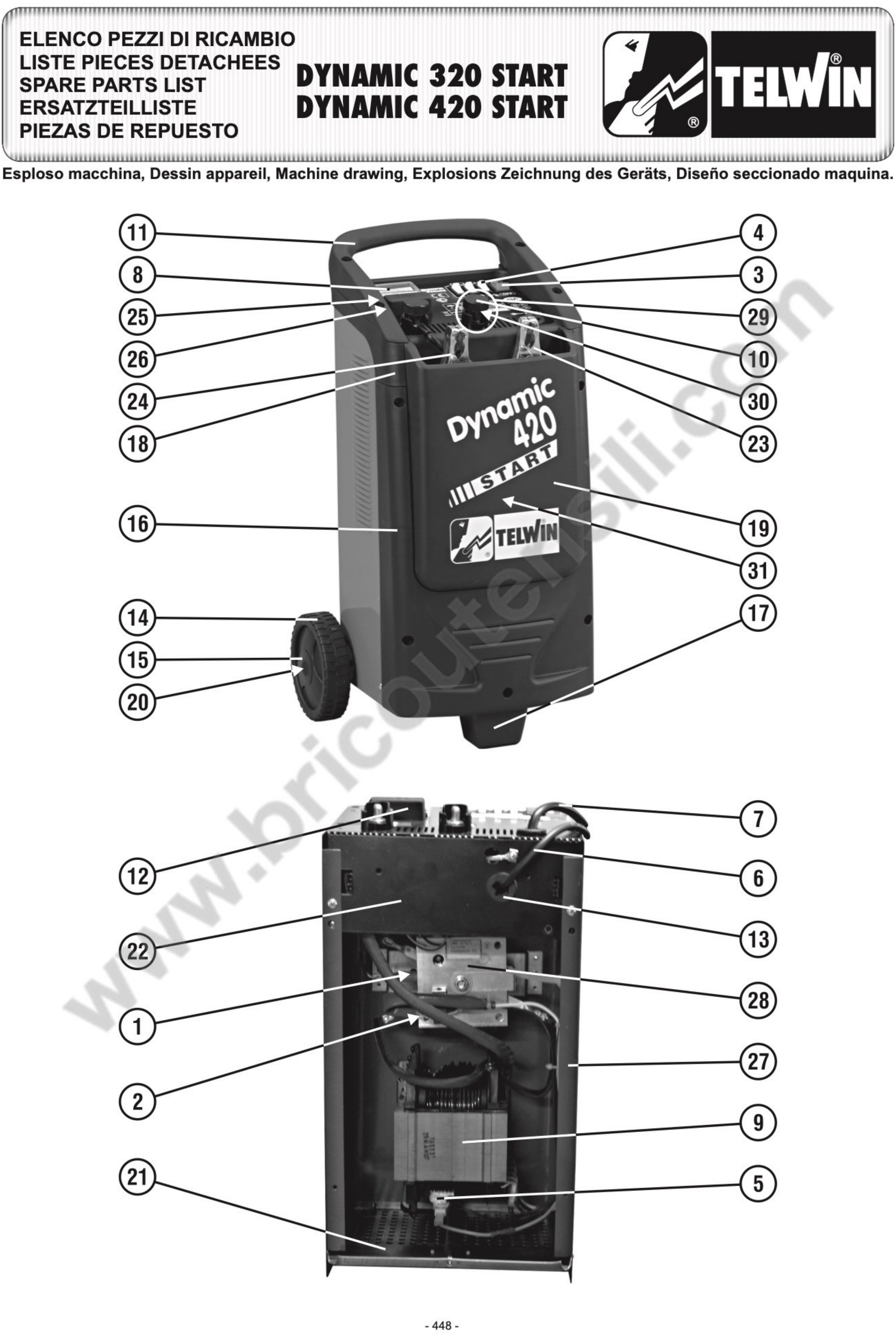

Diagram Dynamic 320 Start

Download (319.33KB)
