Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo

SKU: Telwin Bimax 182 Turbo - 821013
€4.98
VAT included

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding machine Flux and Mig-mag Bimax 182 Turbo - 821013.

Welding machine Flux and Mig-mag Bimax 182 Turbo - 821013.
Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo - Drawing
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo - Torche Drawing
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo - Wire Drawing
Telwin s.p.a.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo

SKU: Telwin Bimax 182 Turbo - 821013 Condition: New
€4.98
VAT included

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding machine Flux and Mig-mag Bimax 182 Turbo - 821013.

Welding machine Flux and Mig-mag Bimax 182 Turbo - 821013.
settings 58 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts

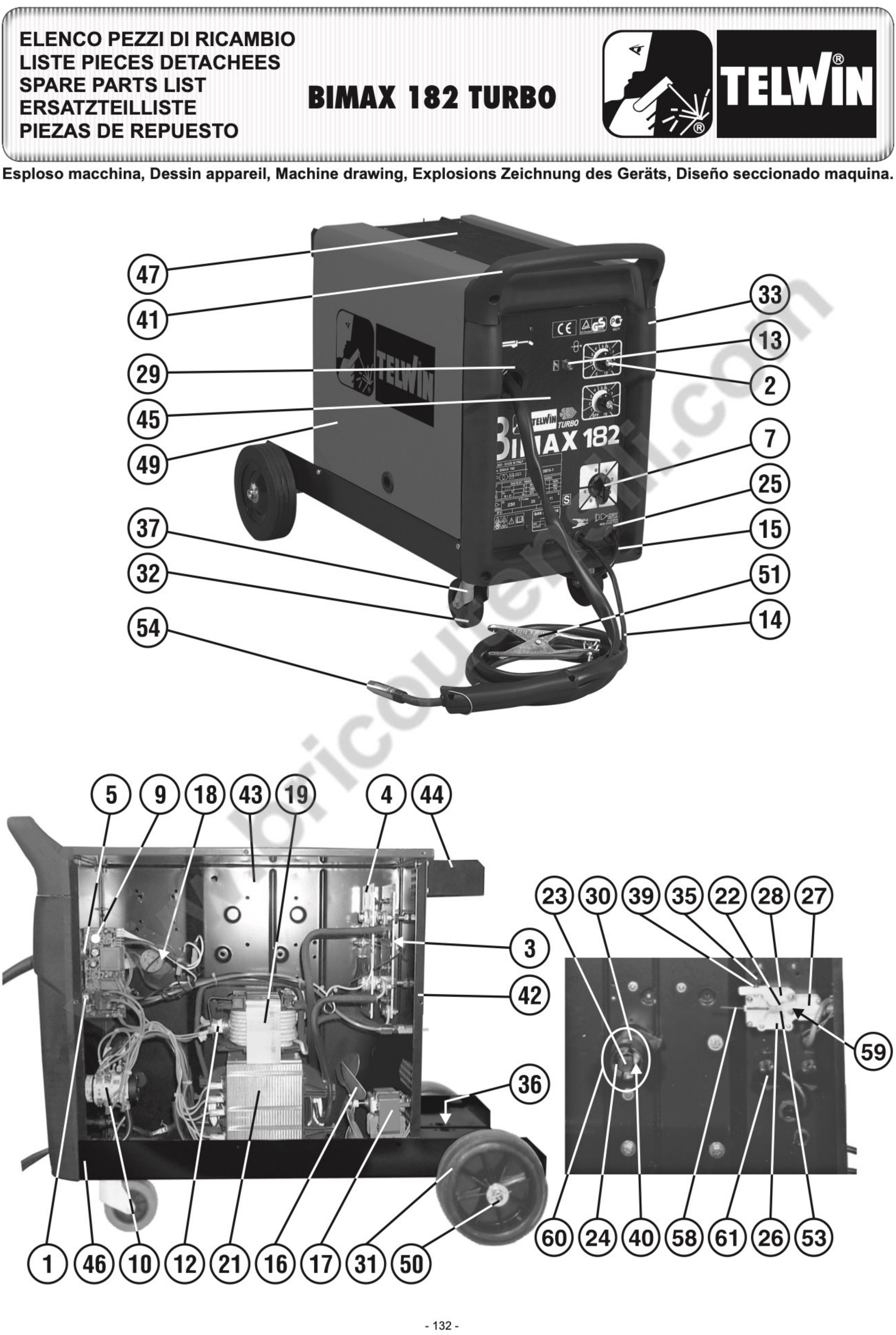

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG 113574 Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG €9.17
2
 Potentiometer Big Knob for Inverter Telwin 121424 Potentiometer Big Knob for Inverter Telwin €0.81
3
 Protection Rectifier for Welding Telwin Bimax-Telmig 112183 Protection Rectifier for Welding Telwin Bimax-Telmig €4.03
4
 Rectifier Kit for Inverter Telwin Telwin Bimax 182-4.195 980476 Rectifier Kit for Inverter Telwin Telwin Bimax 182-4.195 €41.69
5
 Potentiometer for Welders Telwin BIMAX-TELMIG 113533 Potentiometer for Welders Telwin BIMAX-TELMIG €6.82
7
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
9
 Wire Feeder Board Kit for Inverter Telwin TELMIG 180/2-Bimax 182 980461 Wire Feeder Board Kit for Inverter Telwin TELMIG 180/2-Bimax 182 €62.81
10
 Dipswitch 16A for Welding Telwin Telmig-Bimax 121510 Dipswitch 16A for Welding Telwin Telmig-Bimax €19.00
12
 Thermostat for Welding Machines Telwin 121258 Thermostat for Welding Machines Telwin €6.82
13
 Orange Lamp for Welding Machines Telwin Telmig-Bimax 122707 Orange Lamp for Welding Machines Telwin Telmig-Bimax €1.38
14
 photo_cameraImage coming soon 120302 CABLE 16 MMQ 1,8 M €13.16
16
 Fan for Inverter Telwin TELMIG 180/2 152054 Fan for Inverter Telwin TELMIG 180/2 €5.77
17
 Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG 152110 Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG €30.53
18
 Wire Drive Motor for Wire Welding Telwin Telmig-Technomig 153007 Wire Drive Motor for Wire Welding Telwin Telmig-Technomig €48.90
19
 Reactance for Inverter Telwin TELMIG 180-183-195/2 169371 Reactance for Inverter Telwin TELMIG 180-183-195/2 €55.64
21
 photo_cameraImage coming soon 990814 TRANSFORMER KIT €260.01
22
 Roller Anchor for Welding Telwin TELMIG 232105 Roller Anchor for Welding Telwin TELMIG €5.77
23
 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG 312137 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG €16.94
24
 Aspo Spacer Sleeve for Welding Telwin MASTERMIG 322180 Aspo Spacer Sleeve for Welding Telwin MASTERMIG €3.31
25
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
26
 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 322126 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 €3.42
27
 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG 322127 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG €2.70
28
 photo_cameraImage coming soon 322128 PRESSURE ROLL BRACKET €1.75
29
 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 322143 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 €2.44
30
 photo_cameraImage coming soon 322081 REEL €16.47
31
 Fixed Wheel D.175MM for Telwin Welding Machines 322201 Fixed Wheel D.175MM for Telwin Welding Machines €15.80
32
 Wheel D.80MM for Telwin Welding Machines 322245 Wheel D.80MM for Telwin Welding Machines €9.44
33
 photo_cameraImage coming soon 322640 FRAME €15.68
37
 Swivel Support for D.80MM Wheel for Telwin Welding Machines 422820 Swivel Support for D.80MM Wheel for Telwin Welding Machines €7.32
39
 Compressione Spring mm 9x21 for Inverter Telwin Bimax 452022 Compressione Spring mm 9x21 for Inverter Telwin Bimax €2.44
40
 Reel Spring for Welding Telwin MASTERMIG 452057 Reel Spring for Welding Telwin MASTERMIG €2.61
41
 photo_cameraImage coming soon 312328 HANDLE €12.03
42
 photo_cameraImage coming soon 644828 BACK PANEL €8.86
43
 photo_cameraImage coming soon 644070 DIAPHRAGM €12.41
44
 photo_cameraImage coming soon 644606 BRACKET FOR BOTTLE €11.45
45
 photo_cameraImage coming soon 649558 FRONT PANEL €11.09
46
 photo_cameraImage coming soon 644961 BOTTOM €20.23
47
 photo_cameraImage coming soon 980840 COVER KIT €21.08
49
 photo_cameraImage coming soon 980884 DOOR KIT €21.51
50
 Fixed Wheel D.175MM Axle for Telwin Welding Machines 681092 Fixed Wheel D.175MM Axle for Telwin Welding Machines €10.49
51
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
53
 Feed Roll For Wire mm 0,6/0,8 FE for Welding Telwin Telmig 722019 Feed Roll For Wire mm 0,6/0,8 FE for Welding Telwin Telmig €2.53
54
 photo_cameraImage coming soon 742082 TW180 MIG TORCH 2.5 M 180 A €70.05
58
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
59
 photo_cameraImage coming soon 990257 GEARS KIT €19.02
60
 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG 990264 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG €18.45
61
 photo_cameraImage coming soon 990057 CLAMP COMPLETE €8.53

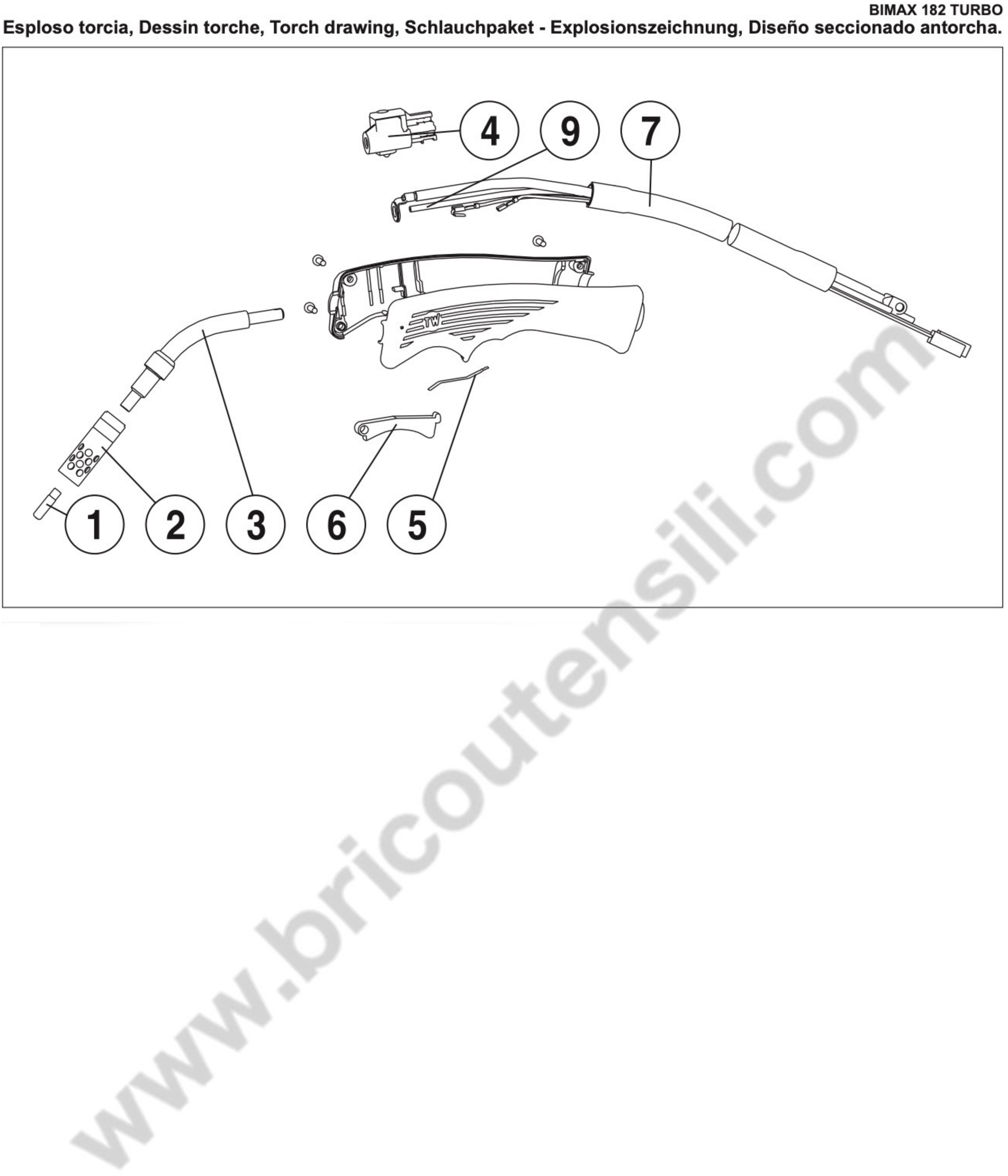

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin 722552 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin €1.85
2
 Cilindrical Nozzle 16 mm for Wire Weldings Telwin 722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin €3.04
3
 photo_cameraImage coming soon 722078 SWAN NECK DIFFUSER €15.13
4
 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig 990464 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig €13.79
5
 Button Spring Contact for Torch Telwin MIG 452097 Button Spring Contact for Torch Telwin MIG €2.44
6
 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 €2.44
7
 photo_cameraImage coming soon 990608 CABLES SET KIT 16MMQ €41.06
9
 photo_cameraImage coming soon 742422 WIRE GUIDE HOSE D. 0,6-0,8 MM 2,5 M €4.84

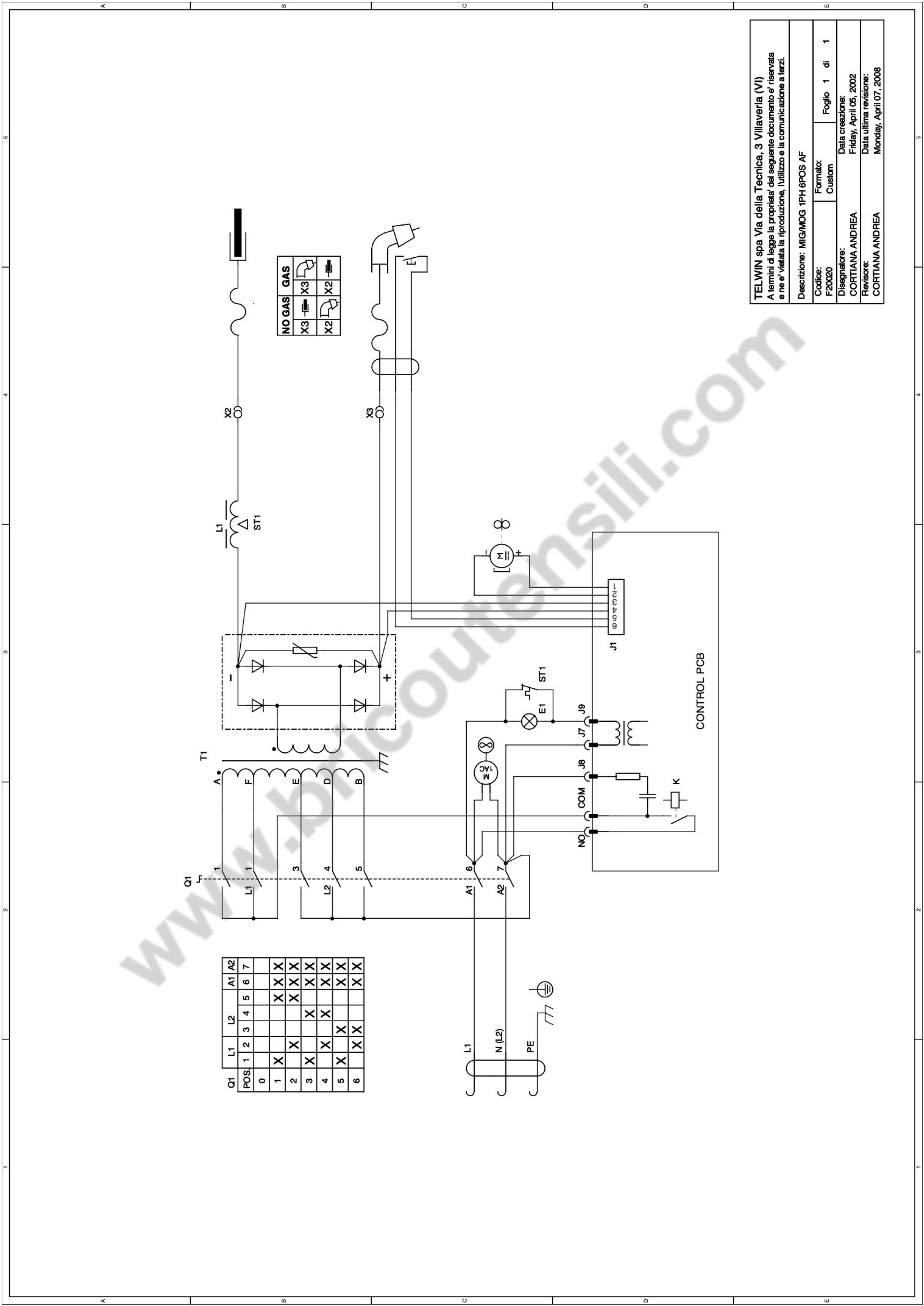

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 182 Turbo

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding machine Flux and Mig-mag type : Bimax 182 Turbo - 821013.

In the following table, look for the model of the welding machine and theirs spare parts codes.
Welding machine Flux and Mig-mag Bimax 182 Turbo - 821013
PARTS BIMAX 182 TURBO 230V cod. 821013 Pag.1
# Description Part Num.
1 POTENTIOMETER 113574
2 KNOB 121424
3 RECTIFIER PROTECTION 112183
4 RECTIFIER KIT 980476
5 POTENTIOMETER 113533
7 SWITCH KNOB SET 323101
9 WIRE FEEDER BOARD KIT 980461
10 SWITCH 121510
12 THERMOSTAT - NEW 121715 121258
13 YELLOW LIGHT 122707
14 CABLE 16 MMQ 1,8 M 120302
15 MAINS CABLE 3X14AWG 2.15 M 992473
16 FAN 152054
17 FAN MOTOR 152110
18 WIRE FEED MOTOR 153007
19 REACTANCE 169371
21 TRANSFORMER KIT 990814
22 PRESSURE ROLL 232105
23 REEL HANDWHEEL 312137
24 SPACER 322180
25 CABLE BUSHING 322112
26 ROLL SUPPORT 322126
27 TORCH FIXING CASING 322127
28 PRESSURE ROLL BRACKET 322128
29 RING NUT 322143
30 REEL 322081
31 FIXED WHEEL 322201
32 WHEEL 322245
33 FRAME 322640
35 WIRE FEED HANDWHEEL 422257
36 SUPPORT 422817
37 SWIVEL SUPPORT 422820
39 SPRING 452022
40 REEL SPRING 452057
41 HANDLE 312328
42 BACK PANEL 644828
43 DIAPHRAGM 644070
44 BRACKET FOR BOTTLE 644606
45 FRONT PANEL 649558
46 BOTTOM 644961
47 COVER KIT 980840
49 DOOR KIT 980884
50 WHEELS AXLE 681092
51 TOLEDO 250 WORK CLAMP 250A 712030
53 FEED ROLL D. 0,6-0,8 MM FE 722019
54 TW180 MIG TORCH 2.5 M 180 A 742082
58 GAS HOSE KIT 990097
59 GEARS KIT 990257
60 REEL KIT 990264
61 COMPLETE TERMINAL 990057
TORCH PARTS BIMAX 182 TURBO 230V cod. 821013 Pag.2
1 CONTACT TIP D. 1 MM AL/FLUX 722552
2 CYLINDRICAL NOZZLE 722149
3 SWAN NECK DIFFUSER 722078
4 VALVE 990464
5 CONTACT SPRING FOR MIG TORCH 452097
6 PUSHBUTTON 322295
7 CABLES SET KIT 16MMQ 990608
9 WIRE GUIDE HOSE D. 0,6-0,8 MM 2,5 M 742422
- TORCHE 742082
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Bimax 182 Turbo - 821013
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Bimax 182 Turbo Drawing

Bimax 182 Turbo Drawing

Download (757.26KB)
