Telwin s.p.a.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 132 turbo

SKU: Telwin Bimax 132 Turbo - 821010
€6.82
VAT included

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 132 turbo

Telwin genuine spare parts or replacement parts for to repair welding machine Flux and Mig-mag type Inverter Bimax 132 Turbo - 821010.

Flux and Mig-mag type Inverter Bimax 132 Turbo - 821010
Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 132 turbo
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 132 turbo
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 132 turbo - Drawing
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 132 turbo - Torch Drawing
Telwin s.p.a.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 132 turbo

SKU: Telwin Bimax 132 Turbo - 821010 Condition: New
€6.82
VAT included

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 132 turbo

Telwin genuine spare parts or replacement parts for to repair welding machine Flux and Mig-mag type Inverter Bimax 132 Turbo - 821010.

Flux and Mig-mag type Inverter Bimax 132 Turbo - 821010
settings 54 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

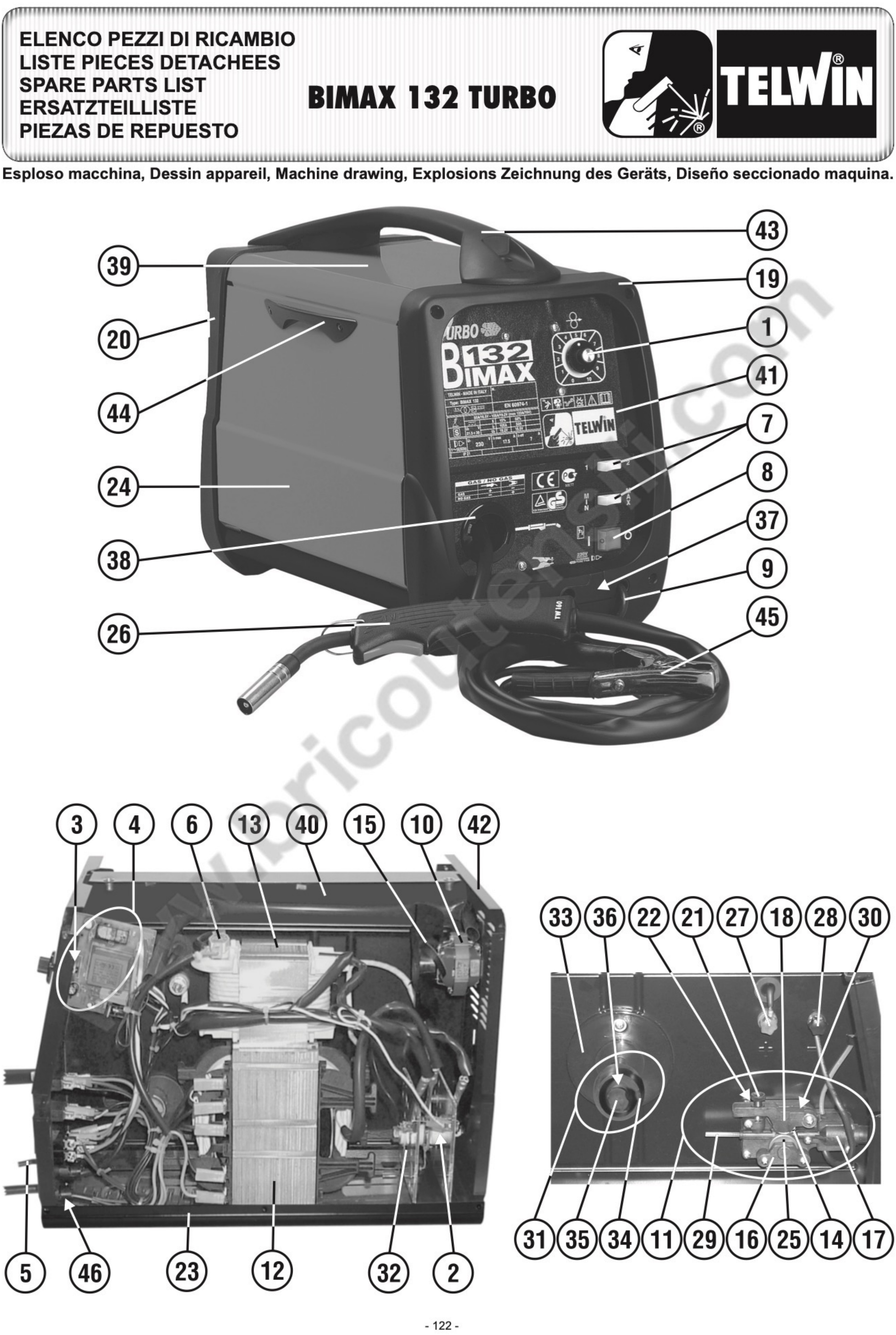

Esploso pagina 1
Pos. Item Price Buy
Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin 712001 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin €2.43
1
 Potentiometer Big Knob for Inverter Telwin 121424 Potentiometer Big Knob for Inverter Telwin €0.81
2
 Protection Rectifier for Welding Telwin Bimax-Telmig 112183 Protection Rectifier for Welding Telwin Bimax-Telmig €4.03
3
 Potentiometer for Inverter Telwin BIMAX 132-152 Turbo 113386 Potentiometer for Inverter Telwin BIMAX 132-152 Turbo €4.03
4
 Wire Feeder Board Kit for Inverter Telwin BIMAX132-152-162-TELMIG 150/1 980463 Wire Feeder Board Kit for Inverter Telwin BIMAX132-152-162-TELMIG 150/1 €72.00
5
 Welding Cable 16 mm2 1,8 mt for Welding Machines Telwin 124502 Welding Cable 16 mm2 1,8 mt for Welding Machines Telwin €10.50
6
 Thermostat for Charger Telwin DYNAMIC 320-DIGISTART 340 121069 Thermostat for Charger Telwin DYNAMIC 320-DIGISTART 340 €10.51
7
 0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €1.80
8
 Yellow Switch for Inverter Welding Machines Telwin 122752 Yellow Switch for Inverter Welding Machines Telwin €2.63
9
 photo_cameraImage coming soon 132310 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €10.71
10
 Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA 152080 Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA €13.79
11
 photo_cameraImage coming soon 153023 WIRE FEED MOTOR €34.91
12
 photo_cameraImage coming soon 990812 TRANSFORMER KIT €205.01
13
 photo_cameraImage coming soon 169247 REACTANCE €32.35
14
 Roller Anchor for Welding Telwin TELMIG 232105 Roller Anchor for Welding Telwin TELMIG €5.77
15
 Fan for Welding Telwin BIMAX 132 - BIMAX 152 TURBO 312026 Fan for Welding Telwin BIMAX 132 - BIMAX 152 TURBO €2.42
16
 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 322126 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 €3.42
17
 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG 322127 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG €2.70
18
 photo_cameraImage coming soon 322128 PRESSURE ROLL BRACKET €1.75
19
 photo_cameraImage coming soon 322584 FRONT PANEL FRAME €13.72
20
 photo_cameraImage coming soon 322586 BACK PANEL FRAME €6.55
22
 Compressione Spring mm 9x21 for Inverter Telwin Bimax 452022 Compressione Spring mm 9x21 for Inverter Telwin Bimax €2.44
23
 photo_cameraImage coming soon 644959 BOTTOM €15.44
24
 photo_cameraImage coming soon 651015 DOOR €9.16
25
 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin 722529 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin €3.21
26
 Torch for Wire Weldings Telwin Bimax 742402 Torch for Wire Weldings Telwin Bimax €74.87
27
 Red Charging Clamp Kit for Inverter Telwin BIMAX 990072 Red Charging Clamp Kit for Inverter Telwin BIMAX €5.00
28
 Black Charging Clamp Kit for Inverter Telwin BIMAX 990073 Black Charging Clamp Kit for Inverter Telwin BIMAX €7.95
29
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
30
 photo_cameraImage coming soon 990251 GEARS KIT €2.62
31
 Reel Kit for Welding Telwin Bimax-Technomig-Telmig 990288 Reel Kit for Welding Telwin Bimax-Technomig-Telmig €11.44
32
 Rectifier Kit for Inverter Telwin Bimax 132 Turbo - 4.135 Turbo 990746 Rectifier Kit for Inverter Telwin Bimax 132 Turbo - 4.135 Turbo €29.77
33
 photo_cameraImage coming soon 322172 SPINDLE €10.71
34
 Ring Nut Aspo Welding Telwin Bimax-Technomig-Telmig 322173 Ring Nut Aspo Welding Telwin Bimax-Technomig-Telmig €4.14
35
 Reel Kit Handbill for Welding Telwin Bimax-Technomig-Telmig 322174 Reel Kit Handbill for Welding Telwin Bimax-Technomig-Telmig €11.35
36
 Reel Kit Spring for Welding Telwin Bimax-Technomig-Telmig 452065 Reel Kit Spring for Welding Telwin Bimax-Technomig-Telmig €11.35
37
 photo_cameraImage coming soon 322585 FAIRLEADER €2.45
38
 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 322143 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 €2.44
39
 photo_cameraImage coming soon 990783 COVER KIT €13.72
40
 photo_cameraImage coming soon 644919 DIAPHRAGM €5.80
41
 photo_cameraImage coming soon 649380 FRONT PANEL €14.36
42
 photo_cameraImage coming soon 644918 BACK PANEL €13.65
43
 Handle for Inverter Telwin BIMAX 132 TURBO 230V 322587 Handle for Inverter Telwin BIMAX 132 TURBO 230V €6.49
44
 Side Handle for Inverter Telwin BIMAX 4.165 TURBO 322590 Side Handle for Inverter Telwin BIMAX 4.165 TURBO €4.03
46
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

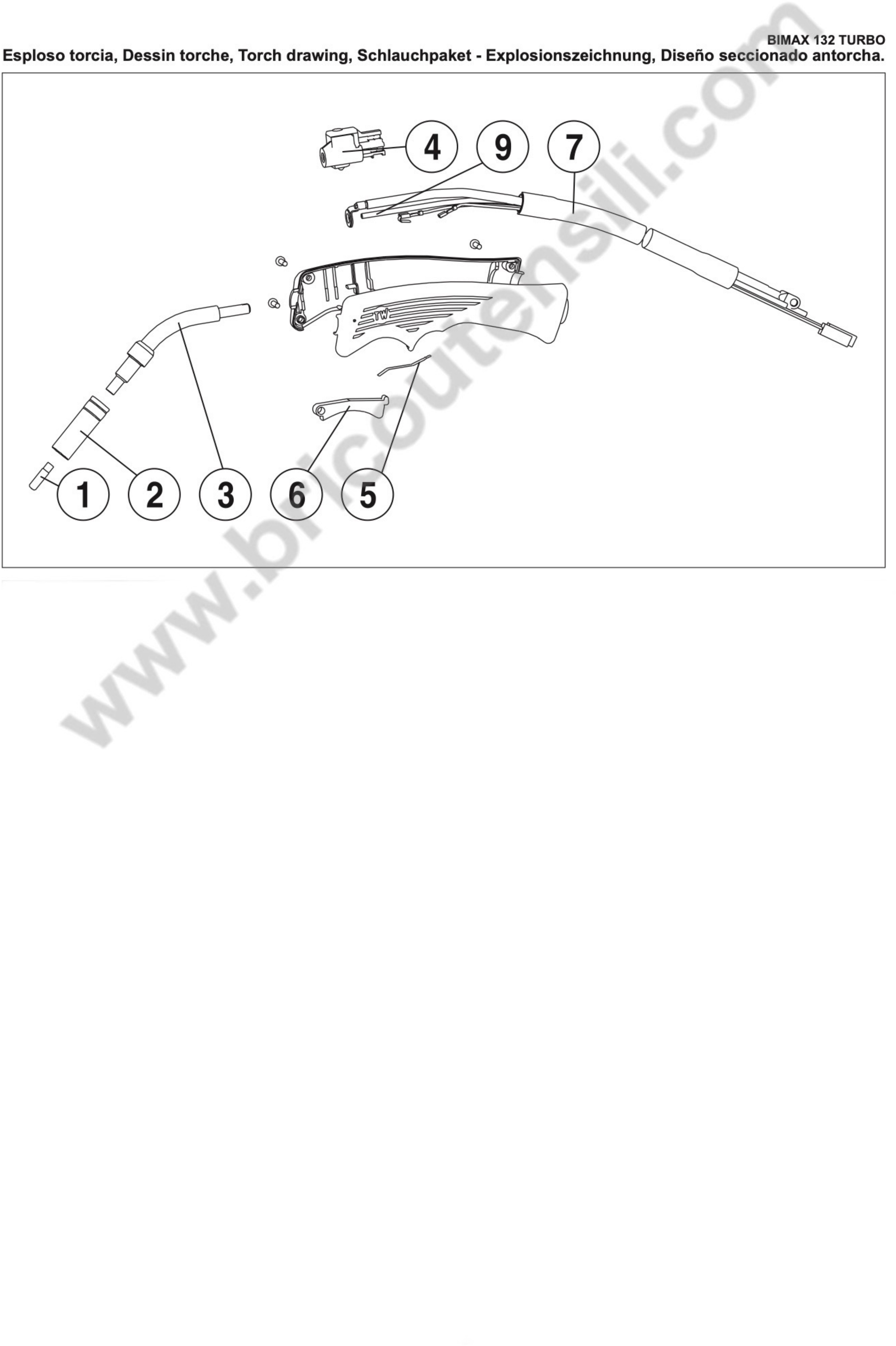

Esploso pagina 2
Pos. Item Price Buy
1
 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin 722552 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin €1.85
2
 Cilindrical Nozzle 16 mm for Wire Weldings Telwin 722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin €3.04
3
 photo_cameraImage coming soon 722078 SWAN NECK DIFFUSER €15.13
4
 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig 990464 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig €13.79
5
 Button Spring Contact for Torch Telwin MIG 452097 Button Spring Contact for Torch Telwin MIG €2.44
6
 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 €2.44
7
 photo_cameraImage coming soon 990602 KIT HARNESS 10mmq €38.91
9
 Steel Lines for Torches Telwin MIG-MAG 722077 Steel Lines for Torches Telwin MIG-MAG €4.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 132 turbo

Telwin genuine spare parts or replacement parts for to repair welding machine Flux and Mig-mag type Inverter Bimax 132 Turbo - 821010.

In the following table, look for the model of the welding machine and theirs spare parts codes.
Flux and Mig-mag type Inverter Bimax 132 Turbo - 821010
Inverter BIMAX 132 TURBO 230V cod. 821010 Pag.1
# Description Part Num.
0 COLORADO 150B WORK CLAMP 150A 712001
1 KNOB 121424
2 RECTIFIER PROTECTION 112183
3 POTENTIOMETER 113386
4 WIRE FEEDER BOARD KIT 980463
5 CABLE 16 MMQ 1,8 M 124502
6 THERMOSTAT 121069
7 SWITCH 122400
8 SWITCH 122752
9 MAINS CABLE 3G1.5 2 M SCHUKO PLUG 132310
10 FAN MOTOR 152080
11 WIRE FEED MOTOR - 981828 153023
12 TRANSFORMER KIT 990812
13 REACTANCE 169247
14 PRESSURE ROLL 232105
15 FAN BLADE 312026
16 ROLL SUPPORT 322126
17 TORCH FIXING CASING 322127
18 PRESSURE ROLL BRACKET 322128
19 FRONT PANEL FRAME 322584
20 BACK PANEL FRAME 322586
21 WIRE FEED HANDWHEEL 422257
22 SPRING 452022
23 BOTTOM 644959
24 DOOR 651015
25 FEED ROLL D. 0,6-0,9 MM FE/FLUX 722529
26 TW160 MIG TORCH 2 M 160 A 742402
27 RED CHARGING CLAMP KIT 990072
28 KIT BLACK CHARGING CLAMP 990073
29 GAS HOSE KIT 990097
30 GEARS KIT 990251
31 REEL KIT 990288
32 RECTIFIER KIT 990746
33 SPINDLE 322172
34 REEL RING NUT 322173
35 REEL HANDWHEEL 322174
36 REEL SPRING 452065
37 FAIRLEADER 322585
38 RING NUT 322143
39 COVER KIT 990783
40 DIAPHRAGM 644919
41 FRONT PANEL 649380
42 BACK PANEL 644918
43 HANDLE 322587
44 HANDLE 322590
46 CABLE BUSHING 322112
TORCH PARTS PER BIMAX 132 TURBO 230V Pag.2
1 CONTACT TIP D. 1 MM AL/FLUX 722552
2 CYLINDRICAL NOZZLE 722149
3 SWAN NECK DIFFUSER 722078
4 VALVE 990464
5 CONTACT SPRING FOR MIG TORCH 452097
6 PUSHBUTTON 322295
7 KIT CABLE SET 10 MMQ 990602
9 GUIDE HOSE D.0,6-0,8MM 2M FE/INOX/FLUX 722077
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Bimax 132 Turbo - 821010
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Telwin Bimax 132 Turbo Drawing

Telwin Bimax 132 Turbo Drawing

Download (569.39KB)

Bimax 132 Turbo Wiring Diagram

Bimax 132 Turbo Wiring Diagram

Download (180.28KB)
