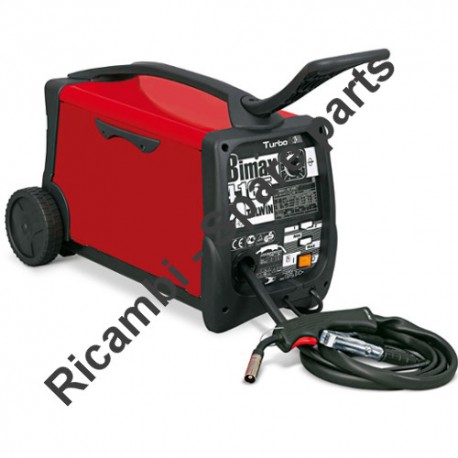

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 4.165 Turbo

Telwin original spare parts to replace worn components or repair damaged parts of the welding machine Flux and Mig-mag Bimax 4.165 Turbo - 801015.

Fix your FLUX wire welder (no gas) and MIG-MAG (gas) with thermostatic protection with spare parts at low prices. All parts come with a full warranty.

Bimax 4.165 Turbo - 821015

57 spare parts

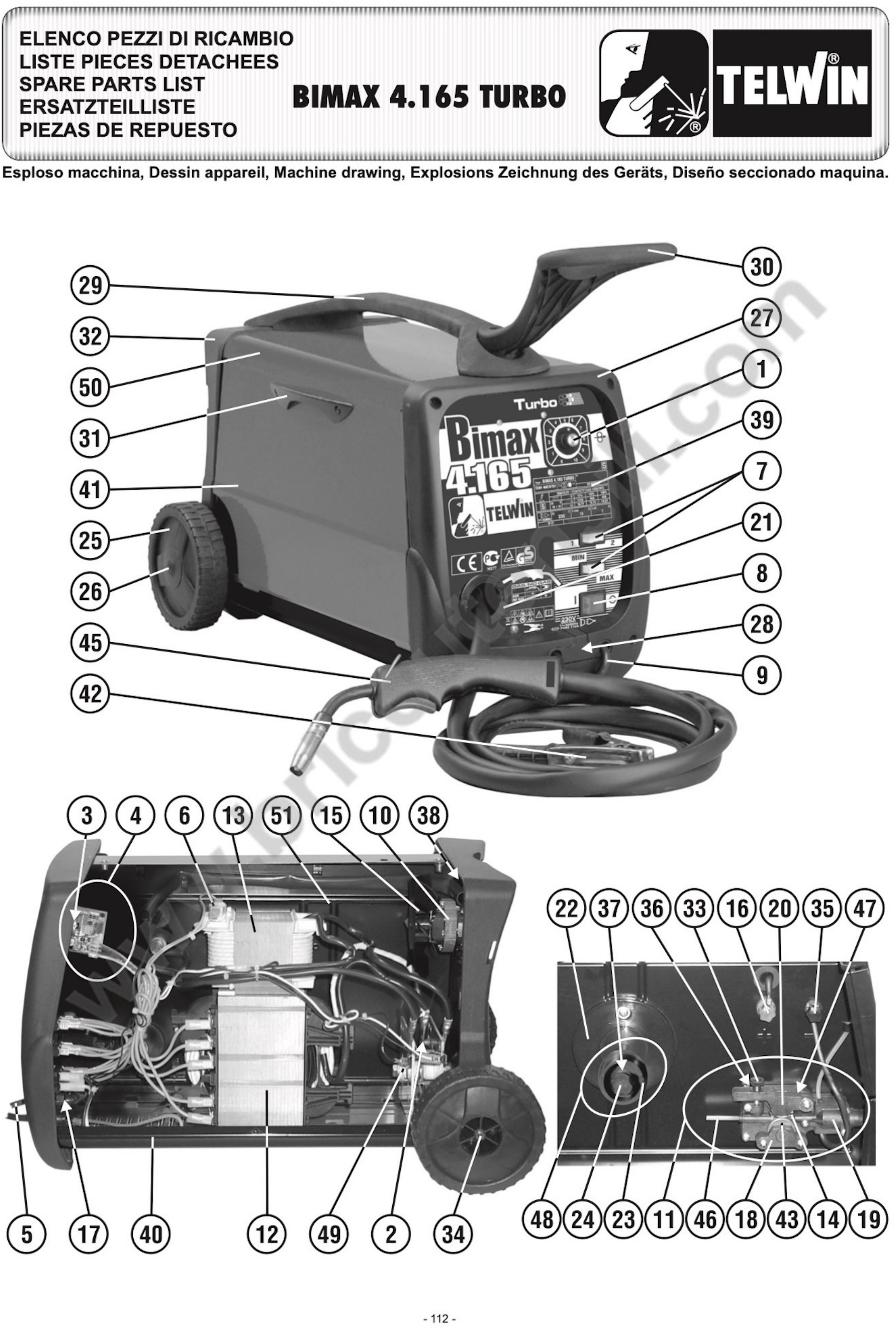

Page 1 View exploded Usually Ships in: 10 BUSYNESS DAYS

Pos.		Item	Price
1		121424 Potentiometer Big Knob for Inverter Telwin	€0.81
2		112183 Protection Rectifier for Welding Telwin Bimax-Telmig	€4.03
3		113533 Potentiometer for Welders Telwin BIMAX-TELMIG	€6.82
4		990178 Kit PCB MOG/LIVE for Inverter Telwin Bimax 4.135-4.165-4.195	€26.35
5		124502 Welding Cable 16 mm2 1,8 mt for Welding Machines Telwin	€10.50
6		121069 Thermostat for Charger Telwin DYNAMIC 320-DIGISTART 340	€10.51
7		122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin	€1.80
8		122752 Yellow Switch for Inverter Welding Machines Telwin	€2.63
9	Image coming soon	132310 MAINS CABLE 3G1.5 2 M SCHUKO PLUG	€10.71
10		152080 Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA	€13.79
11	Image coming soon	153023 WIRE FEED MOTOR	€34.91
12	Image coming soon	990813 TRANSFORMER KIT	€234.01
13	Image coming soon	169228 REACTANCE	€42.65
14		232105 Roller Anchor for Welding Telwin TELMIG	€5.77
15		312026 Fan for Welding Telwin BIMAX 132 - BIMAX 152 TURBO	€2.42
16		990072 Red Charging Clamp Kit for Inverter Telwin BIMAX	€5.00
17		322112 Cable Busching for Inverter Welding and Battery Charger Telwin	€2.44
18		322126 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2	€3.42
19		322127 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG	€2.70
20	Image coming soon	322128 PRESSURE ROLL BRACKET	€1.75
21		322143 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1	€2.44
22	Image coming soon	322172 SPINDLE	€10.71
23		322173 Ring Nut Aspo Welding Telwin Bimax-Technomig-Telmig	€4.14
24		322174 Reel Kit Handbill for Welding Telwin Bimax-Technomig-Telmig	€11.35
25	Image coming soon	322193 WHEELÂ Â Â	€3.51
26		322223 Wheels Lock Cap (Round) for Inverter Welding Telwin	€0.95
27	Image coming soon	322584 FRONT PANEL FRAME	€13.72
28	Image coming soon	322585 FAIRLEADER	€2.45
29		322588 Long Handle for Inverter Telwin BIMAX 4.165 TURBO	€12.75
30		322589 Handle for Inverter Telwin Bimax 4.165 TURBO	€8.21
31		322590 Side Handle for Inverter Telwin BIMAX 4.165 TURBO	€4.03
32	Image coming soon	322595 BACK PANEL	€7.19
34	Image coming soon	422961 WHEELS AXLE	€4.51
35		990073 Black Charging Clamp Kit for Inverter Telwin BIMAX	€7.95
36		452022 Compressione Spring mm 9x21 for Inverter Telwin Bimax	€2.44
37		452065 Reel Kit Spring for Welding Telwin Bimax-Technomig-Telmig	€11.35
38	Image coming soon	644918 BACK PANEL	€13.65
39	Image coming soon	649930 FRONT PANEL	€4.80
40	Image coming soon	644960 BOTTOM	€12.39
41	Image coming soon	651018 DOOR	€13.65
42		712001 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin	€2.43
43		722529 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin	€3.21
45		742402 Torch for Wire Weldings Telwin Bimax	€74.87
46		990097 Gas Hose Kit for Inverter Telwin MIG-MAG	€6.90
47	Image coming soon	990251 GEARS KIT	€2.62
48		990288 Reel Kit for Welding Telwin Bimax-Technomig-Telmig	€11.44
49		990745 Rectifier Kit for Inverter Telwin Bimax 152-162-4.165	€41.69
50	Image coming soon	990784 COVER KIT	€10.54
51	Image coming soon	990786 DIAPHRAGM KIT	€8.13

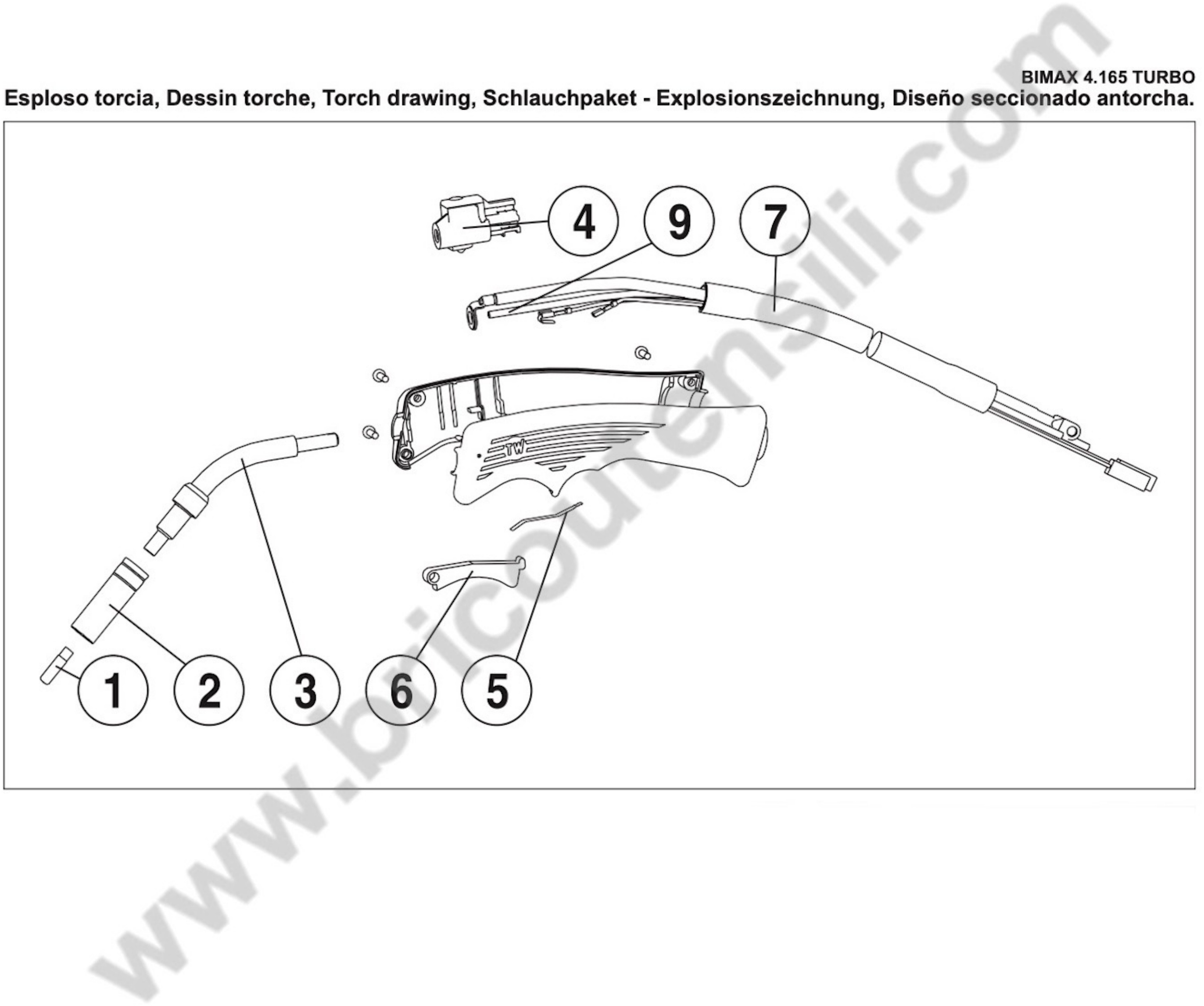

Page 2 View exploded Usually Ships in: 10 BUSYNESS DAYS

Pos.		Item	Price
1		722552 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin	€1.85
2		722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin	€3.04
3	Image coming soon	722078 SWAN NECK DIFFUSER	€15.13
4		990464 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig	€13.79
5		452097 Button Spring Contact for Torch Telwin MIG	€2.44
6		322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195	€2.44
7	Image coming soon	990602 KIT HARNESS 10mmq	€38.91
9		722077 Steel Lines for Torches Telwin MIG-MAG	€4.03

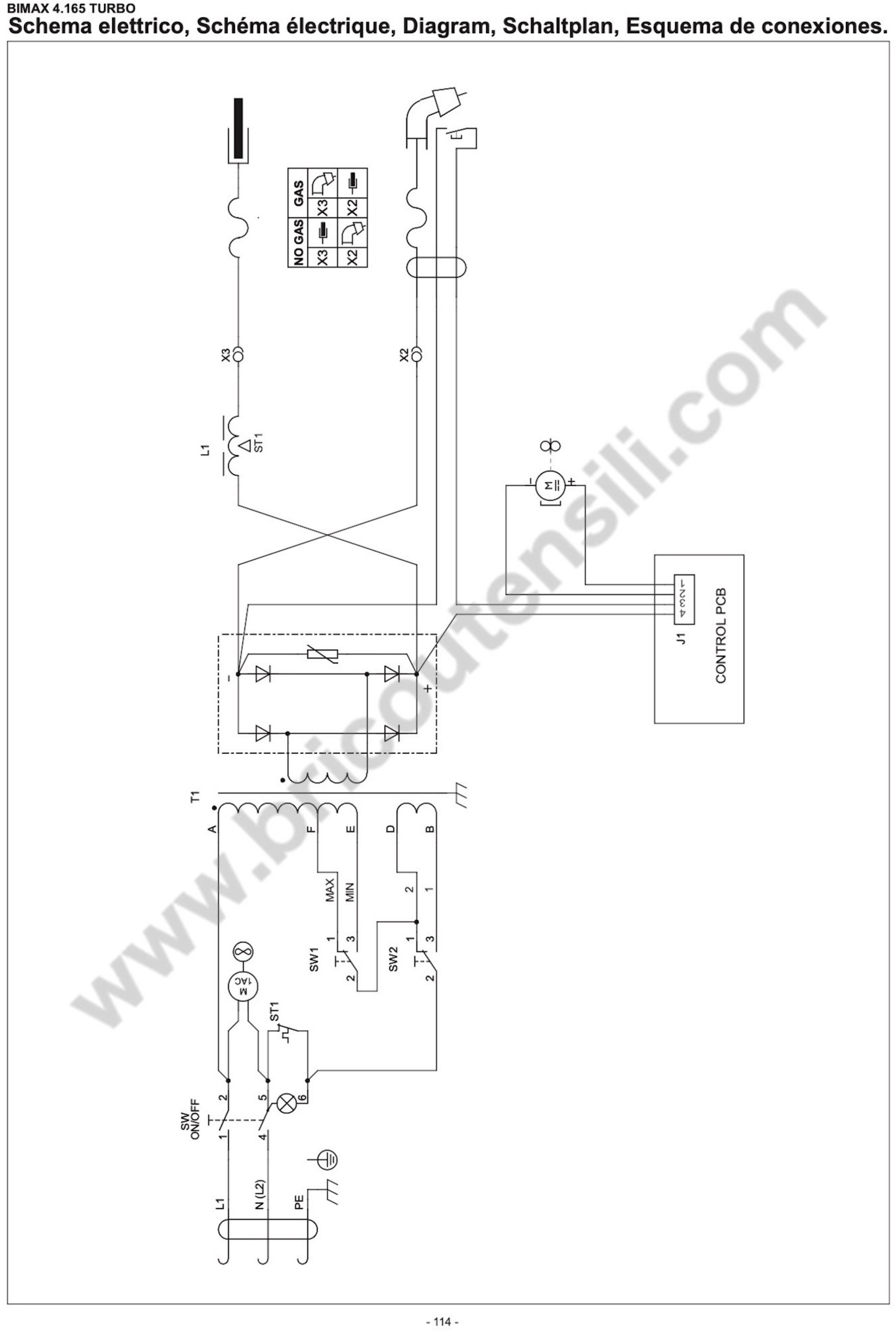

Page 3 View exploded Usually Ships in: 10 BUSYNESS DAYS

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 4.165 Turbo

Fix your FLUX wire welder Bimax 4.165 Turbo - 801015 (no gas) and MIG-MAG (gas) with thermostatic protection with spare parts at low prices. All parts come with a full warranty.

In the following table, look for the model of the welding machine and theirs spare parts codes.

PARTS BIMAX 4.165 TURBO 230V cod. 821015 Pag.1
#	Description	Part Num.
1	KNOB	121424
2	RECTIFIER PROTECTION	112183
3	POTENTIOMETER	113533
4	KIT PCB MOG/LIVE AUTOMATIC + WIRING	990178
5	CABLE 16 MMQ 1,8 M	124502
6	THERMOSTAT	121069
7	SWITCH	122400
8	SWITCH	122752
9	MAINS CABLE 3G1.5 2 M SCHUKO PLUG	132310
10	FAN MOTOR	152080
11	WIRE FEED MOTOR - NEW 981828	153023
12	TRANSFORMER KIT	990813
13	REACTANCE	169228
14	PRESSURE ROLL	232105
15	FAN BLADE	312026
16	RED CHARGING CLAMP KIT	990072
17	CABLE BUSHING	322112
18	ROLL SUPPORT	322126
19	TORCH FIXING CASING	322127
20	PRESSURE ROLL BRACKET	322128
21	RING NUT	322143
22	SPINDLE	322172
23	REEL RING NUT	322173
24	REEL HANDWHEEL	322174
25	WHEEL	322193
26	WHEEL LOCKING RING	322223
27	FRONT PANEL FRAME	322584
28	FAIRLEADER	322585
29	HANDLE	322588
30	HANDLE	322589
31	HANDLE	322590
32	BACK PANEL	322595
33	WIRE FEED HANDWHEEL	422257
34	WHEELS AXLE	422961
35	KIT BLACK CHARGING CLAMP	990073
36	SPRING	452022
37	REEL SPRING	452065
38	BACK PANEL	644918
39	FRONT PANEL	649930
40	BOTTOM	644960
41	DOOR	651018
42	COLORADO 150B WORK CLAMP 150A	712001
43	FEED ROLL D. 0,6-0,9 MM FE/FLUX	722529
45	TW160 MIG TORCH 2 M 160 A	742402
46	GAS HOSE KIT	990097
47	GEARS KIT	990251
48	REEL KIT	990288
49	RECTIFIER KIT	990745
50	COVER KIT	990784
51	DIAPHRAGM KIT	990786
TORCH PARTS BIMAX 4.165 TURBO 230V Pag.2
1	CONTACT NOZZLE D. 1 MM AL/FLUX	722552
2	CYLINDRICAL NOZZLE	722149
3	SWAN NECK DIFFUSER	722078
4	VALVE	990464
5	CONTACT SPRING FOR MIG TORCH	452097
6	PUSHBUTTON	322295
7	KIT CABLE SET 10 MMQ	990602
9	GUIDE HOSE D.0,6-0,8MM 2M FE/INOX/FLUX	722077

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Bimax 4.165 Turbo - 821015

Available 12 Items

Data sheet

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

Condition New

Download

Bimax 4.165 Turbo Drawing

Download (746.17KB)
