Telwin s.p.a.

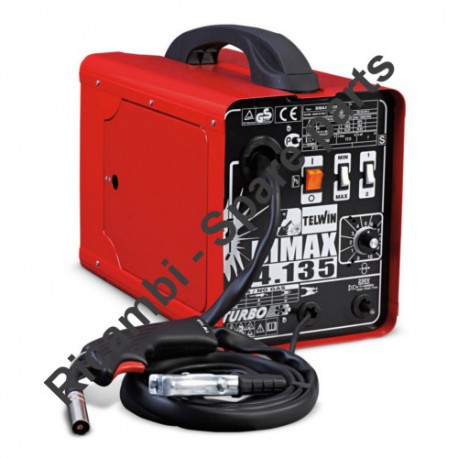

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 4.135 Turbo

SKU: Bimax 4.135 Turbo - 820005
€6.82
VAT included

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 4.135 Turbo

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Flux and Mig-mag Bimax 4.135 Turbo - 820005.

Flux and Mig-mag Bimax 4.135 Turbo - 820005
Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 4.135 Turbo
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 4.135 Turbo
  • Telwin Spare Parts for Welding Bimax 4.135 Turbo - Drawing
  • Telwin Spare Parts for Welding Bimax 4.135 Turbo - Toech Drawing
  • Telwin Spare Parts for Welding Bimax 4.135 Turbo - Wire Drawing
Telwin s.p.a.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 4.135 Turbo

SKU: Bimax 4.135 Turbo - 820005 Condition: New
€6.82
VAT included

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 4.135 Turbo

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Flux and Mig-mag Bimax 4.135 Turbo - 820005.

Flux and Mig-mag Bimax 4.135 Turbo - 820005
settings 50 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
49 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

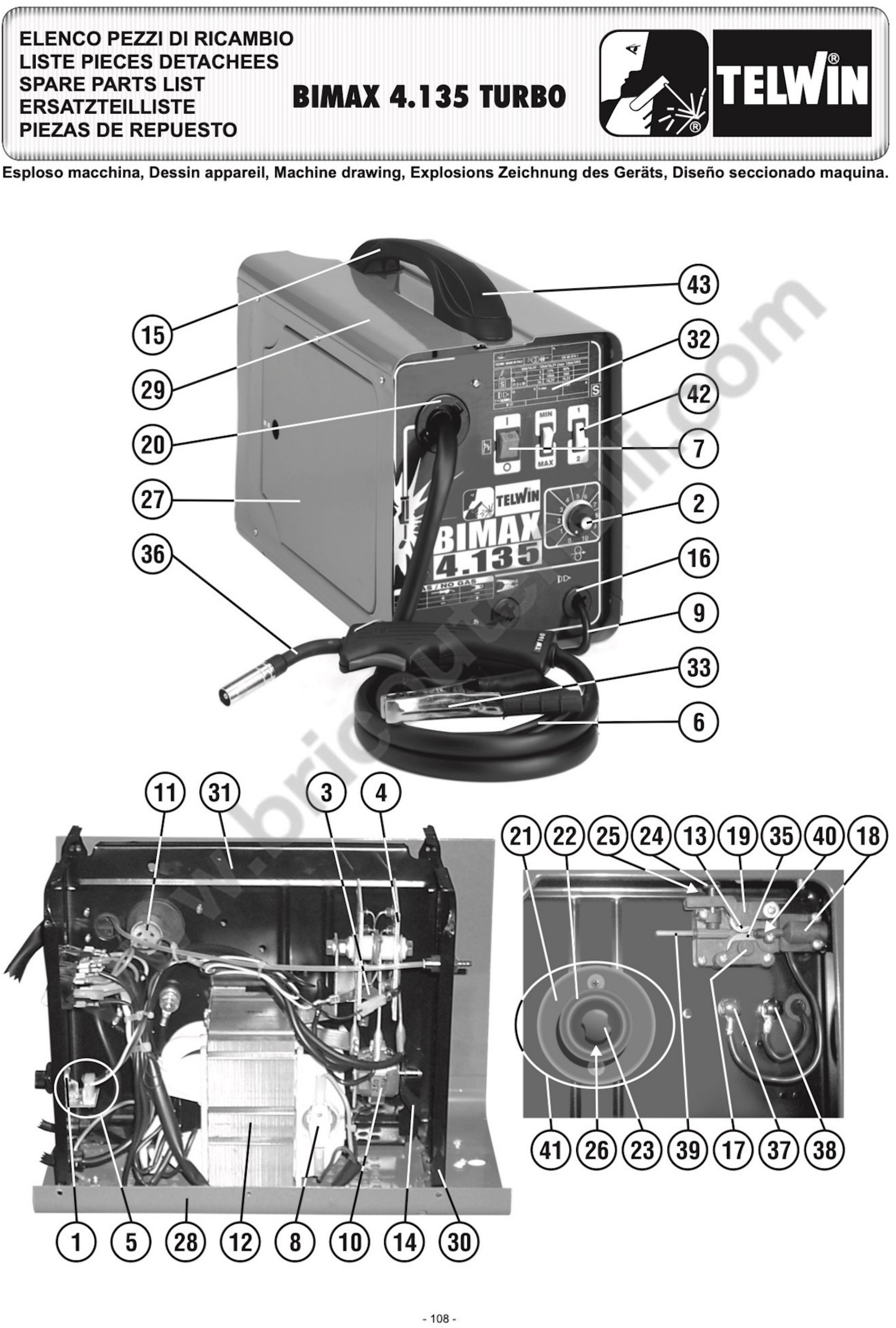

Esploso pagina 1
Pos. Item Price Buy
1
 Potentiometer for Welders Telwin BIMAX-TELMIG 113533 Potentiometer for Welders Telwin BIMAX-TELMIG €6.82
2
 Potentiometer Big Knob for Inverter Telwin 121424 Potentiometer Big Knob for Inverter Telwin €0.81
3
 Rectifier Protection for Welding Telwin Bimax 4.135 TURBO 112185 Rectifier Protection for Welding Telwin Bimax 4.135 TURBO €4.03
4
 Rectifier Kit for Inverter Telwin Bimax 132 Turbo - 4.135 Turbo 990746 Rectifier Kit for Inverter Telwin Bimax 132 Turbo - 4.135 Turbo €29.77
5
 Kit PCB MOG/LIVE for Inverter Telwin Bimax 4.135-4.165-4.195 990178 Kit PCB MOG/LIVE for Inverter Telwin Bimax 4.135-4.165-4.195 €26.35
6
 Welding Cable 16 mm2 1,8 mt for Welding Machines Telwin 124502 Welding Cable 16 mm2 1,8 mt for Welding Machines Telwin €10.50
7
 Yellow Switch for Inverter Welding Machines Telwin 122752 Yellow Switch for Inverter Welding Machines Telwin €2.63
8
 Thermostat for Charger Telwin DYNAMIC 320-DIGISTART 340 121069 Thermostat for Charger Telwin DYNAMIC 320-DIGISTART 340 €10.51
9
 photo_cameraImage coming soon 132310 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €10.71
10
 Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA 152080 Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA €13.79
11
 photo_cameraImage coming soon 153023 WIRE FEED MOTOR €34.91
12
 photo_cameraImage coming soon 169167 TRANSFORMER €102.47
13
 Roller Anchor for Welding Telwin TELMIG 232105 Roller Anchor for Welding Telwin TELMIG €5.77
14
 Fan for Welding Telwin BIMAX 132 - BIMAX 152 TURBO 312026 Fan for Welding Telwin BIMAX 132 - BIMAX 152 TURBO €2.42
15
 Handle for Electrode Welding Telwin Nordika 2160 - 2162 322677 Handle for Electrode Welding Telwin Nordika 2160 - 2162 €6.48
16
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
17
 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 322126 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 €3.42
18
 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG 322127 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG €2.70
19
 photo_cameraImage coming soon 322128 PRESSURE ROLL BRACKET €1.75
20
 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 322143 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 €2.44
21
 photo_cameraImage coming soon 322172 SPINDLE €10.71
22
 Ring Nut Aspo Welding Telwin Bimax-Technomig-Telmig 322173 Ring Nut Aspo Welding Telwin Bimax-Technomig-Telmig €4.14
23
 Reel Kit Handbill for Welding Telwin Bimax-Technomig-Telmig 322174 Reel Kit Handbill for Welding Telwin Bimax-Technomig-Telmig €11.35
25
 Compressione Spring mm 9x21 for Inverter Telwin Bimax 452022 Compressione Spring mm 9x21 for Inverter Telwin Bimax €2.44
26
 Reel Kit Spring for Welding Telwin Bimax-Technomig-Telmig 452065 Reel Kit Spring for Welding Telwin Bimax-Technomig-Telmig €11.35
27
 photo_cameraImage coming soon 650208 DOOR €3.78
28
 photo_cameraImage coming soon 980501 BOTTOM KIT €10.52
29
 photo_cameraImage coming soon 980094 COVER KIT €10.99
30
 photo_cameraImage coming soon 644229 BACK PANEL €3.78
31
 photo_cameraImage coming soon 644734 DIAPHRAGM €6.96
32
 photo_cameraImage coming soon 649165 FRONT PANEL €4.53
33
 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin 712001 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin €2.43
35
 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin 722529 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin €3.21
36
 Torch for Wire Weldings Telwin Bimax 742402 Torch for Wire Weldings Telwin Bimax €74.87
37
 Red Charging Clamp Kit for Inverter Telwin BIMAX 990072 Red Charging Clamp Kit for Inverter Telwin BIMAX €5.00
38
 Black Charging Clamp Kit for Inverter Telwin BIMAX 990073 Black Charging Clamp Kit for Inverter Telwin BIMAX €7.95
39
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
40
 photo_cameraImage coming soon 990251 GEARS KIT €2.62
41
 Reel Kit for Welding Telwin Bimax-Technomig-Telmig 990288 Reel Kit for Welding Telwin Bimax-Technomig-Telmig €11.44
42
 0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €1.80
43
 Handle Cap for Electrode Welding Telwin Nordika 2160 - 2162 322681 Handle Cap for Electrode Welding Telwin Nordika 2160 - 2162 €2.74
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

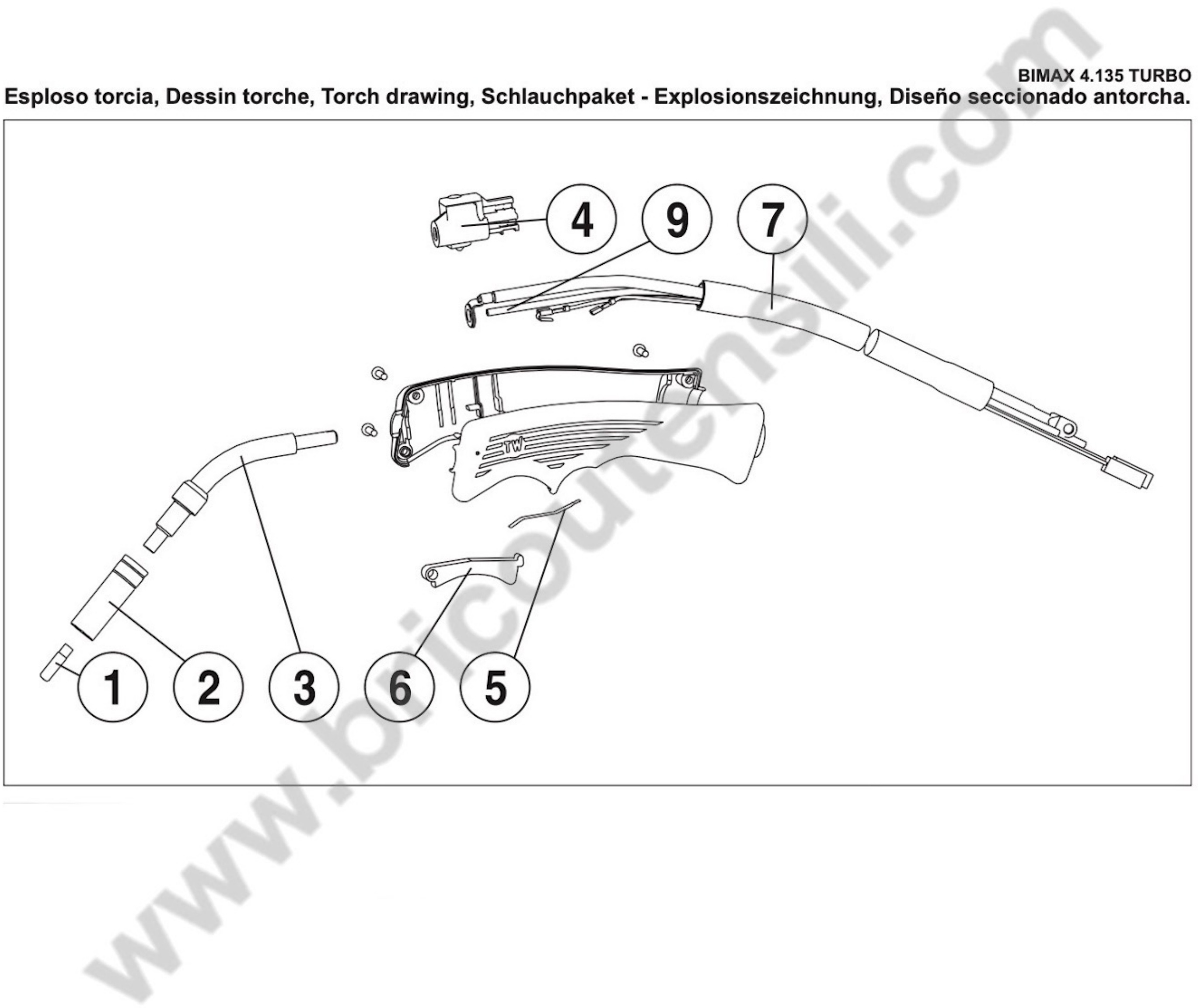

Esploso pagina 2
Pos. Item Price Buy
1
 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin 722552 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin €1.85
2
 Cilindrical Nozzle 16 mm for Wire Weldings Telwin 722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin €3.04
3
 photo_cameraImage coming soon 722078 SWAN NECK DIFFUSER €15.13
4
 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig 990464 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig €13.79
5
 Button Spring Contact for Torch Telwin MIG 452097 Button Spring Contact for Torch Telwin MIG €2.44
6
 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 €2.44
7
 photo_cameraImage coming soon 990602 KIT HARNESS 10mmq €38.91
9
 Steel Lines for Torches Telwin MIG-MAG 722077 Steel Lines for Torches Telwin MIG-MAG €4.03
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 4.135 Turbo

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Flux and Mig-mag Bimax 4.135 Turbo - 820005.

In the following table, look for the model of the welding machine and theirs spare parts codes.
Flux and Mig-mag Bimax 4.135 Turbo - 820005
Inverter BIMAX 4.135 TURBO 230V cod. 820005 Pag.1
# Description Part Num.
1 POTENTIOMETER 113533
2 KNOB 121424
3 RECTIFIER PROTECTION 112185
4 RECTIFIER KIT 990746
5 KIT PCB MOG/LIVE AUTOMATIC + CABLE 990178
6 CABLE 16 MMQ 1,8 M 124502
7 SWITCH 122752
8 THERMOSTAT 121069
9 MAINS CABLE 3G1.5 2 M SCHUKO PLUG 132310
10 FAN MOTOR 152080
11 WIRE FEED MOTOR 153023
12 TRANSFORMER 169167
13 PRESSURE ROLL 232105
14 FAN BLADE 312026
15 HANDLE 322677
16 CABLE BUSHING 322112
17 ROLL SUPPORT 322126
18 TORCH FIXING CASING 322127
19 PRESSURE ROLL BRACKET 322128
20 RING NUT 322143
21 SPINDLE 322172
22 REEL RING NUT 322173
23 REEL HANDWHEEL 322174
24 WIRE FEED HANDWHEEL 422257
25 SPRING 452022
26 REEL SPRING 452065
27 DOOR 650208
28 BOTTOM KIT 980501
29 COVER KIT 980094
30 BACK PANEL 644229
31 DIAPHRAGM 644734
32 FRONT PANEL 649165
33 COLORADO 150B WORK CLAMP 150A 712001
35 FEED ROLL D. 0,6-0,9 MM FE/FLUX 722529
36 TW160 MIG TORCH 2 M 160 A 742402
37 RED CHARGING CLAMP KIT 990072
38 KIT BLACK CHARGING CLAMP 990073
39 GAS HOSE KIT 990097
40 GEARS KIT 990251
41 REEL KIT 990288
42 SWITCH 122400
43 CAP FOR HANDLE 322681
TORCH PARTS PER BIMAX 4.135 TURBO 230V Pag.2
1 CONTACT TIP D. 1 MM AL/FLUX 722552
2 CYLINDRICAL NOZZLE 722149
3 SWAN NECK DIFFUSER 722078
4 VALVE 990464
5 CONTACT SPRING FOR MIG TORCH 452097
6 PUSHBUTTON 322295
7 KIT CABLE SET 10 MMQ 990602
9 GUIDE HOSE D.0,6-0,8MM 2M FE/INOX/FLUX 722077
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bimax 4.135 Turbo - 820005
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Bimax 4.135 Turbo Drawing

Bimax 4.135 Turbo Drawing

Download (727.46KB)
