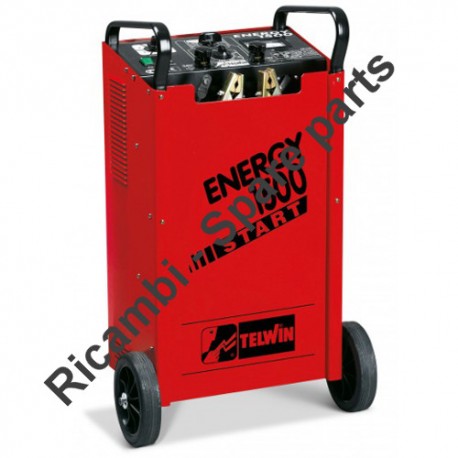

Telwin Spare Parts for Battery Chargers Energy 1500 Start

SKU: Telwin Energy 1500 Start 829009
€23.44
VAT included

Telwin Spare Parts for Battery Chargers Energy 1500 Start

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Battery Chargers Energy 1500 Start.

Telwin Energy 1500 Start 829009
Telwin Spare Parts for Battery Chargers Energy 1500 Start
  • Telwin Spare Parts for Battery Chargers Energy 1500 Start
  • Telwin Spare Parts for Battery Chargers Energy 1500 Start - Drawing
Telwin s.p.a.

Telwin Spare Parts for Battery Chargers Energy 1500 Start

SKU: Telwin Energy 1500 Start 829009 Condition: New
€23.44
VAT included

Telwin Spare Parts for Battery Chargers Energy 1500 Start

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Battery Chargers Energy 1500 Start.

Telwin Energy 1500 Start 829009
settings 44 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

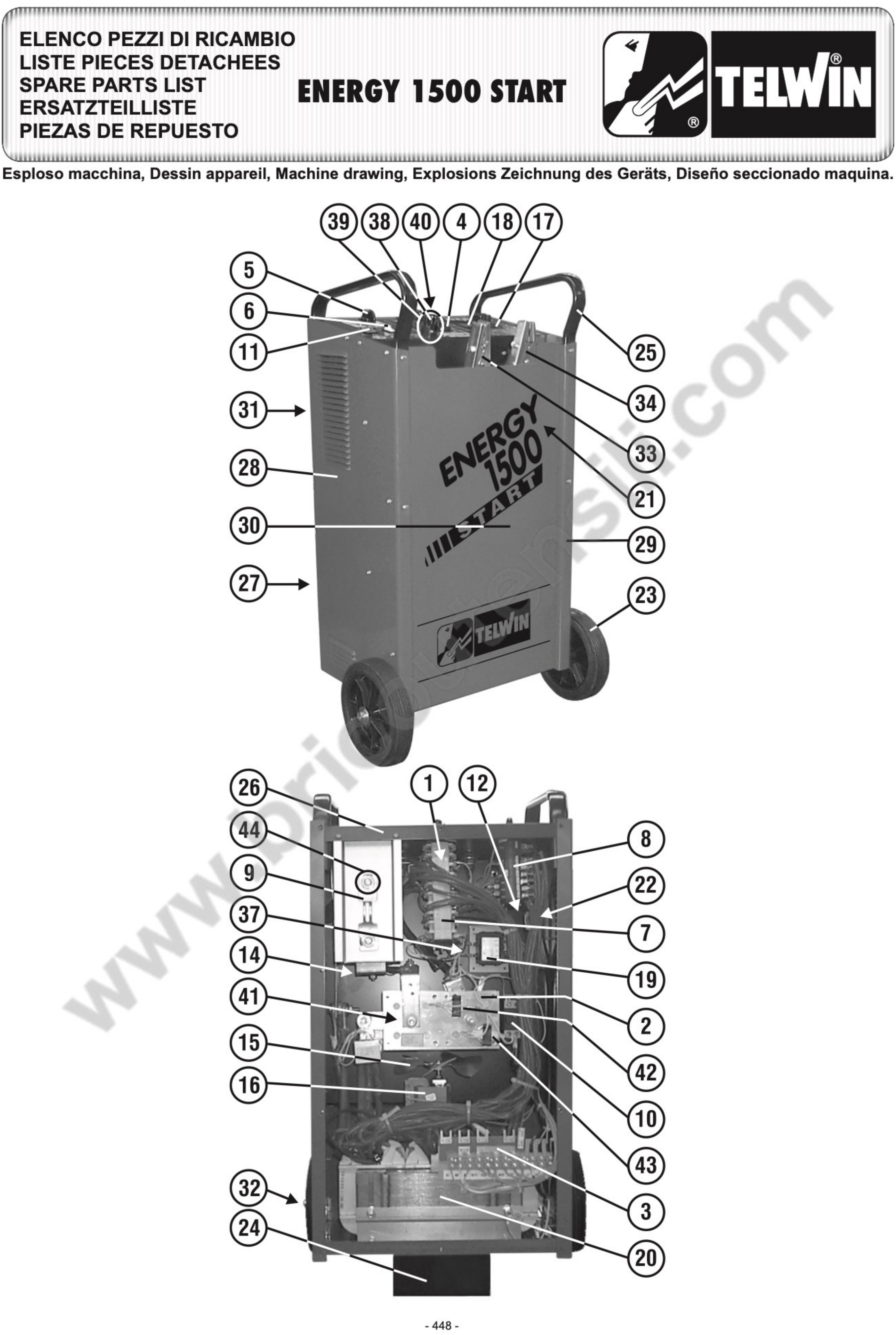

Esploso pagina 1
Pos. Item Price Buy
1
 Timer for Charger Telwin Dynamic 620 112120 Timer for Charger Telwin Dynamic 620 €23.39
2
 photo_cameraImage coming soon 112390 RECTIFIER €110.12
3
 photo_cameraImage coming soon 112163 VOLTAGE CHANGING CARD €13.95
4
 Timer Knob for Charger Telwin Dynamic - Energy 112296 Timer Knob for Charger Telwin Dynamic - Energy €3.47
5
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
6
 0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €1.80
7
 Dipswitch 40A for Charger Telwin ENERGY 1500 START 122489 Dipswitch 40A for Charger Telwin ENERGY 1500 START €90.52
8
 Dipswitch 16A for Charger Telwin ENERGY 1500 START 122490 Dipswitch 16A for Charger Telwin ENERGY 1500 START €55.64
9
 Kit 10 Fuses 300 A for Charger Telwin ENERGY 1000-1500 START 802129 Kit 10 Fuses 300 A for Charger Telwin ENERGY 1000-1500 START €36.11
10
 AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 122585 AC Contactor for Inverter Telwin MASTERMIG 300-SUPERMIG 380 €27.74
11
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
12
 photo_cameraImage coming soon 123993 REMOTE CONTROL 6 M €35.86
13
 photo_cameraImage coming soon 132166 CABLE ALIM. 4G4 2.5 M €21.94
14
 photo_cameraImage coming soon 152040 SHUNT AMPEROMETER €32.93
15
 Fan for Inverter Telwin TELMIG 180/2 152054 Fan for Inverter Telwin TELMIG 180/2 €5.77
16
 Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG 152110 Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG €30.53
17
 photo_cameraImage coming soon 152087 MASK AMPEROMETER €3.20
18
 photo_cameraImage coming soon 152098 AMPEROMETER €59.74
19
 Auxiliary Power Adapter for Welding Machines Telwin TELMIG 183-203-250/2 164270 Auxiliary Power Adapter for Welding Machines Telwin TELMIG 183-203-250/2 €37.26
20
 photo_cameraImage coming soon 164699 TRANSFORMER €721.25
21
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
22
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
23
 Wheel D.200x45 mm for Inverter Welding Telwin 322200 Wheel D.200x45 mm for Inverter Welding Telwin €18.29
24
 photo_cameraImage coming soon 644296 FOOT €3.61
25
 photo_cameraImage coming soon 644579 HANDLE €7.89
26
 photo_cameraImage coming soon 642327 DASHBOARD €26.86
27
 photo_cameraImage coming soon 650365 BACK €20.66
28
 photo_cameraImage coming soon 650487 RIGHT SIDE €21.94
29
 photo_cameraImage coming soon 650488 LEFT SIDE €21.94
30
 photo_cameraImage coming soon 655191 FRONT €32.78
31
 photo_cameraImage coming soon 655621 fuse cover MASK €3.40
32
 photo_cameraImage coming soon 681139 AXLE FOR WHEELS €3.20
33
 photo_cameraImage coming soon 712101 CLAMP EARTH (+) €23.46
34
 photo_cameraImage coming soon 712102 CLAMP GROUND (-) €23.46
35
 photo_cameraImage coming soon 713162 50MMQ 3M CABLE-CLAMP-POSITIVE OCCHIE.Ø10 €85.89
36
 photo_cameraImage coming soon 713260 0,50MMQ 3M CABLE-CLAMP MASS €78.37
37
 Fuse T630mA L250V for Charger Telwin NEVADA 12-15 122432 Fuse T630mA L250V for Charger Telwin NEVADA 12-15 €0.32
38
 photo_cameraImage coming soon 312024 HANDLE FOR CLAMP €4.88
39
 photo_cameraImage coming soon 990057 CLAMP COMPLETE €8.53
40
 Insulating Washers Kit for Charger Telwin Dynamic 220-320-420-520 990163 Insulating Washers Kit for Charger Telwin Dynamic 220-320-420-520 €4.03
41
 Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
42
 photo_cameraImage coming soon 122132 THERMOSTAT €8.71
43
 photo_cameraImage coming soon 122796 THERMOSTAT €3.20
44
 photo_cameraImage coming soon 980037 CLAMP FUSE €5.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Battery Chargers Energy 1500 Start

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Battery Chargers Energy 1500 Start.

In the following table, look for the model of the Battery Chargers and the respective parts of the code - 829009.
Telwin Energy 1500 Start 829009

ENERGY 1500 START 230-400 - 829009
# Part Num. Description
1 112120 TIMER
2 112390 RECTIFIER
3 112163 BASE VOLTAGE CHANGE
4 112296 KNOB TIMER
5 323101 SWITCH KNOB
6 122400 SWITCH
7 122489 SWITCH
8 122490 SWITCH
9 802129 KIT 10 FUSES 300A
10 122585 RELAY
11 122725 SWITCH
12 123993 REMOTE CONTROL 6 M
13 132166 CABLE ALIM. 4G4 2.5 M
14 152040 SHUNT AMPEROMETER
15 152054 FAN
16 152110 FAN MOTOR
17 152087 MASK AMPEROMETER
18 152098 AMPEROMETER
19 164270 TRANSFORMER AUXILIARY
20 164699 TRANSFORMER
21 312068 GLAND
22 322112 GLAND
23 322200 WHEEL FENCE
24 644296 FOOT
25 644579 HANDLE
26 642327 DASHBOARD
27 650365 BACK
28 650487 RIGHT SIDE
29 650488 LEFT SIDE
30 655191 FRONT
31 655621 fuse cover MASK
32 681139 AXLE FOR WHEELS
33 712101 CLAMP EARTH (+)
34 712102 CLAMP GROUND (-)
35 713162 50MMQ 3M CABLE-CLAMP-POSITIVE OCCHIE.Ø10
36 713260 0,50MMQ 3M CABLE-CLAMP MASS
37 122432 FUSE
38 312024 HANDLE FOR CLAMP
39 990057 CLAMP COMPLETE
40 990163 KIT PAIR WASHER INSULATING
41 112182 PROTECTION RECTIFIER
42 122132 THERMOSTAT
43 122796 THERMOSTAT
44 980037 CLAMP FUSE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
