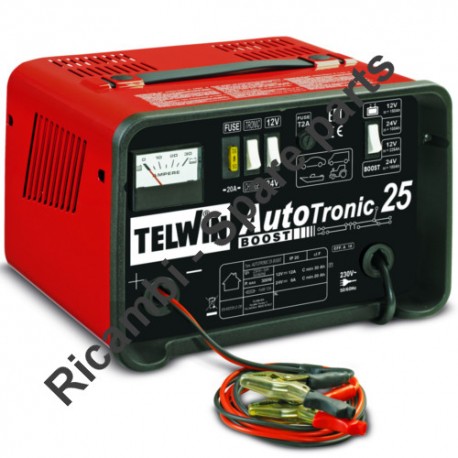

Telwin Spare Parts for Battery Chargers Autotronic 25 Boost

SKU: Autotronic 25 Boost - 807540
€7.22
VAT included

Telwin Spare Parts for Battery Chargers Autotronic 25 Boost

We are TELWIN original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Battery Chargers Autotronic 25 Boost - 807540.

Autotronic 25 Boost - 807540

Telwin Spare Parts for Battery Chargers Autotronic 25 Boost
  • Telwin Spare Parts for Battery Chargers Autotronic 25 Boost
  • Telwin Spare Parts for Battery Chargers Autotronic 25 Boost Drawing
Telwin s.p.a.

Telwin Spare Parts for Battery Chargers Autotronic 25 Boost

SKU: Autotronic 25 Boost - 807540 Condition: New
€7.22
VAT included

Telwin Spare Parts for Battery Chargers Autotronic 25 Boost

We are TELWIN original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Battery Chargers Autotronic 25 Boost - 807540.

Autotronic 25 Boost - 807540

settings 18 Spare parts

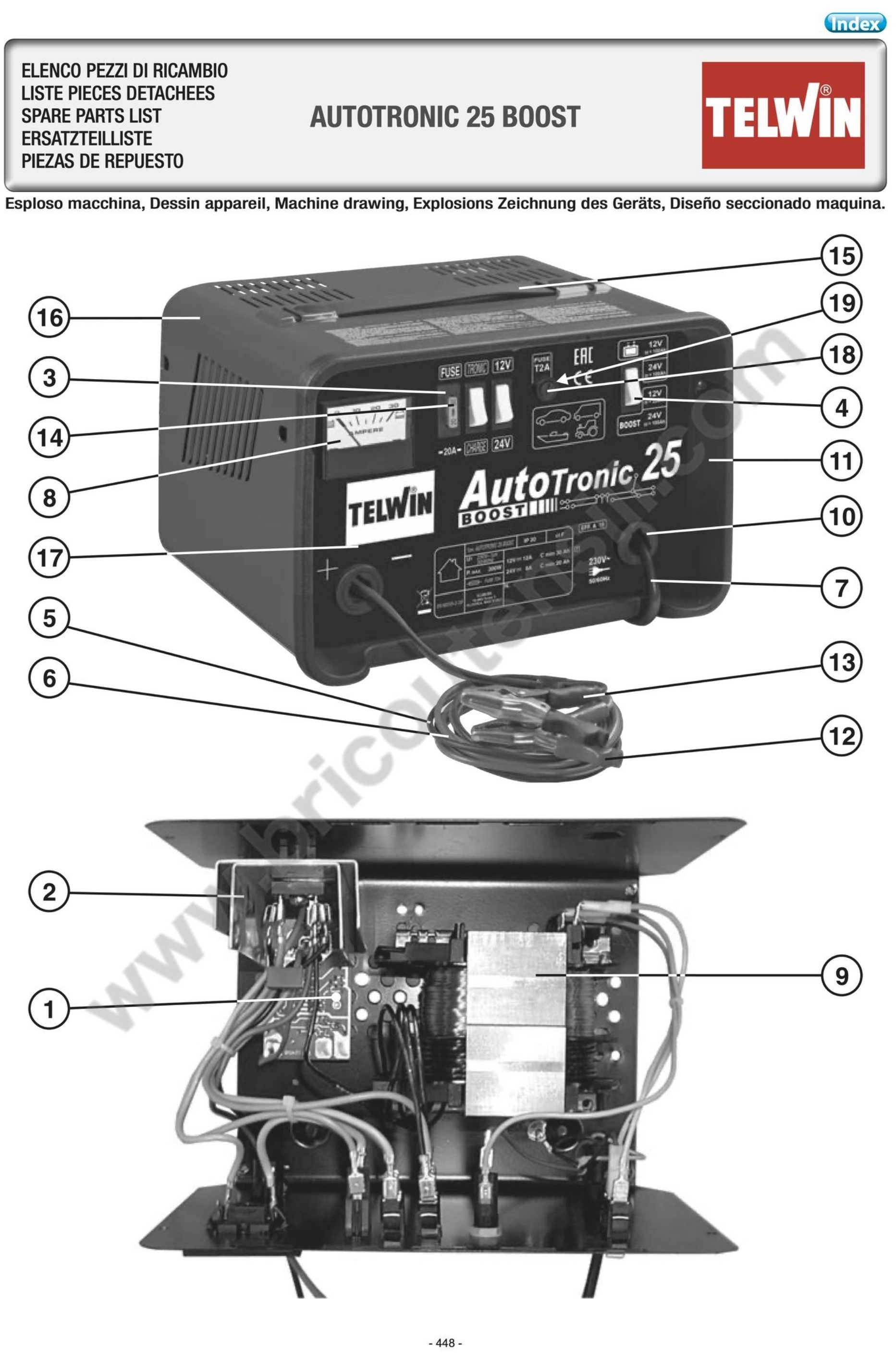

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
18 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

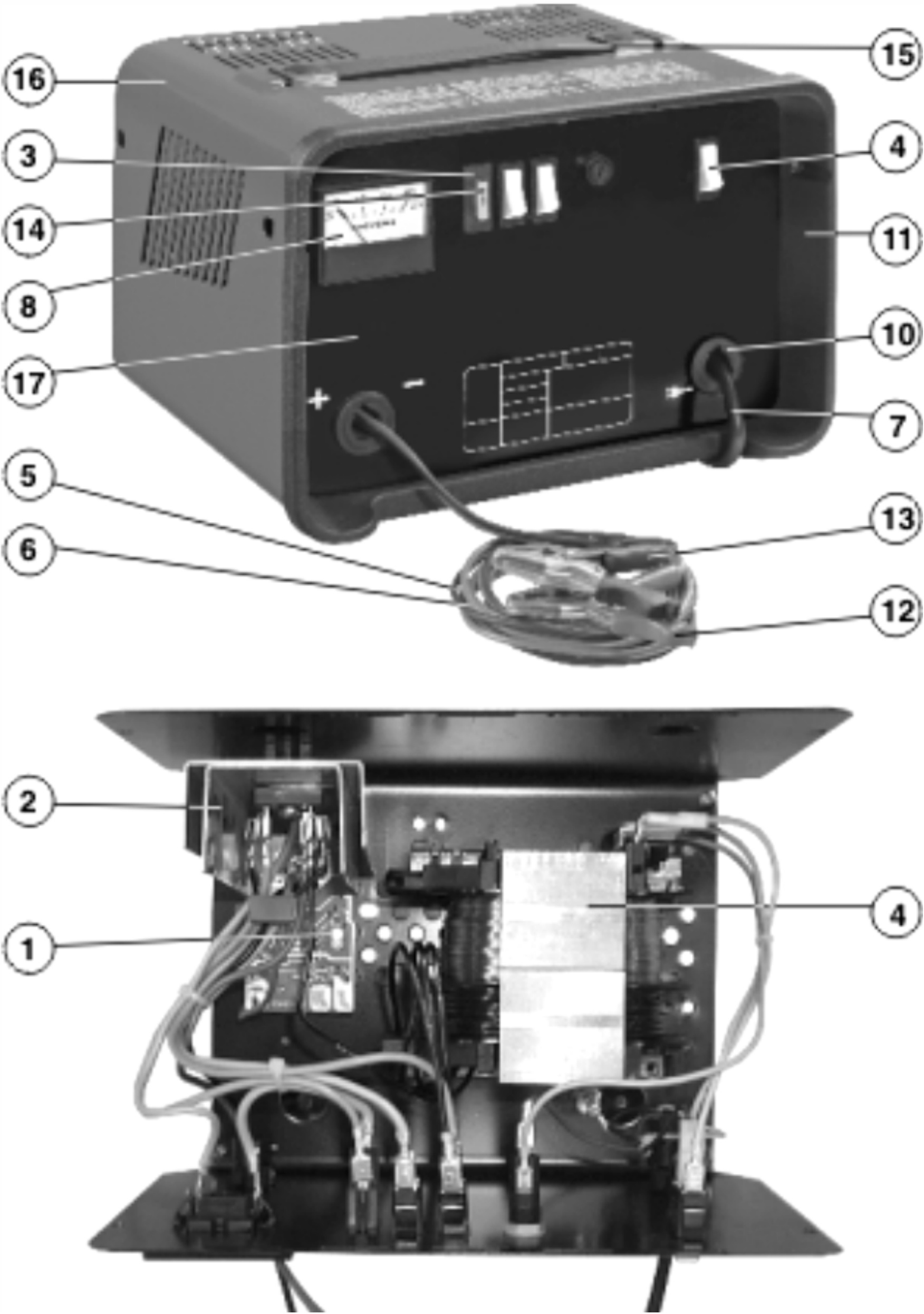

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 980730 KIT SHEET BUFFER €42.64
2
 Single-Phase Rectifier for Inverter Telwin 144-164 116346 Single-Phase Rectifier for Inverter Telwin 144-164 €2.24
3
 Holder Fuse Kit for Charger Telwin Alpine 13-14-15-16 Boost 990352 Holder Fuse Kit for Charger Telwin Alpine 13-14-15-16 Boost €10.90
4
 0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €2.38
5
 photo_cameraImage coming soon 123985 CABLE MASS 2.5 MMQ 1.5M €6.04
6
 photo_cameraImage coming soon 123986 POSITIVE CABLE MMQ 2,5 1,5 M €6.04
7
 photo_cameraImage coming soon 132085 CABLE ALIM. 3G0.75 1.5M PLUG SCHUKO €9.70
8
 Kit Amperometer 30A for Chargers Telwin Alpine 20-30 Boost 981782 Kit Amperometer 30A for Chargers Telwin Alpine 20-30 Boost €14.58
9
 230 V Transformer for Charger Telwin ALPINE 20 BOOST 169563 230 V Transformer for Charger Telwin ALPINE 20 BOOST €119.50
10
 photo_cameraImage coming soon 322138 GLAND €2.33
11
 photo_cameraImage coming soon 322665 FRAME €6.45
13
 photo_cameraImage coming soon 712624 COLORADO 40B PINZA MASS 40A €2.38
14
 Kit 10 Fuses 20A for Charger Telwin ALPINE 20 BOOST 802257 Kit 10 Fuses 20A for Charger Telwin ALPINE 20 BOOST €4.82
15
 Handle Kit for Battery Chargers Telwin Autotronic 25 Boost 990340 Handle Kit for Battery Chargers Telwin Autotronic 25 Boost €7.26
16
 photo_cameraImage coming soon 990939 KIT COAT €9.70
17
 photo_cameraImage coming soon 981244 KIT FRONT €7.26
18
 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost 122159 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost €2.44
19
 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.87

Shipping and delivery information will be available shortly.

Telwin Spare Parts for Battery Chargers Autotronic 25 Boost

We are TELWIN original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Battery Chargers Autotronic 25 Boost - 807540.

In the following table, look for the model of the Battery Chargers and the respective parts of the code.
Autotronic 25 Boost - 807540

AUTOTRONIC 25 BOOST 230V 12-24V – 807540
# Part Num. Description
0 712623 COLORADO 40R POSITIVE CLAMP 40A
1 980730 KIT SHEET BUFFER
2 116346 RECTIFIER
3 990352 KIT HOLDER FUSE
4 122400 0/1 SWITCH
5 123985 CABLE MASS 2.5 MMQ 1.5M
6 123986 POSITIVE CABLE MMQ 2,5 1,5 M
7 132085 CABLE ALIM. 3G0.75 1.5M PLUG SCHUKO
8 981782 KIT AMPEROMETER 30A
9 169563 TRANSFORMER
10 322138 GLAND
11 322665 FRAME
13 712624 COLORADO 40B PINZA MASS 40A
14 802257 KIT 10 FUSES 20A
15 990340 KIT HANDLE
16 990939 KIT COAT
17 981244 KIT FRONT
18 122159 FUSE HOLDER
19 122437 FUSE
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Autotronic 25 Boost - 807540
12 Items

Data sheet

CHECK ITEM OR S/N CODE TELWIN
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Telwin Autotronic 25 B.

Diagram Telwin Autotronic 25 B.

Download (270.07KB)
