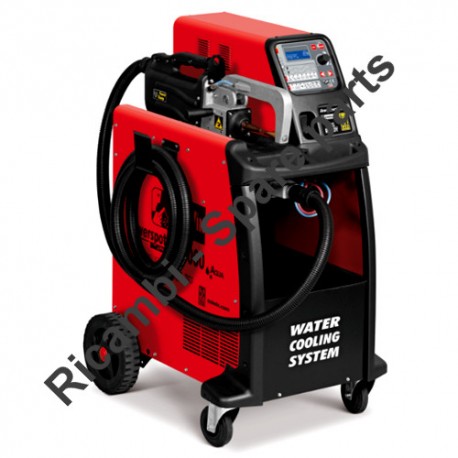

Telwin Spare Parts for Spotter Inverspotter 14000 Smart Aqua

SKU: Telwin 14000 Smart Aqua - 823093
€104.27
VAT included

Telwin Spare Parts for Spotter Inverspotter 14000 Smart Aqua

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Spotter Inverspotter 14000 Smart Aqua - 823093.

Telwin 14000 Smart Aqua - 823093
Telwin Spare Parts for Spotter Inverspotter 14000 Smart Aqua
  • Telwin Spare Parts for Spotter Inverspotter 14000 Smart Aqua
  • Telwin Spare Parts for Spotter Inverspotter 13500/14000 Smart Aqua

Telwin Spare Parts for Spotter Inverspotter 14000 Smart Aqua

SKU: Telwin 14000 Smart Aqua - 823093 Condition: New
€104.27
VAT included

Telwin Spare Parts for Spotter Inverspotter 14000 Smart Aqua

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Spotter Inverspotter 14000 Smart Aqua - 823093.

Telwin 14000 Smart Aqua - 823093
settings 56 spare parts

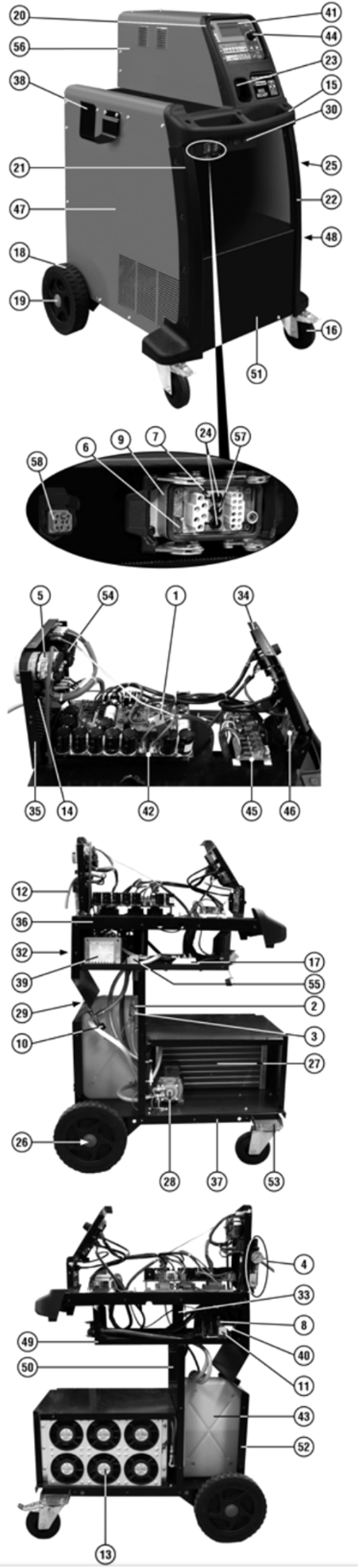

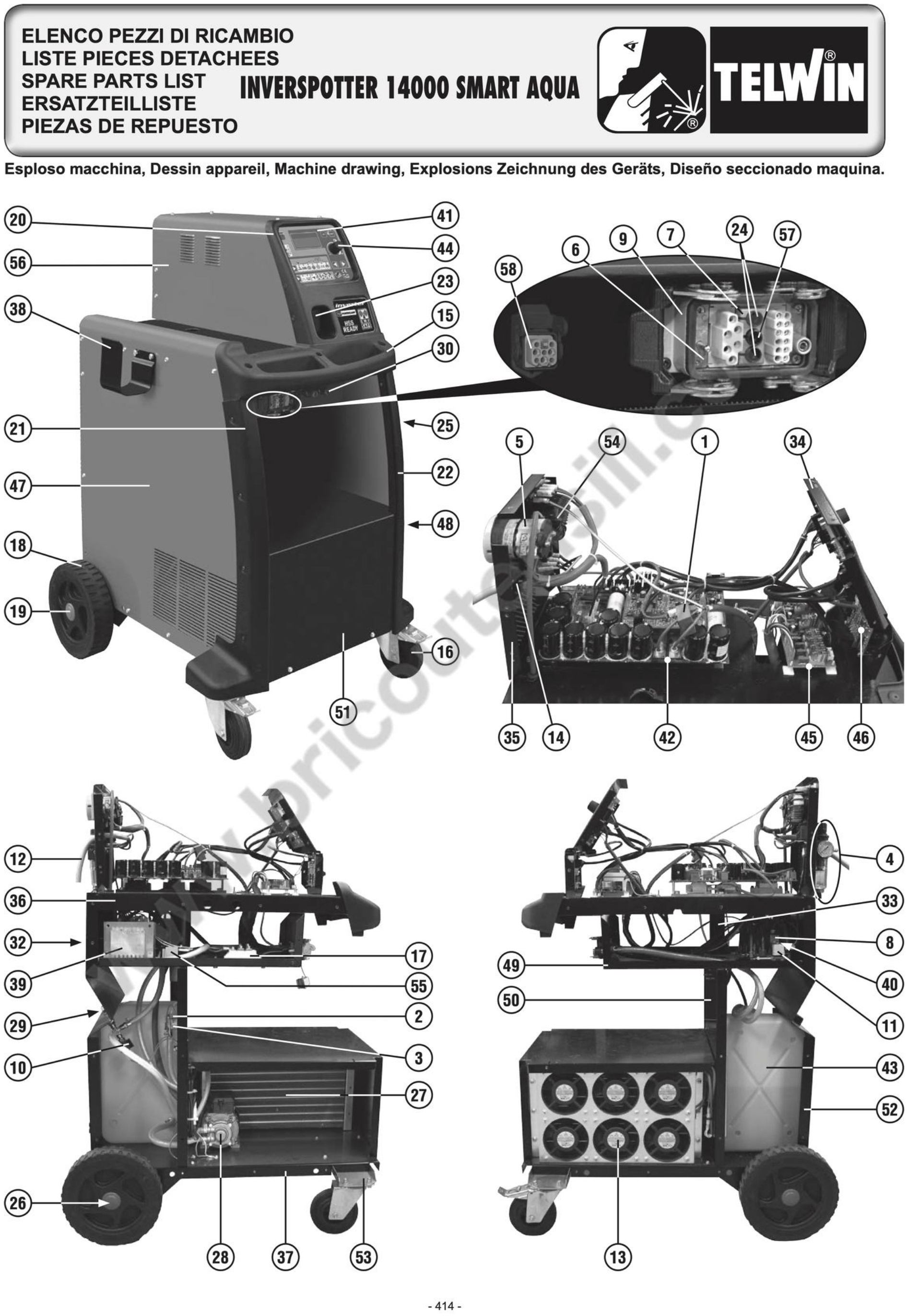

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112381 HALL SENSOR €98.29
2
photo_cameraImage coming soon 112482 ANTIVIBRATION Ø40X30 MF M8X25 65SH €4.57
3
photo_cameraImage coming soon 116154 RELAY ' €5.57
4
photo_cameraImage coming soon 120036 ASSEMBLY GEAR + GAUGE €45.48
5
photo_cameraImage coming soon 121265 SWITCH €23.17
6
photo_cameraImage coming soon 121332 FRAME €11.35
7
photo_cameraImage coming soon 121337 TYRE MODULE 3 POLES €2.42
8
photo_cameraImage coming soon 121431 SOLENOID €33.45
9
photo_cameraImage coming soon 121331 HOUSING PLUG FIXED €17.18
10
photo_cameraImage coming soon 122599 PRESSURE €15.98
11
photo_cameraImage coming soon 122850 SOLENOID €12.55
12
photo_cameraImage coming soon 132378 CABLE ALIM. FROR 4G06.00 0.8 M €69.02
13
Fan for Inverter Pratica-Technomig 152101 Fan for Inverter Pratica-Technomig €27.74
14
photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
15
photo_cameraImage coming soon 312428 ASSEMBLY HANDLE €12.86
16
photo_cameraImage coming soon 322569 RUOTA.GIREVOLE + BRAKE €29.81
18
photo_cameraImage coming soon 322772 WHEEL €13.12
19
photo_cameraImage coming soon 322773 WHEEL CAP €2.40
20
photo_cameraImage coming soon 322925 FRAME €41.15
21
photo_cameraImage coming soon 322926 RIGHT PROFILE €27.97
22
photo_cameraImage coming soon 322927 PROFILE LEFT €27.97
23
photo_cameraImage coming soon 322935 USB PLUG €3.29
24
photo_cameraImage coming soon 322867 FITTING FEMALE-stand €48.07
25
photo_cameraImage coming soon 432553 SUPPORT CLAMP CART €21.56
26
photo_cameraImage coming soon 483060 AXLE FOR WHEELS €5.40
27
photo_cameraImage coming soon 602268 COOLER €134.61
28
photo_cameraImage coming soon 602259 ELECTRIC €189.91
29
photo_cameraImage coming soon 602261 VALVE €3.72
30
photo_cameraImage coming soon 602340 QUICK ATTACK €8.63
32
photo_cameraImage coming soon 645458 SUPPORT ARMS €7.36
33
photo_cameraImage coming soon 645654 SUPPORT LOWER €32.01
34
photo_cameraImage coming soon 645460 FRONT €14.26
35
photo_cameraImage coming soon 645461 BACK €21.77
36
photo_cameraImage coming soon 980977 KIT COAT €29.59
37
photo_cameraImage coming soon 645591 ASS. FUND €41.30
38
photo_cameraImage coming soon 645469 BRACKET HANGER CABLE €6.24
39
photo_cameraImage coming soon 980104 AUTOTRASFO 0-230-400V €137.01
40
photo_cameraImage coming soon 980106 KIT SOLENOID €70.07
41
photo_cameraImage coming soon 981350 KIT ASS. PANEL + CARD €293.87
42
photo_cameraImage coming soon 981351 BOARD KIT PRIMARY €1,416.67
43
photo_cameraImage coming soon 980967 KIT TANK €44.38
44
photo_cameraImage coming soon 980968 KNOB ENCODER KIT D.29 €8.40
45
photo_cameraImage coming soon 981282 KIT INTERFACE CARD €125.88
46
photo_cameraImage coming soon 981352 KIT USB INTERFACE CARD SMART €152.65
47
photo_cameraImage coming soon 981353 KIT SIDE DX €85.83
48
photo_cameraImage coming soon 981354 KIT SIDE SX €84.54
49
photo_cameraImage coming soon 981355 SUPPORT CLAMP KIT €30.06
50
photo_cameraImage coming soon 980974 KIT IRIS €25.10
51
photo_cameraImage coming soon 981356 KIT FRONT GRA €30.18
52
photo_cameraImage coming soon 981357 BACK PANEL KIT €26.72
53
photo_cameraImage coming soon 980978 KIT SUPPORT WHEELS €17.14
54
photo_cameraImage coming soon 990287 DATA ENTRY FILTER KIT €68.35
55
photo_cameraImage coming soon 990620 TRANSFORMER AUXILIARY €31.91
56
photo_cameraImage coming soon 651150 COAT €34.26
57
photo_cameraImage coming soon 322953 FITTING FEMALE-stand €27.55
58
photo_cameraImage coming soon 124647 WIRING JACK AUTOMATIC €18.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Spotter Inverspotter 14000 Smart Aqua

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Spotter Inverspotter 14000 Smart Aqua - 823093.

In the following table, look for the model of the Spotter and the respective parts of the code.
Telwin 14000 Smart Aqua - 823093

INVERSPOTTER 14000 SMART AQUA 400V +ACC. - 823093
# Part Num. Description
1 112381 SENSOR HALL
2 112482 BASE
3 116154 RELAY '
4 120036 ASSEMBLY GEAR + GAUGE
5 121265 SWITCH
6 121332 FRAME
7 121337 TYRE MODULE 3 POLES
8 121431 SOLENOID
9 121331 HOUSING PLUG FIXED
10 122599 PRESSURE
11 122850 SOLENOID
12 132378 CABLE ALIM. FROR 4G06.00 0.8 M
13 152101 FAN
14 312068 GLAND
15 312428 ASSEMBLY HANDLE
16 322569 RUOTA.GIREVOLE + BRAKE
18 322772 WHEEL
19 322773 PLUG FOR WHEEL
20 322925 FRAME
21 322926 RIGHT PROFILE
22 322927 PROFILE LEFT
23 322935 USB PLUG
24 322867 FITTING FEMALE-stand
25 432553 SUPPORT CLAMP CART
26 483060 AXLE FOR WHEELS
27 602268 COOLER
28 602259 ELECTRIC
29 602261 VALVE
30 602340 QUICK ATTACK
32 645458 SUPPORT ARMS
33 645654 SUPPORT LOWER
34 645460 FRONT
35 645461 RETRO
36 980977 KIT COAT
37 645591 ASS. FUND
38 645469 BRACKET HANGER CABLE
39 980104 AUTOTRASFO 0-230-400V
40 980106 KIT SOLENOID
41 981350 KIT ASS. PANEL + CARD
42 981351 BOARD KIT PRIMARY
43 980967 KIT TANK
44 980968 KNOB ENCODER KIT D.29
45 981282 KIT INTERFACE CARD
46 981352 KIT USB INTERFACE CARD SMART
47 981353 KIT SIDE DX
48 981354 KIT SIDE SX
49 981355 SUPPORT CLAMP KIT
50 980974 KIT IRIS
51 981356 KIT FRONT GRA
52 981357 KIT RETRO
53 980978 KIT SUPPORT WHEELS
54 990287 DATA ENTRY FILTER KIT
55 990620 TRANSFORMER AUXILIARY
56 651150 COAT
57 322953 FITTING FEMALE-stand
58 124647 WIRING JACK AUTOMATIC
