We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for DIGITAL SPOTTER 9000 400V + ACC – 823195.

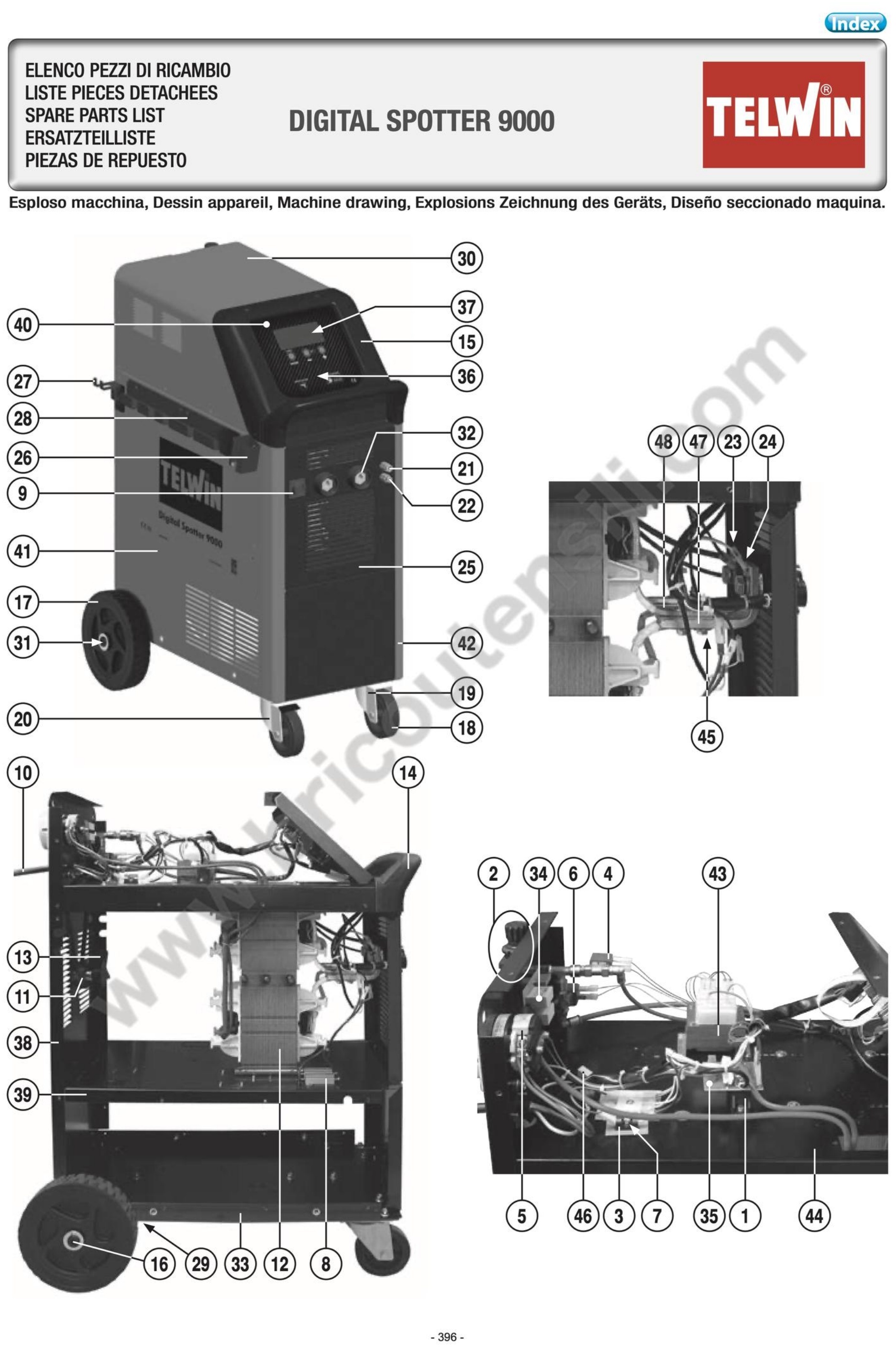

In the following table, look for the model of the Spotter and the respective parts of the code.
| DIGITAL SPOTTER 9000 400V + ACC – 823195 | ||
| 1 | 112692 | SCR |
| 2 | 120036 | ASSEMBLY GEAR + GAUGE |
| 3 | 122403 | FUSE |
| 4 | 122497 | SOLENOID |
| 5 | 122531 | SWITCH |
| 6 | 122798 | SOLENOID |
| 7 | 122875 | FUSE |
| 8 | 124726 | ASS.RESISTENZA |
| 9 | 124727 | WIRING BOARD / CONNECTOR |
| 10 | 132101 | CABLE ALIM. 3G4 4 M |
| 11 | 152080 | FAN MOTOR |
| 12 | 169826 | TRANSFORMER 400V |
| 13 | 312025 | FAN |
| 14 | 312328 | HANDLE |
| 15 | 321076 | FRAME |
| 16 | 322102 | CAP LOCK WHEELS |
| 17 | 322200 | WHEEL FENCE |
| 18 | 322246 | WHEEL |
| 19 | 422969 | SUPPORT REVOLVING |
| 20 | 484441 | SUPPORT REVOLVING + BRAKE |
| 21 | 602000 | QUICK ATTACK |
| 22 | 602116 | QUICK ATTACK |
| 23 | 602137 | QUICK ATTACK |
| 24 | 602276 | QUICK ATTACK |
| 25 | 981529 | KIT FRONT LOWER + LABEL |
| 26 | 644457 | BRACKET gun holder |
| 27 | 644458 | SUPPORT ESTRATTORE |
| 28 | 644822 | BRACKET HOLDERS |
| 29 | 645455 | BRACKET AXLE WHEELS |
| 30 | 651184 | COAT |
| 31 | 681152 | AXLE FOR WHEELS |
| 32 | 712037 | SOCKET DX 70/95 |
| 33 | 981290 | KIT FUND |
| 34 | 981502 | FILTER KIT FORM |
| 35 | 981503 | BOARD KIT SNUBBER |
| 36 | 981504 | KIT CONTROL BOARD |
| 37 | 981505 | ASSEMBLY KIT DISPLAY |
| 38 | 981506 | KIT RETRO |
| 39 | 981507 | KIT BOTTOM SHELF |
| 40 | 981508 | KIT FRONT + LABEL |
| 41 | 981509 | KIT SIDE DX |
| 42 | 981510 | KIT SIDE SX |
| 43 | 990598 | TRANSFORMER AUXILIARY |
| 44 | 981665 | KIT TOP SHELF |
| 45 | 122571 | THERMOSTAT |
| 46 | 123362 | ASS.RESISTENZA-CAPACITOR |
| 47 | 432955 | CONNECTING DX |
| 48 | 432957 | LINK SX |
