Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Enterprise Plasma 160 HF

SKU: Enterprise Plasma 160HF – 815870
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Enterprise Plasma 160 HF

Telwin Genuine spare parts or replacement parts for to repair Air Plasma Cutting Enterprise Plasma 160HF 230-400V – 815870

Enterprise Plasma 160HF – 815870
Telwin Spare Parts for Air Plasma Cutting Enterprise Plasma 160 HF
  • Telwin Spare Parts for Air Plasma Cutting Enterprise Plasma 160 HF
  • Telwin Spare Parts for Air Plasma Cutting Enterprise Plasma 160 HF - Drawing
  • Telwin Spare Parts for Air Plasma Cutting Enterprise Plasma 160 HF - Torche Drawing
Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Enterprise Plasma 160 HF

SKU: Enterprise Plasma 160HF – 815870 Condition: New
€14.36
VAT included

Telwin Spare Parts for Air Plasma Cutting Enterprise Plasma 160 HF

Telwin Genuine spare parts or replacement parts for to repair Air Plasma Cutting Enterprise Plasma 160HF 230-400V – 815870

Enterprise Plasma 160HF – 815870
settings 59 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
59 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112163 VOLTAGE CHANGING CARD €13.95
2
 photo_cameraImage coming soon 112353 RECTIFIER €102.66
5
 photo_cameraImage coming soon 112546 RESISTANCE €59.91
6
 photo_cameraImage coming soon 114719 DATA ENTRY FILTER €91.36
7
 photo_cameraImage coming soon 121046 CONTACTOR €37.58
8
 photo_cameraImage coming soon 121091 SOLENOID €32.23
9
 Fuse T630mA L250V for Charger Telwin NEVADA 12-15 122432 Fuse T630mA L250V for Charger Telwin NEVADA 12-15 €0.32
12
 photo_cameraImage coming soon 122599 PRESSURE €15.98
13
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
14
 Fuse 5x20 400 mA for Charger Telwin NEVADA 10-11 122760 Fuse 5x20 400 mA for Charger Telwin NEVADA 10-11 €0.47
15
 photo_cameraImage coming soon 122850 SOLENOID €12.55
16
 photo_cameraImage coming soon 123469 CABLE 25 MMQ 5 M €54.91
17
 photo_cameraImage coming soon 132260 CABLE ALIM. 4G10 3:50 M €88.17
18
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
19
 photo_cameraImage coming soon 152135 FAN BLADE €6.58
20
 photo_cameraImage coming soon 169200 TRANSFORMER AUXILIARY €119.11
21
 photo_cameraImage coming soon 169715 TRANSFORMER €1,360.01
22
 photo_cameraImage coming soon 169716 REACTOR €118.49
23
 photo_cameraImage coming soon 312328 HANDLE €12.03
24
 Wheel D.200x45 mm for Inverter Welding Telwin 322200 Wheel D.200x45 mm for Inverter Welding Telwin €18.29
25
 photo_cameraImage coming soon 322246 WHEEL €3.64
26
 photo_cameraImage coming soon 322698 FRAME €9.91
27
 photo_cameraImage coming soon 422969 SWIVEL SUPPORT €7.17
28
 photo_cameraImage coming soon 484279 IRIS €20.49
29
 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF 602019 Pressure Reducer for Telwin SUPERPLASMA 60/3 HF €19.05
30
 photo_cameraImage coming soon 602040 AIR FILTER €32.65
31
 photo_cameraImage coming soon 602326 GAUGE €8.10
32
 photo_cameraImage coming soon 642162 FRONT €28.52
33
 photo_cameraImage coming soon 642163 BACK €26.14
34
 photo_cameraImage coming soon 645509 FUND €32.78
35
 photo_cameraImage coming soon 651168 COAT €19.63
36
 photo_cameraImage coming soon 656053 SIDE €20.44
37
 Fixed Wheel D.175MM Axle for Telwin Welding Machines 681092 Fixed Wheel D.175MM Axle for Telwin Welding Machines €10.49
38
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
39
 Telwin Superplasma 90/3 HF Torch 6M 722332 Telwin Superplasma 90/3 HF Torch 6M €424.25
40
 Torch Connection for Inverter Telwin Superior Plasma 60HF 722439 Torch Connection for Inverter Telwin Superior Plasma 60HF €59.30
41
 photo_cameraImage coming soon 980095 KIT TRANSFORMER €84.48
42
 photo_cameraImage coming soon 980632 KIT SHEET FEEDER €138.91
43
 Plasma Filter Card Kit for Enterprise Plasma 160HF 980689 Plasma Filter Card Kit for Enterprise Plasma 160HF €169.64
44
 photo_cameraImage coming soon 980728 AUXILIARY CONTROL BOARD KIT €40.24
45
 photo_cameraImage coming soon 980732 BOARD KIT HF €134.91
46
 photo_cameraImage coming soon 981097 KIT FORM SECONDARY €999.91
47
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
48
 photo_cameraImage coming soon 990368 CABLE BUSHING KIT €24.18
49
 photo_cameraImage coming soon 990592 TRANSFORMER AUXILIARY €57.01
50
 photo_cameraImage coming soon 990834 KIT FRONT €277.86
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 742358 TORCH BODY KIT + HANDLE €176.31
3
 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
5
 Kit 5 Long Nozzles for Telwin SUPERPLASMA 802083 Kit 5 Long Nozzles for Telwin SUPERPLASMA €47.48
5
 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA 802119 Kit 5 Nozzles 1.3 mm for Plasma Torch Telwin SUPERPLASMA €17.91
5
 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA 802124 Kit 5 Nozzles 1.6 mm for Plasma Torch Telwin SUPERPLASMA €17.91
6
 photo_cameraImage coming soon 802120 KIT 10 RINGS €4.91
7
 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA 802121 Kit 5 Brass Diffusers for Plasma Torch Telwin SUPERPLASMA €22.61
8
 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA 802082 Set 5 Long Electrodes for Plasma Torch Telwin SUPERPLASMA €31.65
8
 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA 802122 Set 5 Electrodes for Plasma Torch Telwin SUPERPLASMA €18.08
9
 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA 802123 Kit 5 Insulating Diffusers for Telwin SUPERPLASMA €49.75
11
 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA 802126 Kit 2 Torch Safety Caps for Plasma Torch Telwin SUPERPLASMA €62.17
12
 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA 802127 Kit 5 Spacers for Plasma Torch Telwin SUPERPLASMA €19.84
13
 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF 742041 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF €74.25

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Air Plasma Cutting Enterprise Plasma 160 HF

Telwin Genuine spare parts or replacement parts for to repair Air Plasma Cutting Enterprise Plasma 160HF 230-400V – 815870
In the following table, look for the model of the Plasma and the respective parts of the code.
Enterprise Plasma 160HF – 815870

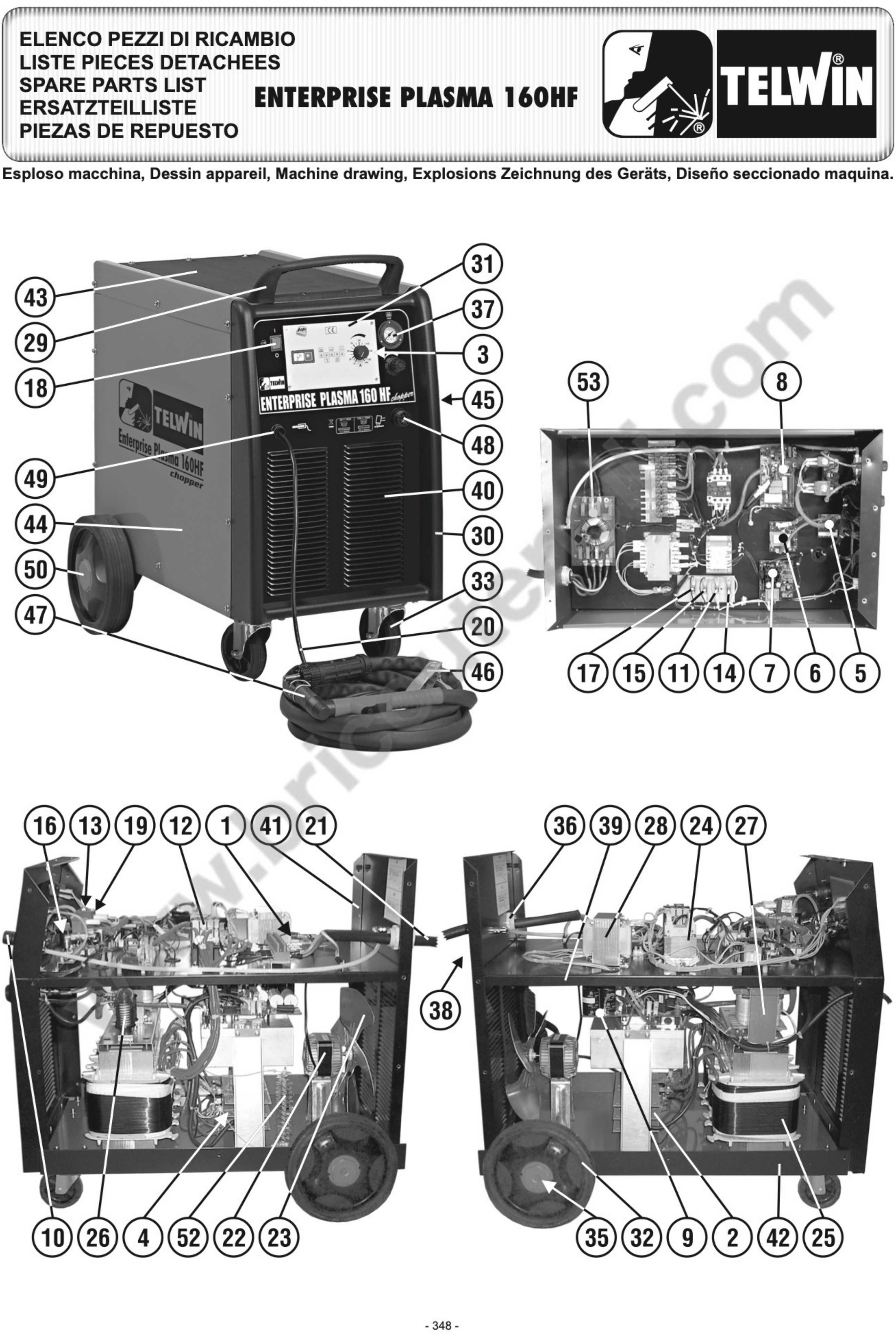

ENTERPRISE PLASMA 160HF 230-400V – 815870 Pag.1
# Part Num. Description
1 112163 BASE VOLTAGE CHANGE
2 112353 RECTIFIER
3 112511 Potentiometer - Obsolete Non Avalaible
4 112513 VARISTOR
5 112546 RESISTANCE
6 114719 DATA ENTRY FILTER
7 121046 CONTACTOR
8 121091 SOLENOID
9 122432 FUSE
10 122433 FUSE 1A
11 122436 FUSE
12 122599 PRESSURE
13 122725 SWITCH
14 122760 FUSE
15 122850 SOLENOID
16 123469 CABLE 25 MMQ 5 M
17 132260 CABLE ALIM. 4G10 3:50 M
18 152083 ENGINE
19 152135 FAN
20 169200 TRANSFORMER AUXILIARY
21 169715 TRANSFORMER
22 169716 REACTOR
23 312328 HANDLE
24 322200 WHEEL FENCE
25 322246 WHEEL
26 322698 FRAME
27 422969 SUPPORT REVOLVING
28 484279 IRIS
29 602019 PRESSURE REDUCER
30 602040 AIR FILTER
31 602326 GAUGE
32 642162 FRONT
33 642163 RETRO
34 645509 FUND
35 651168 COAT
36 656053 SIDE
37 681092 AXLE FOR WHEELS
38 712231 TOLEDO 300 CLAMP MASS
39 722332 PLASMA TORCH 6 M 150 A
40 722439 TORCH CONNECTION
41 980095 KIT TRANSFORMER
42 980632 KIT SHEET FEEDER
43 980689 PLASMA FILTER CARD KIT
44 980728 AUXILIARY CONTROL BOARD KIT
45 980732 BOARD KIT HF
46 981097 KIT FORM SECONDARY
47 990046 GLAND NUT KIT +
48 990368 GLAND KIT
49 990592 TRANSFORMER AUXILIARY
50 990834 KIT FRONT

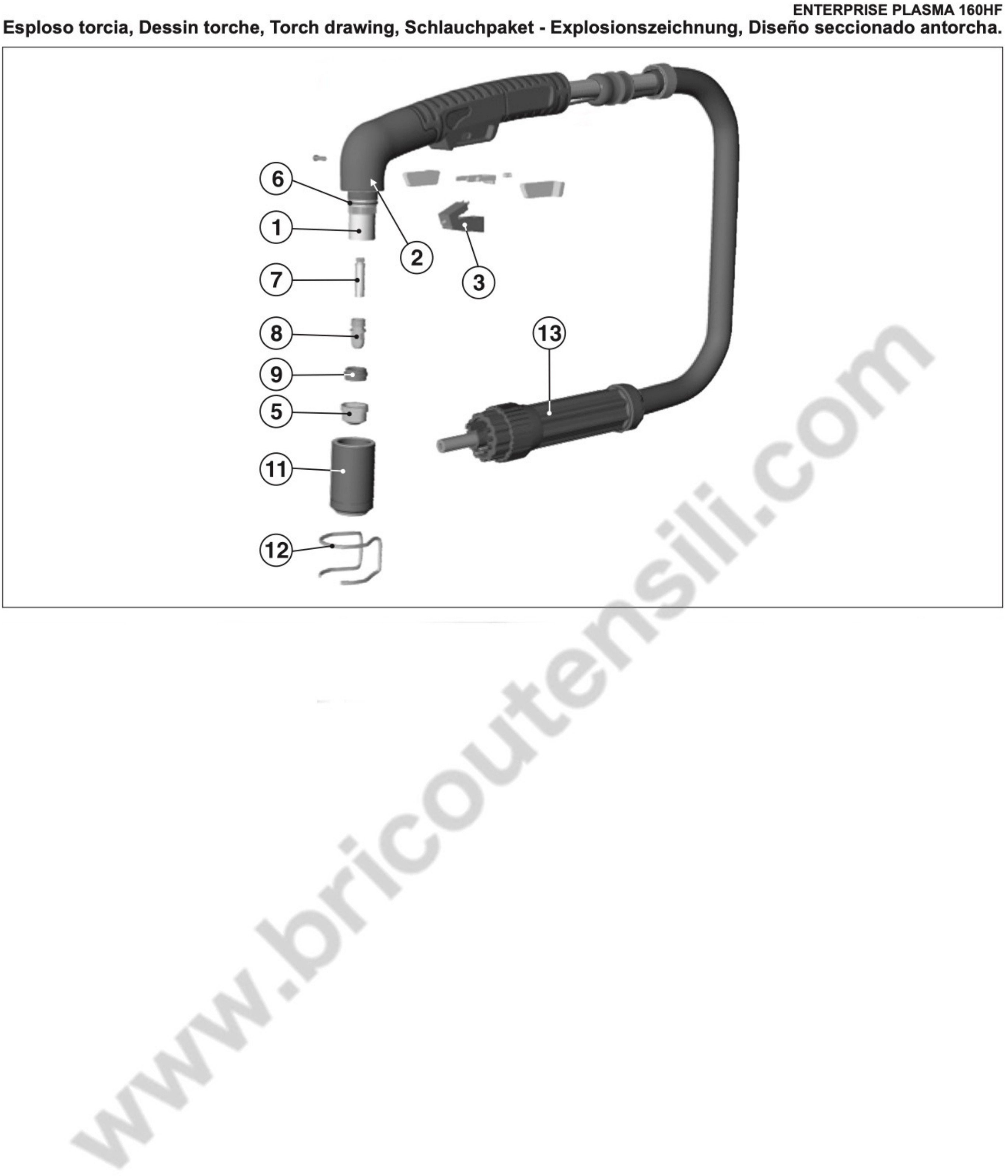

TORCH FOR ENTERPRISE PLASMA 160HF 230-400V – 815870 Pag.2
1 742358 TORCH BODY KIT + HANDLE
3 722677 BUTTON
5 802124 KIT 5 NOZZLES D.1,6
5 802083 KIT 5 NOZZLES LONG
5 802119 KIT 5 NOZZLES D.1,3
6 802120 KIT 10 RINGS
7 802121 KIT 5 SPEAKER BRASS
8 802082 KIT 5 PADS LONG
8 802122 KIT 5 ELECTRODES
9 802123 KIT 5 SPEAKER INSULATION
11 802126 KIT 2 TOE TORCH
12 802127 KIT 5 SPACERS
13 742041 TORCH CONNECTOR
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Enterprise Plasma 160HF – 815870
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Enterprise Plasma 160 HF Diagram

Enterprise Plasma 160 HF Diagram

Download (628.69KB)
