Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 60 HF

SKU: SUPERIOR PLASMA 60 HF – 815506
€2.57
VAT included

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 60 HF

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superior Plasma 60 HF 815506.

SUPERIOR PLASMA 60 HF – 815506
Telwin Spare Parts for Air Plasma Cutting Superior Plasma 60 HF
  • Telwin Spare Parts for Air Plasma Cutting Superior Plasma 60 HF
  • Telwin Spare Parts for Air Plasma Cutting Superior Plasma 60 HF - Diagram
  • Telwin Spare Parts for Air Plasma Cutting Superior Plasma 60 HF - Torche
Telwin s.p.a.

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 60 HF

SKU: SUPERIOR PLASMA 60 HF – 815506 Condition: New
€2.57
VAT included

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 60 HF

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superior Plasma 60 HF 815506.

SUPERIOR PLASMA 60 HF – 815506
settings 55 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

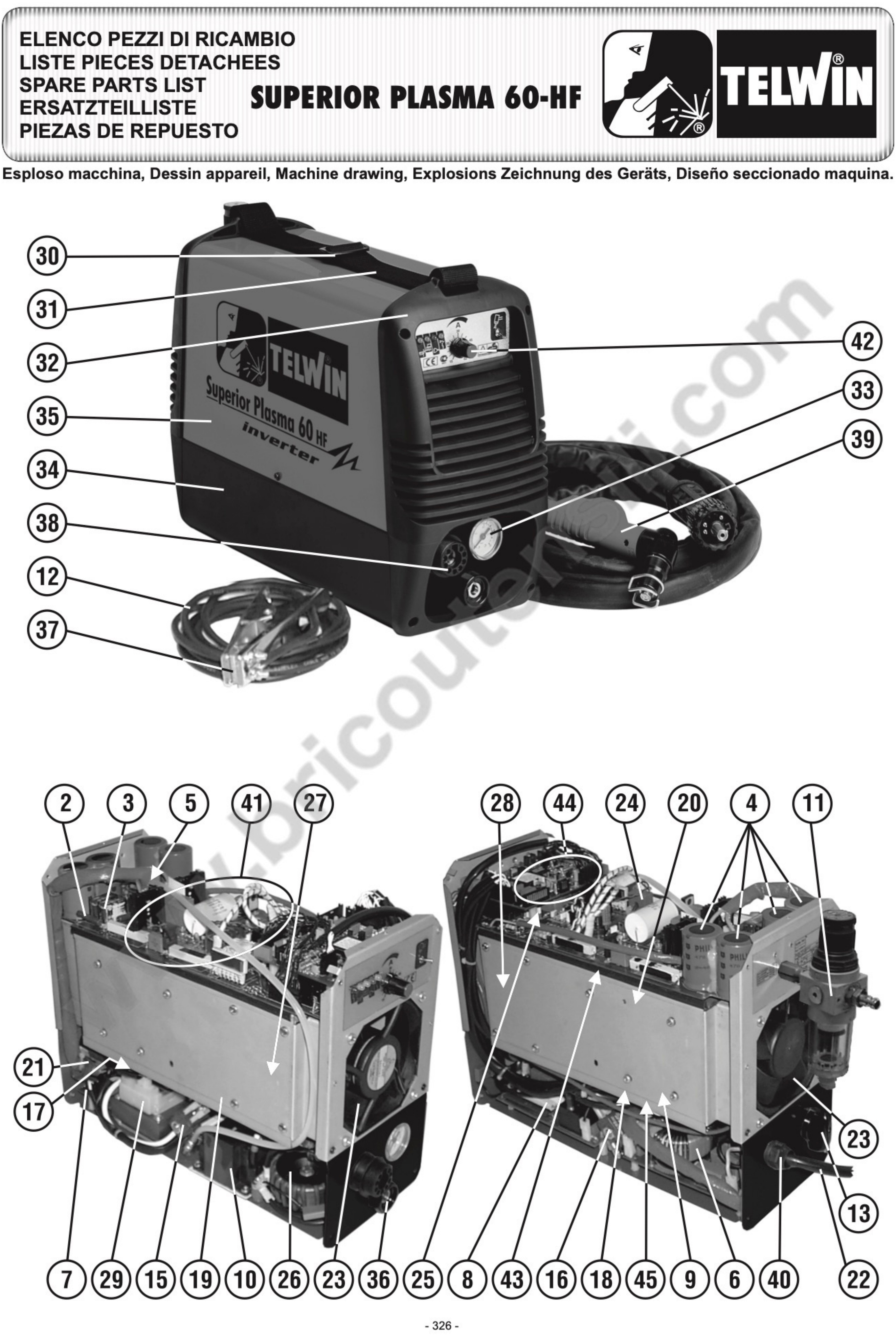

Esploso pagina 1
Pos. Item Price Buy
2
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
3
 photo_cameraImage coming soon 112342 RELAY ' €2.63
4
 Capacitor for Inverter Telwin Force 145 - Technology 186 HD 112514 Capacitor for Inverter Telwin Force 145 - Technology 186 HD €9.02
5
 Single-Phase Rectifier for Inverter Telwin INVERPULSE-SUPERIOR 116066 Single-Phase Rectifier for Inverter Telwin INVERPULSE-SUPERIOR €15.79
6
 photo_cameraImage coming soon 980943 DATA ENTRY FILTER KIT €66.70
7
 photo_cameraImage coming soon 980728 AUXILIARY CONTROL BOARD KIT €40.24
8
 photo_cameraImage coming soon 980733 BOARD KIT FILTER HF €126.11
9
 photo_cameraImage coming soon 980635 KIT FORM SECONDARY €119.55
10
 photo_cameraImage coming soon 980732 BOARD KIT HF €134.91
11
 Telwin Superior Plasma 60 HF Pressure Reducer 120203 Telwin Superior Plasma 60 HF Pressure Reducer €57.65
12
 photo_cameraImage coming soon 120248 CABLE 10 MMQ 5 M - 25 €24.01
13
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
15
 photo_cameraImage coming soon 122154 SOLENOID €14.57
16
 photo_cameraImage coming soon 122155 SOLENOID €12.60
18
 photo_cameraImage coming soon 122508 THERMOSTAT €2.62
19
 photo_cameraImage coming soon 122599 PRESSURE €15.98
20
 photo_cameraImage coming soon 122919 THERMOSTAT €2.54
21
 Dipswitch 16A for Inverter Telwin SUPERIOR 260 CE 400V 121523 Dipswitch 16A for Inverter Telwin SUPERIOR 260 CE 400V €19.78
22
 photo_cameraImage coming soon 132026 CABLE ALIM. 4G2.5 2 M €12.84
23
 Fan for Inverter Superior 152214 Fan for Inverter Superior €29.08
24
 photo_cameraImage coming soon 152231 CURRENT TRANSFORMER TA €13.69
25
 photo_cameraImage coming soon 152232 TRANSFORMER PULSE €12.18
26
 photo_cameraImage coming soon 980156 KIT TRANSFORMER €52.91
27
 photo_cameraImage coming soon 990621 POWER TRANSFORMER €119.91
28
 photo_cameraImage coming soon 980090 KIT INDUCTOR €60.69
29
 photo_cameraImage coming soon 980160 KIT TRANSFORMER €79.91
30
 photo_cameraImage coming soon 322065 BELT BUCKLE €2.31
31
 photo_cameraImage coming soon 322408 BELT €3.12
32
 Telwin Superior Plasma 60 HF Front Panel 322508 Telwin Superior Plasma 60 HF Front Panel €16.58
33
 photo_cameraImage coming soon 980961 GAUGE KIT €10.52
34
 photo_cameraImage coming soon 644793 FUND €12.39
35
 photo_cameraImage coming soon 990802 KIT COAT €14.90
36
 Socket DX 25 for Telwin Welding Machine 712035 Socket DX 25 for Telwin Welding Machine €3.47
37
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
38
 Torch Connection for Inverter Telwin Superior Plasma 60HF 722439 Torch Connection for Inverter Telwin Superior Plasma 60HF €59.30
39
 Plasma Torch for Inverter Telwin Superior Plasma 60HF 742040 Plasma Torch for Inverter Telwin Superior Plasma 60HF €307.06
40
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
41
 photo_cameraImage coming soon 990298 BOARD KIT PRIMARY €530.03
42
 Knob Kit for Welding Telwin Mastermig-Superior 990328 Knob Kit for Welding Telwin Mastermig-Superior €6.12
43
 photo_cameraImage coming soon 990396 KIT IGBT €49.03
44
 photo_cameraImage coming soon 990467 KIT CONTROL BOARD €191.56
45
 photo_cameraImage coming soon 990468 KIT DIODES €37.20
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

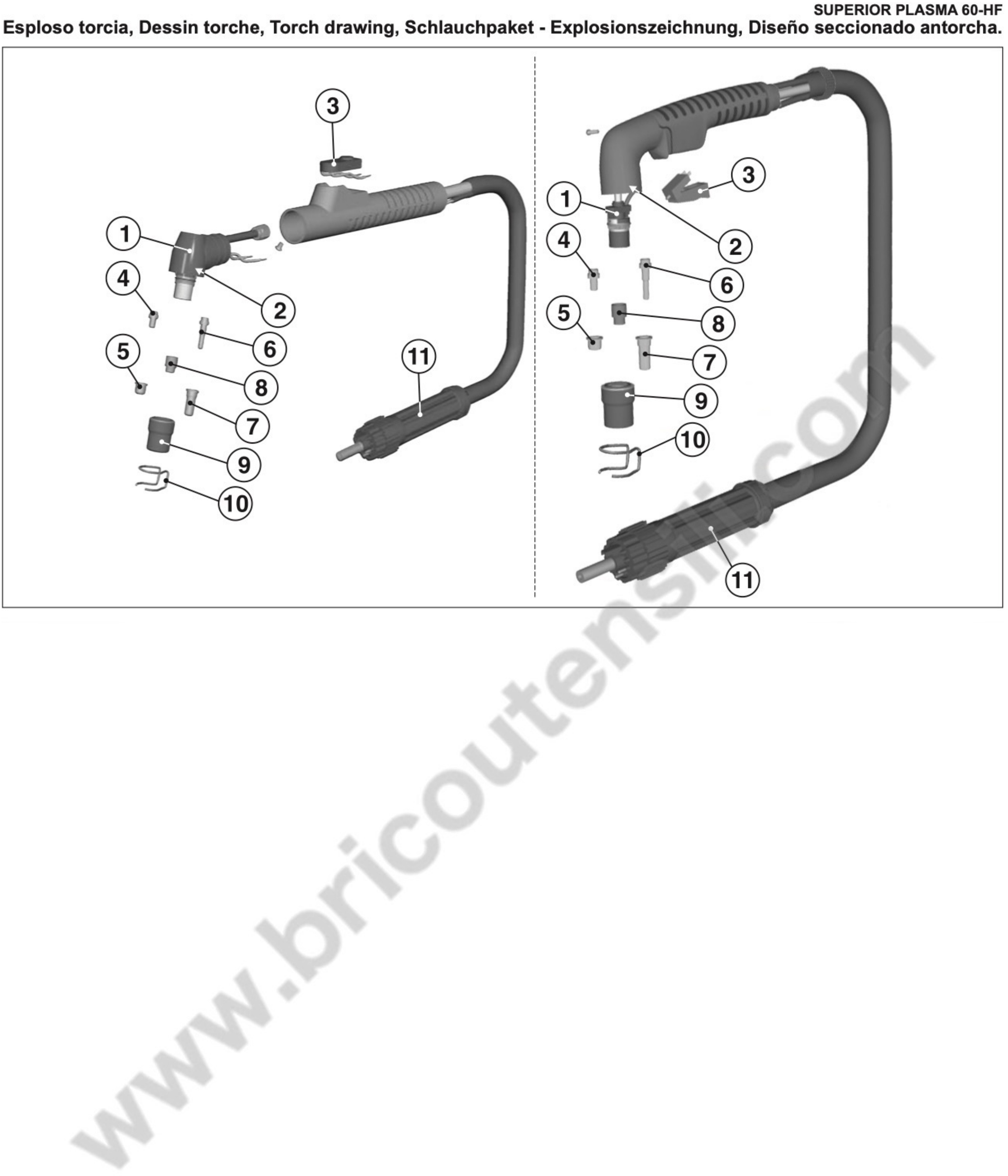

Esploso pagina 2
Pos. Item Price Buy
1
 Body Torch + Button Complete Set for Telwin Superior Plasma 60HF 742349 Body Torch + Button Complete Set for Telwin Superior Plasma 60HF €148.42
2
 photo_cameraImage coming soon 990983 SPINE SAFETY KIT €18.50
3
 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
4
 Kit 5 Electrodes for Plasma Torch Superior-Superplasma 60-83HF 802076 Kit 5 Electrodes for Plasma Torch Superior-Superplasma 60-83HF €16.58
5
 Kit 5 Nozzles for Plasma Torch Superior-Superplasma 60-83HF 802077 Kit 5 Nozzles for Plasma Torch Superior-Superplasma 60-83HF €11.00
6
 Kit 5 Long Electrodes for Telwin SUPERPLASMA 60/3 HF - 80/3 HF 802078 Kit 5 Long Electrodes for Telwin SUPERPLASMA 60/3 HF - 80/3 HF €17.91
7
 Kit 5 Long Nozzles for Telwin SUPERPLASMA 60/3 HF - 80/3 HF 802079 Kit 5 Long Nozzles for Telwin SUPERPLASMA 60/3 HF - 80/3 HF €15.33
8
 Kit 2 Insulating Diffusers for Plasma Torch Superior-Superplasma 60-83HF 802080 Kit 2 Insulating Diffusers for Plasma Torch Superior-Superplasma 60-83HF €24.95
9
 Kit 2 Nozzles-Holders for Plasma Torch Superior-Superplasma 60-83HF 802081 Kit 2 Nozzles-Holders for Plasma Torch Superior-Superplasma 60-83HF €22.16
10
 Kit 5 Spacers for Plasma Torch Superior-Superplasma 60-83HF 802128 Kit 5 Spacers for Plasma Torch Superior-Superplasma 60-83HF €15.48
11
 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF 742041 Plasma Torch Central Handle for Inverter Telwin Superior Plasma 60HF €74.25
501
 Plasma Torch for Inverter Telwin Superior Plasma 60HF 742040 Plasma Torch for Inverter Telwin Superior Plasma 60HF €307.06

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Air Plasma Cutting Superior Plasma 60 HF

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Air Plasma Cutting Superior Plasma 60 HF - 815506.

In the following table, look for the model of the Plasma and the respective parts of the code.
SUPERIOR PLASMA 60 HF – 815506

SUPERIOR PLASMA 60 HF 400V – 815506 Pag.1
# Part Num. Description
2 112048 RESISTANCE
3 112342 RELAY '
4 112514 CAPACITOR
5 116066 RECTIFIER
6 980943 DATA ENTRY FILTER KIT
7 980728 AUXILIARY CONTROL BOARD KIT
8 980733 BOARD KIT FILTER HF
9 980635 KIT FORM SECONDARY
10 980732 BOARD KIT HF
11 120203 AIR PRESSURE REDUCER
12 120248 CABLE 10 MMQ 5 M - 25
13 323101 TOGETHER FOR SWITCH KNOB
15 122154 SOLENOID
16 122155 SOLENOID
17 121006 FUSE
18 122508 THERMOSTAT
19 122599 PRESSURE
20 122919 THERMOSTAT
21 121523 SWITCH
22 132026 CABLE ALIM. 4G2.5 2 M
23 152214 FAN
24 152231 CURRENT TRANSFORMER TA
25 152232 TRANSFORMER PULSE
26 980156 KIT TRANSFORMER
27 990621 POWER TRANSFORMER
28 980090 KIT INDUCTOR
29 980160 KIT TRANSFORMER
30 322065 BUCKLE FOR BELT
31 322408 BELT
32 322508 FRONT PANEL - FRAME
33 980961 GAUGE KIT
34 644793 FUND
35 990802 KIT COAT
36 712035 SOCKET DX 25
37 712231 TOLEDO 300 CLAMP MASS
38 722439 TORCH CONNECTION
39 742040 PLASMA TORCH 6 M 60 A
40 990046 GLAND NUT KIT +
41 990298 BOARD KIT PRIMARY
42 990328 KIT WHEEL
43 990396 KIT IGBT
44 990467 KIT CONTROL BOARD
45 990468 KIT DIODES
TORCH FOR SUPERIOR PLASMA 60 HF 400V – 815506 Pag.2
1 742349 BODY TORCH + BUTTON
2 990983 SPINE SAFETY KIT
3 722677 BUTTON
4 802076 KIT 5 ELECTRODES
5 802077 KIT 5 NOZZLES
6 802078 KIT 5 NOZZLE LONG
7 802079 KIT 5 NOZZLE LONG
8 802080 KIT 2 DIFFUSER INSULATION
9 802081 KIT 2 TOE TORCH
10 802128 KIT 5 SPACERS
11 742041 TORCH CONNECTOR
501 742040 TORCH PLASMA ASSY 60A 6M
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SUPERIOR PLASMA 60 HF – 815506
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin Superior 60

Diagram Telwin Superior 60

Download (587.75KB)
