Telwin s.p.a.

Telwin Spare Parts for Inverter Plasma TECNICA PLASMA 31 230V

SKU: Telwin TECNICA PLASMA 31 815014
€7.84
VAT included

Telwin Spare Parts for Inverter Plasma TECNICA PLASMA 31 230V

Telwin genuine spare parts for replacing or repairing Inverter Plasma TECNICA PLASMA 31 230V – 815014.

System inverter plasma cutting compressed air, with contact striking of the pilot. It enables fast cutting without deformation of all conductive materials such as steel, stainless steel, galvanized steel, aluminum, copper, brass, etc.

Telwin TECNICA PLASMA 31 815014
Telwin Spare Parts for Inverter Plasma TECNICA PLASMA 31 230V
  • Telwin Spare Parts for Inverter Plasma TECNICA PLASMA 31 230V
  • Telwin Spare Parts for Inverter Plasma TECNICA PLASMA 31 230V
  • Telwin Spare Parts for Inverter Plasma TECNICA PLASMA 31 230V
Telwin s.p.a.

Telwin Spare Parts for Inverter Plasma TECNICA PLASMA 31 230V

SKU: Telwin TECNICA PLASMA 31 815014 Condition: New
€7.84
VAT included

Telwin Spare Parts for Inverter Plasma TECNICA PLASMA 31 230V

Telwin genuine spare parts for replacing or repairing Inverter Plasma TECNICA PLASMA 31 230V – 815014.

System inverter plasma cutting compressed air, with contact striking of the pilot. It enables fast cutting without deformation of all conductive materials such as steel, stainless steel, galvanized steel, aluminum, copper, brass, etc.

Telwin TECNICA PLASMA 31 815014
settings 40 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
40 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €4.03
2
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
3
 Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 113122 Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 €10.50
4
 photo_cameraImage coming soon 111925 RELAIS €2.07
5
 PWM CONTROLLER 111199 PWM CONTROLLER €7.84
6
 Control PCB Kit Telwin Tecnica PLASMA 31 980681 Control PCB Kit Telwin Tecnica PLASMA 31 €54.25
7
 Single-Phase Rectifier for Inverter Telwin 144-164 116346 Single-Phase Rectifier for Inverter Telwin 144-164 €6.82
8
 photo_cameraImage coming soon 120522 REDUCING PRESSURE €48.68
9
 Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
10
 photo_cameraImage coming soon 122155 SOLENOID €12.60
11
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
12
 photo_cameraImage coming soon 123422 6 3 M CABLE MMQ €10.71
13
 photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
14
 Fan for Inverter TIG Force-Superior 152006 Fan for Inverter TIG Force-Superior €13.79
15
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
16
 Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.99
17
 photo_cameraImage coming soon 169222 REACTOR €25.40
18
 photo_cameraImage coming soon 169223 POWER TRANSFORMER €36.16
19
 photo_cameraImage coming soon 169246 TRANSFORMER €15.66
21
 photo_cameraImage coming soon 322689 FRONT €14.90
22
 Handle for Inverter Telwin TECHNOLOGY 186-216 HD 322691 Handle for Inverter Telwin TECHNOLOGY 186-216 HD €8.21
23
 photo_cameraImage coming soon 322728 BACK €14.90
24
 Pressure Gauge for Telwin Tecnica PLASMA 31 602072 Pressure Gauge for Telwin Tecnica PLASMA 31 €8.46
25
 photo_cameraImage coming soon 645146 SUPPORT REDUCING PRESSURE €4.51
26
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
27
 photo_cameraImage coming soon 742237 PLASMA TORCH 4 M 25 A €269.21
28
 Kit IGBT + Diode for Inverter Telwin Tecnica TIG 160 - PLASMA 31 990734 Kit IGBT + Diode for Inverter Telwin Tecnica TIG 160 - PLASMA 31 €30.53
29
 photo_cameraImage coming soon 990736 KIT DIODE €22.81
30
 photo_cameraImage coming soon 990977 KIT COAT €7.05
31
 photo_cameraImage coming soon 990978 KIT FUND €5.33
32
 photo_cameraImage coming soon 990979 KIT DETAILS €381.45
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

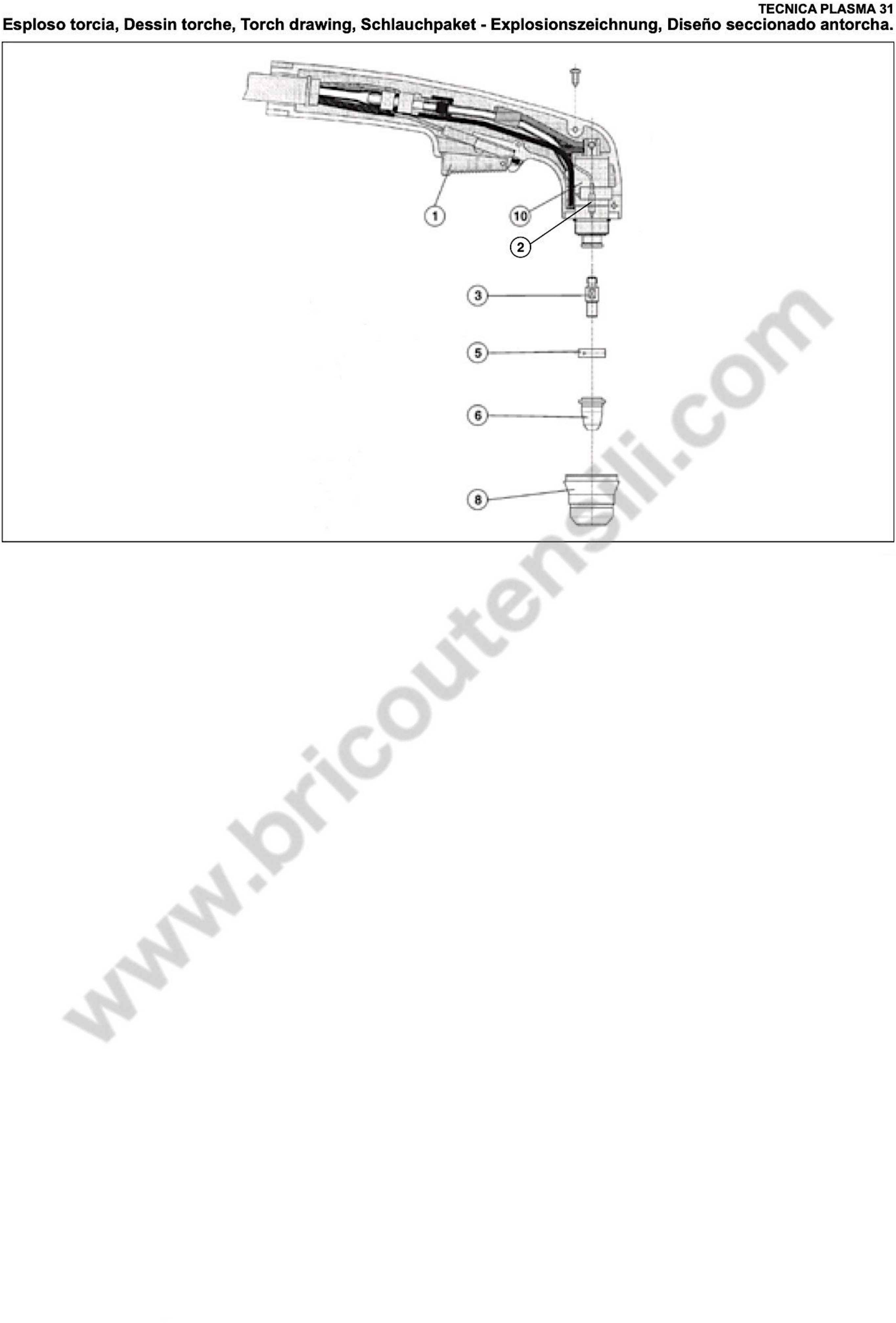

Esploso pagina 2
Pos. Item Price Buy
1
 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
2
 photo_cameraImage coming soon 990983 SPINE SAFETY KIT €18.50
3
 Kit 5 Torch Electrodes for Telwin TECHNOLOGY PLASMA 54 KOMPRESSOR 802420 Kit 5 Torch Electrodes for Telwin TECHNOLOGY PLASMA 54 KOMPRESSOR €16.58
3
 Kit 5 Long Electrodes for Telwin Tecnica PLASMA 31 802428 Kit 5 Long Electrodes for Telwin Tecnica PLASMA 31 €19.19
5
 Kit 5 Insulating Diffusers for Plasma Torch Telwin TECNICA-TECHNOLOGY 802422 Kit 5 Insulating Diffusers for Plasma Torch Telwin TECNICA-TECHNOLOGY €56.54
6
 Kit 5 Torch Nozzles for Telwin TECHNOLOGY PLASMA 54 KOMPRESSOR 802423 Kit 5 Torch Nozzles for Telwin TECHNOLOGY PLASMA 54 KOMPRESSOR €15.19
6
 Kit 5 Long Nozzles for Telwin TECNICA PLASMA 31 802429 Kit 5 Long Nozzles for Telwin TECNICA PLASMA 31 €24.64
8
 Kit 2 Torch Safety Caps for Telwin Tecnica PLASMA 31 802425 Kit 2 Torch Safety Caps for Telwin Tecnica PLASMA 31 €26.45
10
 photo_cameraImage coming soon 742036 BODY TORCH €209.91

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Inverter Plasma TECNICA PLASMA 31 230V

Telwin genuine spare parts for replacing or repairing Inverter Plasma TECNICA PLASMA 31 230V – 815014.

In the following table, look for the model of the Plasma and the respective parts of the code.
Telwin TECNICA PLASMA 31 815014

TECNICA PLASMA 31 230V – 815014 Pag.1
# Part Num. Description
1 112017 Potentiometer
2 112048 RESISTANCE
3 113122 CAPACITOR
4 111925 RELAY
5 111199 PWM CONTROLLER
6 980681 KIT CONTROL BOARD
7 116346 RECTIFIER
8 120522 REDUCING PRESSURE
9 121395 KNOB
10 122155 SOLENOID
11 122381 SWITCH
12 123422 6 3 M CABLE MMQ
13 132155 CABLE ALIM. 3G1.5 2 M SCHUKO PLUG
14 152006 FAN
15 152230 CURRENT TRANSFORMER
16 164741 CHOKE FILTER
17 169222 REACTOR
18 169223 POWER TRANSFORMER
19 169246 TRANSFORMER
20 322138 GLAND
21 322689 FRONT
22 322691 HANDLE
23 322728 RETRO
24 602072 GAUGE
25 645146 SUPPORT REDUCING PRESSURE
26 712231 TOLEDO 300 CLAMP MASS
27 742237 PLASMA TORCH 4 M 25 A
28 990734 KIT IGBT + DIODE
29 990736 KIT DIODE
30 990977 KIT COAT
31 990978 KIT FUND
32 990979 KIT DETAILS
TORCH FOR TECNICA PLASMA 31 230V – 815014 Pag.2
1 722677 BUTTON
2 990983 SPINE SAFETY KIT
3 802428 KIT 5 PADS LONG
3 802420 KIT 5 ELECTRODES
5 802422 KIT 5 SPEAKER INSULATION
6 802429 KIT 5 NOZZLES LONG
6 802423 KIT 5 NOZZLES
8 802425 KIT 2 TOE TORCH
10 742036 BODY TORCH
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
