Telwin s.p.a.

Telwin Spare Parts for Inverter Welding SUPERTIG 200 AC/DC-HF 400V

SKU: SUPERTIG 200 AC/DC-HF - 832160
€9.32
VAT included

Telwin Spare Parts for Inverter Welding SUPERTIG 200 AC/DC-HF 400V

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERTIG 200 AC/DC-HF 400V - 832160.

SUPERTIG 200 AC/DC-HF - 832160
Telwin Spare Parts for Inverter Welding SUPERTIG 200 AC/DC-HF 400V
  • Telwin Spare Parts for Inverter Welding SUPERTIG 200 AC/DC-HF 400V
  • Telwin Spare Parts for Inverter Welding SUPERTIG 200 AC/DC-HF 400V - Drawing
  • Telwin Spare Parts for Inverter Welding SUPERTIG 200 AC/DC-HF 400V - Torch Drawing
Telwin s.p.a.

Telwin Spare Parts for Inverter Welding SUPERTIG 200 AC/DC-HF 400V

SKU: SUPERTIG 200 AC/DC-HF - 832160 Condition: New
€9.32
VAT included

Telwin Spare Parts for Inverter Welding SUPERTIG 200 AC/DC-HF 400V

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERTIG 200 AC/DC-HF 400V - 832160.

SUPERTIG 200 AC/DC-HF - 832160
settings 71 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

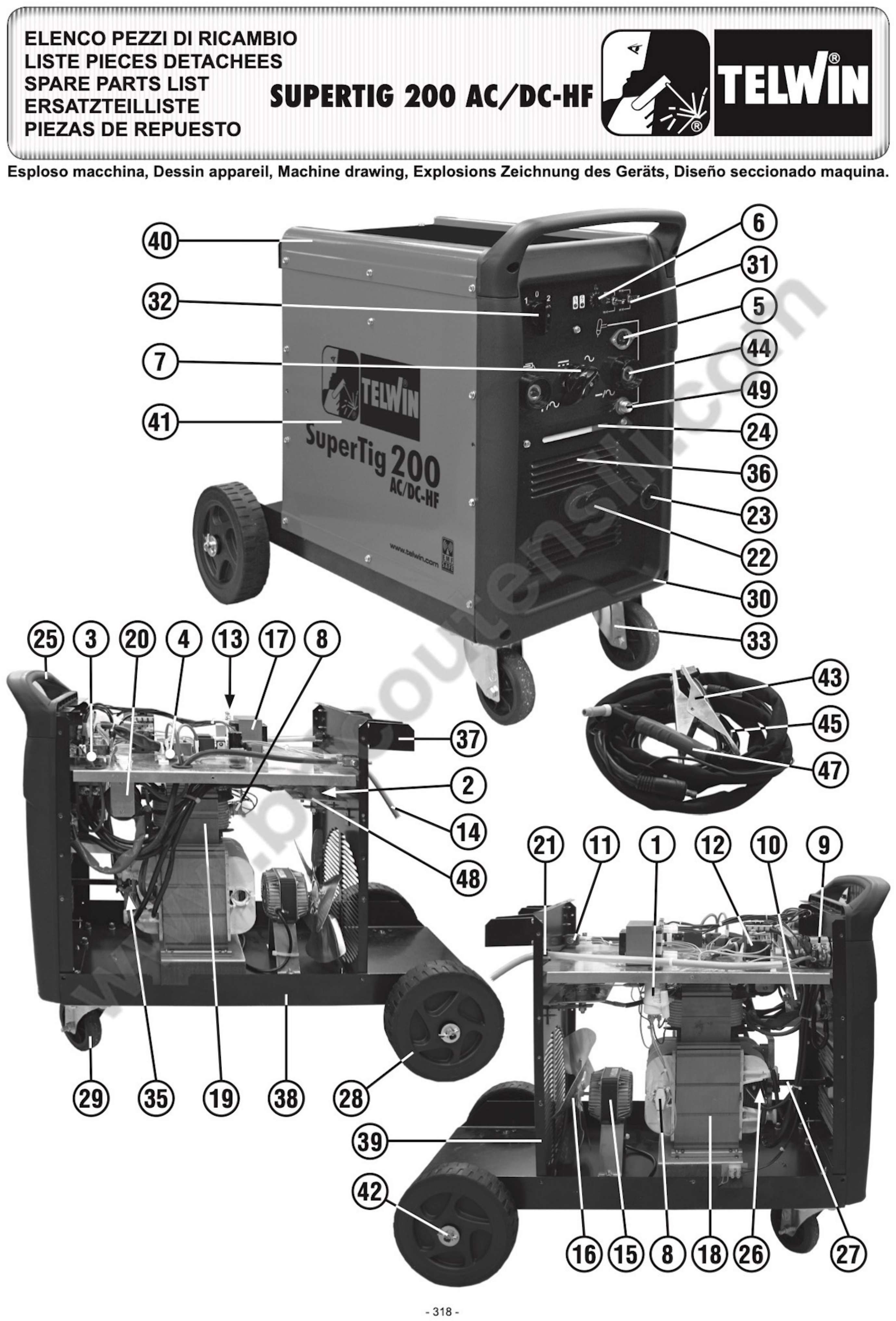

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112063 CAPACITOR €8.38
2
 Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
3
 photo_cameraImage coming soon 980798 KIT CONTROL BOARD €85.82
4
 photo_cameraImage coming soon 980799 BOARD KIT HF AC / DC €106.22
5
 photo_cameraImage coming soon 120514 WIRING INTAKE €21.71
6
 photo_cameraImage coming soon 121064 POTENTIOMETER KNOB €1.94
7
 photo_cameraImage coming soon 122060 KNOB FOR SWITCH €3.15
8
 photo_cameraImage coming soon 122329 THERMOSTAT €2.82
9
 photo_cameraImage coming soon 122637 SWITCH €14.14
10
 photo_cameraImage coming soon 122638 SWITCH €58.05
11
 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse 122682 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse €20.15
12
 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo 122694 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo €18.45
14
 photo_cameraImage coming soon 132089 CABLE ALIM. 3G6 3 M €25.73
15
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €78.00
16
 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig 152113 Cooler Fan for Welding Telwin Linear-Mastermig-Supermig €13.79
17
 photo_cameraImage coming soon 164993 TRANSFORMER AUXILIARY €73.51
18
 photo_cameraImage coming soon 169617 TRANSFORMER €620.01
19
 photo_cameraImage coming soon 169618 REACTOR €56.61
20
 photo_cameraImage coming soon 169637 TRANSFORMER H.F. €50.63
21
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
22
 photo_cameraImage coming soon 312199 BRAKET COVER €6.01
23
 photo_cameraImage coming soon 312200 KNOB FOR HANDWHEEL €10.91
24
 photo_cameraImage coming soon 312305 REGULATION INDICATOR €2.42
25
 photo_cameraImage coming soon 312328 HANDLE €12.03
27
 photo_cameraImage coming soon 313744 REGULATION SCREW €11.91
28
 Wheel D.200x45 mm for Inverter Welding Telwin 322200 Wheel D.200x45 mm for Inverter Welding Telwin €18.29
29
 photo_cameraImage coming soon 322246 WHEEL €3.64
30
 photo_cameraImage coming soon 322641 FRAME €11.46
31
 photo_cameraImage coming soon 322890 BUSH €6.53
32
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
33
 photo_cameraImage coming soon 422969 SWIVEL SUPPORT €7.17
34
 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50
35
 photo_cameraImage coming soon 483133 YOKE €1.33
36
 photo_cameraImage coming soon 642302 FRONT €13.23
37
 photo_cameraImage coming soon 644606 BRACKET FOR BOTTLE €11.45
38
 photo_cameraImage coming soon 645414 FUND €27.17
39
 photo_cameraImage coming soon 645416 BACK €10.60
40
 photo_cameraImage coming soon 651134 COAT €13.04
41
 photo_cameraImage coming soon 655981 SIDE €14.06
42
 Fixed Wheel D.175MM Axle for Telwin Welding Machines 681092 Fixed Wheel D.175MM Axle for Telwin Welding Machines €10.49
43
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
44
 Socket DX 25 for Telwin Welding Machine 712035 Socket DX 25 for Telwin Welding Machine €3.47
45
 photo_cameraImage coming soon 123437 CABLE 16 MMQ 3 M - 25 €23.01
46
 Telwin Gas Regulators for Refilable Bottles 722119 Telwin Gas Regulators for Refilable Bottles €58.24
47
 TIG Torch for Welding Machine Telwin Tecnica 160-Technology 182/185 742423 TIG Torch for Welding Machine Telwin Tecnica 160-Technology 182/185 €126.62
48
 photo_cameraImage coming soon 980800 KIT RECTIFIER €45.30
49
 photo_cameraImage coming soon 990120 GAS PIPE CONNECTOR KIT €5.82
50
 Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

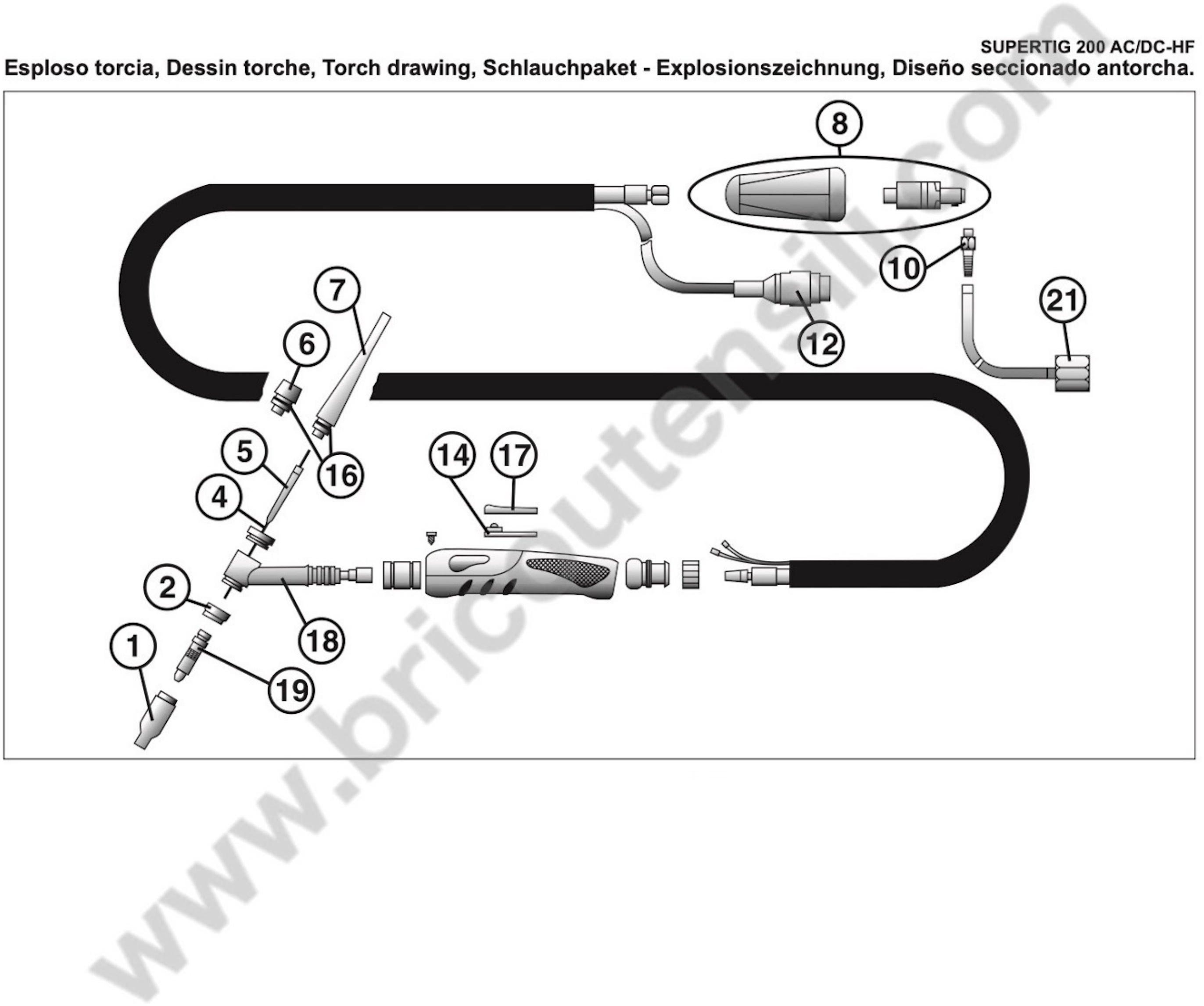

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 802244 KIT 10 CERAMIC NOZZLES NR.4 €9.89
1
 photo_cameraImage coming soon 802245 KIT 10 CERAMIC NOZZLES NR.6 €9.89
1
 photo_cameraImage coming soon 802246 KIT 10 CERAMIC NOZZLES NR.7 €9.89
2
 Insulator SR 17 for Telwin TIG Torch 722248 Insulator SR 17 for Telwin TIG Torch €8.21
4
 photo_cameraImage coming soon 802220 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM €17.75
4
 photo_cameraImage coming soon 802222 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM €17.75
4
 photo_cameraImage coming soon 802232 KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM €53.95
5
 photo_cameraImage coming soon 802239 KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM €3.36
5
 photo_cameraImage coming soon 802240 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM €3.61
5
 photo_cameraImage coming soon 802241 KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM €3.61
6
 Short Hood SR 17 for Telwin TIG Torch 722192 Short Hood SR 17 for Telwin TIG Torch €4.03
7
 Long Hood SR 17 for Telwin TIG Torch 722193 Long Hood SR 17 for Telwin TIG Torch €17.14
8
 photo_cameraImage coming soon 981442 25 CONNECTION KIT €32.57
12
 Telwin Inverter TIG Welding Machines Plug 3P 722999 Telwin Inverter TIG Welding Machines Plug 3P €13.68
14
 PCB + Button for Torches Telwin TIG 452089 PCB + Button for Torches Telwin TIG €19.37
16
 Long Hood O-Ring 2037 for Telwin TIG Torch 722061 Long Hood O-Ring 2037 for Telwin TIG Torch €0.97
17
 Button for Torches Telwin TIG 742042 Button for Torches Telwin TIG €2.63
18
 Torch Body SR 17 for Telwin TIG Torch 722204 Torch Body SR 17 for Telwin TIG Torch €52.85
19
 photo_cameraImage coming soon 802249 KIT 3 ELECTRODE DIFFUSERS D.1 MM €7.78
19
 photo_cameraImage coming soon 802250 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM €7.78
19
 photo_cameraImage coming soon 802251 KIT 3 ELECTRODE DIFFUSERS D.2,4 MM €7.78
21
 photo_cameraImage coming soon 990263 3/8" CONNECTION KIT TIG TORCH €5.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Inverter Welding SUPERTIG 200 AC/DC-HF 400V

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERTIG 200 AC/DC-HF 400V - 832160.

In the following table, look for the model of the Welding and the respective parts of the code.
SUPERTIG 200 AC/DC-HF - 832160
SUPERTIG 200 AC/DC-HF 400V 832160 Pag.1
# Part Num. Description
1 112063 CAPACITOR
2 112182 PROTECTION RECTIFIER
3 980798 KIT CONTROL BOARD
4 980799 BOARD KIT HF AC / DC
5 120514 WIRING INTAKE
6 121064 POTENTIOMETER KNOB
7 122060 KNOB FOR SWITCH
8 122329 THERMOSTAT
9 122637 SWITCH
10 122638 SWITCH
11 122682 SOLENOID
12 122694 RELAY
13 122879 FUSE
14 132089 CABLE ALIM. 3G6 3 M
15 152083 ENGINE
16 152113 FAN
17 164993 TRANSFORMER AUXILIARY
18 169617 TRANSFORMER
19 169618 REACTOR
20 169637 TRANSFORMER H.F.
21 312068 GLAND
22 312199 COVER BRACKET
23 312200 HANDLE FOR FLYER
24 312305 FLAG INDEX
25 312328 HANDLE
27 313744 SCREW ADJUSTMENT
28 322200 WHEEL FENCE
29 322246 WHEEL
30 322641 FRAME
31 322890 BUSH
32 323101 TOGETHER FOR SWITCH KNOB
33 422969 SUPPORT REVOLVING
34 432036 ADAPTOR CYLINDER ARGON IT
35 483133 YOKE
36 642302 FRONT
37 644606 BRACKET CYLINDER
38 645414 FUND
39 645416 RETRO
40 651134 COAT
41 655981 SIDE
42 681092 AXLE FOR WHEELS
43 712030 TOLEDO 250 MASS CLAMP 250A
44 712035 JACK DX 25
45 123437 CABLE 16 MMQ 3 M - 25
46 722119 REDUCING PRESSURE GAUGE 2
47 742423 ST17 TIG TORCH 4 M 180 A
48 980800 KIT RECTIFIER
49 990120 CONNECTION KIT INLET GAS
50 712039 PLUG DX 25
TORCH FOR SUPERTIG 200 AC/DC-HF 400V – 832160 Pag.2
1 802244 KIT 10 CERAMIC NOZZLES NR.4
1 802245 KIT 10 CERAMIC NOZZLES NR.6
1 802246 KIT 10 CERAMIC NOZZLES NR.7
2 722248 INSULATION
4 802232 KIT 10 ELETTR.TUNGSTENO CERIUM D.2,4 MM
4 802220 KIT 10 ELETTR.TUNGSTENO CERIUM D.1 MM
4 802222 KIT 10 ELETTR.TUNGSTENO CERIUM D.1,6 MM
5 802241 KIT 3 CLAMP ELECTRODE D.2,4 MM SERRA
5 802240 KIT 3 CLAMP ELECTRODE D.1,6 MM SERRA
5 802239 KIT 3 CLAMP ELECTRODE D.1,0 MM SERRA
6 722192 HOOD SHORT
7 722193 HOOD LONG
8 981442 KIT CONNECTION 25
12 722999 PLUG 3P
14 452089 CONTACT BUTTON
16 722061 RING OR
17 742042 BUTTON
18 722204 BODY TORCH
19 802251 KIT 3 DIFFUSERS ELECTRODE D.2,4 MM
19 802249 KIT 3 DIFFUSERS ELECTRODE D.1 MM
19 802250 KIT 3 DIFFUSERS ELECTRODE D.1,6 MM
21 990263 FITTING KIT 3/8 "TORCH TIG
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SUPERTIG 200 AC/DC-HF - 832160
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

SUPERTIG 200 AC/DC-HF Drawing

SUPERTIG 200 AC/DC-HF Drawing

Download (598.98KB)

You might also like

Protection Rectifier for Welding Telwin Linear-Mastermig
Telwin s.p.a. SKU: 112182
Protection Rectifier for Welding Telwin Linear-Mastermig
Protection Rectifier for Welding Telwin Linear-Mastermig Genuine spare Telwin, spare Telwin, Protection Rectifier - Varistor 150 VAC 6500 A for welding Telwin, LINEAR 220 230-400V - LINEAR 280 230-400V - MASTERMIG 220/2 230-400V -...
AVAILABLE €4.03
Details
Long Hood SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722193
Long Hood SR 17 for Telwin TIG Torch
Long Hood SR 17 for Telwin TIG Torch Original spare Telwin, Long Hood SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
Last items in stock €17.14
Details
Torch Body SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722204
Torch Body SR 17 for Telwin TIG Torch
Torch Body SR 17 for Telwin TIG Torch Original replacement part Telwin, Assembly Torch Body SR 17 for Torches TIG ERGO. Part for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH...
AVAILABLE €52.85
Details
Short Hood SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722192
Short Hood SR 17 for Telwin TIG Torch
Short Hood SR 17 for Telwin TIG Torch Original replacement part Telwin, Short Hood SR 17 for Torches TIG ERGO. Part for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH...
Last items in stock €4.03
Details
Insulator SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722248
Insulator SR 17 for Telwin TIG Torch
Insulator SR 17 for Telwin TIG Torch Original spare Telwin, Insulator SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
AVAILABLE €8.21
Details
Long Hood O-Ring 2037 for Telwin TIG Torch
Telwin s.p.a. SKU: 722061
Long Hood O-Ring 2037 for Telwin TIG Torch
Long Hood O-Ring 2037 for Telwin TIG Torch Original spare Telwin, Long Hood O-Ring 2037 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 185 DC 230V - TECHNOLOGY TIG 230 DC-HF/LIFT 230V - TECHNOLOGY TIG 182...
AVAILABLE €0.97
Details
Fan Motor for Welding Telwin Linear-Mastermig-Supermig
Telwin s.p.a. SKU: 152083
Fan Motor for Welding Telwin Linear-Mastermig-Supermig
Fan Motor for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, fan motor for Telwin welding machines, LINEAR 220-280-300-340-410-430-530-630 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580. Part For the following...
AVAILABLE €78.00
Details
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig
Telwin s.p.a. SKU: 152113
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, Cooler Fan for Telwin welding machines, LINEAR 220-280-300-340-410 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580 - DIGITAL MIG 330. Part For the...
Last items in stock €13.79
Details
Telwin Inverter TIG Welding Machines Plug 3P
Telwin s.p.a. SKU: 722999
Telwin Inverter TIG Welding Machines Plug 3P
Telwin Inverter TIG Welding Machines Plug 3P Genuine parts Telwin, Plug 3P for Telwin Inverter TIG Welding Machines. Parts for the following products: - TECNICA TIG 160 DC-HF - SUPERIOR TIG 421 DC - SUPERTIG 200 AC/DC-HF -...
Last items in stock €13.68
Details
Comments (0)
