Telwin Parts for Inverter SUPERIOR TIG 251 DC-HF/LIFT VRD

SKU: SUPERIOR TIG 251 DC-HF - 816116
€9.20
VAT included

Telwin Parts for Inverter SUPERIOR TIG 251 DC-HF/LIFT VRD

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERIOR TIG 251 DC-HF/LIFT VRD 816116

SUPERIOR TIG 251 DC-HF - 816116
Telwin Parts for Inverter SUPERIOR TIG 251 DC-HF/LIFT VRD
  • Telwin Parts for Inverter SUPERIOR TIG 251 DC-HF/LIFT VRD
  • Telwin Parts for Inverter SUPERIOR TIG 251 DC-HF/LIFT VRD
  • Telwin Parts for Inverter SUPERIOR TIG 251 DC-HF/LIFT VRD
Telwin s.p.a.

Telwin Parts for Inverter SUPERIOR TIG 251 DC-HF/LIFT VRD

SKU: SUPERIOR TIG 251 DC-HF - 816116 Condition: New
€9.20
VAT included

Telwin Parts for Inverter SUPERIOR TIG 251 DC-HF/LIFT VRD

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERIOR TIG 251 DC-HF/LIFT VRD 816116

SUPERIOR TIG 251 DC-HF - 816116
settings 79 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

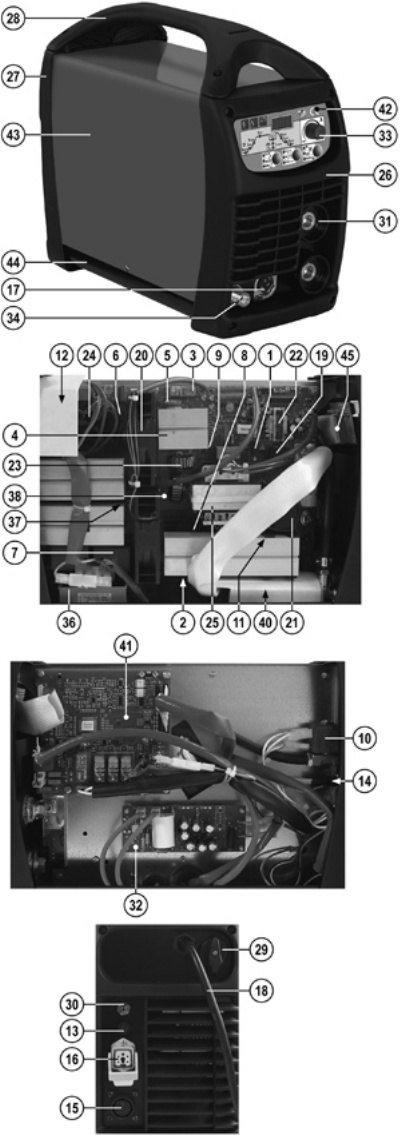

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 111095 Igbt €9.20
2
 photo_cameraImage coming soon 111194 DIODE €3.81
3
 Relè for Inverter Telwin Tecnica 144-164 113790 Relè for Inverter Telwin Tecnica 144-164 €6.82
6
 photo_cameraImage coming soon 116760 VARISTOR €1.26
7
 photo_cameraImage coming soon 116882 CAPACITOR €21.17
9
 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v 116962 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v €2.42
10
 photo_cameraImage coming soon 121029 ELECTROVALVE €14.02
11
 photo_cameraImage coming soon 121546 THERMOSTAT €4.29
12
 photo_cameraImage coming soon 121556 SWITCH €16.51
13
 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost 122159 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost €2.08
15
 photo_cameraImage coming soon 124105 WIRING CONTROL / C.A.D. €22.52
16
 photo_cameraImage coming soon 124657 WIRING G.R.A. €11.20
17
 photo_cameraImage coming soon 124694 WIRING KEY TORCH €17.15
18
 photo_cameraImage coming soon 132237 MAINS CABLE 4G1.5 2 M €14.05
19
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
20
 Fan for Inverter Technology-Technomig 152269 Fan for Inverter Technology-Technomig €17.98
21
 photo_cameraImage coming soon 169556 REACTOR €34.63
22
 photo_cameraImage coming soon 169627 TRANSFORMER €19.66
23
 photo_cameraImage coming soon 169746 REACTOR €9.54
24
 photo_cameraImage coming soon 169747 CHOKE FILTER €45.09
25
 photo_cameraImage coming soon 169749 POWER ADAPTOR €49.91
26
 photo_cameraImage coming soon 321126 COVER CLIP €12.50
27
 photo_cameraImage coming soon 321127 BACK €12.50
28
 photo_cameraImage coming soon 321128 SECOND SHAFT (B) €31.70
29
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
31
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
32
 Generator HF TIG Board Kit for Welding Technology Tig 182-185-230 980021 Generator HF TIG Board Kit for Welding Technology Tig 182-185-230 €95.48
34
 photo_cameraImage coming soon 980548 GAS PIPE CONNECTOR KIT €7.03
35
 photo_cameraImage coming soon 981183 KIT IGBT + DIODE €63.20
36
 photo_cameraImage coming soon 981278 AUTOTRASFO KIT €55.55
37
 photo_cameraImage coming soon 981372 KIT TRANSFORMER PULSE €14.36
38
 photo_cameraImage coming soon 981399 BOARD KIT POWER €463.20
39
 photo_cameraImage coming soon 981400 KIT IGBT + DIODE €46.22
40
 photo_cameraImage coming soon 981434 KIT TRANSFORMER €76.71
41
 photo_cameraImage coming soon 981435 KIT CONTROL BOARD €125.56
42
 photo_cameraImage coming soon 981436 BOARD KIT KEYPAD €55.92
43
 photo_cameraImage coming soon 981437 KIT COAT €9.75
44
 photo_cameraImage coming soon 981438 KIT FUND €6.13
45
 photo_cameraImage coming soon 981535 KIT FORM PANEL €48.91
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

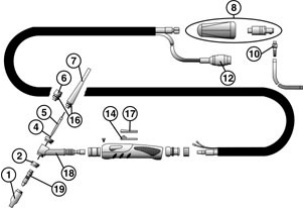

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 802244 KIT 10 CERAMIC NOZZLES NR.4 €9.89
1
 photo_cameraImage coming soon 802245 KIT 10 CERAMIC NOZZLES NR.6 €9.89
1
 photo_cameraImage coming soon 802246 KIT 10 CERAMIC NOZZLES NR.7 €9.89
1
 photo_cameraImage coming soon 802247 KIT 10 CERAMIC NOZZLES NR.8 €7.61
1
 photo_cameraImage coming soon 802248 KIT 10 CERAMIC NOZZLES NR.10 €7.61
2
 Insulator SR 17 for Telwin TIG Torch 722248 Insulator SR 17 for Telwin TIG Torch €8.21
4
 photo_cameraImage coming soon 802220 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM €17.75
4
 photo_cameraImage coming soon 802222 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM €17.75
4
 photo_cameraImage coming soon 802232 KIT 10 CERIUM-TUNGSTEN ELECTR. D.2,4 MM €53.95
4
 photo_cameraImage coming soon 802233 KIT 10 ELETTR.TUNGSTENO CERIUM D.3,2 MM €79.94
4
 photo_cameraImage coming soon 802235 KIT 10 ELETTR.TUNGSTENO PURE D.1,6 MM €21.71
4
 photo_cameraImage coming soon 802236 KIT 10 ELETTR.TUNGSTENO PURE D.2,4 MM €46.13
4
 photo_cameraImage coming soon 802237 KIT 10 ELETTR.TUNGSTENO PURE D.3,2 MM €79.94
4
 photo_cameraImage coming soon 802238 KIT 10 ELETTR.TUNGSTENO PURE D. 4 MM €164.46
5
 photo_cameraImage coming soon 802239 KIT 3 ELECTRODE HOLDER CLAMPS D.1,0 MM €3.36
5
 photo_cameraImage coming soon 802240 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM €3.61
5
 photo_cameraImage coming soon 802241 KIT 3 ELECTRODE HOLDER CLAMPS D.2,4 MM €3.61
5
 photo_cameraImage coming soon 802242 KIT 3 CLAMP ELECTRODE D.3,2 MM SERRA €3.12
5
 photo_cameraImage coming soon 802243 KIT 3 CLAMP ELECTRODE D.4 MM SERRA €3.12
6
 Short Hood SR 17 for Telwin TIG Torch 722192 Short Hood SR 17 for Telwin TIG Torch €4.03
7
 Long Hood SR 17 for Telwin TIG Torch 722193 Long Hood SR 17 for Telwin TIG Torch €17.14
12
 photo_cameraImage coming soon 742599 PLUG 5P €8.96
14
 PCB + Button for Torches Telwin TIG 452089 PCB + Button for Torches Telwin TIG €19.37
16
 Long Hood O-Ring 2037 for Telwin TIG Torch 722061 Long Hood O-Ring 2037 for Telwin TIG Torch €0.97
17
 Button for Torches Telwin TIG 742042 Button for Torches Telwin TIG €2.63
18
 photo_cameraImage coming soon 722944 BODY TORCH €36.73
19
 photo_cameraImage coming soon 802249 KIT 3 ELECTRODE DIFFUSERS D.1 MM €7.78
19
 photo_cameraImage coming soon 802250 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM €7.78
19
 photo_cameraImage coming soon 802251 KIT 3 ELECTRODE DIFFUSERS D.2,4 MM €7.78
19
 photo_cameraImage coming soon 802252 KIT 3 SPEAKER ELECTRODE D.3,2 MM €6.68
19
 photo_cameraImage coming soon 802253 KIT 3 SPEAKER ELECTRODE D.4 MM €6.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Parts for Inverter SUPERIOR TIG 251 DC-HF/LIFT VRD

TELWIN Authorized Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding SUPERIOR TIG 251 DC-HF/LIFT VRD - 816116

In the following table, look for the model of the Welding and the respective parts of the code.
SUPERIOR TIG 251 DC-HF - 816116

SUPERIOR TIG 251 DC-HF/LIFT VRD - 816116 Pag.1
1 111095 IGBT
2 111194 DIODE
3 113790 RELAY '
4 111259 PONTE singl. 12A 1000V
5 116752 RESISTANCE
6 116760 VARISTOR
7 116882 CAPACITOR
8 116935 SUPPRESSOR VOLTAGE
9 116962 RESISTANCE 10R 2W 5% FUSE
10 121029 SOLENOID
11 121546 THERMOSTAT
12 121556 SWITCH
13 122159 FUSE
14 122433 FUSE 1A
15 124105 WIRING CONTROL / C.A.D.
16 124657 WIRING G.R.A.
17 124694 WIRING KEY TORCH
18 132237 CABLE ALIM. 4G1.5 2 M
19 152230 CURRENT TRANSFORMER
20 152269 FAN
21 169556 REACTOR
22 169627 TRANSFORMER
23 169746 REACTOR
24 169747 CHOKE FILTER
25 169749 POWER TRANSFORMER
26 321126 FRONT
27 321127 RETRO
28 321128 HANDLE
29 323101 TOGETHER FOR SWITCH KNOB
30 602052 WATER CONNECTION
31 712036 SOCKET DX 50
32 980021 BOARD KIT HF
33 121547 KNOB FOR POT
34 980548 CONNECTION KIT INLET GAS
35 981183 KIT IGBT + DIODE
36 981278 KIT AUTOTRASFO
37 981372 KIT TRANSFORMER PULSE
38 981399 BOARD KIT POWER
39 981400 KIT IGBT + DIODE
40 981434 KIT TRANSFORMER
41 981435 KIT CONTROL BOARD
42 981436 BOARD KIT KEYPAD
43 981437 KIT COAT
44 981438 KIT FUND
45 981535 KIT FORM PANEL
TORCH FOR SUPERIOR TIG 251 DC-HF/LIFT VRD - 816116 Pag.2
0 722559 TORCH 4 M
1 802245 KIT 10 CERAMIC NOZZLES NR.6
1 802246 KIT 10 CERAMIC NOZZLES NR.7
1 802244 KIT 10 CERAMIC NOZZLES NR.4
1 802247 KIT 10 CERAMIC NOZZLES NR.8
1 802248 KIT 10 CERAMIC NOZZLES NR.10
2 722248 INSULATION
4 802237 KIT 10 ELETTR.TUNGSTENO PURE D.3,2 MM
4 802235 KIT 10 ELETTR.TUNGSTENO PURE D.1,6 MM
4 802238 KIT 10 ELETTR.TUNGSTENO PURE D. 4 MM
4 802232 KIT 10 ELETTR.TUNGSTENO CERIUM D.2,4 MM
4 802222 KIT 10 ELETTR.TUNGSTENO CERIUM D.1,6 MM
4 802220 KIT 10 ELETTR.TUNGSTENO CERIUM D.1 MM
4 802236 KIT 10 ELETTR.TUNGSTENO PURE D.2,4 MM
4 802233 KIT 10 ELETTR.TUNGSTENO CERIUM D.3,2 MM
5 802242 KIT 3 CLAMP ELECTRODE D.3,2 MM SERRA
5 802240 KIT 3 CLAMP ELECTRODE D.1,6 MM SERRA
5 802239 KIT 3 CLAMP ELECTRODE D.1,0 MM SERRA
5 802241 KIT 3 CLAMP ELECTRODE D.2,4 MM SERRA
5 802243 KIT 3 CLAMP ELECTRODE D.4 MM SERRA
6 722192 HOOD SHORT
7 722193 HOOD LONG
9 981443 KIT CONNECTION 50
12 742599 PLUG 5P
14 452089 CONTACT BUTTON
16 722061 RING OR
17 742042 BUTTON
18 722944 BODY TORCH
19 802250 KIT 3 SPEAKER ELECTRODE D.1,6 MM
19 802252 KIT 3 SPEAKER ELECTRODE D.3,2 MM
19 802251 KIT 3 SPEAKER ELECTRODE D.2,4 MM
19 802253 KIT 3 SPEAKER ELECTRODE D.4 MM
19 802249 KIT 3 SPEAKER ELECTRODE D.1 MM

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
SUPERIOR TIG 251 DC-HF - 816116
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin Superior Tig 251

Diagram Telwin Superior Tig 251

Download (281.83KB)

You might also like

Relè for Inverter Telwin Tecnica 144-164
Telwin s.p.a. SKU: 113790
Relè for Inverter Telwin Tecnica 144-164
Relè for Inverter Telwin Tecnica 144-164 Genuine spare part Telwin, Relè for Inverter TECNICA 144 230V cod. 815481 - TECNICA 164 230V cod. 815482 - SUPERIOR TIG 251 DC-HF/LIFT VRD - 816116 Part...
AVAILABLE €6.82
Details
Fan for Inverter Superior-Inverpulse
Telwin s.p.a. SKU: 152000
Fan for Inverter Superior-Inverpulse
Fan for Inverter Superior-Inverpulse Original spare Telwin, Fan Inverter Welder series, Superior 400-630 CE 400V - TIG 322-421-422 DC-HF/LIFT 400V - INVERPULSE 425-625 MIG/TIG/MMA 400V. Parts for the following products: - SUPERIOR 400...
Last items in stock €65.41
Details
Long Hood SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722193
Long Hood SR 17 for Telwin TIG Torch
Long Hood SR 17 for Telwin TIG Torch Original spare Telwin, Long Hood SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
Last items in stock €17.14
Details
Short Hood SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722192
Short Hood SR 17 for Telwin TIG Torch
Short Hood SR 17 for Telwin TIG Torch Original replacement part Telwin, Short Hood SR 17 for Torches TIG ERGO. Part for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH...
Last items in stock €4.03
Details
Insulator SR 17 for Telwin TIG Torch
Telwin s.p.a. SKU: 722248
Insulator SR 17 for Telwin TIG Torch
Insulator SR 17 for Telwin TIG Torch Original spare Telwin, Insulator SR 17 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 230 DC-HF/LIFT 230V-852032 - TECHNOLOGY TIG 185 DC 230V - TORCH TECHNOLOGY TIG 182...
AVAILABLE €8.21
Details
Long Hood O-Ring 2037 for Telwin TIG Torch
Telwin s.p.a. SKU: 722061
Long Hood O-Ring 2037 for Telwin TIG Torch
Long Hood O-Ring 2037 for Telwin TIG Torch Original spare Telwin, Long Hood O-Ring 2037 for Torches TIG ERGO. Parts for the following products: - TECHNOLOGY TIG 185 DC 230V - TECHNOLOGY TIG 230 DC-HF/LIFT 230V - TECHNOLOGY TIG 182...
AVAILABLE €0.97
Details
Knob Kit for Welding Telwin Mastermig-Superior
Telwin s.p.a. SKU: 990328
Knob Kit for Welding Telwin Mastermig-Superior
Knob Kit for Welding Telwin Mastermig-Superior Original parts Telwin, Knob kit for Telwin welding machines, MASTERMIG 400 - 260 SUPERIOR - SUPERIOR TIG 311 - SUPERIOR PLASMA 60 HF - ETRONITHY 400 EC. For the following products:...
Last items in stock €6.12
Details
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT
Telwin s.p.a. SKU: 113603
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT Original spare parts Telwin, IGBT for Inverter Machines Telwin TECHNOLOGY TIG 182 - INVERPULSE 425 - 625 MIG/TIG/MMA - SUPERIOR TIG 322 - 422 AC/DC-HF/LIFT Part for the...
AVAILABLE €12.86
Details
Comments (0)
