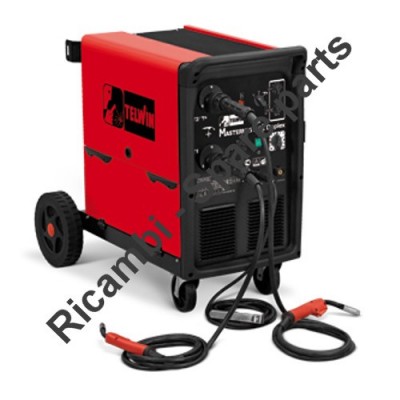

Telwin Spare Parts for Flux Welding Mastermig 232 Duplex

SKU: MASTERMIG 232 DUPLEX - 821067
€7.37
VAT included

Telwin Spare Parts for Flux Welding Mastermig 232 Duplex

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for welding machine Flux and Mig-mag type : Mastermig 232 Duplex.

MASTERMIG 232 DUPLEX - 821067
Telwin Spare Parts for Flux Welding Mastermig 232 Duplex
  • Telwin Spare Parts for Flux Welding Mastermig 232 Duplex
  • Telwin Spare Parts for Flux Welding Mastermig 232 Duplex - Drawing
  • Telwin Spare Parts for Flux Welding Mastermig 232 Duplex - Toech Drawing
Telwin s.p.a.

Telwin Spare Parts for Flux Welding Mastermig 232 Duplex

SKU: MASTERMIG 232 DUPLEX - 821067 Condition: New
€7.37
VAT included

Telwin Spare Parts for Flux Welding Mastermig 232 Duplex

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for welding machine Flux and Mig-mag type : Mastermig 232 Duplex.

MASTERMIG 232 DUPLEX - 821067
settings 86 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
82 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
2
 Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
3
 Three-Phase Rectifier for Welding Telwin Linear-Mastermig 112315 Three-Phase Rectifier for Welding Telwin Linear-Mastermig €69.59
4
 Potentiometer for Welding Telwin Mastermig 220-232-270-300-400 112363 Potentiometer for Welding Telwin Mastermig 220-232-270-300-400 €9.20
6
 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex 121394 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex €0.40
7
 photo_cameraImage coming soon 121473 ELECTRONIC SWITCH €28.04
8
 AC Contactor for Inverter Telwin MASTERMIG 220-270/2 122459 AC Contactor for Inverter Telwin MASTERMIG 220-270/2 €21.11
9
 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
10
 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse 122682 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse €20.15
11
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
12
 photo_cameraImage coming soon 122796 THERMOSTAT €3.20
13
 photo_cameraImage coming soon 122826 SWITCH €28.12
15
 photo_cameraImage coming soon 123437 CABLE 16 MMQ 3 M - 25 €23.01
16
 photo_cameraImage coming soon 132039 MAINS CABLE 4G2.5 3 M €22.91
17
 Fan for Inverter Telwin TELMIG 180/2 152054 Fan for Inverter Telwin TELMIG 180/2 €5.77
18
 Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG 152110 Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG €30.53
19
 photo_cameraImage coming soon 153033 WIRE FEED MOTOR €49.91
20
 photo_cameraImage coming soon 169754 POWER TRANSFORMER €550.01
21
 Auxiliary Power Adapter for Welder Telwin Mastermig-Digital Mig 164991 Auxiliary Power Adapter for Welder Telwin Mastermig-Digital Mig €72.29
22
 photo_cameraImage coming soon 169370 REACTANCE €61.55
23
 Connection Protection Torch for Welders Telwin Mastermig-Supermig 312105 Connection Protection Torch for Welders Telwin Mastermig-Supermig €11.14
24
 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG 312137 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG €16.94
26
 photo_cameraImage coming soon 322081 REEL €16.47
27
 Aspo Spacer Sleeve for Welding Telwin MASTERMIG 322180 Aspo Spacer Sleeve for Welding Telwin MASTERMIG €3.31
28
 photo_cameraImage coming soon 322187 WHEEL + SWIVEL SUPPORT €11.80
29
 Side Handle for Inverter Telwin BIMAX 4.165 TURBO 322590 Side Handle for Inverter Telwin BIMAX 4.165 TURBO €4.03
30
 photo_cameraImage coming soon 322736 FRAME €15.01
31
 photo_cameraImage coming soon 322772 WHEEL €13.12
32
 photo_cameraImage coming soon 322773 WHEEL CAP €2.40
33
 photo_cameraImage coming soon 322814 CYLINDER €71.68
34
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
35
 photo_cameraImage coming soon 422020 WHEELS AXLE €5.05
36
 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50
37
 Reel Spring for Welding Telwin MASTERMIG 452057 Reel Spring for Welding Telwin MASTERMIG €2.61
38
 photo_cameraImage coming soon 642133 FRONT PANEL €30.51
39
 photo_cameraImage coming soon 644444 TORCH HOOK €6.00
40
 photo_cameraImage coming soon 645485 BACK PANEL €23.78
41
 photo_cameraImage coming soon 645487 DIAPHRAGM €31.87
42
 photo_cameraImage coming soon 645488 BASE €45.49
43
 photo_cameraImage coming soon 645490 BOTTLEHOLDER BRACKET €9.73
44
 photo_cameraImage coming soon 645491 WIRE FEEDER SUPPORT €16.69
45
 photo_cameraImage coming soon 651164 DOOR €8.45
46
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
47
 Socket DX 25 for Telwin Welding Machine 712035 Socket DX 25 for Telwin Welding Machine €3.47
48
 Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
49
 Telwin Gas Regulators for Refilable Bottles 722119 Telwin Gas Regulators for Refilable Bottles €58.24
50
 Feed Roll For wire mm 0,6/0,8 FE for Flux Welding Telwin 722225 Feed Roll For wire mm 0,6/0,8 FE for Flux Welding Telwin €13.93
51
 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin 722227 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin €19.49
52
 photo_cameraImage coming soon 723198 WIRE FEED ASSY €138.20
53
 Roller Fixing Screw for Welding Machines Telwin 742397 Roller Fixing Screw for Welding Machines Telwin €1.29
54
 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG 742064 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG €8.21
55
 photo_cameraImage coming soon 742166 ADAPTER €19.76
56
 Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG 742180 Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG €94.31
57
 photo_cameraImage coming soon 742304 FEED ROLL D. 0,8-1 AL €22.82
58
 photo_cameraImage coming soon 742307 LEFT ANCHOR FOR PRESSURE ROLLER €37.53
59
 photo_cameraImage coming soon 742308 RIGHT ANCHOR FOR PRESSURE ROLLER €37.53
60
 photo_cameraImage coming soon 742348 MOTOR DRIVE GEAR €37.76
61
 photo_cameraImage coming soon 742495 GEAR €31.46
62
 photo_cameraImage coming soon 723163 FEEDER TORCH CONNECTION €46.56
64
 photo_cameraImage coming soon 980082 HANDLE KIT €11.80
65
 photo_cameraImage coming soon 980866 COVER KIT €38.82
66
 photo_cameraImage coming soon 980918 DOOR KIT €23.68
67
 photo_cameraImage coming soon 981059 TIMER CONTROL MODULE KIT €94.39
68
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
69
 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG 990264 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG €18.45
70
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Torch Ring Nut for Torches Telwin MIG-MAG 722007 Torch Ring Nut for Torches Telwin MIG-MAG €9.91
2
 Sleeve Lock Nut for Torches Telwin MIG-MAG 722013 Sleeve Lock Nut for Torches Telwin MIG-MAG €3.92
3
 photo_cameraImage coming soon 722305 SWAN NECK DIFFUSER €17.75
5
 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG 722319 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG €1.38
6
 Diffuser Insulation for Inverter Telwin Mastermig 220/2 722326 Diffuser Insulation for Inverter Telwin Mastermig 220/2 €2.47
7
 photo_cameraImage coming soon 742172 TORCH HOLDER €7.07
8
 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin 722415 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin €1.59
8
 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin 722416 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin €1.59
10
 Cilindrical Nozzle 16 mm for Wire Weldings Telwin 722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin €3.04
10
 Conical Nozzle mm 12 for Wire Weldings Telwin 722423 Conical Nozzle mm 12 for Wire Weldings Telwin €4.17
11
 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG 722437 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG €9.91
11
 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG 722689 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG €9.91
13
 Torch Body for Torches Telwin MIG-MAG 722441 Torch Body for Torches Telwin MIG-MAG €26.35
14
 photo_cameraImage coming soon 742175 TORCH CONNECTION €13.98
15
 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 742171 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 €1.34
16
 photo_cameraImage coming soon 722325 TORCH CONNECTION €3.27
17
 Body Torch Insuleting for Torches Telwin MIG-MAG 722693 Body Torch Insuleting for Torches Telwin MIG-MAG €4.99

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Flux Welding Mastermig 232 Duplex

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for welding machine Flux and Mig-mag type : Mastermig 232 Duplex.

In the following table, look for the model of the welding machine and theirs spare parts codes.
MASTERMIG 232 DUPLEX - 821067

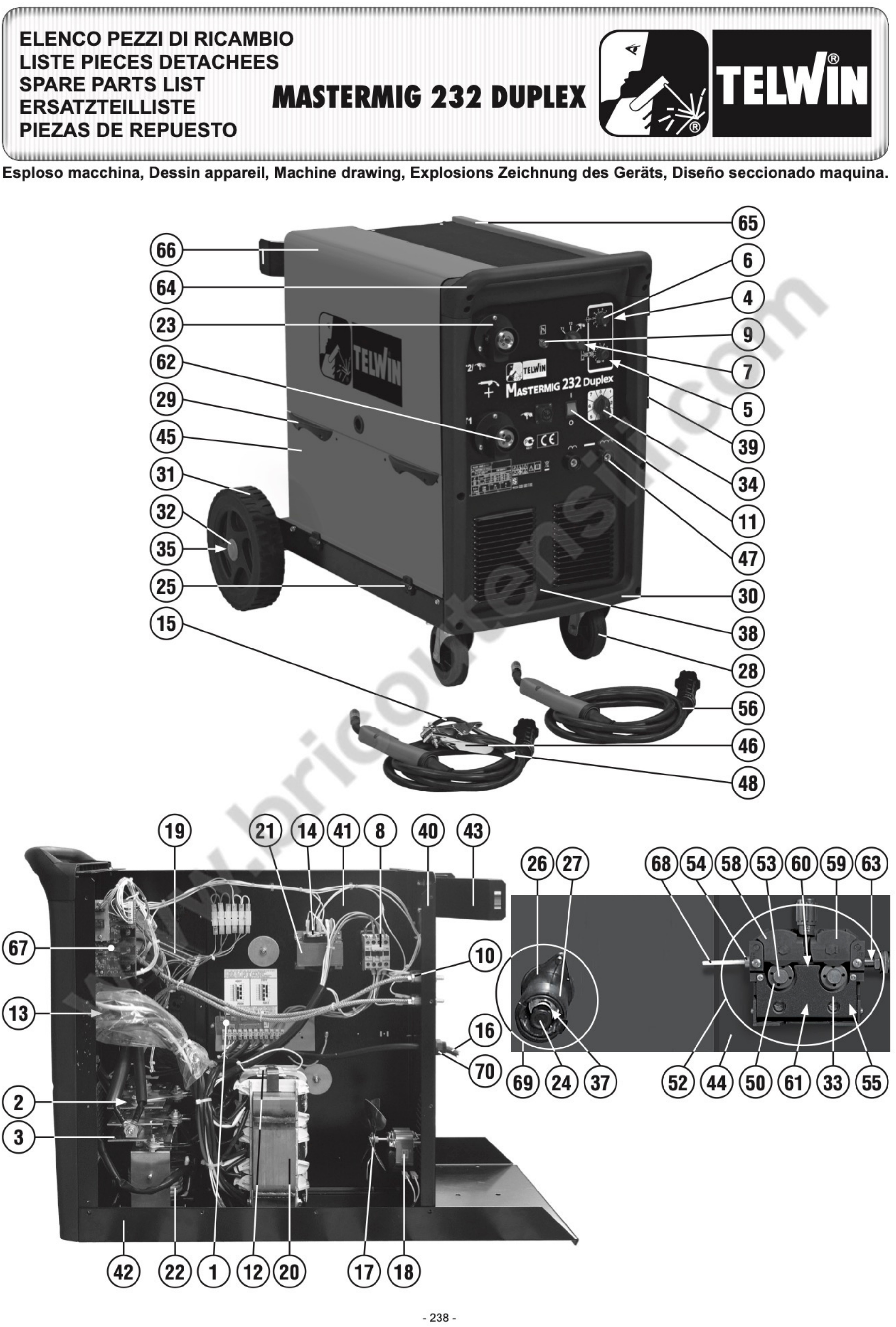

MASTERMIG 232 DUPLEX 230-400V cod.821067 Pag.1
1 CHANGING VOLTAGE CARD 112165
2 RECTIFIER PROTECTION 112182
3 RECTIFIER 112315
4 POTENTIOMETER 112363
5 POTENTIOMETER - 113574 112380
6 KNOB 121394
7 SWITCH 121473
8 CONTACTOR 122459
9 YELLOW PILOT LAMP 122594
10 ELECTRO-VALVE 122682
11 SWITCH 122725
12 THERMOSTAT 122796
13 SWITCH 122826
14 FUSE 122879
15 CABLE 16 MMQ 3 M - 25 123437
16 MAINS CABLE 4G2.5 3 M 132039
17 FAN 152054
18 FAN MOTOR 152110
19 WIRE FEED MOTOR 153033
20 TRANSFORMER 169754
21 AUXILIARY TRANSFORMER 164991
22 REACTANCE 169370
23 TORCH CONNECTION PROTECTION 312105
24 REEL HANDWHEEL 312137
25 HINGE SET 312382
26 REEL 322081
27 SPACER 322180
28 WHEEL + SWIVEL SUPPORT 322187
29 HANDLE 322590
30 FRAME 322736
31 WHEEL 322772
32 WHEEL CAP 322773
33 COVER 322814
34 SWITCH KNOB SET 323101
35 WHEELS AXLE 422020
36 ARGON GAS BOTTLE IT ADAPTOR 432036
37 REEL SPRING 452057
38 FRONT PANEL 642133
39 TORCH HOOK 644444
40 BACK PANEL 645485
41 DIAPHRAGM 645487
42 BOTTOM 645488
43 BOTTLEHOLDER BRACKET 645490
44 WIRE FEEDER SUPPORT 645491
45 DOOR 651164
46 TOLEDO 250 WORK CLAMP 250A 712030
47 SOCKET DX 25 712035
48 PLUG DX 25 712039
49 GAS REGULATOR 2 MANOMETERS 722119
50 FEED ROLL D. 0,6-0,8 MM FE 722225
51 FEED ROLL D. 0,8-1 MM FE 722227
52 WIRE FEED ASSY 723198
53 ROLLERFIXING SCREW 742397
54 WIRE GUIDE INLET 742064
55 ADAPTER 742166
56 MT15 MIG TORCH 3 M 220 A 742180
57 FEED ROLL D. 0,8-1 AL 742304
58 LEFT ANCHOR FOR PRESSURE ROLLER 742307
59 RIGHT ANCHOR FOR PRESSURE ROLLER 742308
60 MOTOR DRIVE GEAR 742348
61 GEAR 742495
62 FEEDER TORCH CONNECTION 723163
63 WIRE GUIDE HOSE 722525
64 HANDLE KIT 980082
65 COVER KIT 980866
66 DOOR KIT 980918
67 TIMER CONTROL MODULE KIT 981059
68 GAS HOSE KIT 990097
69 REEL KIT 990264
70 KIT CABLE BUSHING + RING NUT 990046

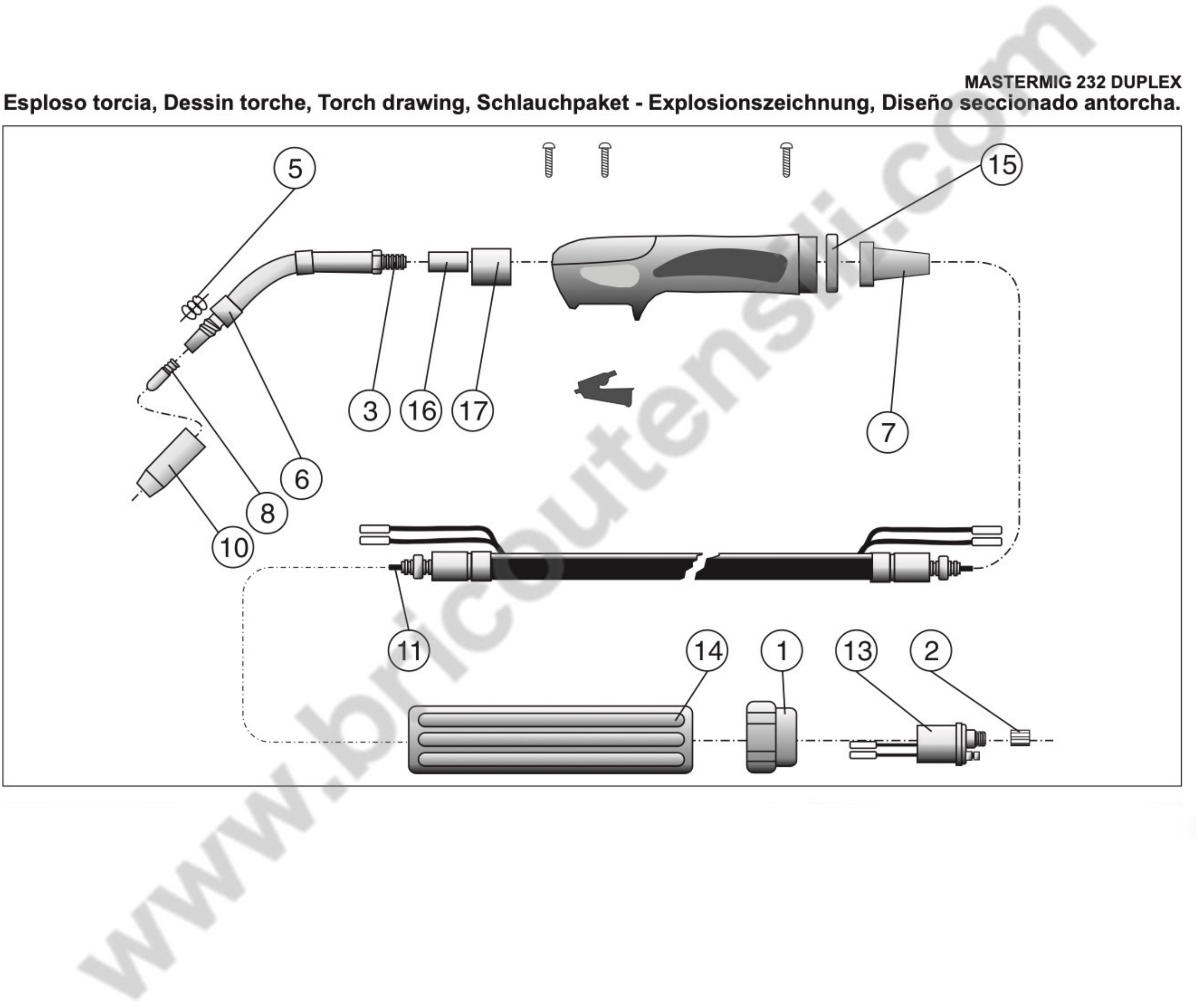

Torcia MASTERMIG 232 DUPLEX 230-400V cod. 821067 Pag.2
1 RING NUT 722007
2 LINER NUT 722013
3 SWAN NECK DIFFUSER 722305
5 NOZZLE SPRING 722319
6 DIFFUSER INSULATION 722326
7 TORCH HOLDER 742172
8 CONTACT TIP D. 0,8 MM FE 722416
8 CONTACT TIP D. 0,6 MM FE 722415
10 CYLINDRICAL NOZZLE 722149
10 CONICAL NOZZLE 722423
11 WIRE GUIDE HOSE D. 1-1,2 MM 3 M 722689
11 WIRE GUIDE HOSE D. 0,6-0,8 MM 3 M 722437
13 TORCH ASSY 722441
14 TORCH CONNECTION 742175
15 TORCH RING NUT 742171
16 TORCH CONNECTION 722325
17 TORCH CONNECTION INSULATION 722693

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MASTERMIG 232 DUPLEX - 821067
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Mastermig 232 Duplex Drawing

Mastermig 232 Duplex Drawing

Download (573.25KB)

You might also like

Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG
Telwin s.p.a. SKU: 742180
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG Genuine spare part Telwin, Torch Complete MT15 MIG 3 M 220 A, for welding, TELMIG 251/2 TURBO 230V - TELMIG 203/2 / 250/2 TURBO 230-400V - DIGITAL MIG 180/220/222 230V - TELMIG...
on 7/10 Business Days Approx. €94.31
Details
Capillary Pipe for Welders Telwin Mastermig-Supermig
Telwin s.p.a. SKU: 722358
Capillary Pipe for Welders Telwin Mastermig-Supermig
Capillary Pipe for Welders Telwin Mastermig-Supermig Genuine spare part Telwin, Capillary Pipe Diameter mm 2X5 - Lenght 122 mm, for welders Telwin, Mastermig - Supermig - Digital Supermig - Mastermig - Technomig.
AVAILABLE €8.21
Details
Gearmotor for Wire Welders Telwin Mastermig
Telwin s.p.a. SKU: 153039
Gearmotor for Wire Welders Telwin Mastermig
Gearmotor for Wire Welders Telwin Mastermig Gear motor, Genuine parts Telwin, with motor 24 V DC assy, for all models of wire welders series, Mastermig. Part for the following products: - Mastermig all type - Code: 153039 =...
Last items in stock €49.90
Details
Three-Phase Rectifier for Welding Telwin Linear-Mastermig
Telwin s.p.a. SKU: 112315
Three-Phase Rectifier for Welding Telwin Linear-Mastermig
Three-Phase Rectifier for Welding Telwin Linear-Mastermig Genuine spare Telwin, 25A 400V three phase rectifier for welding machines Telwin, LINEAR 220 230-400V - LINEAR 280 230-400V - MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V...
AVAILABLE €69.59
Details
Protection Rectifier for Welding Telwin Linear-Mastermig
Telwin s.p.a. SKU: 112182
Protection Rectifier for Welding Telwin Linear-Mastermig
Protection Rectifier for Welding Telwin Linear-Mastermig Genuine spare Telwin, spare Telwin, Protection Rectifier - Varistor 150 VAC 6500 A for welding Telwin, LINEAR 220 230-400V - LINEAR 280 230-400V - MASTERMIG 220/2 230-400V -...
AVAILABLE €4.03
Details
Torch Ring Nut for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 722007
Torch Ring Nut for Torches Telwin MIG-MAG
Torch Ring Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torch Ring Nut for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V...
AVAILABLE €9.91
Details
Torch Body for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722441
Torch Body for Torches Telwin MIG-MAG
Torch Body for Torches Telwin MIG-MAG Genuine part TELWIN, Torch Body for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V - Torch...
AVAILABLE €26.35
Details
Body Torch Insuleting for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722693
Body Torch Insuleting for Torches Telwin MIG-MAG
Body Torch Insuleting for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torches Insuleting for Torches MIG - MAG.  Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG...
Last items in stock €4.99
Details
Sleeve Lock Nut for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722013
Sleeve Lock Nut for Torches Telwin MIG-MAG
Sleeve Lock Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nut for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V cod. 827003 - MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V -...
AVAILABLE €3.92
Details
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722437
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 0.6-0.8 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Wire Guide Sleeve mm 1.0-1.2 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722689
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 1.0-1.2 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Telwin s.p.a. SKU: 742064
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG Original part Telwin, Front Wire Guide for welding Machines, MASTERMIG 220-270-300-400 / 2 - SUPERMIG 380-480-580 - DIGITAL MIG 220-222-330 - INVERPULSE 320-425-625. Part for the...
Last items in stock €8.21
Details
Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG
Telwin s.p.a. SKU: 152110
Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG
Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG Original part Telwin, Fan Motor for Telwin Welding Machines, TELMIG 180/2 - 195/2 - 200/2 - 251/2 - 281/2 - 250/2 - TURBO - DIGITAL MIG 180 - 220-222 - EURARC 422....
Last items in stock €30.53
Details
Side Handle for Inverter Telwin BIMAX 4.165 TURBO
Telwin s.p.a. SKU: 322590
Side Handle for Inverter Telwin BIMAX 4.165 TURBO
Side Handle for Inverter Telwin BIMAX 4.165 TURBO Genuine spare parts Telwin, Side Handle for inverter Telwin, Telwin, BIMAX 4.165 TURBO 230V - BIMAX 132 TURBO 230V - BIMAX 152 TURBO 230V - TELMIG 150/1 TURBO - MASTERMIG 232 Part for...
AVAILABLE €4.03
Details
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Telwin s.p.a. SKU: 990264
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG Original parts Telwin, Reel Kit for Welding Telwin MASTERMIG 220/2 - 270/2 - 300 - 400 - 232 DUPLEX - DIGITAL MIG 180 - 220 - 330 - 222 TWIN...
Last items in stock €18.45
Details
AC Contactor for Inverter Telwin MASTERMIG 220-270/2
Telwin s.p.a. SKU: 122459
AC Contactor for Inverter Telwin MASTERMIG 220-270/2
AC Contactor for Inverter Telwin MASTERMIG 220-270/2 Original spare part Telwin for replacing the AC Contactor of inverter welding machines MASTERMIG 220/2 - 270/2 - 232 DUPLEX - PERPLASMA 83 HF - DIGITAL MIG 220 - 330 - 222. Part for...
Last items in stock €21.11
Details
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex
Telwin s.p.a. SKU: 121394
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex Telwin Original Part, Potentiometer Knob for Inverter Welding Mastermig 232 Duplex - echnomig 150 DUAL SYNERGIC - TECNICA TIG 160 DC-HF/LIFT. Part for the following products:...
AVAILABLE €0.40
Details
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Telwin s.p.a. SKU: 122594
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig Original replacement part Telwin, Yellow Pilot Lamp 24 V, for Welding Machines Mastermig 220 - Telmig 183/2 - Telmig 203/2 Turbo - Telmig 250/2 Turbo - Supermig 580. Part...
AVAILABLE €2.03
Details
Diffuser Diffuser for Inverter Telwin Mastermig 220/2
Telwin s.p.a. SKU: 722326
Diffuser Insulation for Inverter Telwin Mastermig 220/2
Diffuser Insulation for Inverter Telwin Mastermig 220/2 Original spare part Telwin, Diffuser Insulation for Inverter Mastermig 220/2 - Mastermig 232 Duplex - Digital Mig 180 - Digital Mig 220 Part for the following products: -...
AVAILABLE €2.47
Details
Roller Fixing Screw for Welding Machines Telwin
Telwin s.p.a. SKU: 742397
Roller Fixing Screw for Welding Machines Telwin
Roller Fixing Screw for Welding Machines Telwin Genuine spare part Telwin, Roller Fixing Screw for Welding Machines Mastermig - Supermig - DIGITAL SUPERMIG - INVERPULSE. - Part for the following products: -  Mastermig 220/2 -...
AVAILABLE €1.29
Details
Comments (0)
