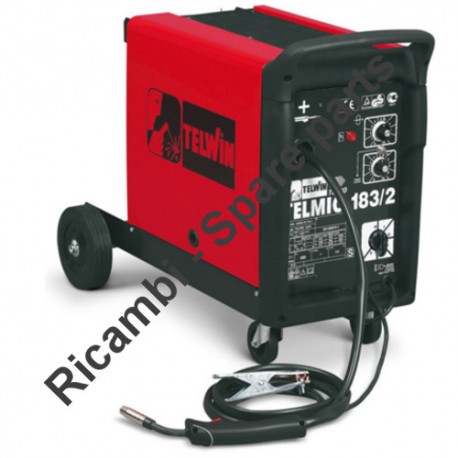

Telwin Spare Parts for Flux Welding Telmig 183/2 Turbo

SKU: TELMIG 183/2 TURBO - 820091
€4.03
VAT included

Telwin Spare Parts for Flux Welding Telmig 183/2 Turbo

Telwin original spare parts for to replace broken parts for to fix welding machine Flux and Mig-mag type : Telmig 183/2 Turbo.

Fix Your welding machine Flux and Mig-mag. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

TELMIG 183/2 TURBO 400V.
Telwin Spare Parts for Flux Welding Telmig 183/2 Turbo
  • Telwin Spare Parts for Flux Welding Telmig 183/2 Turbo
  • Telwin Spare Parts for Flux Welding Telmig 183/2 Turbo - Drawing
  • Telwin Spare Parts for Flux Welding Telmig 183/2 Turbo - Torch Drawing
Telwin s.p.a.

Telwin Spare Parts for Flux Welding Telmig 183/2 Turbo

SKU: TELMIG 183/2 TURBO - 820091 Condition: New
€4.03
VAT included

Telwin Spare Parts for Flux Welding Telmig 183/2 Turbo

Telwin original spare parts for to replace broken parts for to fix welding machine Flux and Mig-mag type : Telmig 183/2 Turbo.

Fix Your welding machine Flux and Mig-mag. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

TELMIG 183/2 TURBO 400V.
settings 62 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 113417 POTENTIOMETER €1.70
2
 Potentiometer Big Knob for Inverter Telwin 121424 Potentiometer Big Knob for Inverter Telwin €0.81
3
 Protection Rectifier for Welding Telwin Bimax-Telmig 112183 Protection Rectifier for Welding Telwin Bimax-Telmig €4.03
4
 Three-Phase Rectifier for Welding Telwin TELMIG 183-2 TURBO 112229 Three-Phase Rectifier for Welding Telwin TELMIG 183-2 TURBO €55.64
5
 Timer Control Board Kit for Inverter Telwin Telmig 183-203-250 980713 Timer Control Board Kit for Inverter Telwin Telmig 183-203-250 €91.93
6
 photo_cameraImage coming soon 122052 SWITCH €5.60
7
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
8
 Thermostat for Welding Machines Telwin 121258 Thermostat for Welding Machines Telwin €6.82
9
 Dipswitch 12A for Welding Telwin Telmig 183/2 TURBO 122568 Dipswitch 12A for Welding Telwin Telmig 183/2 TURBO €21.11
10
 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo 122694 AC Contactor for Inverter Telwin TELMIG 183-203-250/2 Turbo €18.45
11
 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
12
 Fuse T630mA L250V for Charger Telwin NEVADA 12-15 122432 Fuse T630mA L250V for Charger Telwin NEVADA 12-15 €0.32
13
 photo_cameraImage coming soon 120302 CABLE 16 MMQ 1,8 M €13.16
14
 photo_cameraImage coming soon 132237 MAINS CABLE 4G1.5 2 M €14.05
15
 Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA 152080 Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA €13.79
16
 Wire Drive Motor for Wire Welding Telwin Telmig-Technomig 153007 Wire Drive Motor for Wire Welding Telwin Telmig-Technomig €48.90
17
 Reactance for Inverter Telwin TELMIG 180-183-195/2 169371 Reactance for Inverter Telwin TELMIG 180-183-195/2 €55.64
18
 Auxiliary Power Adapter for Welding Machines Telwin TELMIG 183-203-250/2 164270 Auxiliary Power Adapter for Welding Machines Telwin TELMIG 183-203-250/2 €37.26
19
 photo_cameraImage coming soon 169302 TRANSFORMER €415.01
20
 Roller Anchor for Welding Telwin TELMIG 232105 Roller Anchor for Welding Telwin TELMIG €5.77
21
 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG 312137 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG €16.94
22
 Fan for Welding Telwin BIMAX-TELMIG-NORDIKA 312025 Fan for Welding Telwin BIMAX-TELMIG-NORDIKA €5.42
23
 photo_cameraImage coming soon 322081 REEL €16.47
24
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
25
 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 322126 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 €3.42
26
 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG 322127 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG €2.70
27
 photo_cameraImage coming soon 322128 PRESSURE ROLL BRACKET €1.75
28
 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 322143 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 €2.44
29
 Aspo Spacer Sleeve for Welding Telwin MASTERMIG 322180 Aspo Spacer Sleeve for Welding Telwin MASTERMIG €3.31
30
 Fixed Wheel D.175MM for Telwin Welding Machines 322201 Fixed Wheel D.175MM for Telwin Welding Machines €15.80
31
 Wheel D.80MM for Telwin Welding Machines 322245 Wheel D.80MM for Telwin Welding Machines €9.44
32
 photo_cameraImage coming soon 322640 FRAME €15.68
36
 Swivel Support for D.80MM Wheel for Telwin Welding Machines 422820 Swivel Support for D.80MM Wheel for Telwin Welding Machines €7.32
37
 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50
38
 Compressione Spring mm 9x21 for Inverter Telwin Bimax 452022 Compressione Spring mm 9x21 for Inverter Telwin Bimax €2.44
39
 Reel Spring for Welding Telwin MASTERMIG 452057 Reel Spring for Welding Telwin MASTERMIG €2.61
40
 photo_cameraImage coming soon 312328 HANDLE €12.03
41
 photo_cameraImage coming soon 644069 BACK PANEL €6.64
42
 photo_cameraImage coming soon 644176 DIAPHRAGM €9.75
43
 photo_cameraImage coming soon 644606 BRACKET FOR BOTTLE €11.45
44
 photo_cameraImage coming soon 649552 FRONT PANEL €8.86
45
 photo_cameraImage coming soon 644967 BOTTOM €15.64
46
 photo_cameraImage coming soon 980840 COVER KIT €21.08
47
 Fixed Wheel D.175MM Axle for Telwin Welding Machines 681092 Fixed Wheel D.175MM Axle for Telwin Welding Machines €10.49
48
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
50
 Feed Roll For Wire mm 0,6/0,8 FE for Welding Telwin Telmig 722019 Feed Roll For Wire mm 0,6/0,8 FE for Welding Telwin Telmig €2.53
51
 Gas Regulator Refillable Bottle for Inverter Telwin Telmig 722341 Gas Regulator Refillable Bottle for Inverter Telwin Telmig €42.33
52
 Torch for Wire Weldings Telwin TELMIG 742405 Torch for Wire Weldings Telwin TELMIG €89.00
55
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
56
 photo_cameraImage coming soon 990257 GEARS KIT €19.02
57
 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG 990264 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG €18.45
59
 photo_cameraImage coming soon 980884 DOOR KIT €21.51
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin 722416 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin €1.59
2
 Conical Nozzle mm 12 for Wire Weldings Telwin 722423 Conical Nozzle mm 12 for Wire Weldings Telwin €4.17
3
 photo_cameraImage coming soon 722078 SWAN NECK DIFFUSER €15.13
4
 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig 990464 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig €13.79
5
 Button Spring Contact for Torch Telwin MIG 452097 Button Spring Contact for Torch Telwin MIG €2.44
6
 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 €2.44
7
 Kit Cables Set 16 MMQ for Inverter Welding Telwin 170/1 990601 Kit Cables Set 16 MMQ for Inverter Welding Telwin 170/1 €55.62
9
 Liner Wire Conduit mm 0.6-0.8 3 mt for Torches Telwin 170/1-180-183/2 742413 Liner Wire Conduit mm 0.6-0.8 3 mt for Torches Telwin 170/1-180-183/2 €2.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Flux Welding Telmig 183/2 Turbo

Fix Your welding machine Flux and Mig-mag Telmig 183/2 Turbo. All Spares are Ready For Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the welding machine and theirs spare parts codes.
TELMIG 183/2 TURBO 400V
TELMIG 183/2 TURBO 400V cod. 820091 Pag.1
# Description Part Num.
1 POTENTIOMETER 113417
2 KNOB 121424
3 RECTIFIER PROTECTION 112183
4 RECTIFIER 112229
5 CONTROL PCB KIT 980713
6 SWITCH 122052
7 SWITCH KNOB SET 323101
8 THERMOSTAT SOST 121715 121258
9 DIPSWITCH 122568
10 CONTACTOR 122694
11 YELLOW PILOT LAMP 122594
12 FUSE 122432
13 CABLE 16 MMQ 1,8 M 120302
14 MAINS CABLE 4G1.5 2 M 132237
15 FAN MOTOR 152080
16 WIRE FEED MOTOR 153007
17 REACTANCE 169371
18 AUXILIARY TRANSFORMER 164270
19 TRANSFORMER 169302
20 PRESSURE ROLL 232105
21 REEL HANDWHEEL 312137
22 FAN BLADE 312025
23 REEL 322081
24 CABLE BUSHING 322112
25 ROLL SUPPORT 322126
26 TORCH FIXING CASING 322127
27 PRESSURE ROLL BRACKET 322128
28 RING NUT 322143
29 SPACER 322180
30 FIXED WHEEL 322201
31 WHEEL 322245
32 FRAME 322640
34 WIRE FEED HANDWHEEL 422257
35 SUPPORT 422817
36 SWIVEL SUPPORT 422820
37 ARGON GAS BOTTLE IT ADAPTOR 432036
38 SPRING 452022
39 REEL SPRING 452057
40 HANDLE 312328
41 BACK PANEL 644069
42 DIAPHRAGM 644176
43 BRACKET FOR BOTTLE 644606
44 FRONT PANEL 649552
45 BOTTOM 644967
46 COVER KIT 980840
47 WHEELS AXLE 681092
48 TOLEDO 250 WORK CLAMP 250A 712030
50 FEED ROLL D. 0,6-0,8 MM FE 722019
51 GAS REGULATOR REFILLABLE BOTTLE 722341
52 TW180 MIG TORCH 2,5 M 180 A 742405
55 GAS HOSE KIT 990097
56 GEARS KIT 990257
57 REEL KIT 990264
59 DOOR KIT 980884
Torch TELMIG 183/2 TURBO 400V Pag.2
1 CONTACT TIP D. 0,8 MM FE 722416
2 CONICAL NOZZLE 722423
3 SWAN NECK DIFFUSER 722078
4 VALVE 990464
5 CONTACT SPRING FOR MIG TORCH 452097
6 PUSHBUTTON 322295
7 KIT CABLES SET 16MMQ 990601
9 WIRE GUIDE HOSE D. 0,6-0,8 MM 2 M 742413
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TELMIG 183/2 TURBO - 820091
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Electrical Diagram Telmig 183/2

Electrical Diagram Telmig 183/2 Turbo

Download (0)

Telmig 183/2 Turbo Drawing

Telmig 183/2 Turbo Drawing

Download (533.83KB)

You might also like

Cilindrical Nozzle 13 mm for Wire Weldings Telwin
Telwin s.p.a. SKU: 722054
Cilindrical Nozzle 13 mm for Wire Weldings Telwin
Cilindrical Nozzle 13 mm for Wire Weldings Telwin Genuine part TELWIN, Insulated Cilindrical nozzle 13 mm for wire welding machine Torch Telwin. - Diameter : mm 13 - Codes : 722054(mm13) Can be used on the following Torches: - BIMAX...
AVAILABLE €4.17
Details
AC Contactor for Inverter Telwin TELMIG 195-200-251/2 Turbo
Telwin s.p.a. SKU: 122692
AC Contactor for Inverter Telwin TELMIG 195-200-251/2 Turbo
AC Contactor for Inverter Telwin TELMIG 195-200-251/2 Turbo Original spare part Telwin for replacing the AC Contactor of inverter welding machines TELMIG 195/2 TURBO 230-400V - TELMIG 200/2 TURBO 230V - TELMIG 251/2 TURBO 230V. Parft...
AVAILABLE €18.45
Details
Wire Feeder Board Kit for Inverter Telwin TELMIG
Telwin s.p.a. SKU: 980462
Wire Feeder Board Kit for Inverter Telwin TELMIG
Wire Feeder Board Kit for Inverter Telwin TELMIG Genuine spare part Telwin, Eire Feeder Board Kit for Welding Machines Telwin TELMIG 195/2 - 200/2 - 251/2 - 281/2 Turbo Part for the following products: - Welding Machine Telwin...
Last items in stock €57.00
Details
Torch for Wire Weldings Telwin TELMIG
Telwin s.p.a. SKU: 742405
Torch for Wire Weldings Telwin TELMIG
Torch for Wire Weldings Telwin TELMIG Original spare part Telwin, Assembly Torch TW180 MIG 2,5 M 180 A, for welding machines, TELMIG 150/1 TURBO - TELMIG 170/1 TURBO - TELMIG 183/2 TURBO. Part for the following products: - TELMIG...
Last items in stock €89.00
Details
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG
Telwin s.p.a. SKU: 742180
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG Genuine spare part Telwin, Torch Complete MT15 MIG 3 M 220 A, for welding, TELMIG 251/2 TURBO 230V - TELMIG 203/2 / 250/2 TURBO 230-400V - DIGITAL MIG 180/220/222 230V - TELMIG...
on 7/10 Business Days Approx. €94.31
Details
Connection Torch MaxMig for Wire Weldings Telwin TELMIG
Telwin s.p.a. SKU: 723051
Connection Torch MaxMig for Wire Weldings Telwin TELMIG
Connection Torch MaxMig for Wire Weldings Telwin TELMIG Genuine spare part Telwin, Connection Torch MAX MIG, for welding, TELMIG 251/2 TURBO 230V - TELMIG 203/2 / 250/2 TURBO 230-400V - DIGITAL MIG 180/220/222 230V - TELMIG 195/2 /...
Last items in stock €21.50
Details
Potentiometer for Welders Telwin BIMAX-TELMIG
Telwin s.p.a. SKU: 113533
Potentiometer for Welders Telwin BIMAX-TELMIG
Potentiometer for Welders Telwin BIMAX-TELMIG Original part Telwin, Potentiometer for welders Telwin, BIMAX 4,135/4,165/4,195/182 - TELMIG 195/2-170/1-200/2-180/2-251-281/2. Part for the following products: - BIMAX 4,135 TURBO...
AVAILABLE €6.82
Details
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG
Telwin s.p.a. SKU: 113574
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG Original part Telwin, Potentiometer for welders Telwin, BIMAX 182 - TELMIG 195/2 -200/2-180/2-251-281/2 - SUPERMIG 380. For the following items: - TELMIG 195/2 TURBO 230-400V...
AVAILABLE €9.17
Details
Valve Torch for Welding Telwin Bimax-TELMIG-Technomig
Telwin s.p.a. SKU: 990464
Valve Torch for Welding Telwin Bimax-TELMIG-Technomig
Valve Torch for Welding Telwin Bimax-TELMIG-Technomig Genuine spare Telwin, Valve Body Ass'y for Torches, for welding machines series, Bimax - TELMIG - Technomig.   Part for the following products: - BIMAX 132 TURBO 230V - BIMAX...
Last items in stock €13.79
Details
Timer Control Board Kit for Inverter Telwin Telmig 183-203-250
Telwin s.p.a. SKU: 980713
Timer Control Board Kit for Inverter Telwin Telmig 183-203-250
Timer Control Board Kit for Inverter Telwin Telmig 183-203-250 Original spare part Telwin, Electronic Timer Control board for welding machines Telwin TELMIG 203/2 TURBO 230-400V - TELMIG 250/2 TURBO 230-400V - TELMIG 183/2 TURBO 400V....
Last items in stock €91.93
Details
Protection Rectifier for Welding Telwin Linear-Mastermig
Telwin s.p.a. SKU: 112182
Protection Rectifier for Welding Telwin Linear-Mastermig
Protection Rectifier for Welding Telwin Linear-Mastermig Genuine spare Telwin, spare Telwin, Protection Rectifier - Varistor 150 VAC 6500 A for welding Telwin, LINEAR 220 230-400V - LINEAR 280 230-400V - MASTERMIG 220/2 230-400V -...
AVAILABLE €4.03
Details
Dipswitch 16A for Welding Telwin Telmig 203-2 Turbo
Telwin s.p.a. SKU: 122475
Dipswitch 16A for Welding Telwin Telmig 203-2 Turbo
Dipswitch 16A for Welding Telwin Telmig 203-2 Turbo Genuine spare Telwin, Dipswitch for welding machines Telwin TELMIG 203/2 TURBO 230-400V cod.821060 Part for the following items: -  TELMIG 203/2 TURBO 230-400V cod.821060 Technical...
Last items in stock €37.51
Details
Protection Rectifier for Welding Telwin Bimax-Telmig
Telwin s.p.a. SKU: 112183
Protection Rectifier for Welding Telwin Bimax-Telmig
Protection Rectifier for Welding Telwin Bimax-Telmig Genuine spare part Telwin, spare Telwin, Protection Rectifier - Varistor Varistore 95 VAC 4500 A for Welding BIMAX - TELMIG - Charging DYNAMIC - STARTRONIC - COMPUTER. Part for the...
AVAILABLE €4.03
Details
Three-Phase Rectifier for Welding Telwin TELMIG 183-2 TURBO
Telwin s.p.a. SKU: 112229
Three-Phase Rectifier for Welding Telwin TELMIG 183-2 TURBO
Three-Phase Rectifier for Welding Telwin TELMIG 183-2 TURBO Genuine spare Telwin, 25A 400V three phase rectifier for welding machines Telwin, TELMIG 183/2 TURBO 400V cod. 820091. This is an authentic replacement part sourced directly...
Last items in stock €55.64
Details
Spot Welding Cilindrical Nozzle for Wire Weldings Telwin
Telwin s.p.a. SKU: 722687
Spot Welding Cilindrical Nozzle for Wire Weldings Telwin
Spot Welding Cilindrical Nozzle for Wire Weldings Telwin Genuine part TELWIN, Spot Welding Cilindrical nozzle for wire welding machine Torch Telwin.   Can be used on the following Torches: - Torch MASTERMIG 300 230-400V - Torch...
AVAILABLE €13.24
Details
Torches Spring for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 742174
Torch Spring for Torches Telwin MIG-MAG
Torch Spring for Torches Telwin MIG-MAG Genuine replacement part TELWIN, Cable reinforced Spring for Torches MIG - MAG. Part for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch...
AVAILABLE €5.42
Details
Torch Ring Nut for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 722007
Torch Ring Nut for Torches Telwin MIG-MAG
Torch Ring Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torch Ring Nut for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V...
AVAILABLE €9.91
Details
Torch Body for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722441
Torch Body for Torches Telwin MIG-MAG
Torch Body for Torches Telwin MIG-MAG Genuine part TELWIN, Torch Body for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V - Torch...
AVAILABLE €26.35
Details
Body Torch Insuleting for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722693
Body Torch Insuleting for Torches Telwin MIG-MAG
Body Torch Insuleting for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torches Insuleting for Torches MIG - MAG.  Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG...
Last items in stock €4.99
Details
Nozzle Spring for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722690
Nozzle Spring for Torches Telwin MIG-MAG
Nozzle Spring for Torches Telwin MIG-MAG Genuine replacement part TELWIN, Nozzle Spring for Torches MIG - MAG. Part for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400...
AVAILABLE €2.63
Details
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722598
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Sleeve Lock Nipples for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nipples for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400...
AVAILABLE €4.14
Details
Sleeve Lock Nut for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722013
Sleeve Lock Nut for Torches Telwin MIG-MAG
Sleeve Lock Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nut for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V cod. 827003 - MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V -...
AVAILABLE €3.92
Details
Sleeve Lock Hose for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722600
Sleeve Lock Hose for Torches Telwin MIG-MAG
Sleeve Lock Hose for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Hose for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2 230-400V - MASTERMIG 400 230-400V - SUPERMIG 380...
AVAILABLE €21.27
Details
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722437
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 0.6-0.8 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Wire Guide Sleeve mm 1.0-1.2 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722689
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 1.0-1.2 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA
Telwin s.p.a. SKU: 152080
Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA
Fan Motor for Welding Telwin BIMAX-TELMIG-NORDIKA Original part Telwin, fan motor for Telwin welding machines, BIMAX 4.135-4.165-4.195 TURBO - Bimax 132-152 Turbo - NORDIKA 2160-2162-3200-3250 - TELMIG 150-170-183. Part For the...
AVAILABLE €13.79
Details
Fan for Welding Telwin BIMAX-TELMIG-NORDIKA
Telwin s.p.a. SKU: 312025
Fan for Welding Telwin BIMAX-TELMIG-NORDIKA
Fan for Welding Telwin BIMAX-TELMIG-NORDIKA Original part Telwin, fan for Telwin welding machines, BIMAX 4.195 TURBO - Bimax162 Turbo - NORDIKA 2160-2162-3200-3250 - TELMIG 170-183-203/1 TURBO. Part For the following items: - NORDIKA...
AVAILABLE €5.42
Details
Button Spring Contact for Torch Telwin MIG
Telwin s.p.a. SKU: 452097
Button Spring Contact for Torch Telwin MIG
Button Spring Contact for Torch Telwin MIG Genuine parts Telwin, Button Spring Contact for Torch Telwin BIMAX 105-132-152-162-182-4.135-4.165-4.195 - TELMIG 150/1-170 / 1-180/2-183/2. Parts for the following products: - TORCH FOR...
AVAILABLE €2.44
Details
Potentiometer Big Knob for Inverter Telwin
Telwin s.p.a. SKU: 121424
Potentiometer Big Knob for Inverter Telwin
Potentiometer Big Knob for Inverter Telwin Genuine part Telwin, Potentiometer Big Knob for welding inverters, BIMAX 4.135-4.165-4.195-132-152-162-182 - TELMIG 150/1-170/1-180/2-183/2-195/2-200/2-203/2-250/2. Part for the following...
AVAILABLE €0.81
Details
Conical Nozzle mm 15 for Wire Weldings Telwin
Telwin s.p.a. SKU: 722685
Conical Nozzle mm 15 for Wire Weldings Telwin
Conical Nozzle mm 15 for Wire Weldings Telwin Genuine part TELWIN, Conical nozzle mm 15 for wire welding machine Torch Telwin. Part for the following Torches: - Torche MASTERMIG 270/2 230-400V - Torche TELMIG 281/2 TURBO 230V - Torche...
AVAILABLE €4.17
Details
Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG
Telwin s.p.a. SKU: 152110
Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG
Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG Original part Telwin, Fan Motor for Telwin Welding Machines, TELMIG 180/2 - 195/2 - 200/2 - 251/2 - 281/2 - 250/2 - TURBO - DIGITAL MIG 180 - 220-222 - EURARC 422....
Last items in stock €30.53
Details
Rectifier for Welding Telwin TELMIG 203/2-250/2 TURBO
Telwin s.p.a. SKU: 112311
Rectifier for Welding Telwin TELMIG 203/2-250/2 TURBO
Rectifier for Welding Telwin TELMIG 203/2-250/2 TURBO Genuine part Telwin, Rectifier for welding machines Telwin, TELMIG 203/2 TURBO 230-400V - 250/2 TURBO 230-400V - DIGITAL MIG 220 230-400V - 222 TWIN 230-400V. Part for the...
on 7/10 Business Days Approx. €64.01
Details
Reactance for Inverter Telwin TELMIG 180-183-195/2
Telwin s.p.a. SKU: 169371
Reactance for Inverter Telwin TELMIG 180-183-195/2
Reactance for Inverter Telwin TELMIG 180-183-195/2 Genuine parts Telwin, Reactance 220-240 V for Inverter TELMIG 180/2 TURBO 230V - 400V TURBO 183/2 - 195/2 TURBO 230-400V - BIMAX 182 TURBO 230V. Parts for the following products: -...
AVAILABLE €55.64
Details
Roller Anchor for Welding Telwin TELMIG
Telwin s.p.a. SKU: 232105
Roller Anchor for Welding Telwin TELMIG
Roller Anchor for Welding Telwin TELMIG Original Spare Part Telwin, Roller Anchor Bearing 609Z for welders BIMAX 105 - BIMAX 4135 - BIMAX 4165 - BIMAX 4195 - BIMAX 132 - BIMAX 152 - BIMAX 162 - BIMAX 182 - TELMIG 150/1 - TELMIG 170/1 -...
AVAILABLE €5.77
Details
Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195
Telwin s.p.a. SKU: 322295
Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195
Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 Genuine parts Telwin, Torch Lever for Inverter Telwin BIMAX 105-4135 - 4165-4195 - 132-152 - 162-182 Turbo. Part for the following products: - INVERTER WELDING TELWIN BIMAX...
AVAILABLE €2.44
Details
Reactance for Inverter Telwin TELMIG 281/2 TURBO
Telwin s.p.a. SKU: 169381
Reactance for Inverter Telwin TELMIG 281/2 TURBO
Reactance for Inverter Telwin TELMIG 281/2 TURBO Genuine parts Telwin, Reactance 220-240 V for Inverter TELMIG 281/2 TURBO 230V cod. 820099 Parts for the following products: -  Inverter Telwin TELMIG 281/2 TURBO 230V cod. 820099 -...
on 10 Business Days Approx. €133.56
Details
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Telwin s.p.a. SKU: 990264
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG Original parts Telwin, Reel Kit for Welding Telwin MASTERMIG 220/2 - 270/2 - 300 - 400 - 232 DUPLEX - DIGITAL MIG 180 - 220 - 330 - 222 TWIN...
Last items in stock €18.45
Details
Dipswitch 12A for Welding Telwin Telmig 183/2 TURBO
Telwin s.p.a. SKU: 122568
Dipswitch 12A for Welding Telwin Telmig 183/2 TURBO
Dipswitch 12A for Welding Telwin Telmig 183/2 TURBO Genuine spare Telwin, Dipswitch for welding machines Telwin Telmig 183/2 TURBO 400V cod. 820091 Part for the following products: - Telmig 183/2 TURBO 400V...
AVAILABLE €21.11
Details
Gas Regulator Refillable Bottle for Inverter Telwin Telmig
Telwin s.p.a. SKU: 722341
Gas Regulator Refillable Bottle for Inverter Telwin Telmig
Gas Regulator Refillable Bottle for Inverter Telwin Telmig Original part Telwin, Gas Regulator Refillable Bottle for Inverter Telmig 150/1 - 180/2 - 183/2 - 195/2 - 200/2 - 203/2 - 250/2 - 250/2 - 281/2 Part for the following...
on 10 Business Days Approx €42.33
Details
Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1
Telwin s.p.a. SKU: 322143
Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1
Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 Genuine part TELWIN, Hooking Torch Ring for Torches Welding Telmig 150/1 - 170/1 - 180/2 - Bimax 4.135 - 4.165 - 4.195 Turbo - 182 Turbo Parts for the following products: -...
AVAILABLE €2.44
Details
Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2
Telwin s.p.a. SKU: 322126
Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2
Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 Genuine part TELWIN, Feed Roll Holder for Welding Telmig 150/1 - 183/2 - 195/2 - 251/2 Turbo Part for the following products: - Welding Telmig 150/1 Turbo - Welding Telmig 183/2...
AVAILABLE €3.42
Details
Fuse T630mA L250V for Charger Telwin NEVADA 12-15
Telwin s.p.a. SKU: 122432
Fuse T630mA L250V for Charger Telwin NEVADA 12-15
Fuse T630mA L250V for Charger Telwin NEVADA 12-15 Genuine part Telwin, Fuse T630mA L250V for Charger Telwin NEVADA 12 - NEVADA 15 - Welding Telmig 203/2 Turbo183/2 Turbo - 203/2 Turbo - 251/2 Turbo....
AVAILABLE €0.32
Details
Compressione Spring mm 9x21 for Inverter Telwin Bimax
Telwin s.p.a. SKU: 452022
Compressione Spring mm 9x21 for Inverter Telwin Bimax
Compressione Spring mm 9x21 for Inverter Telwin Bimax Genuine replacement part TELWIN, Compressione Spring mm 9x21 for Inverter Bimax - Telmig - Technomig - Digital Mig. Part for the following products: - Inverter Bimax 105 Automatic...
AVAILABLE €2.44
Details
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Telwin s.p.a. SKU: 122594
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig Original replacement part Telwin, Yellow Pilot Lamp 24 V, for Welding Machines Mastermig 220 - Telmig 183/2 - Telmig 203/2 Turbo - Telmig 250/2 Turbo - Supermig 580. Part...
AVAILABLE €2.03
Details
Comments (0)
