Telwin s.p.a.

Telwin Spare Parts for Flux Welding Mastermig 220/2 - 821064

SKU: Telwin Mastermig 220/2 - 821064
€7.37
VAT included

Telwin Spare Parts for Flux Welding Mastermig 220/2 - 821064

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for welding machine Flux and Mig-mag Mastermig 220/2 -821064.

Telwin Mastermig 220/2 - 821064
Telwin Spare Parts for Flux Welding Mastermig 220/2 - 821064
  • Telwin Spare Parts for Flux Welding Mastermig 220/2 - 821064
  • Telwin Spare Parts for Flux Welding Mastermig 220/2 - 821064 - Diagram
  • Telwin Spare Parts for Flux Welding Mastermig 220/2 - 821064 - Torch Drawing
Telwin s.p.a.

Telwin Spare Parts for Flux Welding Mastermig 220/2 - 821064

SKU: Telwin Mastermig 220/2 - 821064 Condition: New
€7.37
VAT included

Telwin Spare Parts for Flux Welding Mastermig 220/2 - 821064

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for welding machine Flux and Mig-mag Mastermig 220/2 -821064.

Telwin Mastermig 220/2 - 821064
settings 75 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
73 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112165 CHANGING VOLTAGE CARD €7.29
2
 Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
3
 Three-Phase Rectifier for Welding Telwin Linear-Mastermig 112315 Three-Phase Rectifier for Welding Telwin Linear-Mastermig €69.59
4
 Potentiometer for Welding Telwin Mastermig 220-232-270-300-400 112363 Potentiometer for Welding Telwin Mastermig 220-232-270-300-400 €9.20
6
 Timer Control Board Kit for Inverter Telwin Mastermig-Supermig 980714 Timer Control Board Kit for Inverter Telwin Mastermig-Supermig €79.90
7
 photo_cameraImage coming soon 122132 THERMOSTAT €8.71
8
 AC Contactor for Inverter Telwin MASTERMIG 220-270/2 122459 AC Contactor for Inverter Telwin MASTERMIG 220-270/2 €21.11
9
 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig 122594 Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig €2.03
10
 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse 122682 Electrovalve for Inverter Telwin Mastermig-Supermig-Inverpulse €20.15
11
 Green Switch for Inverter Telwin Mastermig 220-270-300-400 122725 Green Switch for Inverter Telwin Mastermig 220-270-300-400 €2.63
12
 photo_cameraImage coming soon 122826 SWITCH €28.12
14
 photo_cameraImage coming soon 132039 MAINS CABLE 4G2.5 3 M €22.91
15
 Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG 152110 Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG €30.53
16
 Fan for Welding Machines Telwin Eurarc-Artika-Quality 152111 Fan for Welding Machines Telwin Eurarc-Artika-Quality €8.21
17
 photo_cameraImage coming soon 153033 WIRE FEED MOTOR €49.91
18
 photo_cameraImage coming soon 164086 TRANSFORMER €570.01
19
 Auxiliary Power Adapter for Welder Telwin Mastermig-Digital Mig 164991 Auxiliary Power Adapter for Welder Telwin Mastermig-Digital Mig €72.29
21
 Connection Protection Torch for Welders Telwin Mastermig-Supermig 312105 Connection Protection Torch for Welders Telwin Mastermig-Supermig €11.14
22
 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG 312137 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG €16.94
23
 photo_cameraImage coming soon 312328 HANDLE €12.03
24
 photo_cameraImage coming soon 322081 REEL €16.47
25
 Aspo Spacer Sleeve for Welding Telwin MASTERMIG 322180 Aspo Spacer Sleeve for Welding Telwin MASTERMIG €3.31
26
 Wheel D.200x45 mm for Inverter Welding Telwin 322200 Wheel D.200x45 mm for Inverter Welding Telwin €18.29
27
 photo_cameraImage coming soon 322246 WHEEL €3.64
28
 photo_cameraImage coming soon 322698 FRAME €9.91
29
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
30
 photo_cameraImage coming soon 422969 SWIVEL SUPPORT €7.17
32
 Reel Spring for Welding Telwin MASTERMIG 452057 Reel Spring for Welding Telwin MASTERMIG €2.61
34
 photo_cameraImage coming soon 644606 BRACKET FOR BOTTLE €11.45
35
 photo_cameraImage coming soon 645112 DIAPHRAGM €21.57
36
 photo_cameraImage coming soon 645113 BACK PANEL €14.80
37
 photo_cameraImage coming soon 645114 BOTTOM €32.79
38
 photo_cameraImage coming soon 649633 FRONT PANEL €15.62
39
 photo_cameraImage coming soon 651034 SIDE PANEL €13.25
40
 photo_cameraImage coming soon 980872 COVER KIT €26.93
41
 photo_cameraImage coming soon 980912 DOOR KIT €21.52
42
 Fixed Wheel D.175MM Axle for Telwin Welding Machines 681092 Fixed Wheel D.175MM Axle for Telwin Welding Machines €10.49
43
 Socket DX 25 for Telwin Welding Machine 712035 Socket DX 25 for Telwin Welding Machine €3.47
44
 Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
45
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
46
 photo_cameraImage coming soon 123437 CABLE 16 MMQ 3 M - 25 €23.01
47
 Feed Roll For wire mm 0,6/0,8 FE for Flux Welding Telwin 722112 Feed Roll For wire mm 0,6/0,8 FE for Flux Welding Telwin €13.93
48
 Telwin Gas Regulators for Refilable Bottles 722119 Telwin Gas Regulators for Refilable Bottles €58.24
49
 Capillary Pipe for Welders Telwin Mastermig-Supermig 722358 Capillary Pipe for Welders Telwin Mastermig-Supermig €8.21
50
 Connection Torch Mig for Weldings Telwin Mastermig 220/270 723186 Connection Torch Mig for Weldings Telwin Mastermig 220/270 €55.64
51
 Roller Fixing Screw for Welding Machines Telwin 742397 Roller Fixing Screw for Welding Machines Telwin €1.29
52
 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG 742064 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG €8.21
53
 photo_cameraImage coming soon 742090 FEED ROLL D. 0,8-1 MM AL €19.72
54
 Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG 742096 Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG €41.69
55
 Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG 742180 Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG €94.31
56
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
57
 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG 990264 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG €18.45
58
 Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
59
 Two Rollers Driver Wire Kit for Welding Telwin Mastermig-Digital Mig 990632 Two Rollers Driver Wire Kit for Welding Telwin Mastermig-Digital Mig €69.59
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Torch Ring Nut for Torches Telwin MIG-MAG 722007 Torch Ring Nut for Torches Telwin MIG-MAG €9.91
2
 Sleeve Lock Nut for Torches Telwin MIG-MAG 722013 Sleeve Lock Nut for Torches Telwin MIG-MAG €3.92
3
 photo_cameraImage coming soon 722305 SWAN NECK DIFFUSER €17.75
5
 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG 722319 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG €1.38
6
 Diffuser Insulation for Inverter Telwin Mastermig 220/2 722326 Diffuser Insulation for Inverter Telwin Mastermig 220/2 €2.47
7
 photo_cameraImage coming soon 742172 TORCH HOLDER €7.07
8
 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin 722415 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin €1.59
8
 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin 722416 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin €1.59
10
 Cilindrical Nozzle 16 mm for Wire Weldings Telwin 722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin €3.04
10
 Conical Nozzle mm 12 for Wire Weldings Telwin 722423 Conical Nozzle mm 12 for Wire Weldings Telwin €4.17
11
 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG 722437 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG €9.91
11
 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG 722689 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG €9.91
13
 Torch Body for Torches Telwin MIG-MAG 722441 Torch Body for Torches Telwin MIG-MAG €26.35
14
 photo_cameraImage coming soon 742175 TORCH CONNECTION €13.98
15
 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 742171 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 €1.34
16
 photo_cameraImage coming soon 722325 TORCH CONNECTION €3.27
17
 Body Torch Insuleting for Torches Telwin MIG-MAG 722693 Body Torch Insuleting for Torches Telwin MIG-MAG €4.99
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
Pos. Item Price Buy
31
 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50
33
 photo_cameraImage coming soon 644444 TORCH HOOK €6.00

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Flux Welding Mastermig 220/2 - 821064

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for welding machine Flux and Mig-mag Mastermig 220/2 -821064.

In the following table, look for the model of the welding machine and theirs spare parts codes.
Telwin Mastermig 220/2 - 821064

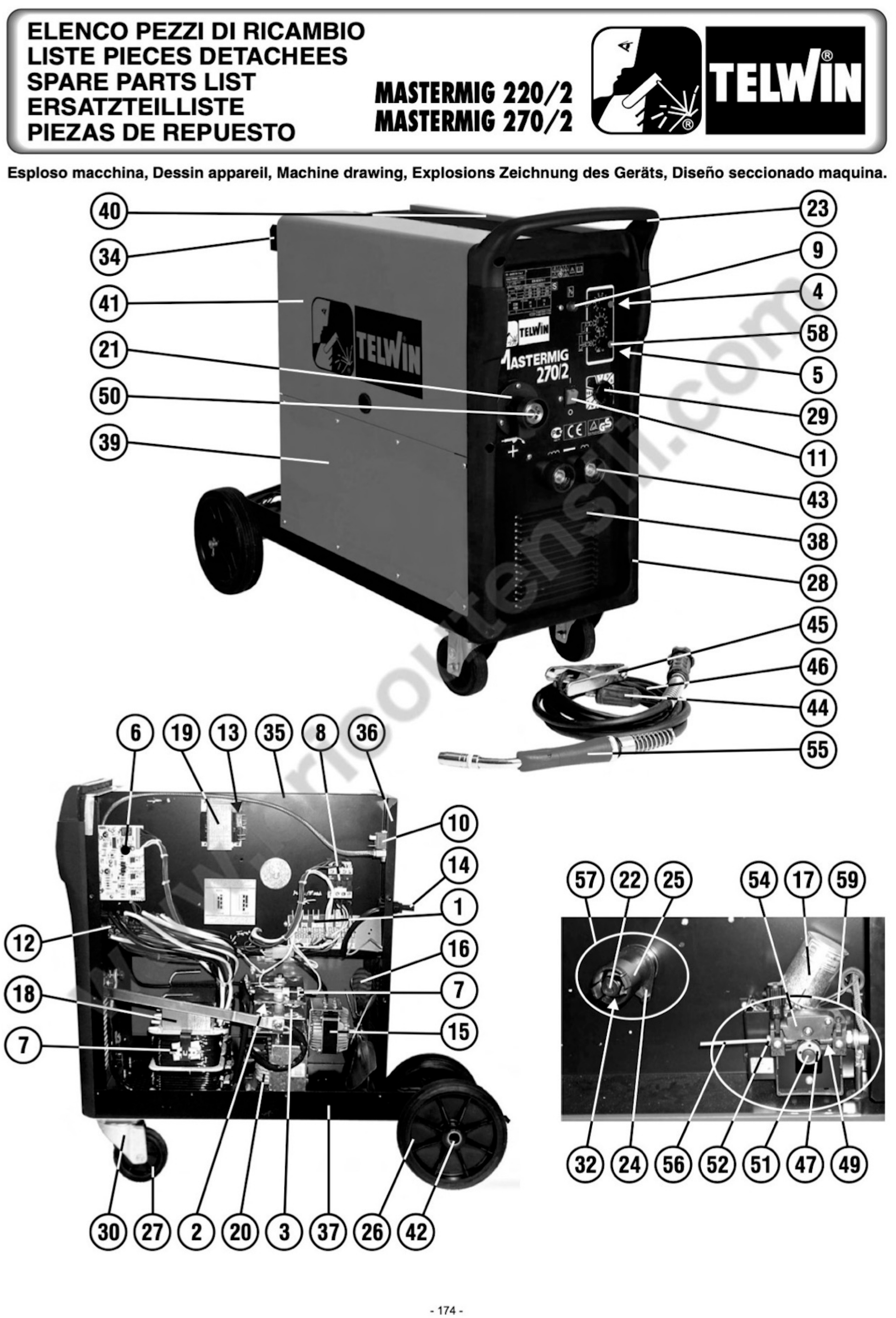

MASTERMIG 220/2 230-400V key 821064 Pag.1
# Description Part Num.
1 CHANGING VOLTAGE CARD 112165
2 RECTIFIER PROTECTION 112182
3 RECTIFIER 112315
4 POTENTIOMETER 112363
5 POTENTIOMETER - 113574 112380
6 TIMER CONTROL PCB KIT 980714
7 THERMOSTAT 122132
8 CONTACTOR 122459
9 YELLOW PILOT LAMP 122594
10 ELECTRO-VALVE 122682
11 SWITCH 122725
12 SWITCH 122826
13 FUSE 122879
14 MAINS CABLE 4G2.5 3 M 132039
15 FAN MOTOR 152110
16 FAN BLADE 152111
17 WIRE FEED MOTOR 153033
18 TRANSFORMER 164086
19 AUXILIARY TRANSFORMER 164991
21 TORCH CONNECTION PROTECTION 312105
22 REEL HANDWHEEL 312137
23 HANDLE 312328
24 REEL 322081
25 SPACER 322180
26 FIXED WHEEL 322200
27 WHEEL 322246
28 FRAME 322698
29 SWITCH KNOB SET 323101
30 SWIVEL SUPPORT 422969
31 ARGON GAS BOTTLE IT ADAPTOR 432036
32 REEL SPRING 452057
33 TORCH HOOK 644444
34 BRACKET FOR BOTTLE 644606
35 DIAPHRAGM 645112
36 BACK PANEL 645113
37 BOTTOM 645114
38 FRONT PANEL 649633
39 SIDE PANEL 651034
40 COVER KIT 980872
41 DOOR KIT 980912
42 WHEELS AXLE 681092
43 SOCKET DX 25 712035
44 PLUG DX 25 712039
45 TOLEDO 250 WORK CLAMP 250A 712030
46 CABLE 16 MMQ 3 M - 25 123437
47 FEED ROLL D. 0,6-0,8 MM FE 722112
48 GAS REGULATOR 2 MANOMETERS 722119
49 WIRE CONDUIT Ø 2X5 722358
50 TORCH CONNECTION 723186
51 ROLLERFIXING SCREW 742397
52 WIRE GUIDE INLET 742064
53 FEED ROLL D. 0,8-1 MM AL 742090
54 ANCHOR FOR PRESSURE ROLLER 742096
55 MT15 MIG TORCH 3 M 220 A 742180
56 GAS HOSE KIT 990097
57 REEL KIT 990264
58 KNOB 121395
59 KIT 2 ROLLS WIREFEEDER 990632

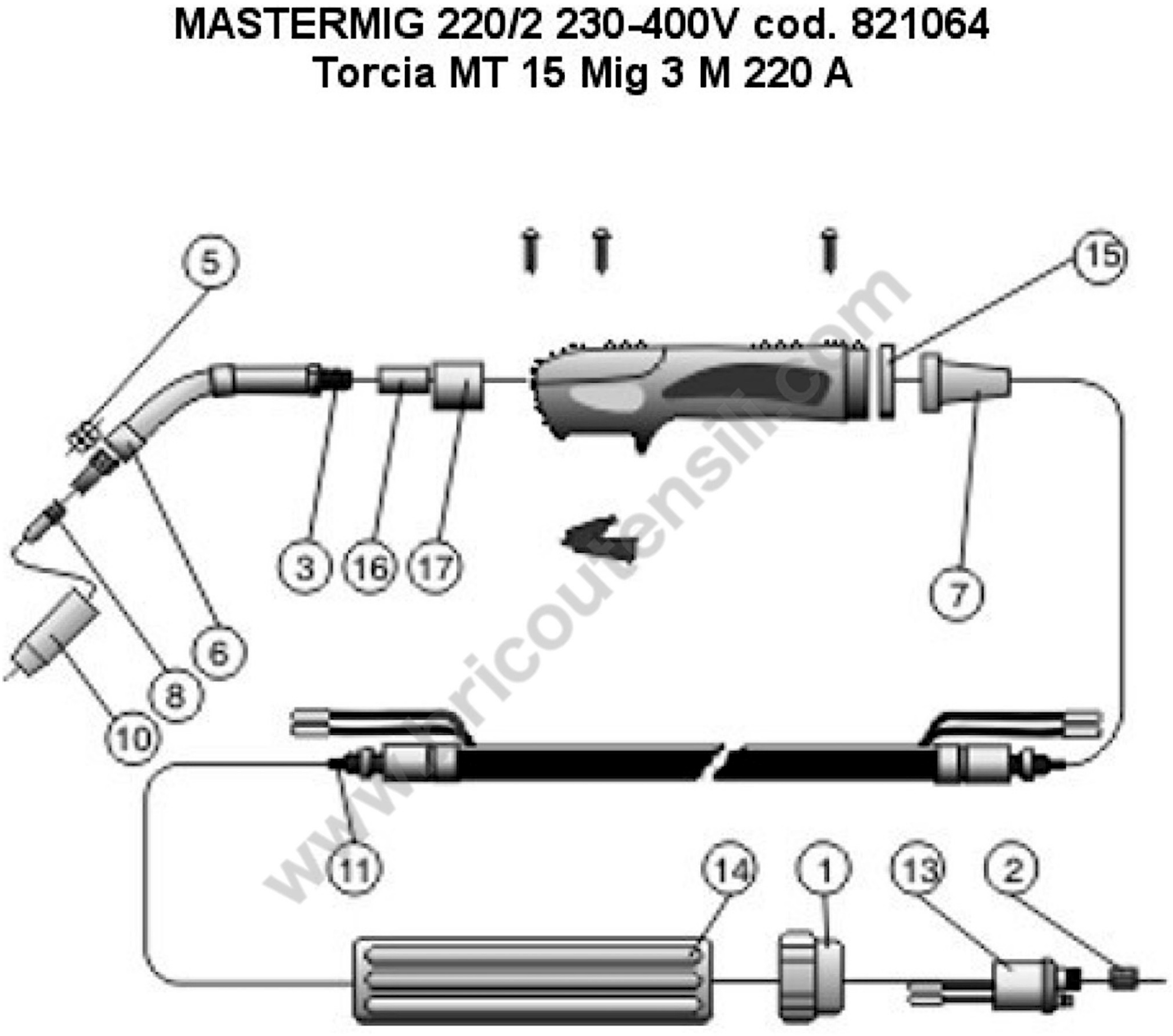

TORCH MASTERMIG 220/2 230-400V Pag.2
1 RING NUT 722007
2 LINER NUT 722013
3 SWAN NECK DIFFUSER 722305
5 NOZZLE SPRING 722319
6 DIFFUSER INSULATION 722326
7 TORCH HOLDER 742172
8 CONTACT TIP D. 0,8 MM FE 722416
8 CONTACT TIP D. 0,6 MM FE 722415
10 CYLINDRICAL NOZZLE 722149
10 CONICAL NOZZLE 722423
11 WIRE GUIDE HOSE D. 1-1,2 MM 3 M 722689
11 WIRE GUIDE HOSE D. 0,6-0,8 MM 3 M 722437
13 TORCH ASSY 722441
14 TORCH CONNECTION 742175
15 TORCH RING NUT 742171
16 TORCH CONNECTION 722325
17 TORCH CONNECTION INSULATION 722693
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Mastermig 220/2 - 821064
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Telwin Mastermig 220/2 Drawing

Telwin Mastermig 220/2 Drawing

Download (1013.47KB)

You might also like

Small knob for Inverter Telwin
Telwin s.p.a. SKU: 121395
Small knob for Inverter Telwin
Small knob for Inverter Telwin Small knob, original spare for Telwin Welding Inverter Force, Force 125 - Force 145 - Force 165 - Force 195 - Tecnica 151-171-211/S - Technology 186-216-236 HD - Advance 187 MV/PFC - Force 168-188-238...
AVAILABLE €0.61
Details
Cilindrical Nozzle 13 mm for Wire Weldings Telwin
Telwin s.p.a. SKU: 722054
Cilindrical Nozzle 13 mm for Wire Weldings Telwin
Cilindrical Nozzle 13 mm for Wire Weldings Telwin Genuine part TELWIN, Insulated Cilindrical nozzle 13 mm for wire welding machine Torch Telwin. - Diameter : mm 13 - Codes : 722054(mm13) Can be used on the following Torches: - BIMAX...
AVAILABLE €4.17
Details
Dinse Socket DX 25 for Telwin Welding Machine
Telwin s.p.a. SKU: 712035
Socket DX 25 for Telwin Welding Machine
Socket DX 25 for Telwin Welding Machine Genuine spare part Telwin, Socket DX 25 for Welding Machine, Tecnica Tig 160 - Technomig 215 - Master Mig 220-232 - Linear 220 - Quality 280 - Digital Mig 220-222 - Euroarc 310-322 -...
AVAILABLE €3.47
Details
Dinse Plug DX 25 for Telwin Welding Machine
Telwin s.p.a. SKU: 712039
Plug DX 25 for Telwin Welding Machine
Plug DX 25 for Telwin Welding Machine Original spare part Telwin, Plug DX 25 for Welding Machine, Tecnica Tig 190 - Technomig 215 - Master Mig 220-232 - Digital Mig 220-222 - Technology Tig 160-182-185-230. - Avalaible DX 25 - DX 50 -...
AVAILABLE €3.47
Details
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG
Telwin s.p.a. SKU: 742180
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG Genuine spare part Telwin, Torch Complete MT15 MIG 3 M 220 A, for welding, TELMIG 251/2 TURBO 230V - TELMIG 203/2 / 250/2 TURBO 230-400V - DIGITAL MIG 180/220/222 230V - TELMIG...
on 7/10 Business Days Approx. €94.31
Details
Capillary Pipe for Welders Telwin Mastermig-Supermig
Telwin s.p.a. SKU: 722358
Capillary Pipe for Welders Telwin Mastermig-Supermig
Capillary Pipe for Welders Telwin Mastermig-Supermig Genuine spare part Telwin, Capillary Pipe Diameter mm 2X5 - Lenght 122 mm, for welders Telwin, Mastermig - Supermig - Digital Supermig - Mastermig - Technomig.
AVAILABLE €8.21
Details
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG
Telwin s.p.a. SKU: 113574
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG
Potentiometer for Welders Telwin BIMAX-TELMIG-SUPERMIG Original part Telwin, Potentiometer for welders Telwin, BIMAX 182 - TELMIG 195/2 -200/2-180/2-251-281/2 - SUPERMIG 380. For the following items: - TELMIG 195/2 TURBO 230-400V...
AVAILABLE €9.17
Details
Gearmotor for Wire Welders Telwin Mastermig
Telwin s.p.a. SKU: 153039
Gearmotor for Wire Welders Telwin Mastermig
Gearmotor for Wire Welders Telwin Mastermig Gear motor, Genuine parts Telwin, with motor 24 V DC assy, for all models of wire welders series, Mastermig. Part for the following products: - Mastermig all type - Code: 153039 =...
Last items in stock €49.90
Details
Connection Torch Mig for Weldings Telwin Mastermig 220/270
Telwin s.p.a. SKU: 723186
Connection Torch Mig for Weldings Telwin Mastermig 220/270
Connection Torch Mig for Weldings Telwin Mastermig 220/270 Genuine spare part Telwin, Connection Torch MAX MIG, for welding, MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V. Part for the following items: - MASTERMIG 220/2...
Last items in stock €55.64
Details
Three-Phase Rectifier for Welding Telwin Linear-Mastermig
Telwin s.p.a. SKU: 112315
Three-Phase Rectifier for Welding Telwin Linear-Mastermig
Three-Phase Rectifier for Welding Telwin Linear-Mastermig Genuine spare Telwin, 25A 400V three phase rectifier for welding machines Telwin, LINEAR 220 230-400V - LINEAR 280 230-400V - MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V...
AVAILABLE €69.59
Details
Protection Rectifier for Welding Telwin Linear-Mastermig
Telwin s.p.a. SKU: 112182
Protection Rectifier for Welding Telwin Linear-Mastermig
Protection Rectifier for Welding Telwin Linear-Mastermig Genuine spare Telwin, spare Telwin, Protection Rectifier - Varistor 150 VAC 6500 A for welding Telwin, LINEAR 220 230-400V - LINEAR 280 230-400V - MASTERMIG 220/2 230-400V -...
AVAILABLE €4.03
Details
Spot Welding Cilindrical Nozzle for Wire Weldings Telwin
Telwin s.p.a. SKU: 722687
Spot Welding Cilindrical Nozzle for Wire Weldings Telwin
Spot Welding Cilindrical Nozzle for Wire Weldings Telwin Genuine part TELWIN, Spot Welding Cilindrical nozzle for wire welding machine Torch Telwin.   Can be used on the following Torches: - Torch MASTERMIG 300 230-400V - Torch...
AVAILABLE €13.24
Details
Torches Spring for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 742174
Torch Spring for Torches Telwin MIG-MAG
Torch Spring for Torches Telwin MIG-MAG Genuine replacement part TELWIN, Cable reinforced Spring for Torches MIG - MAG. Part for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch...
AVAILABLE €5.42
Details
Torch Ring Nut for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 722007
Torch Ring Nut for Torches Telwin MIG-MAG
Torch Ring Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torch Ring Nut for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V...
AVAILABLE €9.91
Details
Torch Body for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722441
Torch Body for Torches Telwin MIG-MAG
Torch Body for Torches Telwin MIG-MAG Genuine part TELWIN, Torch Body for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V - Torch...
AVAILABLE €26.35
Details
Body Torch Insuleting for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722693
Body Torch Insuleting for Torches Telwin MIG-MAG
Body Torch Insuleting for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torches Insuleting for Torches MIG - MAG.  Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG...
Last items in stock €4.99
Details
Nozzle Spring for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722690
Nozzle Spring for Torches Telwin MIG-MAG
Nozzle Spring for Torches Telwin MIG-MAG Genuine replacement part TELWIN, Nozzle Spring for Torches MIG - MAG. Part for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400...
AVAILABLE €2.63
Details
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722598
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Sleeve Lock Nipples for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nipples for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400...
AVAILABLE €4.14
Details
Sleeve Lock Nut for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722013
Sleeve Lock Nut for Torches Telwin MIG-MAG
Sleeve Lock Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nut for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V cod. 827003 - MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V -...
AVAILABLE €3.92
Details
Sleeve Lock Hose for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722600
Sleeve Lock Hose for Torches Telwin MIG-MAG
Sleeve Lock Hose for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Hose for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2 230-400V - MASTERMIG 400 230-400V - SUPERMIG 380...
AVAILABLE €21.27
Details
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722437
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 0.6-0.8 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Wire Guide Sleeve mm 1.0-1.2 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722689
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 1.0-1.2 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG
Telwin s.p.a. SKU: 742096
Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG
Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG Original parts Telwin, Front Roller Anchor for welders, MASTERMIG 220/2 - 270/2 MASTERMIG - DIGITAL MIG 220 - DIGITAL MIG 222. Parts for the following products: -...
Last items in stock €41.69
Details
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Telwin s.p.a. SKU: 742064
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG Original part Telwin, Front Wire Guide for welding Machines, MASTERMIG 220-270-300-400 / 2 - SUPERMIG 380-480-580 - DIGITAL MIG 220-222-330 - INVERPULSE 320-425-625. Part for the...
Last items in stock €8.21
Details
Knob Kit for Welding Telwin Mastermig-Superior
Telwin s.p.a. SKU: 990328
Knob Kit for Welding Telwin Mastermig-Superior
Knob Kit for Welding Telwin Mastermig-Superior Original parts Telwin, Knob kit for Telwin welding machines, MASTERMIG 400 - 260 SUPERIOR - SUPERIOR TIG 311 - SUPERIOR PLASMA 60 HF - ETRONITHY 400 EC. For the following products:...
Last items in stock €6.12
Details
Fan Motor for Welding Telwin Linear-Mastermig-Supermig
Telwin s.p.a. SKU: 152083
Fan Motor for Welding Telwin Linear-Mastermig-Supermig
Fan Motor for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, fan motor for Telwin welding machines, LINEAR 220-280-300-340-410-430-530-630 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580. Part For the following...
AVAILABLE €78.00
Details
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig
Telwin s.p.a. SKU: 152113
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig
Cooler Fan for Welding Telwin Linear-Mastermig-Supermig Original part Telwin, Cooler Fan for Telwin welding machines, LINEAR 220-280-300-340-410 - MASTERMIG 270/2-300-400 - SUPERMIG 380-480-580 - DIGITAL MIG 330. Part For the...
Last items in stock €13.79
Details
Conical Nozzle mm 15 for Wire Weldings Telwin
Telwin s.p.a. SKU: 722685
Conical Nozzle mm 15 for Wire Weldings Telwin
Conical Nozzle mm 15 for Wire Weldings Telwin Genuine part TELWIN, Conical nozzle mm 15 for wire welding machine Torch Telwin. Part for the following Torches: - Torche MASTERMIG 270/2 230-400V - Torche TELMIG 281/2 TURBO 230V - Torche...
AVAILABLE €4.17
Details
Fan for Welding Machines Telwin Eurarc-Artika-Quality
Telwin s.p.a. SKU: 152111
Fan for Welding Machines Telwin Eurarc-Artika-Quality
Fan for Welding Machines Telwin Eurarc-Artika-Quality Genuine part Telwin, Fan for Telwin Welding Machines, EURARC 310 - 322 230-400V cod. 817015 - Artika 270 - 282 - Quality 280 AC/DC - MASTERMIG 220/2. For the following items: -...
AVAILABLE €8.21
Details
Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG
Telwin s.p.a. SKU: 152110
Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG
Fan Motor for Welding Machines Telwin TELMIG- DIGITAL MIG Original part Telwin, Fan Motor for Telwin Welding Machines, TELMIG 180/2 - 195/2 - 200/2 - 251/2 - 281/2 - 250/2 - TURBO - DIGITAL MIG 180 - 220-222 - EURARC 422....
Last items in stock €30.53
Details
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Telwin s.p.a. SKU: 990264
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG
Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG Original parts Telwin, Reel Kit for Welding Telwin MASTERMIG 220/2 - 270/2 - 300 - 400 - 232 DUPLEX - DIGITAL MIG 180 - 220 - 330 - 222 TWIN...
Last items in stock €18.45
Details
AC Contactor for Inverter Telwin MASTERMIG 220-270/2
Telwin s.p.a. SKU: 122459
AC Contactor for Inverter Telwin MASTERMIG 220-270/2
AC Contactor for Inverter Telwin MASTERMIG 220-270/2 Original spare part Telwin for replacing the AC Contactor of inverter welding machines MASTERMIG 220/2 - 270/2 - 232 DUPLEX - PERPLASMA 83 HF - DIGITAL MIG 220 - 330 - 222. Part for...
Last items in stock €21.11
Details
Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG
Telwin s.p.a. SKU: 312137
Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG
Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG Genuine part Telwin, Reel Kit Handbill for Welding Telwin MASTERMIG 220/2 - 270/2 - 300 - 400 - 232 DUPLEX - DIGITAL MIG 180 - 220 - 330 - 222 TWIN Part for the following...
AVAILABLE €16.94
Details
Telwin Gas Regulators for Refilable Bottles
Ferritalia SKU: 722119
Telwin Gas Regulators for Refilable Bottles
Telwin Gas Regulators for Refilable Bottles Gas Regulators for Reafilable Bottles. - Brass - 2 Manometers Item for the models: - Technomig 223 Treo - Electromig 220 - Electromig 230 - Electromig 330 - Mastermig 220/2 - Mastermig...
On 7/10 Business Days Approx €58.24
Details
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Telwin s.p.a. SKU: 122594
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig
Yellow Pilot Lamp for Welding Machines Telwin Telmig-Mastermig Original replacement part Telwin, Yellow Pilot Lamp 24 V, for Welding Machines Mastermig 220 - Telmig 183/2 - Telmig 203/2 Turbo - Telmig 250/2 Turbo - Supermig 580. Part...
AVAILABLE €2.03
Details
Diffuser Diffuser for Inverter Telwin Mastermig 220/2
Telwin s.p.a. SKU: 722326
Diffuser Insulation for Inverter Telwin Mastermig 220/2
Diffuser Insulation for Inverter Telwin Mastermig 220/2 Original spare part Telwin, Diffuser Insulation for Inverter Mastermig 220/2 - Mastermig 232 Duplex - Digital Mig 180 - Digital Mig 220 Part for the following products: -...
AVAILABLE €2.47
Details
Roller Fixing Screw for Welding Machines Telwin
Telwin s.p.a. SKU: 742397
Roller Fixing Screw for Welding Machines Telwin
Roller Fixing Screw for Welding Machines Telwin Genuine spare part Telwin, Roller Fixing Screw for Welding Machines Mastermig - Supermig - DIGITAL SUPERMIG - INVERPULSE. - Part for the following products: -  Mastermig 220/2 -...
AVAILABLE €1.29
Details
Black Knob Set for Welding Telwin DIGITAL MIG
Telwin s.p.a. SKU: 980772
Black Knob Set for Welding Telwin DIGITAL MIG
Black Knob Set for Welding Telwin DIGITAL MIG Original parts Telwin, Black Knob Set for Welding Telwin DIGITAL MIG 180 - 220 - 330 - 222 TWIN Part for the following products: - INVERTER DIGITAL MIG 180 230V - INVERTER DIGITAL SUPERMIG...
Last items in stock €4.46
Details
Reel Spring for Welding Telwin MASTERMIG
Telwin s.p.a. SKU: 452057
Reel Spring for Welding Telwin MASTERMIG
Reel Spring for Welding Telwin MASTERMIG Original parts Telwin, Reel Spring for Welding Telwin MASTERMIG MAXIMA 230 Synergic - DIGITAL SUPERMIG 610 - SUPERMIG 380. Part for the following...
Last items in stock €2.61
Details
Telwin Supermig 580 Kit Thermostat
Telwin s.p.a. SKU: 981968 ex 122132
Telwin Supermig 580 Kit Thermostat
Telwin Welding Supermig 580 Kit Thermostat Genuine part Telwin, Kit Thermostat for Supermig 580 - SUPERMIG 490 Synergic. Part for the following products: -  Supermig 580 - 822045 -  Supermig...
Last items in stock €8.96
Details
Comments (0)
