Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 105 Automatic

SKU: Bimax 105 Automatic - 820081
€6.82
VAT included

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 105 Automatic

Telwin original spare parts for to make maintenance, replacement of damaged parts or repair Electrical or Electronics components of the Inverter Bimax 105 Automatic - 820081.

Telwin Bimax 105 Automatic 820081

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 105 Automatic
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 105 Automatic
  • Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 105 Automatic
  • Telwin Spare Parts for Torche Flux and MIG-MAG Welding Bimax 105 Automatic
Telwin s.p.a.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 105 Automatic

SKU: Bimax 105 Automatic - 820081 Condition: New
€6.82
VAT included

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 105 Automatic

Telwin original spare parts for to make maintenance, replacement of damaged parts or repair Electrical or Electronics components of the Inverter Bimax 105 Automatic - 820081.

Telwin Bimax 105 Automatic 820081

settings 38 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
Machine Type: Welding Machine
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Contact Nozzle for Wire Weldings Telwin Bimax 722667 Contact Nozzle for Wire Weldings Telwin Bimax €1.58
1
 photo_cameraImage coming soon 980098 RECTIFIER KIT €22.83
2
 Protection Rectifier for Welding Telwin Bimax-Telmig 112183 Protection Rectifier for Welding Telwin Bimax-Telmig €4.03
2
 Cilindrical Nozzle 13 mm for Wire Weldings Telwin 722054 Cilindrical Nozzle 13 mm for Wire Weldings Telwin €4.17
3
 0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €1.80
3
 photo_cameraImage coming soon 722810 SWAN NECK DIFFUSER €15.43
4
 Yellow Switch for Inverter Welding Machines Telwin 122752 Yellow Switch for Inverter Welding Machines Telwin €2.63
4
 photo_cameraImage coming soon 990721 VALVE €6.24
5
 Button Spring Contact for Torch Telwin MIG 452097 Button Spring Contact for Torch Telwin MIG €2.44
5
 photo_cameraImage coming soon 713035 CABLE 6MMQ 1,8 M AND WORK CLAMP €6.20
6
 photo_cameraImage coming soon 132310 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €10.71
6
 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 €2.44
7
 photo_cameraImage coming soon 153023 WIRE FEED MOTOR €34.91
7
 photo_cameraImage coming soon 990722 CABLES SET 10MMQ €22.43
8
 photo_cameraImage coming soon 164937 TRANSFORMER €76.36
9
 Roller Anchor for Welding Telwin TELMIG 232105 Roller Anchor for Welding Telwin TELMIG €5.77
9
 Steel Lines for Torches Telwin MIG-MAG 722077 Steel Lines for Torches Telwin MIG-MAG €4.03
10
 photo_cameraImage coming soon 312007 HANDLE €3.02
11
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
12
 photo_cameraImage coming soon 322115 SPINDLE €12.34
13
 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 322126 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 €3.42
14
 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG 322127 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG €2.70
15
 photo_cameraImage coming soon 322128 PRESSURE ROLL BRACKET €0.00 Not available for order
18
 photo_cameraImage coming soon 452017 SPINDLE SPRING €2.30
19
 Compressione Spring mm 9x21 for Inverter Telwin Bimax 452022 Compressione Spring mm 9x21 for Inverter Telwin Bimax €2.44
20
 photo_cameraImage coming soon 644020 BACK PANEL €1.97
21
 photo_cameraImage coming soon 648699 BOTTOM €5.42
22
 photo_cameraImage coming soon 650054 TOP COVER €4.40
23
 photo_cameraImage coming soon 650055 SIDE PANEL €2.43
24
 photo_cameraImage coming soon 644118 DIAPHRAGM €2.71
28
 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin 722529 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin €3.21
29
 TW120 Torch MIG 2 M 120 A for Inverter Telwin Bimax 105 AUTOMATIC 742270 TW120 Torch MIG 2 M 120 A for Inverter Telwin Bimax 105 AUTOMATIC €70.83
30
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
31
 photo_cameraImage coming soon 990251 GEARS KIT €4.50
32
 photo_cameraImage coming soon 712361 COLORADO 60B WORK CLAMP 60A €2.13
33
 photo_cameraImage coming soon 322242 CLIP €2.30
34
 photo_cameraImage coming soon 122917 THERMOSTAT €2.60
35
 photo_cameraImage coming soon 990466 KIT PCB MOG/LIVE AUTOMATIC + CABLE €21.86
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Contact Nozzle for Wire Weldings Telwin Bimax 722667 Contact Nozzle for Wire Weldings Telwin Bimax €1.58
2
 Cilindrical Nozzle 13 mm for Wire Weldings Telwin 722054 Cilindrical Nozzle 13 mm for Wire Weldings Telwin €4.17
3
 photo_cameraImage coming soon 722810 SWAN NECK DIFFUSER €15.43
4
 photo_cameraImage coming soon 990721 VALVE €6.24
5
 Button Spring Contact for Torch Telwin MIG 452097 Button Spring Contact for Torch Telwin MIG €2.44
6
 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 €2.44
7
 photo_cameraImage coming soon 990722 CABLES SET 10MMQ €22.43
9
 Steel Lines for Torches Telwin MIG-MAG 722077 Steel Lines for Torches Telwin MIG-MAG €4.03

Shipping and delivery information will be available shortly.

Telwin Spare Parts for Flux and MIG-MAG Welding Bimax 105 Automatic

Telwin original spare parts for to make maintenance, replacement of damaged parts or repair Electrical or Electronics components of the Inverter Bimax 105 Automatic - 820081.

In the following table, look for the model of the welding machine and theirs spare parts codes.Telwin Bimax 105 Automatic 820081

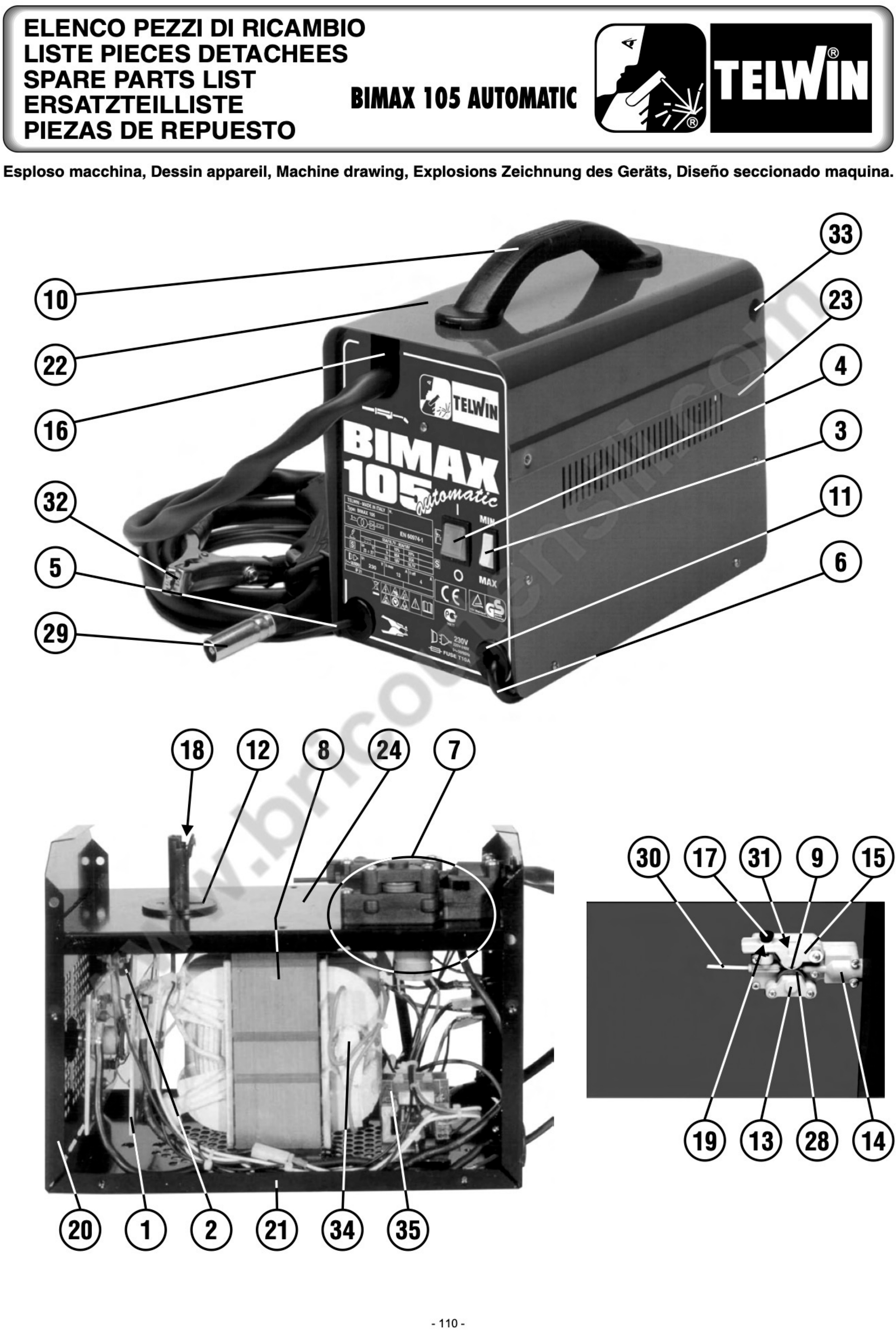

PARTS BIMAX 105 AUTOMATIC 230V cod. 820081 Pag.1
# Description Part Num.
1 RECTIFIER KIT 980098
2 RECTIFIER PROTECTION 112183
3 SWITCH 122400
4 SWITCH 122752
5 CABLE 6MMQ 1,8 M AND WORK CLAMP 713035
6 MAINS CABLE 3G1.5 2 M SCHUKO PLUG 132310
7 WIRE FEED MOTOR 153023
8 TRANSFORMER 164937
9 PRESSURE ROLL 232105
10 HANDLE 312007
11 CABLE BUSHING 322112
12 SPINDLE 322115
13 ROLL SUPPORT 322126
14 TORCH FIXING CASING 322127
15 PRESSURE ROLL BRACKET 322128
16 CAP 322473
17 WIRE FEED HANDWHEEL 422257
18 SPINDLE SPRING 452017
19 SPRING 452022
20 BACK PANEL 644020
21 BOTTOM 648699
22 TOP COVER 650054
23 SIDE PANEL 650055
24 DIAPHRAGM 644118
28 FEED ROLL D. 0,6-0,9 MM FE/FLUX 722529
29 TW120 MIG TORCH 2 M 120 A 742270
30 GAS HOSE KIT 990097
31 GEARS KIT 990251
32 COLORADO 60B WORK CLAMP 60A 712361
33 CLIP 322242
34 THERMOSTAT 122917
35 KIT PCB MOG/LIVE AUTOMATIC + CABLE 990466
TORCH PARTS BIMAX 105 AUTOMATIC 230V Pag.2
1 CONTACT NOZZLE D. 0,8 MM FE 722667
2 CYLINDRICAL NOZZLE 722054
3 SWAN NECK DIFFUSER 722810
4 VALVE 990721
5 CONTACT SPRING FOR MIG TORCH 452097
6 PUSHBUTTON 322295
7 CABLES SET 10MMQ 990722
9 STEEL LINE D.0,6-0,8MM 2M FE/INOX/FLUX 722077
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bimax 105 Automatic - 820081
12 Items

Data sheet

Machine Type
Welding Machine
SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Bimax 105 Turbo Drawing

Bimax 105 Turbo Drawing

Download (551.06KB)
