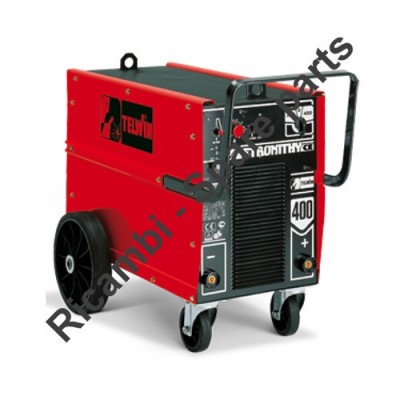

Telwin Spare Parts for Electrode Welding Etronithy 400 CE

SKU: Telwin Etronithy 400 CE - 813008
€150.54
VAT included

Telwin Spare Parts for Electrode Welding Etronithy 400 CE

We have the original Spares TELWIN for Electrode Welding Machine Etronithy 400 CE - 813008, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Telwin Etronithy 400 CE - 813008

Telwin Spare Parts for Electrode Welding Etronithy
  • Telwin Spare Parts for Electrode Welding Etronithy
  • Telwin Spare Parts for Electrode Welding Etronithy 400 CE
  • Telwin Spare Parts for Electrode Welding Etronithy
Telwin s.p.a.

Telwin Spare Parts for Electrode Welding Etronithy 400 CE

SKU: Telwin Etronithy 400 CE - 813008 Condition: New
€150.54
VAT included

Telwin Spare Parts for Electrode Welding Etronithy 400 CE

We have the original Spares TELWIN for Electrode Welding Machine Etronithy 400 CE - 813008, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Telwin Etronithy 400 CE - 813008

settings 30 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
Machine Type: Welding Machine
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
30 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Resistance for Telwin SUPERPLASMA 60/3 HF 112545 Resistance for Telwin SUPERPLASMA 60/3 HF €150.54
2
 photo_cameraImage coming soon 112381 HALL SENSOR €98.29
3
 photo_cameraImage coming soon 112322 RECTIFIER €481.32
4
 photo_cameraImage coming soon 114641 FILTER CARD €11.23
5
 photo_cameraImage coming soon 114638 CARD €62.57
6
 photo_cameraImage coming soon 990104 KIT PCB (COD.112388) €173.45
7
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
8
 photo_cameraImage coming soon 122256 THERMOSTAT €2.83
9
 photo_cameraImage coming soon 122392 SWITCH €47.32
10
 photo_cameraImage coming soon 132283 MAINS CABLE 4G4 4.5 M €32.22
11
 Fan Motor for Welding Telwin Linear-Mastermig-Supermig 152083 Fan Motor for Welding Telwin Linear-Mastermig-Supermig €87.50
12
 photo_cameraImage coming soon 152135 FAN BLADE €6.58
15
 photo_cameraImage coming soon 164649 TRANSFORMER €370.01
16
 photo_cameraImage coming soon 312068 CABLE BUSHING €3.20
17
 photo_cameraImage coming soon 322261 FIXED WHEEL €15.08
18
 photo_cameraImage coming soon 322194 SWIVEL WHEEL €12.09
19
 photo_cameraImage coming soon 422020 WHEELS AXLE €5.05
20
 Protection Rectifier for Welding Telwin Linear-Mastermig 112182 Protection Rectifier for Welding Telwin Linear-Mastermig €4.03
21
 photo_cameraImage coming soon 980602 BACK PANEL KIT €32.60
22
 photo_cameraImage coming soon 644491 BOTTOM €28.16
23
 photo_cameraImage coming soon 645329 COVER €25.81
24
 photo_cameraImage coming soon 644493 HANDLE €16.11
25
 photo_cameraImage coming soon 980603 FRONT PANEL KIT €36.47
26
 photo_cameraImage coming soon 650685 RIGHT SIDE PANEL €35.70
27
 photo_cameraImage coming soon 650686 LEFT SIDE €35.70
28
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
29
 Knob Kit for Welding Telwin Mastermig-Superior 990328 Knob Kit for Welding Telwin Mastermig-Superior €11.80
30
 photo_cameraImage coming soon 990329 SWITCH KNOB KIT €10.91
31
 photo_cameraImage coming soon 990330 SOCKET KIT €20.03
32
 photo_cameraImage coming soon 122730 THERMOSTAT €6.12

Shipping and delivery information will be available shortly.

Telwin Spare Parts for Electrode Welding Etronithy 400 CE

We have the original Spares TELWIN for Electrode Welding Machine Etronithy 400 CE - 813008, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Electrode Welding Machine Etronithy 400 CE. All Spares are original and can be supplied at Cheap and discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Welding and the respective parts of the code.

Telwin Etronithy 400 CE - 813008

ETRONITHY 400 CE 230-400V cod. 813008
# Description Part Num.
1 RESISTANCE 112545
2 HALL SENSOR 112381
3 RECTIFIER 112322
4 FILTER CARD 114641
5 CARD 114638
6 KIT PCB (COD.112388) 990104
7 SWITCH KNOB SET 323101
8 THERMOSTAT 122256
9 SWITCH 122392
10 MAINS CABLE 4G4 4.5 M 132283
11 MOTOR 152083
12 FAN BLADE 152135
14 TRANSFORMER 164888
15 TRANSFORMER 164649
16 CABLE BUSHING 312068
17 FIXED WHEEL 322261
18 SWIVEL WHEEL 322194
19 WHEELS AXLE 422020
20 RECTIFIER PROTECTION 112182
21 BACK PANEL KIT 980602
22 BOTTOM 644491
23 COVER 645329
24 HANDLE 644493
25 FRONT PANEL KIT 980603
26 RIGHT SIDE PANEL 650685
27 LEFT SIDE 650686
28 SOCKET DX 50 712036
29 SWITCH KNOB KIT 990328
30 SWITCH KNOB KIT 990329
31 SOCKET KIT 990330
32 THERMOSTAT 122730
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Etronithy 400 CE - 813008
6 Items

Data sheet

Machine Type
Welding Machine
SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Drawing Etronithy 400 CE

Drawing Etronithy 400 CE

Download (311.95KB)
