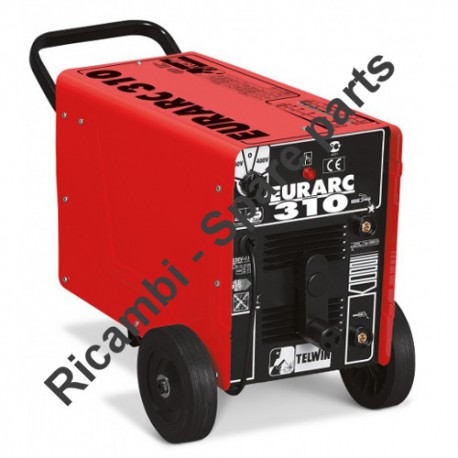

Telwin Spare Parts for Electrode Welding Eurarc 310 230-400V

SKU: Telwin Eurarc 310 - 817015
€26.35
VAT included

Telwin Spare Parts for Electrode Welding Eurarc 310 230-400V

We have the original Spares TELWIN for Electrode Welding Machine Eurarc 310 230-400V - 817015, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Telwin Eurarc 310 - 817015
Telwin Spare Parts for Electrode Welding Eurarc 310 230-400V
  • Telwin Spare Parts for Electrode Welding Eurarc 310 230-400V
  • Telwin Spare Parts for Electrode Welding Eurarc 310 230-400V - Drawing

Telwin Spare Parts for Electrode Welding Eurarc 310 230-400V

SKU: Telwin Eurarc 310 - 817015 Condition: New
€26.35
VAT included

Telwin Spare Parts for Electrode Welding Eurarc 310 230-400V

We have the original Spares TELWIN for Electrode Welding Machine Eurarc 310 230-400V - 817015, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Telwin Eurarc 310 - 817015
settings 25 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

25 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Dipswitch 20A for Welding Telwin NORDIKA-ARTIKA 121508 Dipswitch 20A for Welding Telwin NORDIKA-ARTIKA €26.35
2
Lamp (Yellow) for Welding Machine Telwin Eurarc 310 122529 Lamp (Yellow) for Welding Machine Telwin Eurarc 310 €1.51
3
photo_cameraImage coming soon 122901 THERMOSTAT €4.53
4
photo_cameraImage coming soon 132267 MAINS CABLE 3G2.5 2 M €8.10
5
photo_cameraImage coming soon 152053 FAN MOTOR REPLACED WITH 152073 €26.93
6
Fan for Welding Machines Telwin Eurarc-Artika-Quality 152111 Fan for Welding Machines Telwin Eurarc-Artika-Quality €8.21
7
photo_cameraImage coming soon 169532 TRANSFORMER €163.19
8
photo_cameraImage coming soon 312199 BRAKET COVER €6.01
9
photo_cameraImage coming soon 312200 KNOB FOR HANDWHEEL €10.91
10
photo_cameraImage coming soon 313440 REGULATION SCREW €4.96
11
photo_cameraImage coming soon 322063 TRANSPARENT PLATE €2.40
12
Wheels Lock Cap for Inverter Welding Telwin 322102 Wheels Lock Cap for Inverter Welding Telwin €0.45
13
Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
14
Fixed Wheel D.175MM for Telwin Welding Machines 322201 Fixed Wheel D.175MM for Telwin Welding Machines €15.80
15
Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
16
Telwin Joke 422502 for Electrode Welding 422502 Telwin Joke 422502 for Electrode Welding €2.56
19
photo_cameraImage coming soon 452092 SPRING €2.49
20
photo_cameraImage coming soon 482977 WHEELS AXLE BRAKET €2.22
21
photo_cameraImage coming soon 644785 HANDLE €8.42
22
photo_cameraImage coming soon 644786 FOOT €5.83
23
photo_cameraImage coming soon 681011 WHEELS AXLE €1.83
24
Socket DX 25 for Telwin Welding Machine 712035 Socket DX 25 for Telwin Welding Machine €3.47
25
photo_cameraImage coming soon 981061 COVER KIT €20.06
26
photo_cameraImage coming soon 981062 FRONT PANEL KIT €20.21
27
photo_cameraImage coming soon 990417 SHUNT KIT €11.91

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Electrode Welding Eurarc 310 230-400V

We have the original Spares TELWIN for Electrode Welding Machine Eurarc 310 230-400V - 817015, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the drill and the respective parts of the code.
Telwin Eurarc 310 - 817015

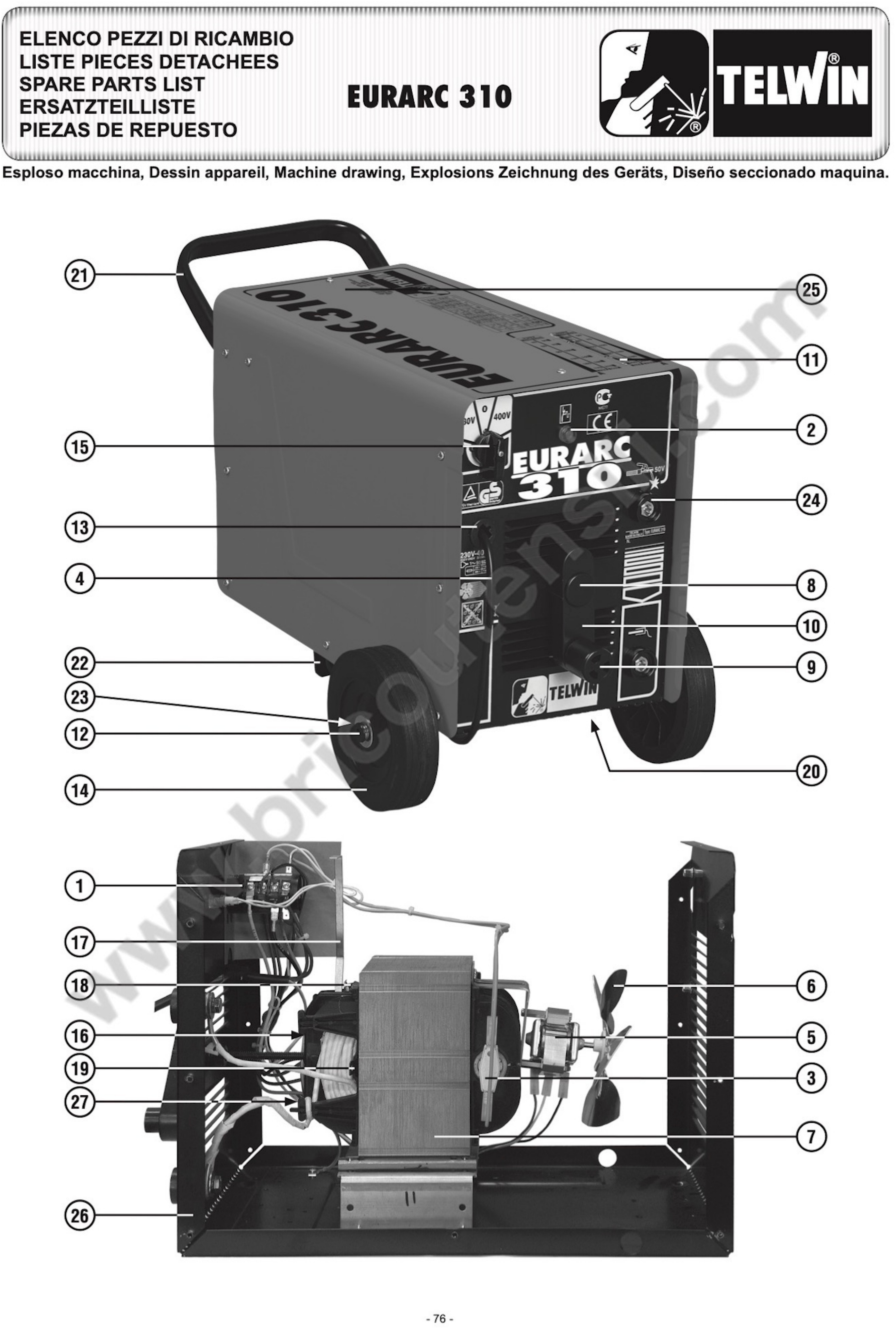

EURARC 310 230-400V cod. 817015
# Description Part Num.
1 SWITCH 121508
2 LAMP, YELLOW 122529
3 THERMOSTAT 122901
4 MAINS CABLE 3G2.5 2 M 132267
5 FAN MOTOR REPLACED WITH 152073 152053
6 FAN BLADE 152111
7 TRANSFORMER 169532
8 BRAKET COVER 312199
9 KNOB FOR HANDWHEEL 312200
10 REGULATION SCREW 313440
11 TRANSPARENT PLATE 322063
12 WHEEL LOCKING RING 322102
13 CABLE BUSHING 322112
14 FIXED WHEEL 322201
15 SWITCH KNOB SET 323101
16 JOKE 422502
17 REGULATION INDICATOR 422512
18 ANTIVIBRATION SPRING 452085
19 SPRING 452092
20 WHEELS AXLE BRAKET 482977
21 HANDLE 644785
22 FOOT 644786
23 WHEELS AXLE 681011
24 SOCKET DX 25 712035
25 COVER KIT 981061
26 FRONT PANEL KIT 981062
27 SHUNT KIT 990417
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin Eurarc 310 - 817015
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Eurarc 310 230-400V Drawing

Eurarc 310 230-400V Drawing

Download (353.71KB)
