Telwin s.p.a.

Telwin Parts for Electrode Welding Nordica 4.181/R TURBO 230V ACD

SKU: NORDICA 4.181/R TURBO 814023
€6.82
VAT included

Telwin Parts for Electrode Welding Nordica 4.181/R TURBO 230V ACD

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine NORDICA 4.181/R TURBO 230V ACD cod. 814023.

NORDICA 4.181/R TURBO ACD 814023
Telwin Parts for Electrode Welding Nordica 4.181/R TURBO 230V ACD
  • Telwin Parts for Electrode Welding Nordica 4.181/R TURBO 230V ACD
  • Telwin Parts for Electrode Welding Nordica 4.181/R TURBO 230V ACD
Telwin s.p.a.

Telwin Parts for Electrode Welding Nordica 4.181/R TURBO 230V ACD

SKU: NORDICA 4.181/R TURBO 814023 Condition: New
€6.82
VAT included

Telwin Parts for Electrode Welding Nordica 4.181/R TURBO 230V ACD

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine NORDICA 4.181/R TURBO 230V ACD cod. 814023.

NORDICA 4.181/R TURBO ACD 814023
settings 24 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
24 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

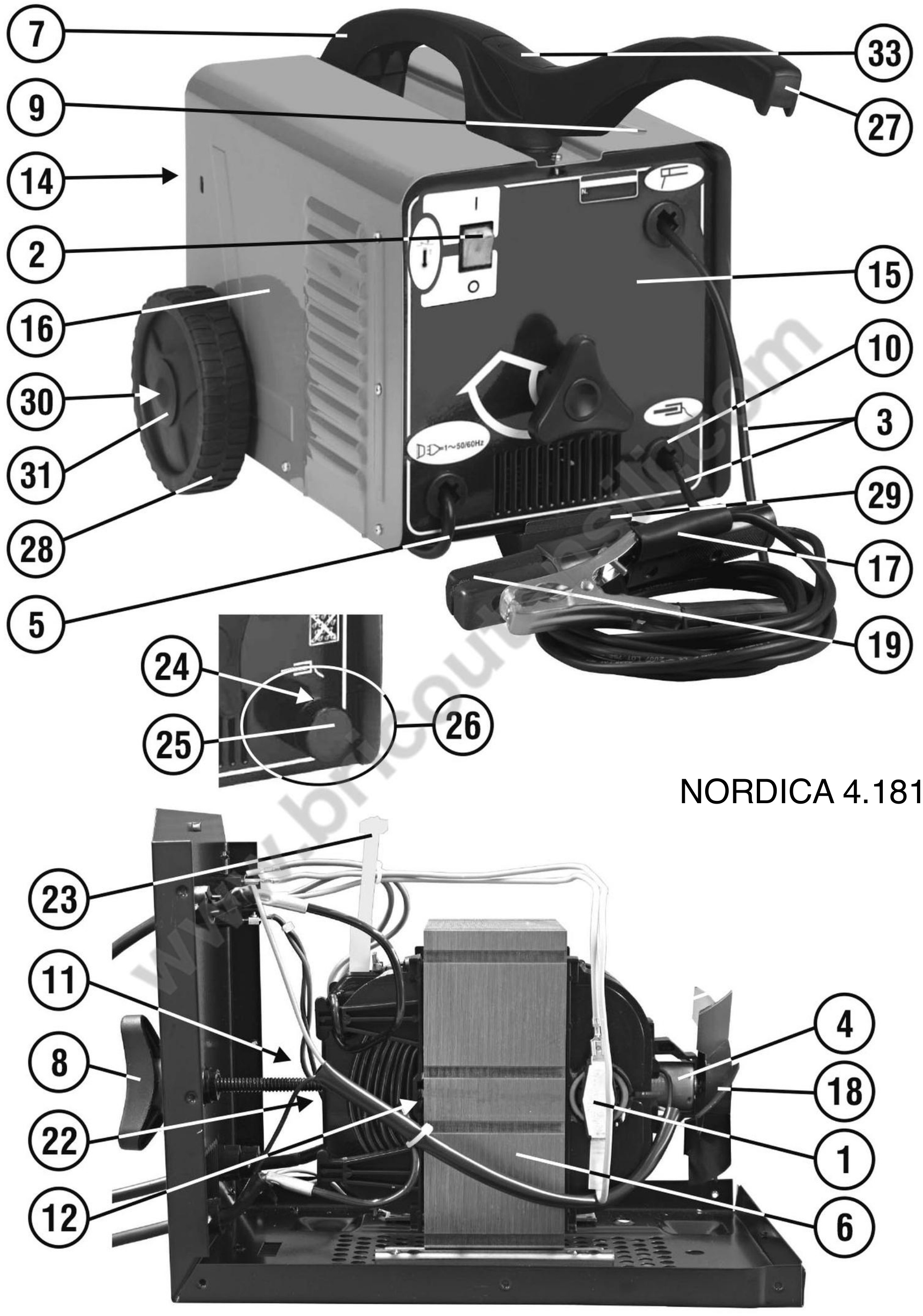

Esploso pagina 1
Pos. Item Price Buy
1
 Thermostat for Welding Machines Telwin 121258 Thermostat for Welding Machines Telwin €6.82
2
 Yellow Switch for Inverter Welding Machines Telwin 122752 Yellow Switch for Inverter Welding Machines Telwin €2.63
3
 Welding Cable 16 mm2 1,8 mt for Welding Machines Telwin 124502 Welding Cable 16 mm2 1,8 mt for Welding Machines Telwin €10.50
4
 Fan Motor for Welding Telwin NORDIKA 152250 Fan Motor for Welding Telwin NORDIKA €8.21
5
 photo_cameraImage coming soon 132310 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €10.71
6
 photo_cameraImage coming soon 169517 TRANSFORMER    €105.60
7
 photo_cameraImage coming soon 322676 HANDLE €6.42
8
 photo_cameraImage coming soon 313016 HANDWHEEL    €5.01
9
 photo_cameraImage coming soon 322063 TRANSPARENT PLATE €2.40
10
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
11
 Telwin Joke 422502 for Electrode Welding 422502 Telwin Joke 422502 for Electrode Welding €2.56
12
 photo_cameraImage coming soon 452092 SPRING €2.49
14
 photo_cameraImage coming soon 644136 BACK PANEL €10.71
16
 photo_cameraImage coming soon 981465 COAT KIT €9.83
18
 Fan for Welding Machine Telwin NORDICA 4.181 TURBO 322533 Fan for Welding Machine Telwin NORDICA 4.181 TURBO €4.77
19
 Dallas 300 Electrode Holders Clamp 300A for Welding Telwin 712260 Dallas 300 Electrode Holders Clamp 300A for Welding Telwin €4.77
22
 photo_cameraImage coming soon 990416 SHUNT KIT €5.69
23
 photo_cameraImage coming soon 322488 REGULATION INDICATOR €2.61
27
 photo_cameraImage coming soon 322678 HANDLE    €5.67
28
 photo_cameraImage coming soon 322193 WHEEL    €3.51
30
 photo_cameraImage coming soon 482783 WHEELS AXLE €1.26
31
 Wheels Lock Cap (Round) for Inverter Welding Telwin 322223 Wheels Lock Cap (Round) for Inverter Welding Telwin €0.95
32
 Handle Cap for Electrode Welding Telwin Nordika 2160 - 2162 322681 Handle Cap for Electrode Welding Telwin Nordika 2160 - 2162 €2.74
33
 photo_cameraImage coming soon 322682 HANDLE CAP €2.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Parts for Electrode Welding Nordica 4.181/R TURBO 230V ACD

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine NORDICA 4.181/R TURBO 230V ACD cod. 814023.

In the following table, look for the model of the drill and the respective parts of the code.
NORDICA 4.181/R TURBO ACD 814023

NORDICA 4.181/R TURBO 230V ACD cod. 814023
# Description Part Num.
0 COLORADO 150B WORK CLAMP 150A 992503
1 THERMOSTAT SOST 121715 121258
2 SWITCH    122752
3 CABLE 16 MMQ 1,8 M 124502
4 MOTOR    152250
5 MAINS CABLE 3G1.5 2 M SCHUKO PLUG 132310
6 TRANSFORMER    169517
7 HANDLE    322676
8 HANDWHEEL    313016
9 TRANSPARENT PLATE 322063
10 CABLE BUSHING 322112
11 JOKE    422502
12 SPRING    452092
14 BACK PANEL 644136
15 FRONT PANEL 642336
16 KIT MANTELLO 981465
18 FAN 322533
19 DALLAS 300 ELECTRODE HOLDER 300A 712260
22 KIT SHUNT 990416
23 REGULATION INDICATOR 322488
27 HANDLE    322678
28 WHEEL    322193
29 FOOT    322679
30 WHEELS AXLE 482783
31 WHEEL LOCKING RING 322223
32 CAP FOR HANDLE 322681
33 HANDLE CAP 322682

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

NORDICA 4.181/R TURBO 814023
8 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin Nordica 4.181/R T

Diagram Telwin Nordica 4.181/R T

Download (155.55KB)
