Telwin Spare Parts for Inverter Welding Machine Force 168 MPGE

SKU: 816011
€1.92
VAT included

Telwin Spare Parts for Inverter Welding Machine Force 168 MPGE

TELWIN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding Machine Force 168 MPGE - 816011.

Welding Machine Force 168 MPGE - 816011
Telwin Spare Parts for Inverter Welding Machine Force 168 MPGE
  • Telwin Spare Parts for Inverter Welding Machine Force 168 MPGE
  • Telwin Spare Parts for Inverter Welding Machine Force 168 MPGE Drawing
Telwin s.p.a.

Telwin Spare Parts for Inverter Welding Machine Force 168 MPGE

SKU: 816011 Condition: New
€1.92
VAT included

Telwin Spare Parts for Inverter Welding Machine Force 168 MPGE

TELWIN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding Machine Force 168 MPGE - 816011.

Welding Machine Force 168 MPGE - 816011
settings 24 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
Machine Type: Welding Machine
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
24 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

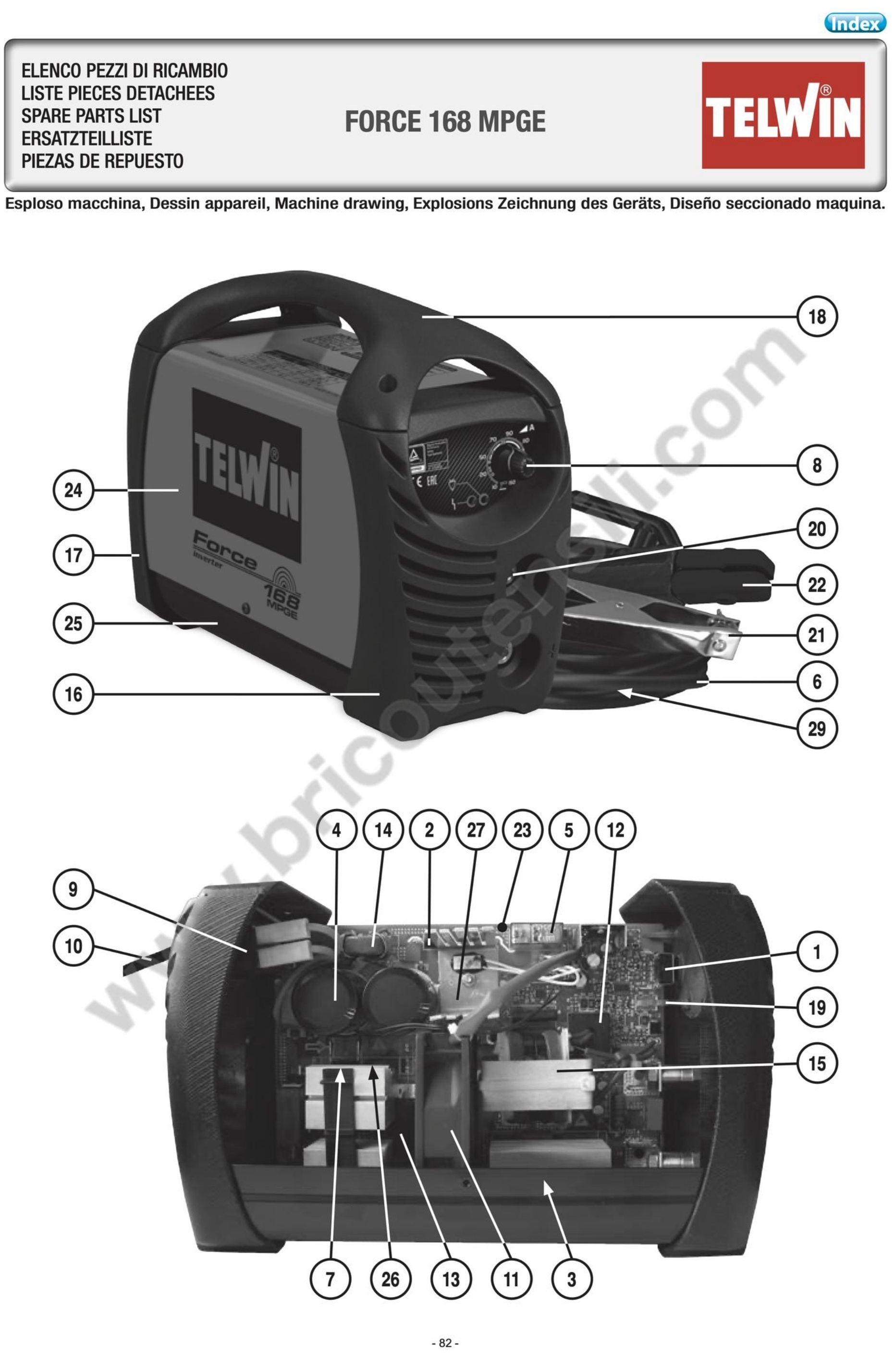

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €1.82
2
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.25
3
 Kit Diodes for Inverter Telwin Force 145 - 165 981332 Kit Diodes for Inverter Telwin Force 145 - 165 €17.91
4
 Capacitor for Inverter Telwin FORCE 168 MPGE 116982 Capacitor for Inverter Telwin FORCE 168 MPGE €20.68 Not available for order
5
 Relay 24VDC for Inverter Force 116738 Relay 24VDC for Inverter Force €3.27
6
 Thermostat for Inverter Telwin Force 145 - 165-168 MPGE 121249 Thermostat for Inverter Telwin Force 145 - 165-168 MPGE €2.54
7
 Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.32
8
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €2.35
9
 Image coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €14.54
10
 Image coming soon 152901 FAN 24VDC 92x92x25 CN €33.90 Not available for order
11
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.18
12
 Pulse Transformer for Inverter Telwin 152247 Pulse Transformer for Inverter Telwin €13.63
13
 Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.82
14
 Power Transformer for Inverter Telwin Force 125 169631 Power Transformer for Inverter Telwin Force 125 €31.81
15
 Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322893 Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €11.82
16
 Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322894 Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €11.82
17
 Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322895 Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €6.82
18
 Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.45
19
 Socket MMQ 25 DX for Telwin Welding Machine 712000 Socket MMQ 25 DX for Telwin Welding Machine €1.27
20
 Image coming soon 981022 KIT DETAILS €231.77
21
 Image coming soon 981023 KIT COAT €11.82
22
 Image coming soon 980786 BOTTOM KIT €14.54
23
 Kit IGBT + Diode for Inverter Telwin Force 165-168 MPGE 980789 Kit IGBT + Diode for Inverter Telwin Force 165-168 MPGE €35.45
24
 Image coming soon 981029 BRIDGE KIT + THERMOSTAT €21.45

Shipping and delivery information will be available shortly.

Telwin Spare Parts for Inverter Welding Machine Force 168 MPGE

TELWIN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Inverter Welding Machine Force 168 MPGE - 816011.

In the following table, look for the model of the Welding and the respective parts of the code.
Welding Machine Force 168 MPGE - 816011
FORCE 168 MPGE 230V cod. 816011
# Description Part Num.
1 POT 112017
2 RESISTANCE 112048
3 KIT DIODES 981332
4 CAPACITOR 116982
5 RELAY '24VDC 17mA 250V 16A 1NO 116738
6 THERMOSTAT 121249
7 KNOB 121395
8 SWITCH 122381
9 CABLE ALIM. 3G1.5 2 M SCHUKO PLUG 132155
10 FAN 24VDC 92x92x25 CN 152901
11 CURRENT ADAPTOR 152230
12 PULSE ADAPTOR 152247
13 CHOKE FILTER 164741
14 POWER TRASFORMER 169631
15 FRONT 322893
16 BACK 322894
17 HANDLE 322895
18 LIGHT GUIDE 322898
19 PLUG DX 25 712000
20 KIT DETAILS 981022
21 KIT COAT 981023
22 KIT BACK 980786
23 KIT IGBT + DIODE 980789
24 BRIDGE KIT + THERMOSTAT 981029
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
816011
6 Items

Data sheet

Machine Type
Welding Machine
CHECK ITEM OR S/N CODE TELWIN
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Force 168 MPGE

Diagram Force 168 MPGE

Download (239.14KB)
