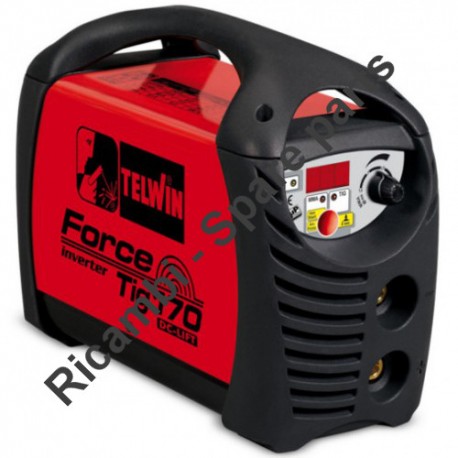

Telwin s.p.a.

Telwin Spare Parts for Welding Inverter Tig Force TIG 170 DC-LIFT

SKU: Force TIG 170 DC-LIFT - 816214
€2.03
VAT included

Telwin Spare Parts for Welding Inverter Tig Force TIG 170 DC-LIFT

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Welding Inverter Tig Force TIG 170 DC-LIFT 230V-816214.

Force TIG 170 DC-LIFT - 816214
Telwin Spare Parts for Welding Inverter Tig Force TIG 170 DC-LIFT
  • Telwin Spare Parts for Welding Inverter Tig Force TIG 170 DC-LIFT
  • Telwin Spare Parts for Welding Inverter Tig Force TIG 170 DC-LIFT - Drawing
  • Telwin Spare Parts for Welding Inverter Tig Force TIG 170 DC-LIFT - Torch Drawing
Telwin s.p.a.

Telwin Spare Parts for Welding Inverter Tig Force TIG 170 DC-LIFT

SKU: Force TIG 170 DC-LIFT - 816214 Condition: New
€2.03
VAT included

Telwin Spare Parts for Welding Inverter Tig Force TIG 170 DC-LIFT

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Welding Inverter Tig Force TIG 170 DC-LIFT 230V-816214.

Force TIG 170 DC-LIFT - 816214
settings 76 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
64 spare parts
Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 802229 KIT 10 CERAMIC NOZZLES NR.5 €8.10
1
 photo_cameraImage coming soon 802230 KIT 10 CERAMIC NOZZLES NR.6 €8.09
1
 photo_cameraImage coming soon 802231 KIT 10 CERAMIC NOZZLES NR.4 €8.09
2
 photo_cameraImage coming soon 722984 INSULATING €8.10
4
 photo_cameraImage coming soon 802220 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM €17.75
4
 photo_cameraImage coming soon 802222 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM €17.75
5
 photo_cameraImage coming soon 802223 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM €2.95
5
 photo_cameraImage coming soon 802225 KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM €2.95
6
 photo_cameraImage coming soon 722982 SHORT CAP €5.39
7
 photo_cameraImage coming soon 722981 LONG CAP €8.10
9
 photo_cameraImage coming soon 722949 TORCH CONNECTION €27.07
15
 photo_cameraImage coming soon 722948 HANDLE €5.39
18
 photo_cameraImage coming soon 722947 TORCH BODY €35.01
19
 photo_cameraImage coming soon 802226 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM €5.94
19
 photo_cameraImage coming soon 802228 KIT 3 ELECTRODE DIFFUSERS D.1 MM €5.94
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
Relay 14VDC for Inverter Telwin 116320 Relay 14VDC for Inverter Telwin €5.42
1
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
2
 Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 113122 Capacitor for Inverter Telwin Force 125 - 165 - Force Tig 170 €10.50
4
 Single-Phase Rectifier for Inverter Telwin 144-164 116346 Single-Phase Rectifier for Inverter Telwin 144-164 €6.82
5
 Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S 116839 Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S €7.24
6
 photo_cameraImage coming soon 116959 ENCODER €2.94
7
 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v 116962 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v €2.42
8
 PWM Controller for Inverter Force TIG 170 DC-LIFT 116966 PWM Controller for Inverter Force TIG 170 DC-LIFT €3.45
9
 photo_cameraImage coming soon 980520 ENCODER KNOB KIT €9.02
10
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
11
 photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
12
 Fan for Inverter TIG Force-Superior 152006 Fan for Inverter TIG Force-Superior €13.79
13
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
14
 Pulse Transformer for Inverter Telwin 152247 Pulse Transformer for Inverter Telwin €10.43
15
 Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.99
16
 photo_cameraImage coming soon 169700 TRANSFORMER X FLYBACK €13.78
17
 photo_cameraImage coming soon 169711 POWER TRAFO €22.56
18
 Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322893 Front-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €16.58
19
 Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322894 Back-Cover for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €16.58
20
 Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE 322895 Black Handle for Inverter Telwin FORCE 145-165-195-TIG170-168 MPGE €13.79
21
 Socket MMQ 25 DX for Telwin Welding Machine 712000 Socket MMQ 25 DX for Telwin Welding Machine €2.63
22
 photo_cameraImage coming soon 980786 BOTTOM KIT €7.89
23
 photo_cameraImage coming soon 980788 IGBT + DIODE KIT €34.20
24
 photo_cameraImage coming soon 981106 COMPLETE PCB KIT €22.56
25
 photo_cameraImage coming soon 981107 CONTROL PCB KIT €183.64
26
 photo_cameraImage coming soon 981108 COVER KIT €9.45
27
 photo_cameraImage coming soon 981113 PCB KIT KEYPAD €4.77
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
500
 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 432036 Throwaway Argon + CO₂ ITA-USA Gas Bottle Adaptor Telwin 432036 €10.50
501
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
502
 Gas Regulator Refillable Bottle for Inverter Telwin Telmig 722341 Gas Regulator Refillable Bottle for Inverter Telwin Telmig €42.33
503
 photo_cameraImage coming soon 742565 ST9V TIG TORCH 4 M €55.11
504
 photo_cameraImage coming soon 123430 CABLE 10 MMQ 3 M - 25 €10.26
505
 Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
Page 3 local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 981442 25 CONNECTION KIT €32.57
1
 photo_cameraImage coming soon 802229 KIT 10 CERAMIC NOZZLES NR.5 €8.10
1
 photo_cameraImage coming soon 802230 KIT 10 CERAMIC NOZZLES NR.6 €8.09
1
 photo_cameraImage coming soon 802231 KIT 10 CERAMIC NOZZLES NR.4 €8.09
2
 photo_cameraImage coming soon 722984 INSULATING €8.10
4
 photo_cameraImage coming soon 802220 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM €17.75
4
 photo_cameraImage coming soon 802222 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM €17.75
5
 photo_cameraImage coming soon 802223 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM €2.95
5
 photo_cameraImage coming soon 802225 KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM €2.95
6
 photo_cameraImage coming soon 722982 SHORT CAP €5.39
7
 photo_cameraImage coming soon 722981 LONG CAP €8.10
9
 photo_cameraImage coming soon 722949 TORCH CONNECTION €27.07
15
 photo_cameraImage coming soon 722948 HANDLE €5.39
18
 photo_cameraImage coming soon 722947 TORCH BODY €35.01
19
 photo_cameraImage coming soon 802226 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM €5.94
19
 photo_cameraImage coming soon 802228 KIT 3 ELECTRODE DIFFUSERS D.1 MM €5.94

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter Tig Force TIG 170 DC-LIFT

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Welding Inverter Tig Force TIG 170 DC-LIFT 230V-816214.

In the following table, look for the model of the Welding and the respective parts of the code.
Force TIG 170 DC-LIFT - 816214

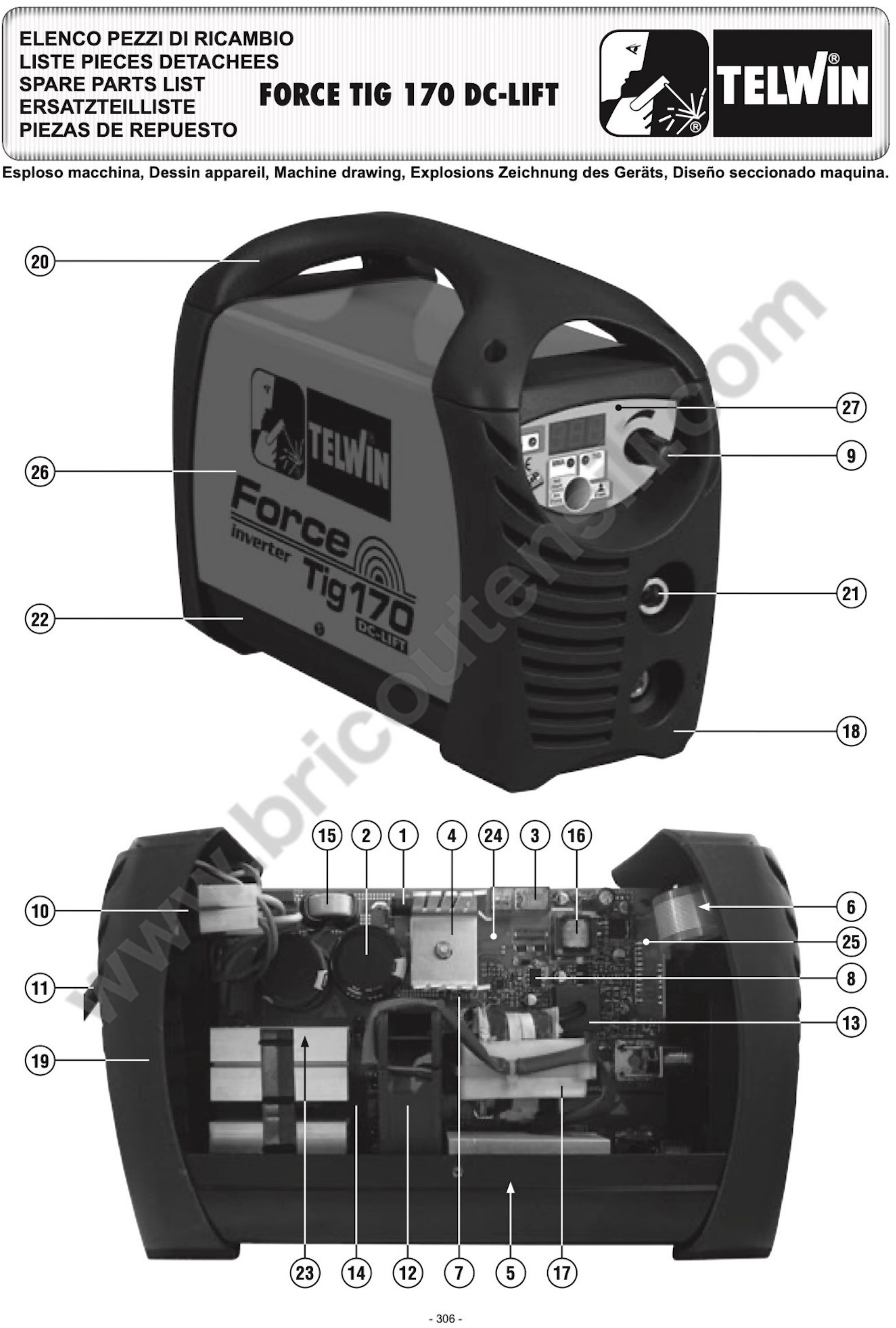

Welding Inverter Tig Force TIG 170 DC-LIFT 230V-816214 Pag.1
# Description Part Num.
0 RELAIS 116320
1 RESISTANCE 112048
2 CAPACITOR 113122
4 RECTIFIER 116346
5 DIODE 116839
6 ENCODER 116959
7 RESISTANCE 10R 2W 5% FUSE 116962
8 PWM CONTROLLER 116966
9 ENCODER KNOB KIT 980520
10 SWITCH 122381
11 MAINS CABLE 3G1.5 2 M SCHUKO PLUG 132155
12 FAN 152006
13 CURRENT TRANSFORMER 152230
14 PULSE TRANSFORMER 152247
15 FILTER INDUCTANCE 164741
16 TRANSFORMER X FLYBACK 169700
17 POWER TRAFO 169711
18 FRONT PANEL 322893
19 BACK PANEL 322894
20 HANDLE 322895
21 SOCKET DX 25 712000
22 BOTTOM KIT 980786
23 IGBT + DIODE KIT 980788
24 COMPLETE PCB KIT 981106
25 CONTROL PCB KIT 981107
26 COVER KIT 981108
27 PCB KIT KEYPAD 981113
ACCESSORIES Pag.2
500 ARGON GAS BOTTLE IT ADAPTOR 432036
501 TOLEDO 250 WORK CLAMP 250A 712030
502 GAS REGULATOR REFILLABLE BOTTLE 722341
503 ST9V TIG TORCH 4 M 742565
504 CABLE 10 MMQ 3 M - 25 123430
505 PLUG RIGHT 25 712039

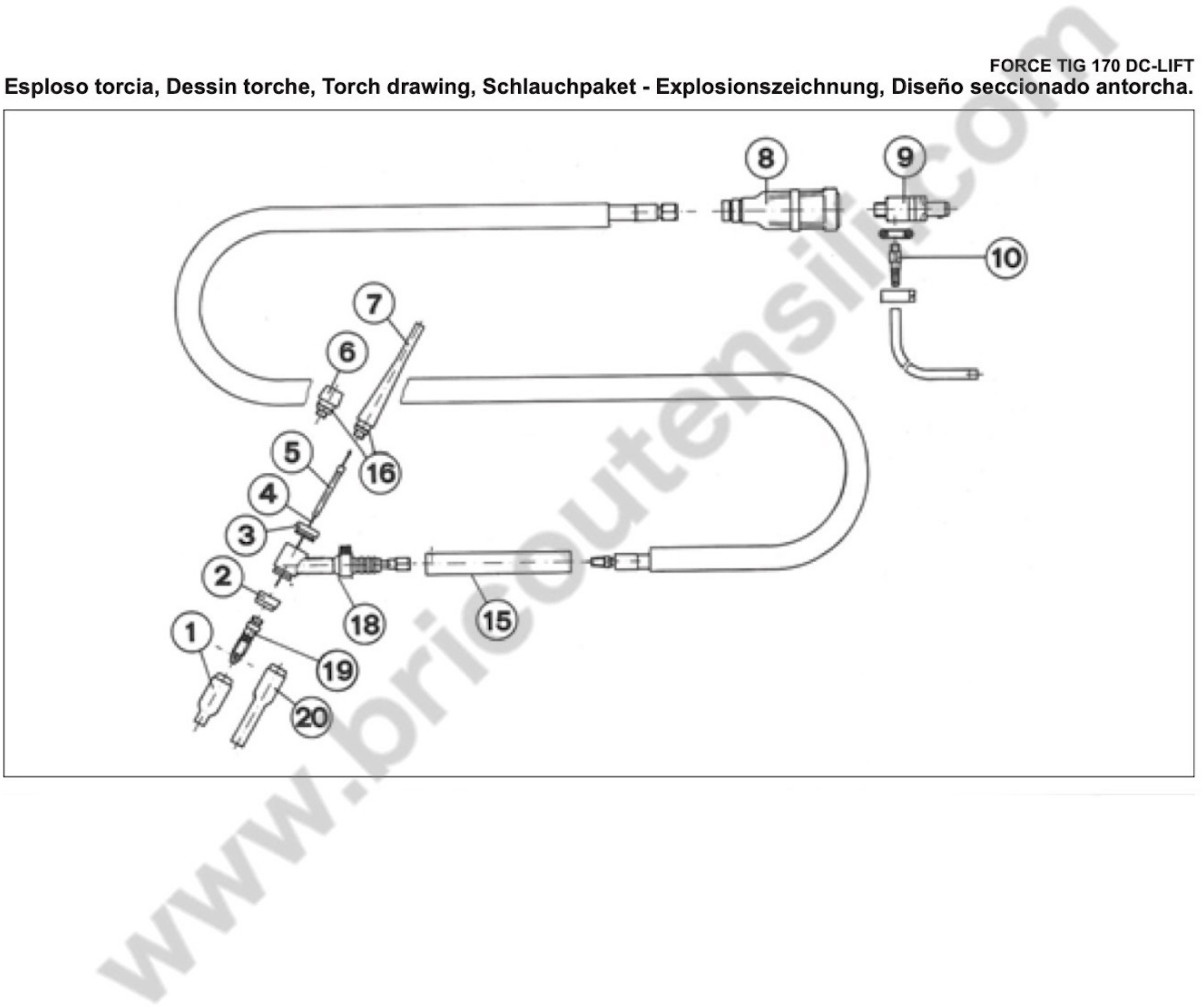

Torch Inverter Tig Force TIG 170 DC-LIFT 230V-816214 Pag.3
0 25 CONNECTION KIT 981442
1 KIT 10 CERAMIC NOZZLES NR.6 802230
1 KIT 10 CERAMIC NOZZLES NR.4 802231
1 KIT 10 CERAMIC NOZZLES NR.5 802229
2 INSULATING 722984
3 ORING 722985
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,6 MM 802222
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1 MM 802220
4 KIT 10 CERIUM-TUNGSTEN ELECTR. D.1,2 MM 802221
5 KIT 3 ELECTRODE HOLDER CLAMPS D.1,6 MM 802223
5 KIT 3 ELECTRODE HOLDER CLAMPS D.1 MM 802225
5 KIT 3 ELECTRODE HOLDER CLAMPS Ø 1,2 MM 802224
6 SHORT CAP 722982
7 LONG CAP 722981
9 TORCH CONNECTION 722949
15 HANDLE 722948
16 ORING OR 722983
18 TORCH BODY 722947
19 KIT 3 ELECTRODE DIFFUSERS D.1,6 MM 802226
19 KIT 3 ELECTRODE DIFFUSERS D.1 MM 802228
19 KIT 3 ELECTRODE DIFFUSERS Ø 1,2 MMM 802227
20 LONG CERAMIC NOZZLE NR.4 722996
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Force TIG 170 DC-LIFT - 816214
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Force TIG 170 DC-LIFT Drawing

Force TIG 170 DC-LIFT Drawing

Download (432.97KB)
