Telwin Parts for Inverter INFINITY 170/2

SKU: INFINITY 170/2 - 30799866-001
€1.83
VAT included

Telwin Spare Parts for Welding Inverter INFINITY 170/2

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter INFINITY 170/2 - 30799866-001.

Telwin INFINITY 170 - 816080
Telwin Parts for Inverter INFINITY 170/2
  • Telwin Parts for Inverter INFINITY 170/2
  • Telwin Parts Drawing for Inverter INFINITY 170/2

Telwin Parts for Inverter INFINITY 170/2

SKU: INFINITY 170/2 - 30799866-001 Condition: New
€1.83
VAT included

Telwin Spare Parts for Welding Inverter INFINITY 170/2

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter INFINITY 170/2 - 30799866-001.

Telwin INFINITY 170 - 816080
settings 24 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

24 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €4.03
2
Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
3
Relay 24VDC for Inverter Force 116738 Relay 24VDC for Inverter Force €5.42
4
Small knob for Inverter Telwin 121395 Small knob for Inverter Telwin €0.61
5
photo_cameraImage coming soon 121761 Thermostat €2.64
7
Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
8
photo_cameraImage coming soon 124508 CABLE 16 MMQ 1.8 M - 25 €12.34
9
photo_cameraImage coming soon 132457 Alimentation cable €13.56
11
photo_cameraImage coming soon 321219 FRONT PANEL €10.71
12
photo_cameraImage coming soon 321377 Pannello Posteriore €10.71
13
photo_cameraImage coming soon 322065 BELT BUCKLE €2.31
14
Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
15
photo_cameraImage coming soon 322408 BELT €3.12
16
Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.43
17
Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
18
Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
19
Dallas 300 Electrode Holders Clamp 300A for Welding Telwin 712260 Dallas 300 Electrode Holders Clamp 300A for Welding Telwin €4.77
20
photo_cameraImage coming soon 981584 CONDENSER KIT SNAP-IN €24.98
21
photo_cameraImage coming soon 981587 DX SOCKETS KIT 25MMQ €13.16
22
photo_cameraImage coming soon 981591 Diode Kit €13.39
23
photo_cameraImage coming soon 981788 BOTTOM KIT €10.71
25
photo_cameraImage coming soon 982051 KIT IGBT + DIODES €20.82
26
photo_cameraImage coming soon 982111 Kit Cover / Cover €205.69
27
photo_cameraImage coming soon 982112 Kit Pannello of copertura €20.41

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter INFINITY 170/2

TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Inverter INFINITY 170/2 - 30799866-001.


In the following table, look for the model of the Welding and the respective parts of the code.
Telwin INFINITY 170 - 816080

TELWIN INFINITY 170/2 Spare Parts List
# Part Num. Description Note Tecniche / Specifiche
1 112017 Potenziometro a carbone 10k Ohm Lineare - 0.20W (Rif. 2096)
2 112048 Resistenza a filo 47 Ohm - 8W (Rif. 596)
3 116738 Relè di potenza 24Vdc 17mA - 250V 16A
4 121395 Manopola / Griff Knob / Manija di regolazione
5 121761 Termostato Thermostat / Controllo temperatura
6 122353 Copri-interruttore Schalterdeckel / Cubre interruptor
7 122381 Interruttore Switch / Schalter
8 124508 Cavo Saldatura Atlas 16 mmq - L=4,8 m - Spina Atlas 25
9 132457 Cavo alimentazione H05VV-F 3G 1.50mmq - L=2,5 m
10 152294 Ventola Fan / Ventilador di raffreddamento
11 321219 Pannello Frontale Front Panel / Geratefront
12 321377 Pannello Posteriore Back Panel / Rückseite
13 322065 Fibbia per cinghia Belt buckle / Hebilla
14 322112 Passacavo Cable gland / Prensa cable
15 322408 Cinghia Strap / Belt / Correa
16 322898 Guida Guide / Guia
17 712030 Pinza di massa Toledo 250 Portata 250A
18 712039 Spina Atlas Sezione 25 mmq
19 712260 Pinza portaelettrodo Dallas 300 Portata 300A
20 981584 Kit Ponte + Condensatori Versione Snap-in
21 981587 Kit Prese Atlas Sezione 25 mmq
22 981591 Kit Diodi Diode Kit
23 981788 Kit Fondo Bottom case kit / Bodenteilkit
25 982051 Kit IGBT + Diodi Moduli di potenza per inverter
26 982111 Kit Cover / Coperchio Kit Deckel / Kit di copertura
27 982112 Kit Pannello di copertura Panel de cobertura / Cover kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
INFINITY 170/2 - 30799866-001
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

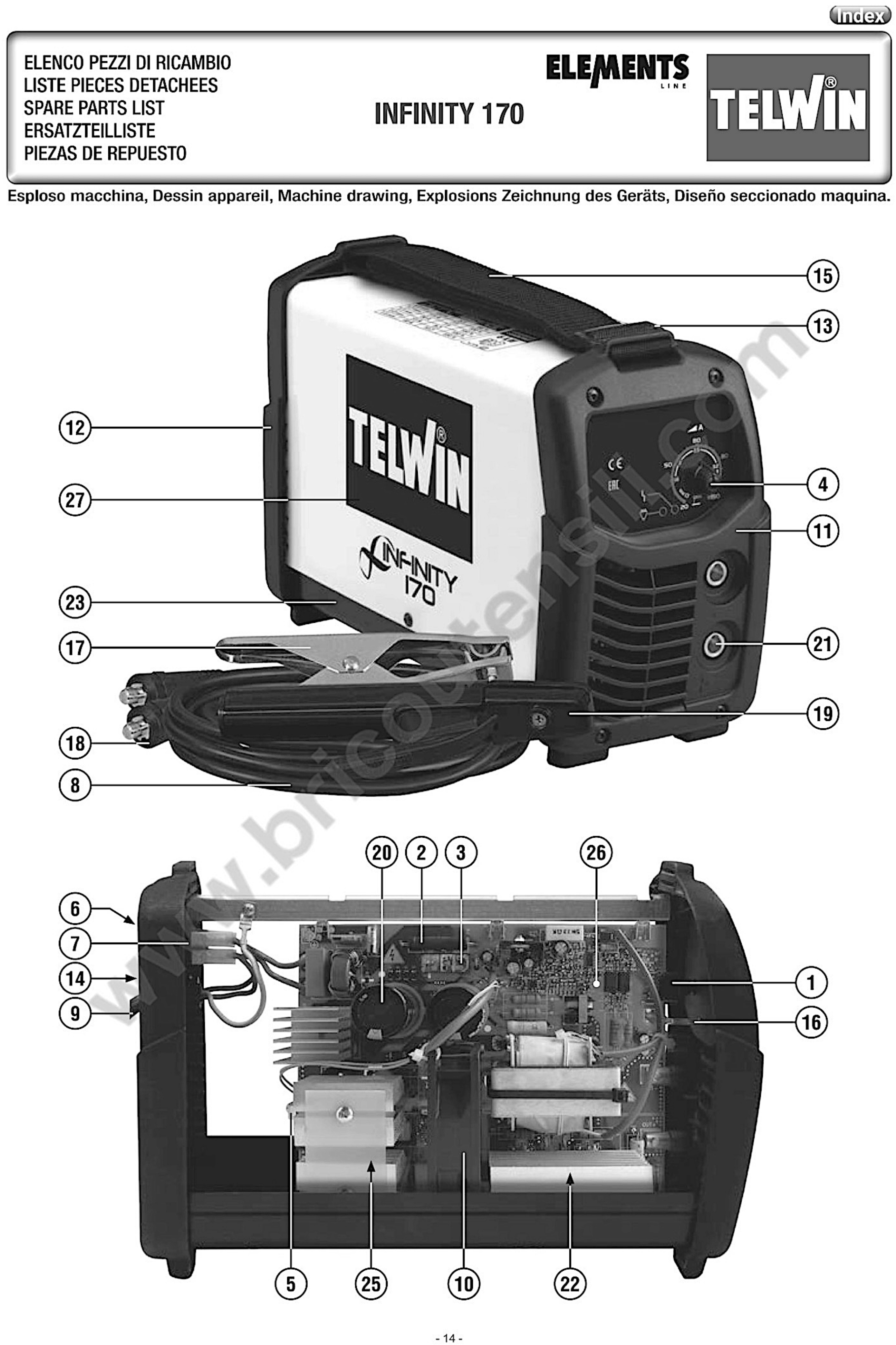

Telwin INFINITY 170/2 Drawing

Telwin INFINITY 170/2 Drawing

Download (1.38MB)
