Telwin s.p.a.

Telwin TELMIG 100 Spare Parts

SKU: Telwin TELMIG 100 821050
€0.38
VAT included

Telwin TELMIG 100 Spare Parts

Telwin original spare parts for to replace broken parts for to fix Inverter Welding Telmig 100 - 821050.

Fix Your Inverter Welding Telmig 100 - 821050. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Telwin Telmig 150/1 Turbo 821052
Telwin TELMIG 100 Spare Parts
  • Telwin TELMIG 100 Spare Parts
  • Telwin TELMIG 100 Spare Parts - Drawing
  • Telwin TELMIG 100 Spare Parts - Torch Drawing
Telwin s.p.a.

Telwin TELMIG 100 Spare Parts

SKU: Telwin TELMIG 100 821050 Condition: New
€0.38
VAT included

Telwin TELMIG 100 Spare Parts

Telwin original spare parts for to replace broken parts for to fix Inverter Welding Telmig 100 - 821050.

Fix Your Inverter Welding Telmig 100 - 821050. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Telwin Telmig 150/1 Turbo 821052
settings 48 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
2
 Protection Rectifier for Welding Telwin Bimax-Telmig 112183 Protection Rectifier for Welding Telwin Bimax-Telmig €4.03
3
 Potentiometer for Welders Telwin BIMAX-TELMIG 113533 Potentiometer for Welders Telwin BIMAX-TELMIG €6.82
5
 photo_cameraImage coming soon 120300 6 CABLE MMQ 1,8 M €8.27
6
 photo_cameraImage coming soon 122525 THERMOSTAT €6.51
7
 0-1 Switch White 16A 250V VDE-F for Charger Telwin 122400 0-1 Switch White 16A 250V VDE-F for Charger Telwin €1.80
8
 Yellow Switch for Inverter Welding Machines Telwin 122752 Yellow Switch for Inverter Welding Machines Telwin €2.63
9
 photo_cameraImage coming soon 132310 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €10.71
11
 Wire Drive Motor for Wire Welding Telwin Telmig 150/170 153900 Wire Drive Motor for Wire Welding Telwin Telmig 150/170 €34.90
12
 photo_cameraImage coming soon 990811 Transformer Kit €162.45
13
 photo_cameraImage coming soon 169282 Reactance €67.00
14
 Roller Anchor for Welding Telwin TELMIG 232105 Roller Anchor for Welding Telwin TELMIG €5.77
16
 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 322126 Feed Roll Holder for Welding Telwin Telmig 150/1 - 183/2 €3.42
17
 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG 322127 Fixing Torch Cover for Inverter Telwin BIMAX-TELMIG-TECHNOMIG €2.70
18
 photo_cameraImage coming soon 322128 PRESSURE ROLL BRACKET €1.75
19
 photo_cameraImage coming soon 322584 FRONT PANEL FRAME €13.72
20
 photo_cameraImage coming soon 322586 BACK PANEL FRAME €6.55
22
 Compressione Spring mm 9x21 for Inverter Telwin Bimax 452022 Compressione Spring mm 9x21 for Inverter Telwin Bimax €2.44
23
 photo_cameraImage coming soon 644959 BOTTOM €15.44
24
 photo_cameraImage coming soon 651015 DOOR €9.16
25
 Feed Roll For Wire mm 0,6/0,8 FE for Welding Telwin Telmig 722019 Feed Roll For Wire mm 0,6/0,8 FE for Welding Telwin Telmig €2.53
26
 photo_cameraImage coming soon 742900 Mig Torch 2 M 130 A €64.95
29
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
30
 photo_cameraImage coming soon 990251 GEARS KIT €2.62
31
 Reel Kit for Welding Telwin Bimax-Technomig-Telmig 990288 Reel Kit for Welding Telwin Bimax-Technomig-Telmig €11.44
32
 Rectifier Kit for Inverter Telwin Bimax 132 Turbo - 4.135 Turbo 990746 Rectifier Kit for Inverter Telwin Bimax 132 Turbo - 4.135 Turbo €29.77
33
 photo_cameraImage coming soon 322172 SPINDLE €10.71
34
 Ring Nut Aspo Welding Telwin Bimax-Technomig-Telmig 322173 Ring Nut Aspo Welding Telwin Bimax-Technomig-Telmig €4.14
35
 Reel Kit Handbill for Welding Telwin Bimax-Technomig-Telmig 322174 Reel Kit Handbill for Welding Telwin Bimax-Technomig-Telmig €11.35
36
 Reel Kit Spring for Welding Telwin Bimax-Technomig-Telmig 452065 Reel Kit Spring for Welding Telwin Bimax-Technomig-Telmig €11.35
37
 photo_cameraImage coming soon 322585 FAIRLEADER €2.45
38
 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 322143 Hooking Torch Ring for Torches Telwin Telmig 150/1 - 170/1 €2.44
39
 photo_cameraImage coming soon 990783 COVER KIT €13.72
40
 photo_cameraImage coming soon 990785 Diaphragm Kit €12.34
42
 photo_cameraImage coming soon 644923 Back Panel €9.57
43
 Handle for Inverter Telwin BIMAX 132 TURBO 230V 322587 Handle for Inverter Telwin BIMAX 132 TURBO 230V €6.49
44
 Side Handle for Inverter Telwin BIMAX 4.165 TURBO 322590 Side Handle for Inverter Telwin BIMAX 4.165 TURBO €4.03
45
 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin 712001 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin €2.43
46
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
47
 photo_cameraImage coming soon 322104 BOTTLE BELT €3.12
48
 Telwin Reducteurs Pression for Throwaway Bottle 722120 Telwin Reducteurs Pression for Throwaway Bottle €32.56
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
-
 photo_cameraImage coming soon 742900 Mig Torch 2 M 130 A €64.95
1
 Contact Nozzle for Wire Weldings Telwin Bimax 722667 Contact Nozzle for Wire Weldings Telwin Bimax €1.58
2
 Cilindrical Nozzle 13 mm for Wire Weldings Telwin 722054 Cilindrical Nozzle 13 mm for Wire Weldings Telwin €4.17
3
 photo_cameraImage coming soon 722810 SWAN NECK DIFFUSER €15.43
4
 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig 990464 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig €13.79
5
 Button Spring Contact for Torch Telwin MIG 452097 Button Spring Contact for Torch Telwin MIG €2.44
6
 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 €2.44
7
 photo_cameraImage coming soon 990600 KIT CABLES SET 10MMQ €35.58
9
 photo_cameraImage coming soon 742412 WIRE GUIDE HOSE D. 0,6-0,8 MM 2 M €2.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin TELMIG 100 Spare Parts

Fix Your Inverter Welding Telmig 100 - 821050. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the type of the welding machine and theirs spare parts codes.
Telwin Telmig 100

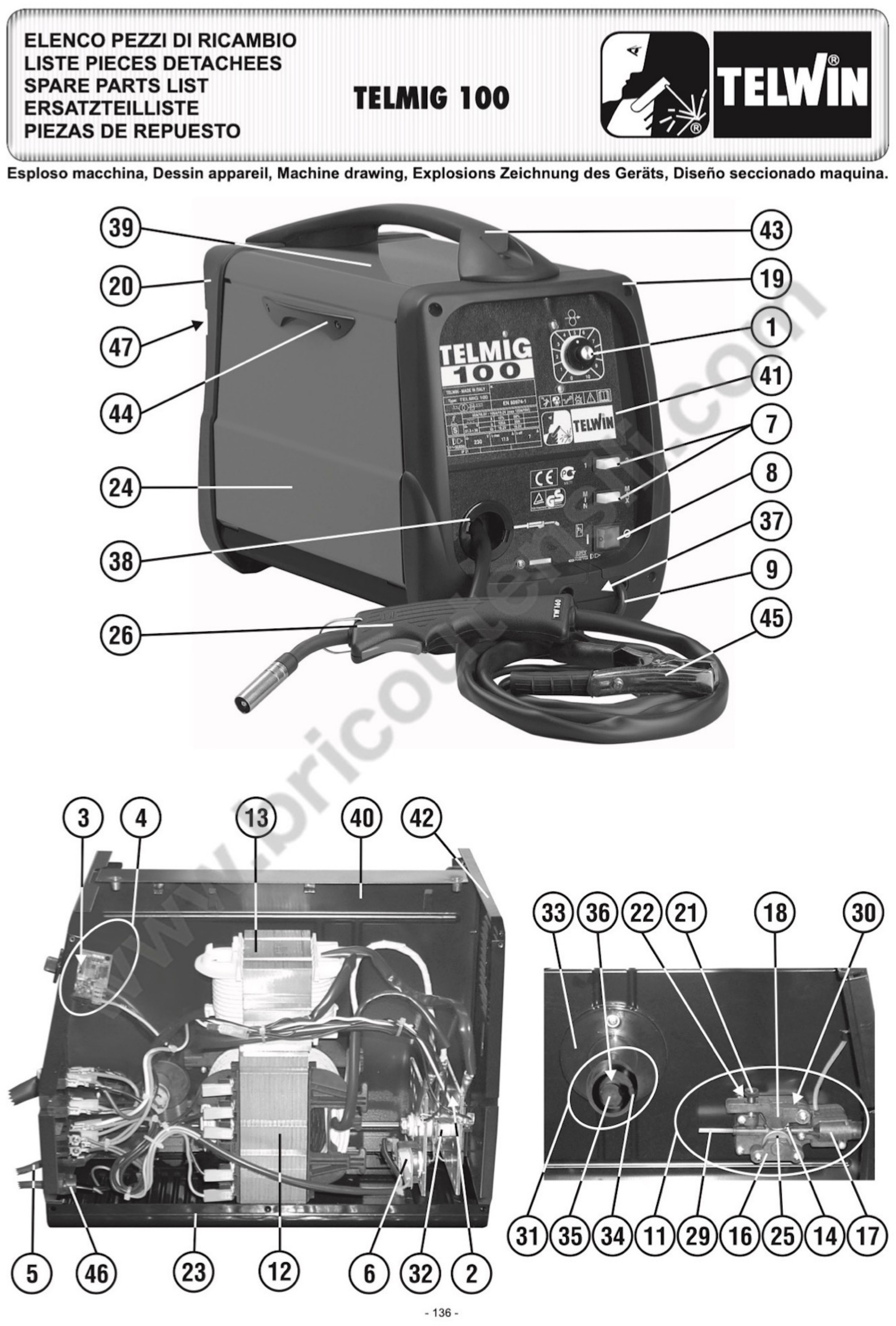

Telwin Inverter TELMIG 100 - 821050 Spare Parts Pag.1
# Part Num. Description
1 112125 Potentiometer Knob
2 112183 Rectifier Protection
3 113533 Potentiometer
4 114635 Wire Feeder Board
5 120300 Cable 6 Mmq 1,8 M
6 122525 Thermostat
7 122400 Switch
8 122752 Switch
9 132310 Cable 3G1.5 2 M Schuko Plug
11 153900 Wire Feed Motor
12 990811 Transformer Kit
13 169282 Reactance
14 232105 Pressure Roll
16 322126 Roll Support
17 322127 Torch Fixing Casing
18 322128 Pressure Roll Bracket
19 322584 Front Panel Frame
20 322586 Back Panel Frame
21 422257 Wire Feed Handwheel
22 452022 Spring
23 644959 Bottom
24 651015 Door
25 722019 Feed Roll D. 0,6-0,8 Mm
26 742900 Mig Torch 2 M 130 A
29 990097 Gas Hose Kit
30 990251 Gears Kit
31 990288 Reel Kit
32 990746 Rectifier Kit
33 322172 Spindle
34 322173 Reel Ring Nut
35 322174 Reel Handwheel
36 452065 Bobine Reel Spring
37 322585 Fairleader
38 322143 Ring Nut
39 990783 Cover Kit
40 990785 Diaphragm Kit
41 649398 Front Panel
42 644923 Back Panel
43 322587 Handle
44 322590 Handle
45 712001 Work Clamp 150A
46 322112 Cable Bushing
47 322104 Bottle Belt
48 722120 Gas Regulator Throwaway Bottle

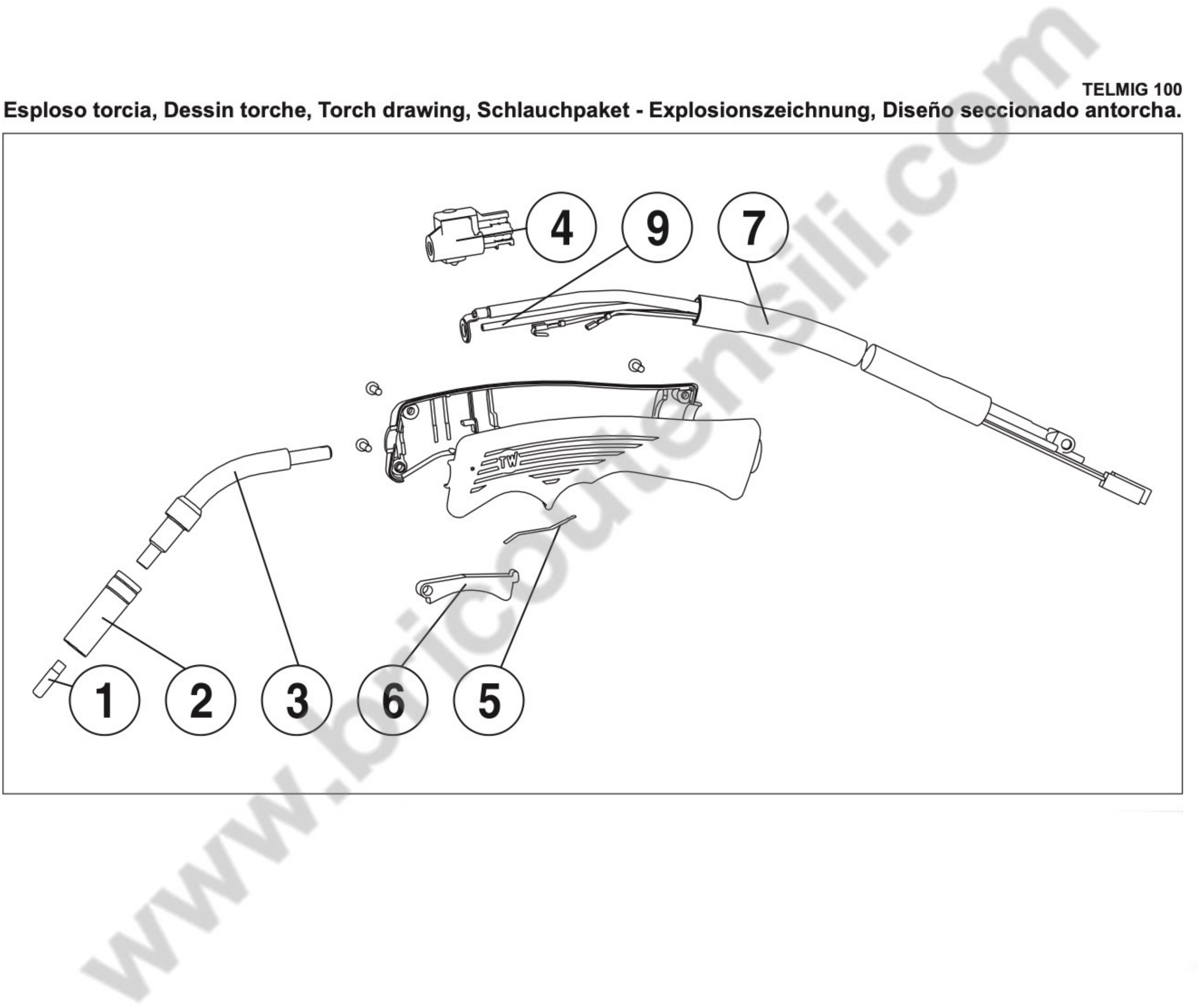

Telwin Inverter TELMIG 100 Spare Parts Torch
1 722667 Contact Tip D. 0,8 Mm
2 722054 Cylindrical Nozzle
3 722810 Swan Neck
4 990464 Valve
5 452097 Contact Spring For Mig Torch
6 322295 Pushbutton
7 990600 Kit Cables Set 10Mmq
9 742412 Liner D. 0,6-0,8 Mm
- 742900 Torch
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Telwin TELMIG 100 821050
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Telwin TELMIG 100 Drawing

Telwin TELMIG 100 Drawing

Download (578.16KB)
