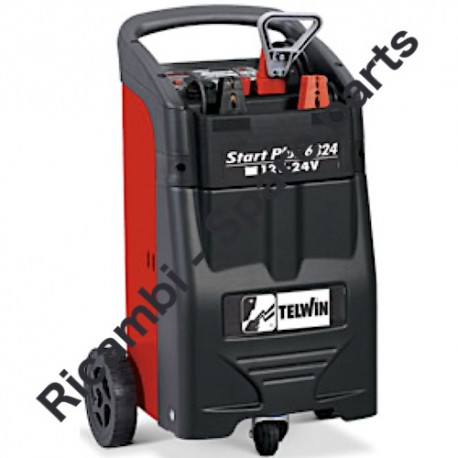

TELWIN Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Battery Chargers Start Plus 6824 - 829560.

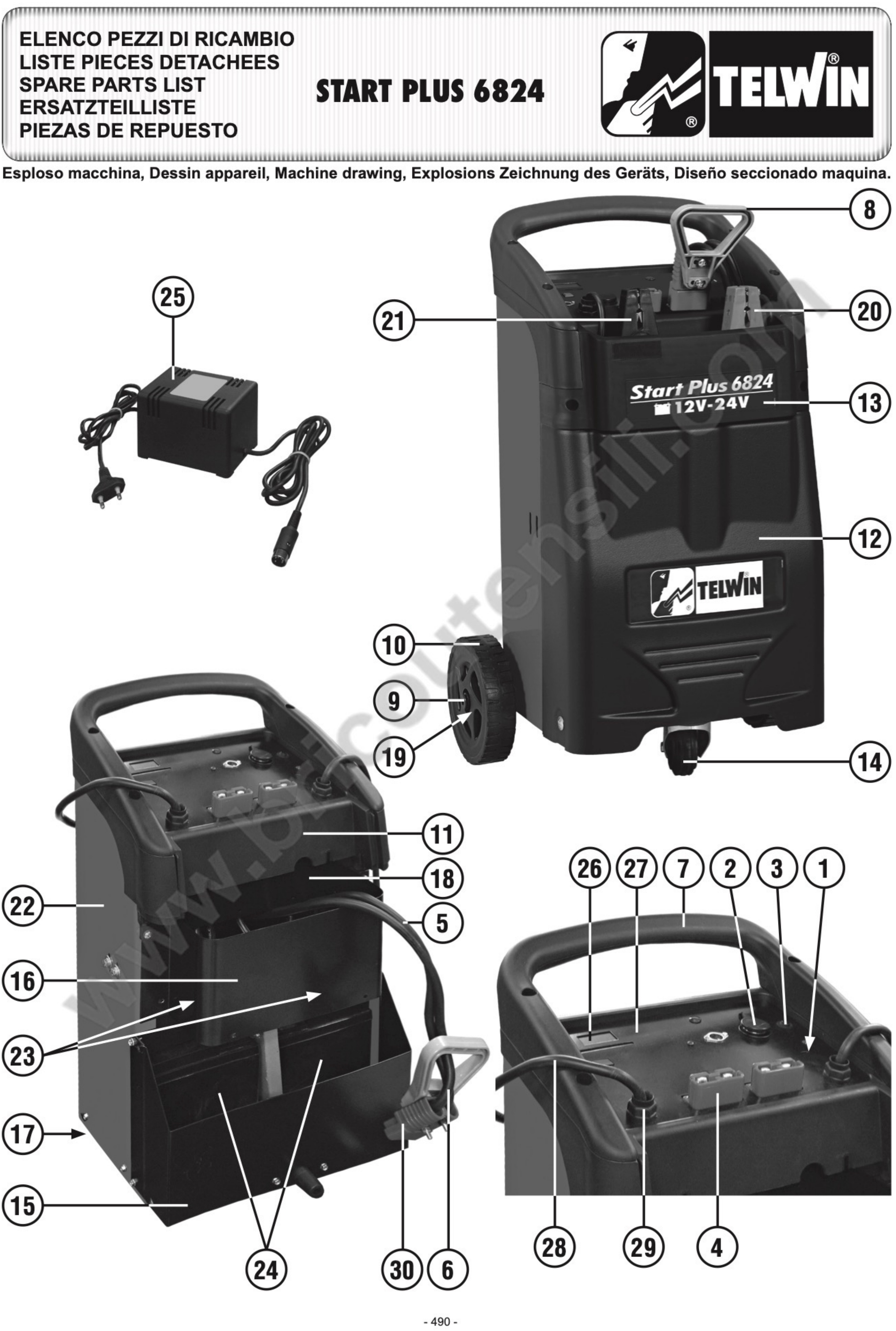

In the following table, look for the model of the Battery Chargers and the respective parts of the code.![]()
| Battery Charger Start Plus 6824 12-24V - 829560 | ||
| # | Part Num. | Description |
| 1 | 114481 | Buzzer Board |
| 2 | 121083 | Socket |
| 3 | 121223 | Restorable Protection |
| 4 | 124357 | Sockets Kit |
| 5 | 124358 | Connection Cable |
| 6 | 124359 | Connection Cable |
| 7 | 312399 | Handle |
| 8 | 312429 | Handle Set |
| 9 | 322102 | Wheel Locking Ring |
| 10 | 322201 | Fixed Wheel |
| 11 | 322799 | Frame |
| 12 | 322824 | Front Panel - DISCONTINUED |
| 13 | 322825 | Pocketcover |
| 14 | 322854 | Fixed Wheel+swivel Support+brake |
| 15 | 645305 | Lower Front Panel |
| 16 | 645308 | |
| 17 | 645417 | Bottom - DISCONTINUED |
| 18 | 645450 | Upper Front Panel |
| 19 | 681055 | Wheels Axle |
| 20 | 712025 | Positive Clamp |
| 21 | 712026 | Work Clamp |
| 22 | 980740 | Back Panel KIT |
| 23 | 980774 | Battery Kit - DISCONTINUED |
| 24 | 980776 | Battery Kit - DISCONTINUED |
| 25 | 981016 | Power Supply Kit |
| 26 | 981017 | Front Panel Card Kit - DISCONTINUED |
| 27 | 981018 | Dashboard Kit |
| 28 | 981019 | Cable Set |
| 29 | 990046 | Kit Cable Bushing + Ring Nut |
| 30 | 312430 | Bipolar Connector |
