Telwin Parts for Welding Machine Inverpulse 420 MIG-TIG-MMA

SKU: Inverpulse 420 MIG-TIG-MMA
€18.95
VAT included

Telwin Parts for Welding Machine Inverpulse 420 MIG-TIG-MMA

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Telwin Welding Machine Inverpulse 420 MIG-TIG-MMA

Inverpulse 420 MIG-TIG-MMA
Telwin Parts for Welding Machine Inverpulse 420 MIG-TIG-MMA
  • Telwin Parts for Welding Machine Inverpulse 420 MIG-TIG-MMA
  • Telwin Parts for Welding Machine Inverpulse 420 MIG-TIG-MMA
  • Telwin Parts for Welding Machine Inverpulse 420 MIG-TIG-MMA

Telwin Parts for Welding Machine Inverpulse 420 MIG-TIG-MMA

SKU: Inverpulse 420 MIG-TIG-MMA Condition: New
€18.95
VAT included

Telwin Parts for Welding Machine Inverpulse 420 MIG-TIG-MMA

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Telwin Welding Machine Inverpulse 420 MIG-TIG-MMA

Inverpulse 420 MIG-TIG-MMA
settings 77 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

64 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 116422 Capacitor €16.54
3
Relè for Inverter Telwin Inverpulse 320-425-625 MIG/TIG/MMA 400V 113281 Relè for Inverter Telwin Inverpulse 320-425-625 MIG/TIG/MMA 400V €5.17
4
IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT 113603 IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT €12.86
5
photo_cameraImage coming soon 113334 RESISTOR €1.58
6
photo_cameraImage coming soon 114779 FILTER CARD €71.09
8
photo_cameraImage coming soon 722798 MT40 MIG TORCH 3 M €430.86
9
photo_cameraImage coming soon 116265 Sensor Hall €168.98
10
photo_cameraImage coming soon 116297 SENSOR HALL €35.09
15
photo_cameraImage coming soon 121029 ELECTROVALVE €14.02
16
photo_cameraImage coming soon 122017 SWITCH €15.48
17
Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
18
photo_cameraImage coming soon 122571 THERMOSTAT €15.45
19
photo_cameraImage coming soon 132338 MAINS CABLE H05VV-F 4G04.00 L=02.50 €29.69
20
Fan for Inverter Superior-Inverpulse 152000 Fan for Inverter Superior-Inverpulse €65.41
21
photo_cameraImage coming soon 152232 TRANSFORMER PULSE €12.18
22
photo_cameraImage coming soon 169346 Secondary Inductance €109.43
23
photo_cameraImage coming soon 990987 AUXILIARY TRANSFORMER €88.47
24
photo_cameraImage coming soon 990986 Auxiliary Transformer €53.95
26
photo_cameraImage coming soon 322536 FRAME €14.05
27
photo_cameraImage coming soon 322538 HANDLE €7.07
28
photo_cameraImage coming soon 322901 KNOB FOR SWITCH €2.30
31
photo_cameraImage coming soon 712034 TOLEDO 600 WORK CLAMP 600A €17.57
32
photo_cameraImage coming soon 712037 SOCKET DX 70/95 €8.51
33
photo_cameraImage coming soon 712088 Plug RIGHT 95 €13.00
34
photo_cameraImage coming soon 723114 Cable 95Mmq 3M-work Clamp-dx 95 €116.76
35
Knob Kit for Welding Machine Technology TIG 180 AC-DC-HF-LIFT 990026 Knob Kit for Welding Machine Technology TIG 180 AC-DC-HF-LIFT €8.06
36
photo_cameraImage coming soon 990120 GAS PIPE CONNECTOR KIT €5.82
37
photo_cameraImage coming soon 990167 Knob Kit €5.25
38
photo_cameraImage coming soon 990439 CABLE BUSHING KIT €3.07
39
photo_cameraImage coming soon 990852 FELT PACKING (B) €2.64
41
photo_cameraImage coming soon 990854 Primary Kit €1,436.75
43
photo_cameraImage coming soon 990856 Diodes Kit €96.38
44
Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost 122159 Holder Fuse for Charger Telwin Alpine 14 - 18 - 20 Boost €2.08
45
Fuse 5x20 6,3A for Charger Telwin Alpine 50 Boost 122410 Fuse 5x20 6,3A for Charger Telwin Alpine 50 Boost €0.48
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
-
photo_cameraImage coming soon 722798 MT40 MIG TORCH 3 M €430.86
-
photo_cameraImage coming soon 722800 Torch 5m €437.38
1
Torch Ring Nut for Torches Telwin MIG-MAG 722007 Torch Ring Nut for Torches Telwin MIG-MAG €9.91
2
Sleeve Lock Nut for Torches Telwin MIG-MAG 722013 Sleeve Lock Nut for Torches Telwin MIG-MAG €3.92
3
photo_cameraImage coming soon 722597 WIRE GUIDE HOSE D. 1,6-2 MM 3 M AL €42.82
3
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG 722689 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG €9.91
3
photo_cameraImage coming soon 722795 WIRE GUIDE HOSE Ø 1,2-1,6 MM 3 M YELLOW €8.78
3
photo_cameraImage coming soon 722814 WIRE GUIDE HOSE Ø 1,6-2MM 3M €10.98
3
photo_cameraImage coming soon 742164 WIRE GUIDE HOSE D. 1-1,2 MM 3 M €72.81
4
photo_cameraImage coming soon 722581 CONTACT TIP D. 0,8 MM FE €2.65
4
photo_cameraImage coming soon 722582 CONTACT TIP D. 1 MM FE €2.65
4
photo_cameraImage coming soon 722583 CONTACT TIP D. 1,2 MM FE €2.57
4
photo_cameraImage coming soon 722586 CONTACT TIP D.2,0 €2.39
4
photo_cameraImage coming soon 722587 CONTACT TIP D. 1,6 MM FE €2.65
4
photo_cameraImage coming soon 722769 CONTACT TIP D. 1 MM AL/FLUX €1.93
4
photo_cameraImage coming soon 722770 CONTACT TIP D. 1,2 MM AL/FLUX €2.21
4
photo_cameraImage coming soon 722771 CONTACT TIP D. 1,6 MM FLUX €2.02
4
photo_cameraImage coming soon 722772 CONTACT TIP D. 2 MM AL/FLUX €2.47
4
photo_cameraImage coming soon 742159 CONTACT TIP D. 1 MM AL €4.47
4
photo_cameraImage coming soon 742160 CONTACT TIP D. 1,2 MM AL €4.56
4
photo_cameraImage coming soon 742161 CONTACT TIP D. 1,6 MM AL €4.56
5
Sleeve Lock Nipples for Torches Telwin MIG-MAG 722598 Sleeve Lock Nipples for Torches Telwin MIG-MAG €4.14
5
photo_cameraImage coming soon 722599 WIRE GUIDE LOCKING NIPPLES €4.72
6
Sleeve Lock Hose for Torches Telwin MIG-MAG 722600 Sleeve Lock Hose for Torches Telwin MIG-MAG €21.27
8
Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR 722677 Plasma Cutting Torch Button for Telwin TECNICA-TECHNOLOGY-SUPERIOR €15.80
9
photo_cameraImage coming soon 722801 SWAN NECK €153.78
10
Gas Diffuser for Inverter Telwin INVERPULSE 425-625 722802 Gas Diffuser for Inverter Telwin INVERPULSE 425-625 €7.33
14
photo_cameraImage coming soon 722807 CONTACT TIP HOLDER €13.03
15
photo_cameraImage coming soon 722808 CONICAL NOZZLE €16.47
15
photo_cameraImage coming soon 722809 CYLINDRICAL NOZZLE €18.60

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Parts for Welding Machine Inverpulse 420 MIG-TIG-MMA

We are TELWIN authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Telwin Welding Machine Inverpulse 420 MIG-TIG-MMA

In the following table, look for the model of the drill and the respective parts of the code.
Inverpulse 420 MIG-TIG-MMA

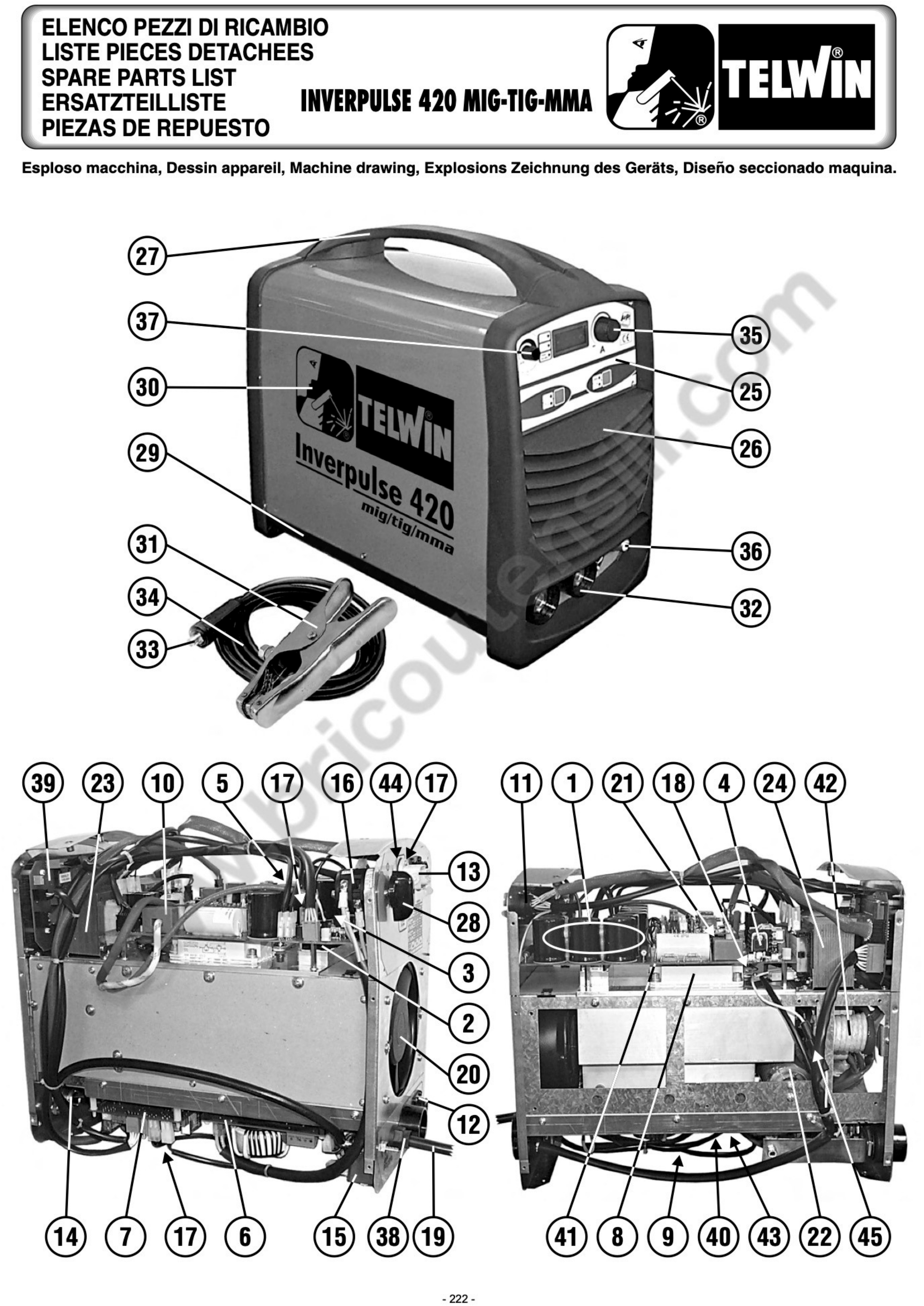

Inverpulse 420 MIG-TIG-MMA Pag.1
# Part Num. Description
1 116422 Capacitor
3 113281 Relais
4 113603 Igbt
5 113334 Resistor
6 114779 Filter Card
7 980633 Interface Card Kit
8 722798 Mig Torch 3 M 500 A
9 116265 Sensor Hall
10 116297 Sensor Hall
11 120700 Control Cable
12 120701 Wire Feeder Cable
13 120702 G.r.a.cable
14 120710 Torch Button Cable
15 121029 Electrovalve
16 122017 Switch
17 122437 Fuse
18 122571 Thermal Switch
19 132338 Mains Cable H05vv-f 4G04.00 L=02.50
20 152000 Fan
21 152232 Pulse Transformer
22 169346 Secondary Inductance
23 990987 Auxiliary Transformer
24 990986 Auxiliary Transformer
25 313874 Panel
26 322536 Frame
27 322538 Handle
28 322901 Switch Knob
29 645046 Bottom
30 655304 Cover
31 712034 Work Clamp 600A
32 712037 Socket RIGHT 70/95
33 712088 Plug RIGHT 95
34 723114 Cable 95Mmq 3M-work Clamp-dx 95
35 990026 Knob Kit
36 990120 Gas Pipe Connector Kit
37 990167 Knob Kit
38 990439 Cable Bushing Kit
39 990852 Front Panel + Module Set GÉnÉrateur
40 990853 Secundary Pcb Kit
41 990854 Primary Kit
42 990855 Kit Transformer + Reactance
43 990856 Diodes Kit
44 122159 Fuse Holder
45 122410 Fuse

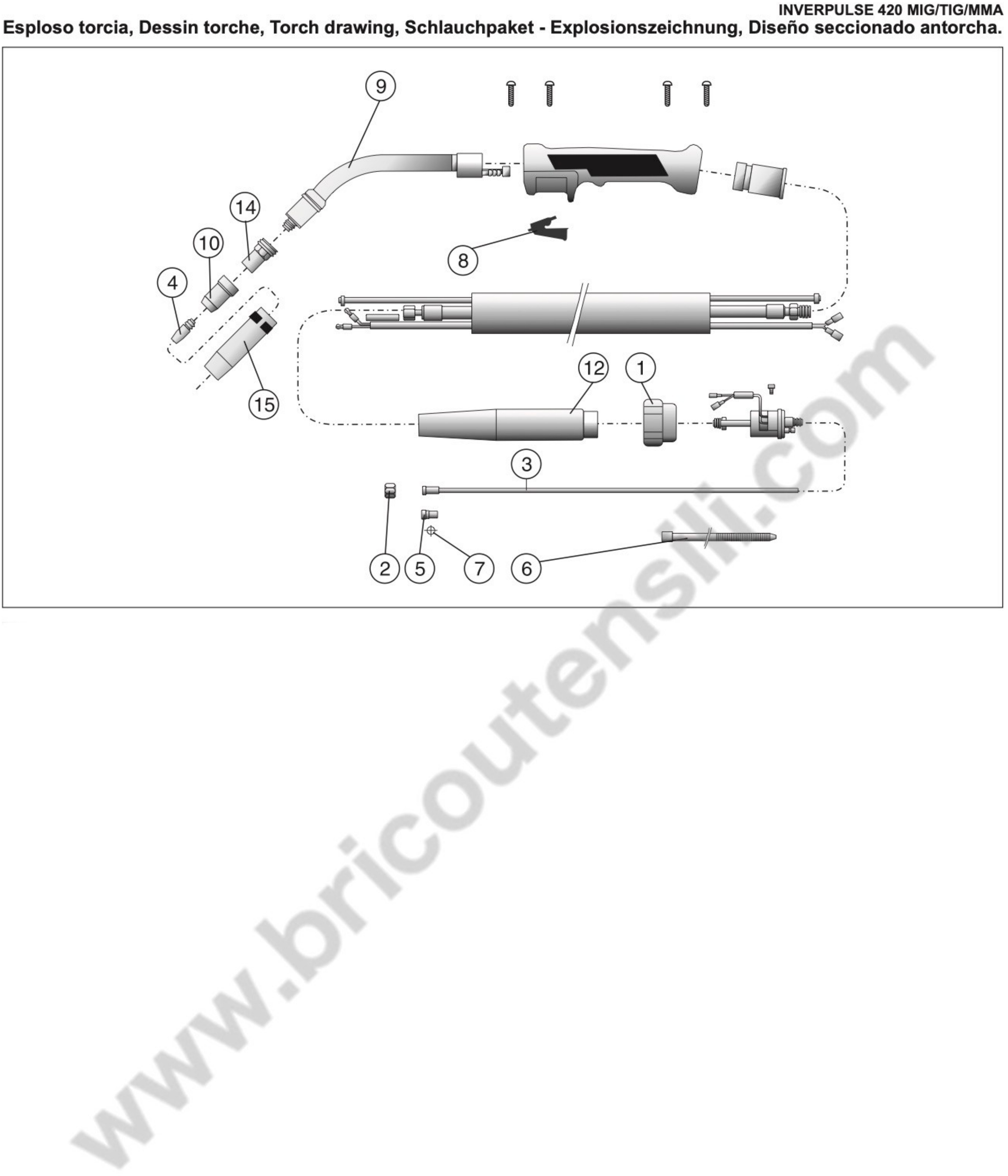

Torch Spare Parts List Pag.2
1 722007 Ring Nut
2 722013 Liner Nut
3 722597 Wire Guide Hose D. 1,6-2 Mm
3 722689 Liner D. 1-1,2 Mm 3 M
3 722795 Liner D. 1,2-1,6 Mm
3 722814 Wire Guide Hose D.1,6-2mm 3M
3 742164 Wire Guide Hose D. 1-1.2 Mm
4 722581 Contact Tip D.0,8
4 722582 Contact Tip D.1,0
4 722583 Contact Tip D.1,2
4 722586 Contact Tip D.2,0
4 722587 Contact Tip D.1,6 .
4 722769 Flux Contact Tip D.1 Mm
4 722770 Contact Tip Flux D.1,2 Mm
4 722771 Contact Tip Flux D.1.6 Mm
4 722772 Contact Tip Al/flux D.2 Mm
4 742159 Contact Tip Al D.1 Mm
4 742160 Contact Tip Al D.1.2 Mm
4 742161 Contact Tip Al D.1.6 Mm
5 722598 Wire Guide Locking Nipples
5 722599 Wire Guide Locking Nipples
6 722600 Wire Guide Locking Tube
7 722601 Or Ring
7 722606 Or Ring
8 722677 Pushbutton
9 722801 Swan Neck
10 722802 Gas Diffuser
12 722621 Complete Adaptor Cover
14 722807 Contact Tip Holder
15 722808 Conical Nozzle
15 722809 Cylindrical Nozzle
- 722798 Torch 3m
- 722800 Torch 5m

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Inverpulse 420 MIG-TIG-MMA
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Inverpulse 420 MIG-TIG-MMA

Inverpulse 420 MIG-TIG-MMA

Download (605.37KB)
