Telwin s.p.a.

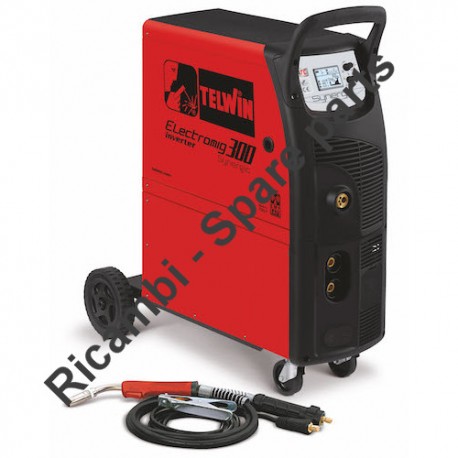

Telwin Spare Parts for Welding Inverter Electromig 300 Synergic 400V

SKU: Electromig 300 Synergic - 816065
€4.36
VAT included

Telwin Spare Parts for Welding Inverter Electromig 300 Synergic 400V

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter Electromig 300 Synergic 400V - 816065.

MIG-MAG/FLUX/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine controlled by a microprocessor, with 4-roller wire feeder.

Electromig 300 Synergic - 816065
Telwin Spare Parts for Welding Inverter Electromig 300 Synergic 400V
  • Telwin Spare Parts for Welding Inverter Electromig 300 Synergic 400V
  • Telwin Spare Parts for Welding Inverter Electromig 300 Synergic 400V
  • Telwin Spare Parts for Welding Inverter Electromig 300 Synergic 400V
Telwin s.p.a.

Telwin Spare Parts for Welding Inverter Electromig 300 Synergic 400V

SKU: Electromig 300 Synergic - 816065 Condition: New
€4.36
VAT included

Telwin Spare Parts for Welding Inverter Electromig 300 Synergic 400V

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter Electromig 300 Synergic 400V - 816065.

MIG-MAG/FLUX/BRAZING/MMA and TIG DC-Lift multiprocess inverter welding machine controlled by a microprocessor, with 4-roller wire feeder.

Electromig 300 Synergic - 816065
settings 108 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
98 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

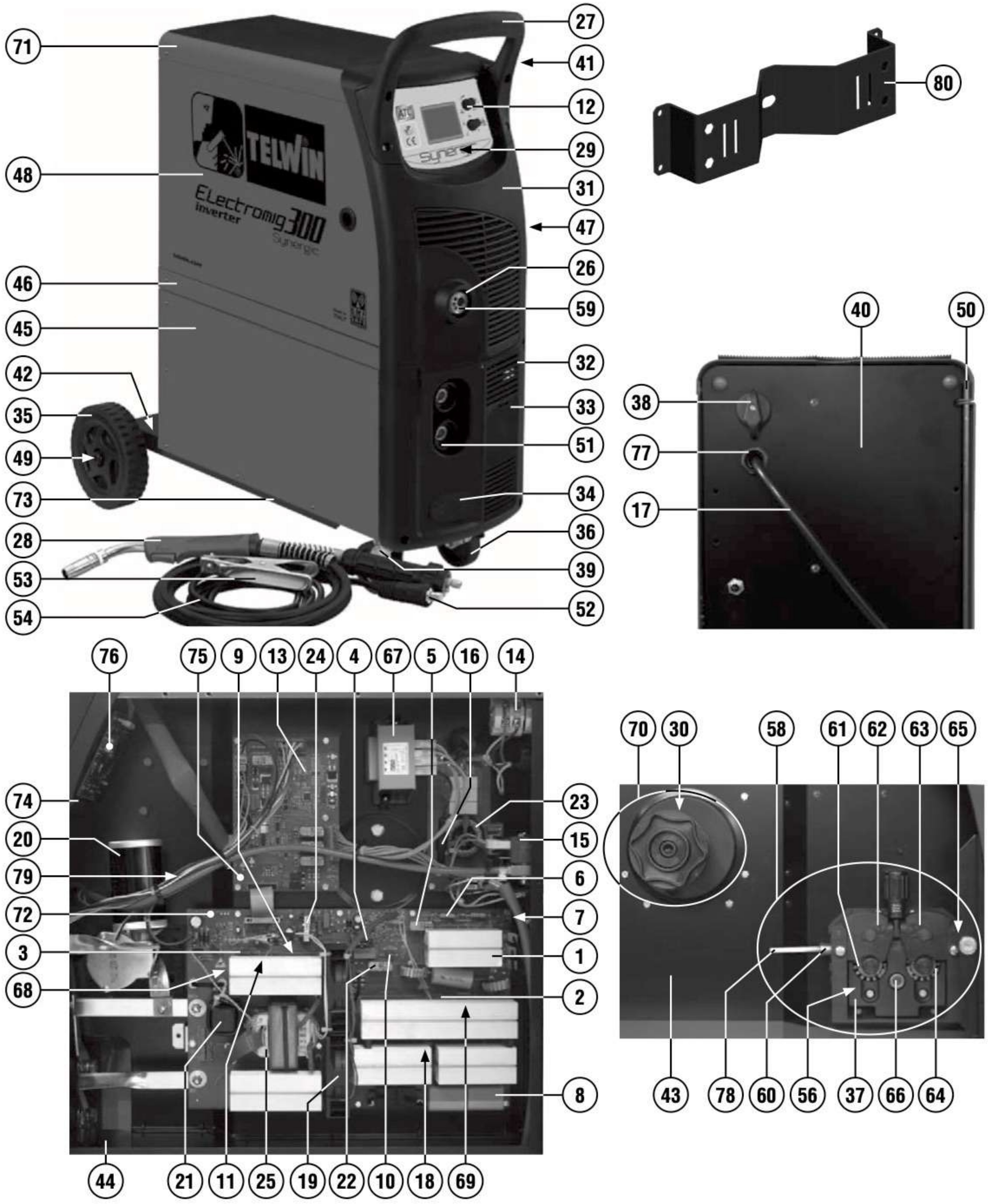

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 111017 SINGLE PHASE BRIDGE €5.39
2
 Superior Plasma 70 Resistance 22R 5W 111327 Superior Plasma 70 Resistance 22R 5W €1.05
4
 IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT 113603 IGBT for Inverter Telwin TECHNOLOGY TIG 182 AC/DC-HF/LIFT €12.86
5
 Relay 14VDC for Inverter Telwin 116320 Relay 14VDC for Inverter Telwin €5.42
7
 photo_cameraImage coming soon 116760 VARISTOR €1.26
8
 photo_cameraImage coming soon 116882 CAPACITOR €21.17
10
 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v 116962 Wire Resistance for Inverter Telwin Tecnica TIG 190 DC-Lift Vrd 230v €2.42
11
 photo_cameraImage coming soon 121261 THERMOSTAT €5.50
12
 photo_cameraImage coming soon 121315 ENCODER KNOB D.15 €2.12
13
 photo_cameraImage coming soon 121456 FUSE €1.22
14
 photo_cameraImage coming soon 121556 SWITCH €16.51
15
 photo_cameraImage coming soon 121800 ELECTROVALVE €20.26
16
 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost 122437 Fuse 5x20 2A for Charger Telwin Alpine 20 Boost €0.63
17
 photo_cameraImage coming soon 132237 MAINS CABLE 4G1.5 2 M €14.05
18
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
19
 Fan for Inverter Technology-Technomig 152269 Fan for Inverter Technology-Technomig €17.98
20
 photo_cameraImage coming soon 153033 WIRE FEED MOTOR €49.91
21
 photo_cameraImage coming soon 169556 REACTOR €34.63
22
 photo_cameraImage coming soon 169746 REACTOR €9.54
23
 photo_cameraImage coming soon 169747 CHOKE FILTER €45.09
24
 photo_cameraImage coming soon 169862 FLYBACK AUXILIARY TRANSFORMER €22.07
25
 photo_cameraImage coming soon 169887 POWER TRAFO €93.21
26
 Connection Protection Torch for Welders Telwin Mastermig-Supermig 312105 Connection Protection Torch for Welders Telwin Mastermig-Supermig €11.14
27
 photo_cameraImage coming soon 321165 HANDLE SET €19.00
28
 MIG Torch MT25 for Welding Machine Telwin MASTERMIG-TELMIG-DIGITAL MIG 742183 MIG Torch MT25 for Welding Machine Telwin MASTERMIG-TELMIG-DIGITAL MIG €121.83
29
 photo_cameraImage coming soon 981817 DISPLAY HOLDER KIT €17.45
31
 photo_cameraImage coming soon 321137 UPPER FRONT PANEL €29.67
32
 photo_cameraImage coming soon 321232 WASHER M16 €25.80
33
 photo_cameraImage coming soon 321233 CAP €1.55
35
 Wheel D.200x45 mm for Inverter Welding Telwin 322200 Wheel D.200x45 mm for Inverter Welding Telwin €18.29
36
 Wheel D.80MM for Telwin Welding Machines 322245 Wheel D.80MM for Telwin Welding Machines €9.44
37
 photo_cameraImage coming soon 322814 CYLINDER €71.68
38
 Dipswitch Knob for Welding Telwin 323101 Dipswitch Knob for Welding Telwin €2.56
39
 photo_cameraImage coming soon 484688 SWIVEL SUPPORT + BRAKE €7.09
40
 photo_cameraImage coming soon 642524 BACK PANEL €30.44
41
 photo_cameraImage coming soon 645704 TORCH HOOK €7.32
42
 photo_cameraImage coming soon 645715 WHEELS AXLE BRAKET €6.96
43
 photo_cameraImage coming soon 645745 DIAPHRAGM €31.49
44
 photo_cameraImage coming soon 645747 SURFACE €9.35
45
 photo_cameraImage coming soon 651242 RIGHT SIDE PANEL €28.38
46
 photo_cameraImage coming soon 651240 REEL SPACE €12.65
47
 photo_cameraImage coming soon 656202 SIDE PANEL €26.26
48
 photo_cameraImage coming soon 656203 DOOR €25.92
49
 photo_cameraImage coming soon 681067 WHEELS AXLE €14.95
51
 Socket DX 50 for Telwin Welding Machine 712036 Socket DX 50 for Telwin Welding Machine €5.29
52
 Plug DX 50 for Telwin Welding Machine 712040 Plug DX 50 for Telwin Welding Machine €6.16
53
 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin 712231 Toledo 300 Amp. Work Clamp for Inverter and Plasma Telwin €5.89
54
 photo_cameraImage coming soon 713192 CABLE 25MMQ 3M-WORK CLAMP-DX 50 €39.86
55
 photo_cameraImage coming soon 742576 FEED ROLL 4R 0,6FE-0,8FE €14.59
56
 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin 722227 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin €19.49
57
 Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin 722241 Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin €15.31
58
 photo_cameraImage coming soon 981928 TRAIN 4 ROLLERS €113.51
59
 Telwin Mastermig 300 Torch Connection 723229 Telwin Mastermig 300 Torch Connection €37.02
60
 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG 742064 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG €8.21
61
 photo_cameraImage coming soon 742166 ADAPTER €19.76
62
 photo_cameraImage coming soon 981929 ALWAYS LEFT CONTRACTOR €17.18
63
 photo_cameraImage coming soon 981930 RIGHT RIGHT CONTRAST €17.18
64
 photo_cameraImage coming soon 742348 MOTOR DRIVE GEAR €37.76
65
 Telwin Mastermig 300 Wire Conduit 742365 Telwin Mastermig 300 Wire Conduit €6.49
66
 photo_cameraImage coming soon 742590 GEAR €4.10
67
 photo_cameraImage coming soon 981278 AUTOTRASFO KIT €55.55
68
 photo_cameraImage coming soon 981632 DIODE KIT €16.10
69
 photo_cameraImage coming soon 981633 KIT IGBT + PULSE TRANSFORMER €94.26
70
 photo_cameraImage coming soon 981703 REEL KIT 15KG €15.92
71
 photo_cameraImage coming soon 981740 COVER KIT €31.60
72
 photo_cameraImage coming soon 981814 COMPLETE PCB KIT €687.41
73
 photo_cameraImage coming soon 981770 BOTTOM KIT €36.72
74
 photo_cameraImage coming soon 981815 FRONT PANEL KIT €31.49
75
 photo_cameraImage coming soon 981885 PISTON €22.20
76
 photo_cameraImage coming soon 981816 KIT FRONT PANEL CARD €91.12
77
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
78
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
80
 photo_cameraImage coming soon 645673 BOTTLE-HOLDER BRACKET €23.29
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS

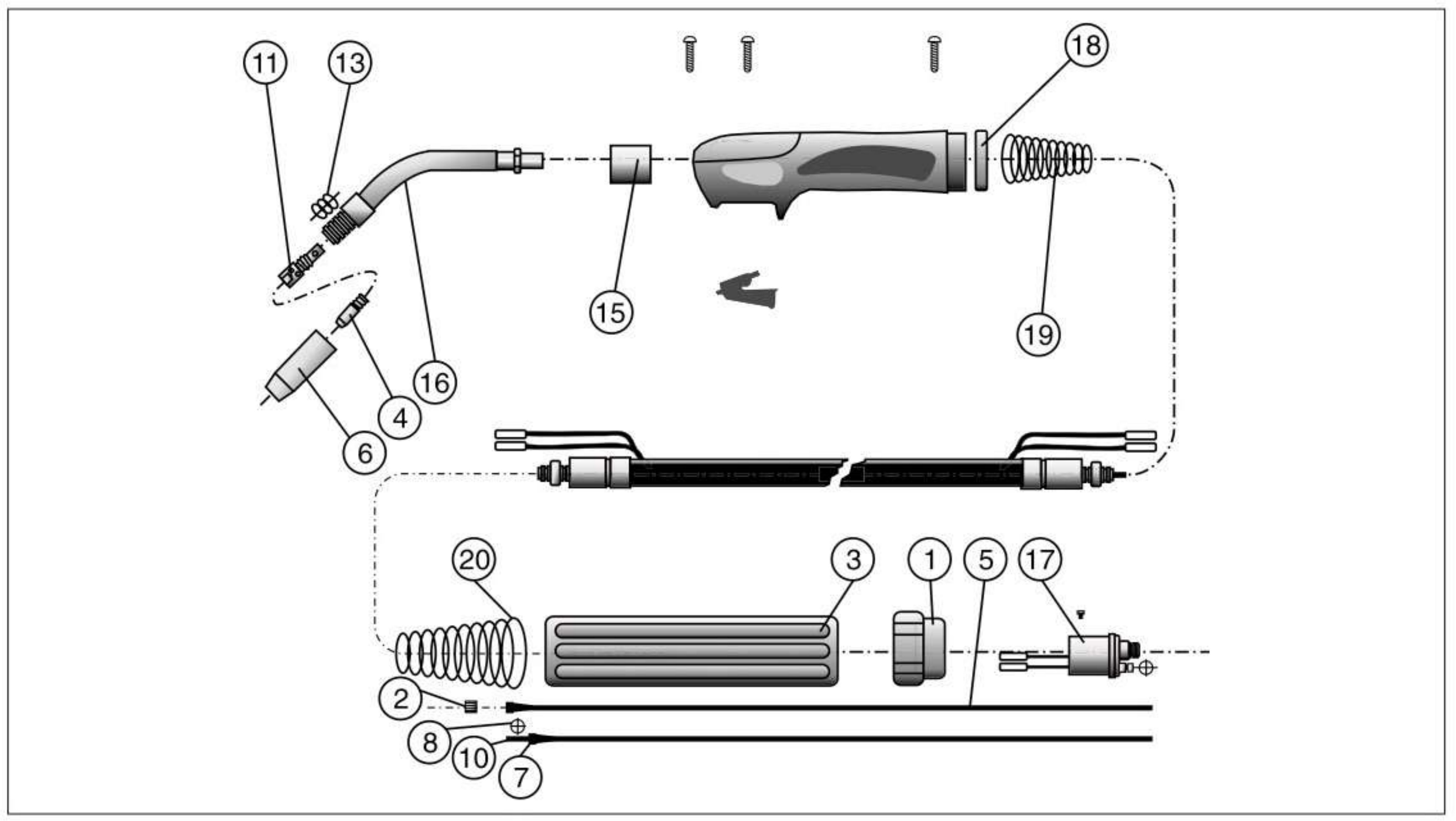

Esploso pagina 2
Pos. Item Price Buy
1
 Torch Ring Nut for Torches Telwin MIG-MAG 722007 Torch Ring Nut for Torches Telwin MIG-MAG €9.91
2
 Sleeve Lock Nut for Torches Telwin MIG-MAG 722013 Sleeve Lock Nut for Torches Telwin MIG-MAG €3.92
3
 photo_cameraImage coming soon 742175 TORCH CONNECTION €13.98
4
 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin 722415 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin €1.59
4
 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin 722552 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin €1.85
4
 Contact Nozzle D. 1,2 MM AL/FLUX for Inverter Telwin Mastermig 270 722553 Contact Nozzle D. 1,2 MM AL/FLUX for Inverter Telwin Mastermig 270 €1.92
4
 Contact Nozzle mm 0,8x28 for Wire Welding Telwin 722680 Contact Nozzle mm 0,8x28 for Wire Welding Telwin €2.06
4
 Contact Nozzle mm 1,0x28 for Wire Welding Telwin 722681 Contact Nozzle mm 1,0x28 for Wire Welding Telwin €2.06
4
 Contact Nozzle mm 1,2x28 for Wire Welding Telwin 722682 Contact Nozzle mm 1,2x28 for Wire Welding Telwin €2.06
5
 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG 722437 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG €9.91
5
 photo_cameraImage coming soon 722516 WIRE GUIDE HOSE D. 1-1,2 MM 3 M AL €42.10
5
 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG 722689 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG €9.91
6
 Cilindrical Nozzle 18 mm for Wire Weldings Telwin 722684 Cilindrical Nozzle 18 mm for Wire Weldings Telwin €6.26
6
 Conical Nozzle mm 15 for Wire Weldings Telwin 722685 Conical Nozzle mm 15 for Wire Weldings Telwin €4.17
6
 Thin Head Nozzle for Inverter Telwin TELMIG-TECHNOMIG-DIGITAL MIG 722686 Thin Head Nozzle for Inverter Telwin TELMIG-TECHNOMIG-DIGITAL MIG €9.53
6
 Spot Welding Cilindrical Nozzle for Wire Weldings Telwin 722687 Spot Welding Cilindrical Nozzle for Wire Weldings Telwin €13.24
7
 Sleeve Lock Nipples for Torches Telwin MIG-MAG 722598 Sleeve Lock Nipples for Torches Telwin MIG-MAG €4.14
10
 Sleeve Lock Hose for Torches Telwin MIG-MAG 722600 Sleeve Lock Hose for Torches Telwin MIG-MAG €21.27
11
 Gas Diffuser for Inverter Telwin TELMIG 281/2 TURBO 722688 Gas Diffuser for Inverter Telwin TELMIG 281/2 TURBO €4.89
13
 Nozzle Spring for Torches Telwin MIG-MAG 722690 Nozzle Spring for Torches Telwin MIG-MAG €2.63
15
 Body Torch Insuleting for Torches Telwin MIG-MAG 722693 Body Torch Insuleting for Torches Telwin MIG-MAG €4.99
16
 photo_cameraImage coming soon 722696 SWAN NECK €41.95
17
 Torch Body for Torches Telwin MIG-MAG 722441 Torch Body for Torches Telwin MIG-MAG €26.35
18
 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 742171 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 €1.34
20
 Torch Spring for Torches Telwin MIG-MAG 742174 Torch Spring for Torches Telwin MIG-MAG €5.42

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter Electromig 300 Synergic 400V

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter Electromig 300 Synergic 400V - 816065.

Open PDF Diagram, check your spare part number position and then select it in the following table.
Electromig 300 Synergic - 816065

Welding Inverter Electromig 300 Synergic 400V - 816065 Pag.1
# Part Num. Description
1 111017 SINGLE PHASE BRIDGE
2 111327 RESISTANCE 22R 5W 5%
3 112374 RESISTANCE
4 113603 IGBT
5 116320 RELAIS
6 116752 RESISTANCE
7 116760 VARISTOR
8 116882 CONDENSER
9 116935 VOLTAGE SUPPRESSOR
10 116962 RESISTANCE 10R 2W 5% FUSE
11 121261 THERMAL SWITCH
12 121315 ENCODER KNOB D.15
13 121456 FUSE
14 121556 SWITCH
15 121800 ELECTROVALVE
16 122437 FUSE
17 132237 MAINS CABLE 4G1.5 2 M
18 152230 CURRENT TRANSFORMER
19 152269 FAN
20 153033 MOTOR
21 169556 INDUCTANCE
22 169746 INDUCTANCE
23 169747 FILTER INDUCTOR
24 169862 FLYBACK AUXILIARY TRANSFORMER
25 169887 POWER TRAFO
26 312105 TORCH CONNECTION PROTECTION
27 321165 HANDLE SET
28 742183 MT25 MIG TORCH 3M
29 981817 DISPLAY HOLDER KIT
30 321210 REEL SPACER
31 321137 UPPER FRONT PANEL
32 321232 LOWER FRONT PANEL
33 321233 CAP
34 321234 CAP
35 322200 FIXED WHEEL
36 322245 WHEEL
37 322814 COVER
38 323101 SWITCH KNOB SET
39 484688 SWIVEL SUPPORT + BRAKE
40 642524 BACK PANEL
41 645704 TORCH HOOK
42 645715 WHEELS AXLE BRAKET
43 645745 DIAPHRAGM
44 645747 SURFACE
45 651242 RIGHT SIDE PANEL
46 651240 REEL SPACE
47 656202 SIDE PANEL
48 656203 DOOR
49 681067 WHEELS AXLE
50 691013 DOOR PIN
51 712036 SOCKET DX 50
52 712040 PLUG DX 50
53 712231 TOLEDO 300 WORK CLAMP 300A
54 713192 CABLE 25MMQ 3M-WORK CLAMP-DX 50
55 742576 FEED ROLL 4R 0,6FE-0,8FE
56 722227 FEED ROLL D. 0,8-1 MM FE
57 722241 FEED ROLL D. 1,2-1,6 MM FE
58 981928 4 ROLL WIREFEEDER
59 723229 TORCH CONNECTION
60 742064 WIRE GUIDE INLET
61 742166 ADAPTER
62 981929 LEFT ANCHOR FOR PRESSURE ROLLER
63 981930 RIGHT ANCHOR FOR PRESSURE ROLLER
64 742348 MOTOR DRIVE GEAR
65 742365 WIRE CONDUIT Ø 2X5
66 742590 GEARS
67 981278 AUTOTRASFO KIT
68 981632 DIODE KIT
69 981633 KIT IGBT + PULSE TRANSFORMER
70 981703 REEL KIT 15KG
71 981740 COVER KIT
72 981814 COMPLETE PCB KIT
73 981770 BOTTOM KIT
74 981815 FRONT PANEL KIT
75 981885 CONTROL BOARD KIT
76 981816 KIT FRONT PANEL CARD
77 990046 KIT CABLE BUSHING + RING NUT
78 990097 GAS HOSE KIT
79 122434 FUSE
80 645673 BOTTLE-HOLDER BRACKET
Torch Parts Pag.2
1 722007 RING NUT
2 722013 LINER NUT
3 742175 TORCH CONNECTION
4 722682 CONTACT TIP D. 1,2 MM FE
4 722681 CONTACT TIP D. 1 MM FE
4 722680 CONTACT TIP D. 0,8 MM
4 722553 CONTACT TIP D. 1,2 MM AL/FLUX
4 722552 CONTACT TIP D. 1 MM AL/FLUX
4 722415 CONTACT TIP D. 0,6 MM FE
5 722516 WIRE GUIDE HOSE D. 1-1,2 MM 3 M AL
5 722437 WIRE GUIDE HOSE Ø 0,6-0,8 MM 3 M BLUE
5 722689 WIRE GUIDE HOSE Ø 1,0-1,2 3 M RED
6 722684 CYLINDRICAL NOZZLE
6 722685 CONICAL NOZZLE
6 722686 THIN HEADED NOZZLE
6 722687 SPOT WELDING NOZZLE D. 18 MM
7 722598 WIRE GUIDE LOCKING NIPPLES
8 722601 OR RING
8 722606 OR RING
10 722600 WIRE GUIDE LOCKING TUBE
11 722688 GAS DIFFUSER
13 722690 NOZZLE SPRING
15 722693 TORCH CONNECTION INSULATION
16 722696 SWAN NECK
17 722441 TORCH ASSY
18 742171 TORCH RING NUT
19 742173 TORCH HOLDER + SPRING
20 742174 TORCH SPRING
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Electromig 300 Synergic - 816065
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Electromig 300 S

Diagram Electromig 300 S

Download (219.02KB)

You might also like

Contact Nozzle mm 0,6X25 for Wire Weldings Telwin
Telwin s.p.a. SKU: 722415
Contact Nozzle mm 0,6X25 for Wire Weldings Telwin
Contact Nozzle mm 0,6X25 for Wire Weldings Telwin Genuine part Telwin, Contact nozzle Diameter mm 0,6X25 for Copper Wire, Welding Machines Telwin Can be used for the following Torches: - Torch MASTERMIG 220/2 230-400V - Torch...
AVAILABLE €1.59
Details
Gas Diffuser for Flux Welding Machine Telwin
Telwin s.p.a. SKU: 722688
Gas Diffuser for Inverter Telwin TELMIG 281/2 TURBO
Gas Diffuser for Inverter Telwin TELMIG 281/2 TURBO Original spare part Telwin, Gas Diffuser for Inverter TELMIG 281/2 TURBO - DIGITAL MIG 330 - MASTER MIG 270 - MASTER MIG 300 - TECHNOMIG 225. Part for the following products: -...
AVAILABLE €4.89
Details
Spot Welding Cilindrical Nozzle for Wire Weldings Telwin
Telwin s.p.a. SKU: 722687
Spot Welding Cilindrical Nozzle for Wire Weldings Telwin
Spot Welding Cilindrical Nozzle for Wire Weldings Telwin Genuine part TELWIN, Spot Welding Cilindrical nozzle for wire welding machine Torch Telwin.   Can be used on the following Torches: - Torch MASTERMIG 300 230-400V - Torch...
AVAILABLE €13.24
Details
Cilindrical Nozzle 18 mm for Wire Weldings Telwin
Telwin s.p.a. SKU: 722684
Cilindrical Nozzle 18 mm for Wire Weldings Telwin
Cilindrical Nozzle 18 mm for Wire Weldings Telwin Genuine part TELWIN, Insulated Cilindrical nozzle 18 mm for wire welding machine Torch Telwin. - Diameter : mm 18 - Codes : 722684(mm18)  Can be used on the following Torches: - Torch...
AVAILABLE €6.26
Details
Torches Spring for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 742174
Torch Spring for Torches Telwin MIG-MAG
Torch Spring for Torches Telwin MIG-MAG Genuine replacement part TELWIN, Cable reinforced Spring for Torches MIG - MAG. Part for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch...
AVAILABLE €5.42
Details
Torch Body for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722441
Torch Body for Torches Telwin MIG-MAG
Torch Body for Torches Telwin MIG-MAG Genuine part TELWIN, Torch Body for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V - Torch...
AVAILABLE €26.35
Details
Body Torch Insuleting for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722693
Body Torch Insuleting for Torches Telwin MIG-MAG
Body Torch Insuleting for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torches Insuleting for Torches MIG - MAG.  Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG...
Last items in stock €4.99
Details
Nozzle Spring for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722690
Nozzle Spring for Torches Telwin MIG-MAG
Nozzle Spring for Torches Telwin MIG-MAG Genuine replacement part TELWIN, Nozzle Spring for Torches MIG - MAG. Part for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400...
AVAILABLE €2.63
Details
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722598
Sleeve Lock Nipples for Torches Telwin MIG-MAG
Sleeve Lock Nipples for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nipples for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400...
AVAILABLE €4.14
Details
Sleeve Lock Hose for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722600
Sleeve Lock Hose for Torches Telwin MIG-MAG
Sleeve Lock Hose for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Hose for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2 230-400V - MASTERMIG 400 230-400V - SUPERMIG 380...
AVAILABLE €21.27
Details
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722437
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 0.6-0.8 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Wire Guide Sleeve mm 1.0-1.2 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722689
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 1.0-1.2 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Telwin s.p.a. SKU: 742064
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG Original part Telwin, Front Wire Guide for welding Machines, MASTERMIG 220-270-300-400 / 2 - SUPERMIG 380-480-580 - DIGITAL MIG 220-222-330 - INVERPULSE 320-425-625. Part for the...
Last items in stock €8.21
Details
Gas Hose Kit for Inverter Telwin MIG-MAG
Telwin s.p.a. SKU: 990097
Gas Hose Kit for Inverter Telwin MIG-MAG
Gas Hose Kit for Inverter Telwin MIG-MAG Genuine part TELWIN, Gas Hose Kit for Inverter Telwin BIMAX 4.135 - 4.165 - 4.195 TURBO 230V - MASTERMIG 270/2 - 300 - 400 Parts for the following products: -...
Last items in stock €6.90
Details
Conical Nozzle mm 15 for Wire Weldings Telwin
Telwin s.p.a. SKU: 722685
Conical Nozzle mm 15 for Wire Weldings Telwin
Conical Nozzle mm 15 for Wire Weldings Telwin Genuine part TELWIN, Conical nozzle mm 15 for wire welding machine Torch Telwin. Part for the following Torches: - Torche MASTERMIG 270/2 230-400V - Torche TELMIG 281/2 TURBO 230V - Torche...
AVAILABLE €4.17
Details
Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin
Telwin s.p.a. SKU: 722241
Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin
Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin Genuine spare part Telwin, Feed Roll mm 1,2/1,6 FE for Telwin Flux Welding Machines SUPERMIG - MASTERMIG - DIGITAL MIG - DIGITAL SUPERMIG - INVERPULSE - For wire mm 1,2/1,6 FE
AVAILABLE €15.31
Details
Contact Nozzle mm 0,8x28 for Wire Welding Telwin
Telwin s.p.a. SKU: 722680
Contact Nozzle mm 0,8x28 for Wire Welding Telwin
Contact Nozzle mm 0,8x28 for Wire Welding Telwin Genuine part Telwin, Contact nozzle Diameter mm 0,8x28 for Copper Wire, Welding Machines Telwin Can be used for the following Torches: - Torch MASTERMIG 270/2 230-400V  - Torch TELMIG...
AVAILABLE €2.06
Details
Contact Nozzle mm 1,0x28 for Wire Welding Telwin
Telwin s.p.a. SKU: 722681
Contact Nozzle mm 1,0x28 for Wire Welding Telwin
Contact Nozzle mm 1,0x28 for Wire Welding Telwin Genuine part Telwin, Contact nozzle Diameter mm 1,0x28 for Copper Wire, Welding Machines Telwin Can be used for the following Torches: - Torch MASTERMIG 270/2 230-400V  - Torch TELMIG...
AVAILABLE €2.06
Details
Contact Nozzle mm 1,2x28 for Wire Welding Telwin
Telwin s.p.a. SKU: 722682
Contact Nozzle mm 1,2x28 for Wire Welding Telwin
Contact Nozzle mm 1,2x28  for Wire Welding Telwin Genuine part Telwin, Contact Nozzle Diameter mm 1,2x28 for Copper Wire, Welding Machines Telwin Can be used for the following Torches: - Torch MASTERMIG 270/2 230-400V  - Torch...
AVAILABLE €2.06
Details
Telwin Mastermig 300 Torch Connection
Telwin s.p.a. SKU: 723229
Telwin Mastermig 300 Torch Connection
Telwin Mastermig 300 Torch Connection Genuine spare part Telwin, Torch Connection, MIG for welding, MASTERMIG 300 - MASTERMIG 400 - MASTERMIG 500. Part for the following items: - ...
on 10 Business Days Approx €37.02
Details
Superior Plasma 70 Resistence 22R 5W
Telwin s.p.a. SKU: 111327
Superior Plasma 70 Resistance 22R 5W
Telwin Superior Plasma 70 Resistance 22R 5W 5% Genuine spare Telwin, Resistance 22R 5W 5% for Inverter Superior Plasma 70 230V/400V + ACC. - 816170. Part for the following products: -  Superior Plasma 70 230V/400V...
build View Spare Parts
Telwin Mastermig 300 Wire Conduit
Telwin s.p.a. SKU: 742365
Telwin Mastermig 300 Wire Conduit
Telwin Welding Mastermig 300 Wire Conduit Genuine part Telwin, Wire Conduit Ø 2X5 for weldings Mastermig 300 - Electromig 220 Synergic. Part for the following products: -  Electromig 220...
AVAILABLE €6.49
Details
Comments (0)
