Telwin Spare Parts for Welding Technomig 223 Treo Synergic 230V

SKU: Technomig 223 Treo Syn. 816058
€2.03
VAT included

Telwin Spare Parts for Welding Technomig 223 Treo Synergic 230V

Telwin Genuine spare parts or replacement parts for to fix Welding Technomig 223 Treo Synergic - 816058.

Technomig 223 Treo Syn. 816058
Telwin Spare Parts for Welding Technomig 223 Treo Synergic 230V
  • Telwin Spare Parts for Welding Technomig 223 Treo Synergic 230V
  • Telwin Spare Parts for Welding Technomig 223 Treo Synergic 230V
  • Telwin Spare Parts for Welding Technomig 223 Treo Synergic 230V
Telwin s.p.a.

Telwin Spare Parts for Welding Technomig 223 Treo Synergic 230V

SKU: Technomig 223 Treo Syn. 816058 Condition: New
€2.03
VAT included

Telwin Spare Parts for Welding Technomig 223 Treo Synergic 230V

Telwin Genuine spare parts or replacement parts for to fix Welding Technomig 223 Treo Synergic - 816058.

Technomig 223 Treo Syn. 816058
settings 93 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
91 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

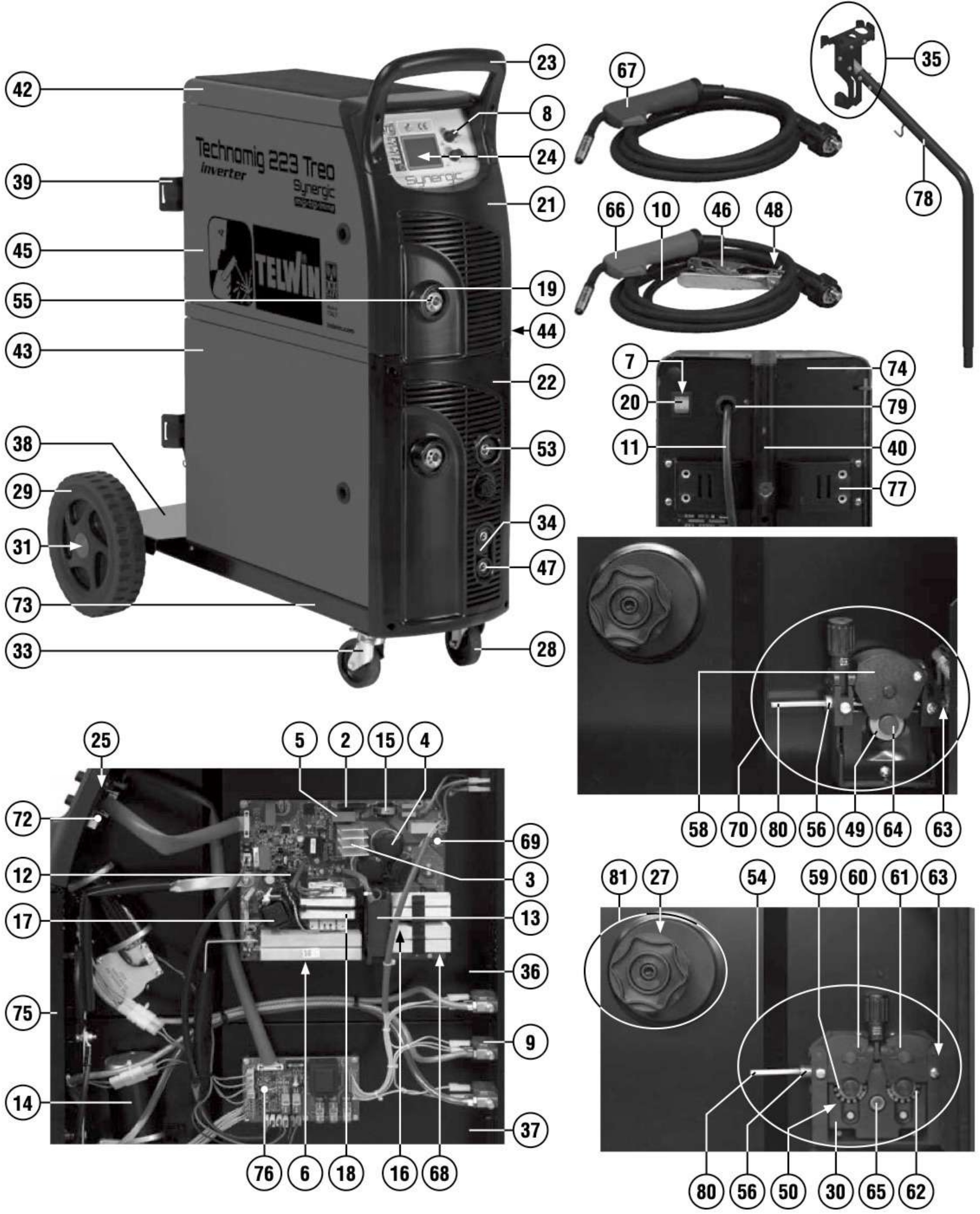

Esploso pagina 1
Pos. Item Price Buy
2
 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 112048 Wire Resistance for Inverter Telwin Force 145 - 165 - 195 €2.91
3
 photo_cameraImage coming soon 112357 PHASE RECTIFIER €12.21
4
 Capacitor for Inverter Telwin Force 195 - Technology 236 HD 112694 Capacitor for Inverter Telwin Force 195 - Technology 236 HD €10.81
5
 Relay 14VDC for Inverter Telwin 116320 Relay 14VDC for Inverter Telwin €5.42
6
 Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S 116839 Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S €7.24
7
 Green Switch for Inverter Telwin Tecnica 211/S-Technology 236 HD 121248 Green Switch for Inverter Telwin Tecnica 211/S-Technology 236 HD €5.42
8
 photo_cameraImage coming soon 121315 ENCODER KNOB D.15 €2.12
9
 photo_cameraImage coming soon 121800 ELECTROVALVE €20.26
10
 photo_cameraImage coming soon 123437 CABLE 16 MMQ 3 M - 25 €23.01
11
 photo_cameraImage coming soon 132157 MAINS CABLE €12.80
12
 Power Adapter for Inverter Telwin 152230 Power Adapter for Inverter Telwin €7.34
13
 Fan for Inverter Technology-Technomig 152269 Fan for Inverter Technology-Technomig €17.98
14
 Gearmotor for Wire Welders Telwin Mastermig 153039 Gearmotor for Wire Welders Telwin Mastermig €49.90
15
 Inductance Filter for Inverter Telwin 164741 Inductance Filter for Inverter Telwin €6.99
16
 photo_cameraImage coming soon 169700 TRANSFORMER X FLYBACK €13.78
17
 photo_cameraImage coming soon 169808 CHOKE OUTPUT €31.66
18
 photo_cameraImage coming soon 169822 POWER TRAFO €33.63
19
 Connection Protection Torch for Welders Telwin Mastermig-Supermig 312105 Connection Protection Torch for Welders Telwin Mastermig-Supermig €11.14
21
 photo_cameraImage coming soon 321137 UPPER FRONT PANEL €29.67
22
 photo_cameraImage coming soon 321138 LOWER FRONT PANEL €17.84
23
 photo_cameraImage coming soon 321165 HANDLE SET €19.00
24
 photo_cameraImage coming soon 321194 SHIELD €2.31
25
 photo_cameraImage coming soon 321196 CARD HOLDER €7.91
28
 Wheel D.80MM for Telwin Welding Machines 322245 Wheel D.80MM for Telwin Welding Machines €9.44
29
 photo_cameraImage coming soon 322772 WHEEL €13.12
30
 photo_cameraImage coming soon 322814 CYLINDER €71.68
31
 photo_cameraImage coming soon 422940 WHEELS AXLE €4.75
33
 photo_cameraImage coming soon 484688 SWIVEL SUPPORT + BRAKE €7.09
34
 photo_cameraImage coming soon 645623 DINSE HOLDER €3.76
35
 photo_cameraImage coming soon 982077 INSULATOR KIT €40.54
36
 photo_cameraImage coming soon 645667 DIAPHRAGM €28.70
37
 photo_cameraImage coming soon 645668 LOWER DIAPHRAGM €28.70
38
 photo_cameraImage coming soon 645672 BOTTLE HOLDER €22.79
39
 photo_cameraImage coming soon 645674 SMALL BOTTLE-HOLDER BRACKET €4.68
40
 photo_cameraImage coming soon 645677 LOWER HOLDER €12.11
42
 photo_cameraImage coming soon 981740 COVER KIT €31.60
43
 photo_cameraImage coming soon 651212 LOWER SIDE DOOR €29.80
44
 photo_cameraImage coming soon 656165 SIDE PANEL €37.22
45
 photo_cameraImage coming soon 656171 DOOR €22.38
46
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
47
 Socket DX 25 for Telwin Welding Machine 712035 Socket DX 25 for Telwin Welding Machine €3.47
48
 Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
49
 Feed Roll For wire mm 0,6/0,8 FE for Flux Welding Telwin 722112 Feed Roll For wire mm 0,6/0,8 FE for Flux Welding Telwin €13.93
50
 photo_cameraImage coming soon 742576 FEED ROLL 4R 0,6FE-0,8FE €14.59
51
 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin 722227 Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin €19.49
52
 Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin 722241 Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin €15.31
53
 Connection Torch MaxMig for Wire Weldings Telwin TELMIG 723051 Connection Torch MaxMig for Wire Weldings Telwin TELMIG €21.50
54
 photo_cameraImage coming soon 981928 TRAIN 4 ROLLERS €113.51
55
 Telwin Mastermig 300 Torch Connection 723229 Telwin Mastermig 300 Torch Connection €37.02
56
 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG 742064 Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG €8.21
57
 photo_cameraImage coming soon 742090 FEED ROLL D. 0,8-1 MM AL €19.72
58
 Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG 742096 Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG €41.69
59
 photo_cameraImage coming soon 742166 ADAPTER €19.76
60
 photo_cameraImage coming soon 981929 ALWAYS LEFT CONTRACTOR €17.18
61
 photo_cameraImage coming soon 981930 RIGHT RIGHT CONTRAST €17.18
62
 photo_cameraImage coming soon 742348 MOTOR DRIVE GEAR €37.76
63
 Telwin Mastermig 300 Wire Conduit 742365 Telwin Mastermig 300 Wire Conduit €6.49
64
 Roller Fixing Screw for Welding Machines Telwin 742397 Roller Fixing Screw for Welding Machines Telwin €1.29
65
 photo_cameraImage coming soon 742590 GEAR €4.10
66
 photo_cameraImage coming soon 742650 MT15 MIG TORCH 3M €88.85
67
 photo_cameraImage coming soon 742660 MT15 MIG TORCH 3M BLUE €88.85
68
 Kit IGBT + Diode for Inverter Telwin Force 195 - Tecnica 211/S 980990 Kit IGBT + Diode for Inverter Telwin Force 195 - Tecnica 211/S €46.15
69
 Telwin Technomig 215 DUAL SYNERGIC PCB Kit 981494 Telwin Technomig 215 DUAL SYNERGIC PCB Kit €366.26
70
 photo_cameraImage coming soon 981496 KIT 2 ROLLS WIREFEEDER €31.66
72
 photo_cameraImage coming soon 981641 KIT FRONT PANEL CARD €98.71
73
 photo_cameraImage coming soon 981642 BOTTOM KIT €44.64
74
 photo_cameraImage coming soon 981643 BACK PANEL KIT €26.73
75
 photo_cameraImage coming soon 981644 FRONT PANEL KIT €32.65
76
 photo_cameraImage coming soon 981645 AUXILIARY BOARD KIT €75.05
77
 photo_cameraImage coming soon 981646 HOLDING BRACKET KIT €12.31
78
 photo_cameraImage coming soon 981647 UPPER HOLDER KIT €37.22
79
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
80
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
81
 photo_cameraImage coming soon 981703 REEL KIT 15KG €15.92
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

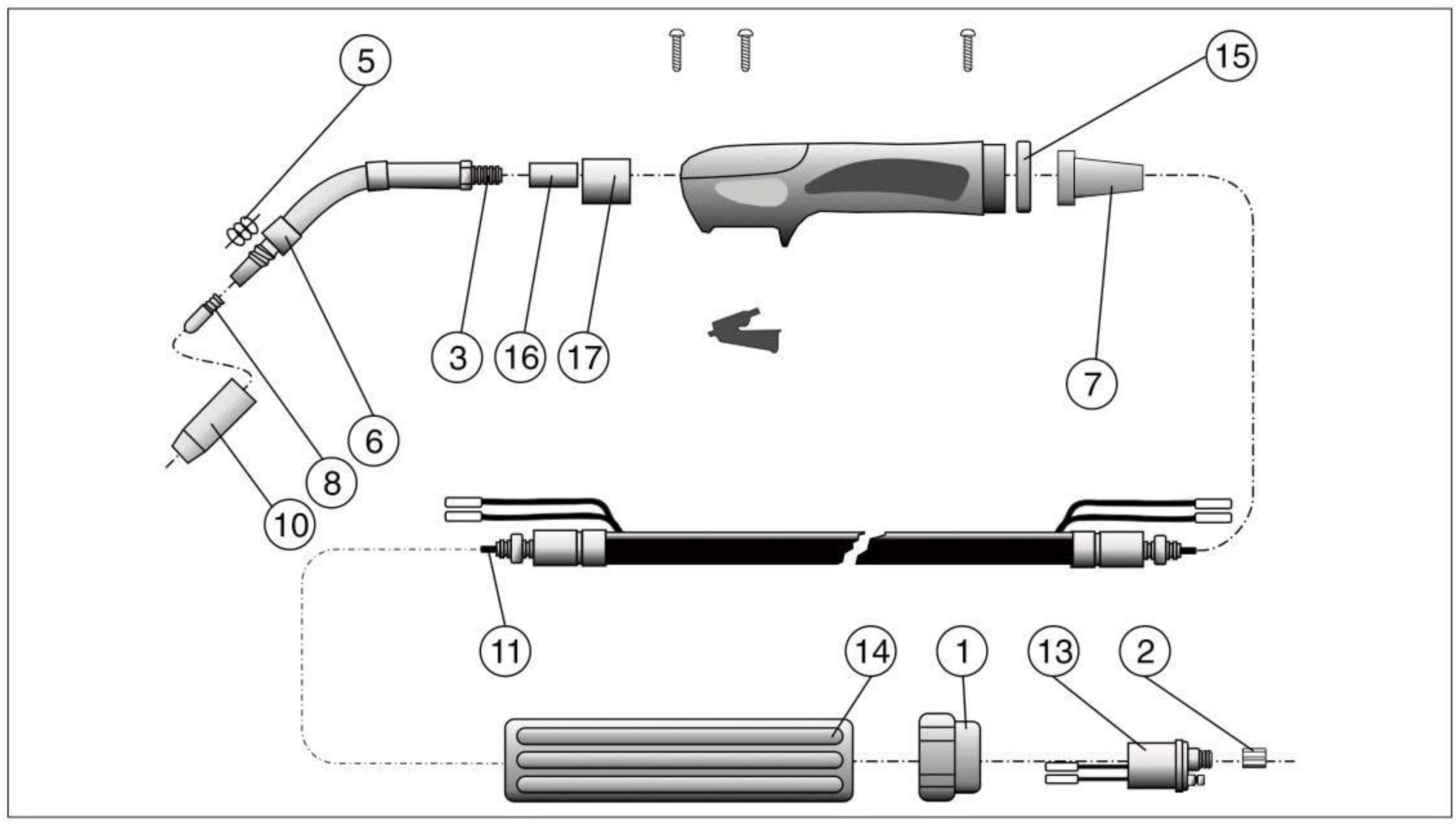

Esploso pagina 2
Pos. Item Price Buy
1
 Torch Ring Nut for Torches Telwin MIG-MAG 722007 Torch Ring Nut for Torches Telwin MIG-MAG €9.91
2
 Sleeve Lock Nut for Torches Telwin MIG-MAG 722013 Sleeve Lock Nut for Torches Telwin MIG-MAG €3.92
3
 photo_cameraImage coming soon 722305 SWAN NECK DIFFUSER €17.75
5
 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG 722319 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG €1.38
6
 Diffuser Insulation for Inverter Telwin Mastermig 220/2 722326 Diffuser Insulation for Inverter Telwin Mastermig 220/2 €2.47
7
 photo_cameraImage coming soon 742172 TORCH HOLDER €7.07
8
 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin 722415 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin €1.59
8
 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin 722416 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin €1.59
10
 Cilindrical Nozzle 16 mm for Wire Weldings Telwin 722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin €3.04
10
 Conical Nozzle mm 12 for Wire Weldings Telwin 722423 Conical Nozzle mm 12 for Wire Weldings Telwin €4.17
11
 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG 722437 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG €9.91
11
 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG 722689 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG €9.91
13
 Torch Body for Torches Telwin MIG-MAG 722441 Torch Body for Torches Telwin MIG-MAG €26.35
14
 photo_cameraImage coming soon 742175 TORCH CONNECTION €13.98
15
 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 742171 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 €1.34
16
 photo_cameraImage coming soon 722325 TORCH CONNECTION €3.27
17
 Body Torch Insuleting for Torches Telwin MIG-MAG 722693 Body Torch Insuleting for Torches Telwin MIG-MAG €4.99

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Technomig 223 Treo Synergic 230V

Telwin Genuine spare parts or replacement parts for to repair Welding Technomig 223 Treo Synergic - 816058.

Open PDF Diagram, check your spare part number position and then select it in the following table.
Technomig 223 Treo Syn. 816058

Welding Technomig 223 Treo SYnergic - 816058 Pag.1
# Part Num. Description
2 112048 RESISTANCE
3 112357 SINGLE-PHASE RECTIFIER
4 112694 CAPACITOR
5 116320 RELAIS
6 116839 DIODE
7 121248 SWITCH
8 121315 ENCODER KNOB D.15
9 121800 ELECTROVALVE
10 123437 CABLE 16 MMQ 3 M - 25
11 132157 MAINS CABLE
12 152230 CURRENT TRANSFORMER
13 152269 FAN
14 153039 MOTOREDUCER 24V DC
15 164741 FILTER INDUCTANCE
16 169700 TRANSFORMER X FLYBACK
17 169808 OUTPUT INDUCTANCE
18 169822 POWER TRAFO
19 312105 TORCH CONNECTION PROTECTION
20 122353 SWITCH COVER
21 321137 UPPER FRONT PANEL
22 321138 LOWER FRONT PANEL
23 321165 HANDLE SET
24 321194 SHIELD
25 321196 CARD HOLDER
27 321210 REEL SPACER
28 322245 WHEEL
29 322772 WHEEL
30 322814 COVER
31 422940 WHEELS AXLE
33 484688 SWIVEL SUPPORT + BRAKE
34 645623 DINSE HOLDER
35 982077 INSULATOR KIT
36 645667 DIAPHRAGM
37 645668 LOWER DIAPHRAGM
38 645672 BOTTLE HOLDER
39 645674 SMALL BOTTLE-HOLDER BRACKET
40 645677 LOWER HOLDER
42 981740 COVER KIT
43 651212 LOWER SIDE DOOR
44 656165 SIDE PANEL
45 656171 DOOR
46 712030 TOLEDO 250 WORK CLAMP 250A
47 712035 SOCKET DX 25
48 712039 PLUG DX 25
49 722112 FEED ROLL D. 0,6-0,8 MM FE
50 742576 FEED ROLL 4R 0,6FE-0,8FE
51 722227 FEED ROLL D. 0,8-1 MM FE
52 722241 FEED ROLL D. 1,2-1,6 MM FE
53 723051 TORCH CONNECTION
54 981928 4 ROLL WIREFEEDER
55 723229 TORCH CONNECTION
56 742064 WIRE GUIDE INLET
57 742090 FEED ROLL D. 0,8-1 MM AL
58 742096 ANCHOR FOR PRESSURE ROLLER
59 742166 ADAPTER
60 981929 LEFT ANCHOR FOR PRESSURE ROLLER
61 981930 RIGHT ANCHOR FOR PRESSURE ROLLER
62 742348 MOTOR DRIVE GEAR
63 742365 WIRE CONDUIT Ø 2X5
64 742397 ROLLERFIXING SCREW
65 742590 GEARS
66 742650 MT15 MIG TORCH 3M
67 742660 MT15 MIG TORCH 3M BLUE
68 980990 IGBT + DIODE KIT
69 981494 COMPLETE PCB KIT
70 981496 KIT 2 ROLLS WIREFEEDER
72 981641 KIT FRONT PANEL CARD
73 981642 BOTTOM KIT
74 981643 BACK PANEL KIT
75 981644 FRONT PANEL KIT
76 981645 AUXILIARY BOARD KIT
77 981646 HOLDING BRACKET KIT
78 981647 UPPER HOLDER KIT
79 990046 KIT CABLE BUSHING + RING NUT
80 990097 GAS HOSE KIT
81 981703 REEL KIT 15KG
Torch Parts Pag.2
1 722007 RING NUT
2 722013 LINER NUT
3 722305 SWAN NECK DIFFUSER
5 722319 NOZZLE SPRING
6 722326 DIFFUSER INSULATION
7 742172 TORCH HOLDER
8 722415 CONTACT TIP D. 0,6 MM FE
8 722416 CONTACT TIP D. 0,8 MM FE
10 722149 CYLINDRICAL NOZZLE
10 722423 CONICAL NOZZLE
11 722437 WIRE GUIDE HOSE Ø 0,6-0,8 MM 3 M BLUE
11 722689 WIRE GUIDE HOSE Ø 1,0-1,2 3 M RED
13 722441 TORCH ASSY
14 742175 TORCH CONNECTION
15 742171 TORCH RING NUT
16 722325 TORCH CONNECTION
17 722693 TORCH CONNECTION INSULATION
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Technomig 223 Treo Syn. 816058
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Technomig 223 Treo S.

Diagram Technomig 223 Treo S.

Download (197.2KB)

You might also like

Inductance Filter for Inverter Telwin
Telwin s.p.a. SKU: 164741
Inductance Filter for Inverter Telwin
Inductance Filter for Inverter Telwin Genuine spare part Telwin, Filter inductance for Welding Inverter Telwin, Force 125 - Force 145 - Force 165 - Force 195 - Tecnica 151-171-211/S - Technology 186-216 HD - Force TIG 170 DC-Lift...
Last items in stock €6.99
Details
Power Adapter for Inverter Telwin
Telwin s.p.a. SKU: 152230
Power Adapter for Inverter Telwin
Power Adapter for Inverter Telwin Power adapter, original Telwin for Welding Inverter : Force 145 - Force 165 - Force 195 - Tecnica 151-171-211 - Technology 186-216-236 HD - Force TIG 170-190 DC-Lift - Advance 187-227 MV/PFC - Force...
Last items in stock €7.34
Details
Relay 14VDC for Inverter Telwin
Telwin s.p.a. SKU: 116320
Relay 14VDC for Inverter Telwin
Relay 14VDC for Inverter Telwin Relay, original Telwin for Welding Inverter : Tecnica 151/S - Tecnica 171/S - Tecnica 211/S - Technology 186 HD - Technology 236 HD - Technology 238 CE/MPGE - Tecnica 188 MPGE - Tecnica TIG 190 DC Lift...
AVAILABLE €5.42
Details
Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S
Telwin s.p.a. SKU: 116839
Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S
Diode for Inverter Telwin Tecnica 151-S - 171-S - 211-S Original replacement part TELWIN, Diode for Inverter Tecnica 151/S - Tecnica 171/S - Tecnica 211/S - Technology 216 HD - Technology 236 HD - Force Tig 170 DC-Lift. Part for the...
AVAILABLE €7.24
Details
Fan for Inverter Technology-Technomig
Telwin s.p.a. SKU: 152269
Fan for Inverter Technology-Technomig
Fan for Inverter Technology-Technomig Original Spare Parts for Welding Machine Inverter Telwin series, - TECHNOLOGY 186 HD 230 - TECHNOLOGY 216 HD 230 - TECHNOLOGY 236 HD 230 - ADVANCE 187 MV / PFC 100-240 - ADVANCE 227 MV / PFC DC...
AVAILABLE €17.98
Details
Conical Nozzle mm 12 for Wire Weldings Telwin
Telwin s.p.a. SKU: 722423
Conical Nozzle mm 12 for Wire Weldings Telwin
Conical Nozzle mm 12 for Wire Weldings Telwin Genuine part TELWIN, Conical nozzle mm 12 for wire welding machine Torch Telwin. - Diameters avalaible : mm 12 - Codes : 722423 Can be used on the following Torches: - Torch MASTERMIG...
AVAILABLE €4.17
Details
Dinse Socket DX 25 for Telwin Welding Machine
Telwin s.p.a. SKU: 712035
Socket DX 25 for Telwin Welding Machine
Socket DX 25 for Telwin Welding Machine Genuine spare part Telwin, Socket DX 25 for Welding Machine, Tecnica Tig 160 - Technomig 215 - Master Mig 220-232 - Linear 220 - Quality 280 - Digital Mig 220-222 - Euroarc 310-322 -...
AVAILABLE €3.47
Details
Dinse Plug DX 25 for Telwin Welding Machine
Telwin s.p.a. SKU: 712039
Plug DX 25 for Telwin Welding Machine
Plug DX 25 for Telwin Welding Machine Original spare part Telwin, Plug DX 25 for Welding Machine, Tecnica Tig 190 - Technomig 215 - Master Mig 220-232 - Digital Mig 220-222 - Technology Tig 160-182-185-230. - Avalaible DX 25 - DX 50 -...
AVAILABLE €3.47
Details
Connection Torch MaxMig for Wire Weldings Telwin TELMIG
Telwin s.p.a. SKU: 723051
Connection Torch MaxMig for Wire Weldings Telwin TELMIG
Connection Torch MaxMig for Wire Weldings Telwin TELMIG Genuine spare part Telwin, Connection Torch MAX MIG, for welding, TELMIG 251/2 TURBO 230V - TELMIG 203/2 / 250/2 TURBO 230-400V - DIGITAL MIG 180/220/222 230V - TELMIG 195/2 /...
Last items in stock €21.50
Details
Gearmotor for Wire Welders Telwin Mastermig
Telwin s.p.a. SKU: 153039
Gearmotor for Wire Welders Telwin Mastermig
Gearmotor for Wire Welders Telwin Mastermig Gear motor, Genuine parts Telwin, with motor 24 V DC assy, for all models of wire welders series, Mastermig. Part for the following products: - Mastermig all type - Code: 153039 =...
Last items in stock €49.90
Details
Cilindrical Nozzle 16 mm for Wire Weldings Telwin
Telwin s.p.a. SKU: 722149
Cilindrical Nozzle 16 mm for Wire Weldings Telwin
Cilindrical Nozzle 16 mm for Wire Weldings Telwin Genuine part TELWIN, Insuleted Cilindrical nozzle 16 mm for wire welding machine Torch Telwin. Part for the following products: - Torch TECHNOMIG 210 DUAL SYNERGIC 230V-816052 - Torch...
AVAILABLE €3.04
Details
Torch Ring Nut for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 722007
Torch Ring Nut for Torches Telwin MIG-MAG
Torch Ring Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torch Ring Nut for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V...
AVAILABLE €9.91
Details
Torch Body for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722441
Torch Body for Torches Telwin MIG-MAG
Torch Body for Torches Telwin MIG-MAG Genuine part TELWIN, Torch Body for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V - Torch...
AVAILABLE €26.35
Details
Body Torch Insuleting for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722693
Body Torch Insuleting for Torches Telwin MIG-MAG
Body Torch Insuleting for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torches Insuleting for Torches MIG - MAG.  Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG...
Last items in stock €4.99
Details
Sleeve Lock Nut for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722013
Sleeve Lock Nut for Torches Telwin MIG-MAG
Sleeve Lock Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nut for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V cod. 827003 - MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V -...
AVAILABLE €3.92
Details
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722437
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 0.6-0.8 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Wire Guide Sleeve mm 1.0-1.2 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722689
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 1.0-1.2 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG
Telwin s.p.a. SKU: 742096
Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG
Front Roller Anchor for Welding Telwin MASTERMIG-DIGITAL MIG Original parts Telwin, Front Roller Anchor for welders, MASTERMIG 220/2 - 270/2 MASTERMIG - DIGITAL MIG 220 - DIGITAL MIG 222. Parts for the following products: -...
Last items in stock €41.69
Details
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Telwin s.p.a. SKU: 742064
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG
Front Wire Guide for Welding Telwin SUPERMIG-MASTERMIG Original part Telwin, Front Wire Guide for welding Machines, MASTERMIG 220-270-300-400 / 2 - SUPERMIG 380-480-580 - DIGITAL MIG 220-222-330 - INVERPULSE 320-425-625. Part for the...
Last items in stock €8.21
Details
Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin
Telwin s.p.a. SKU: 722227
Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin
Feed Roll For wire mm 0,8/1,0 FE for Flux Welding Telwin Genuine spare part Telwin, Feed Roll For wire mm 0,8/1,0 FE for Telwin Flux Welding Machines - For wire mm 0,8/1,0 FE - For welding : SUPERMIG 380-480-580 230/400V -...
AVAILABLE €19.49
Details
Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin
Telwin s.p.a. SKU: 722241
Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin
Feed Roll mm 1,2/1,6 FE for Flux Welding Telwin Genuine spare part Telwin, Feed Roll mm 1,2/1,6 FE for Telwin Flux Welding Machines SUPERMIG - MASTERMIG - DIGITAL MIG - DIGITAL SUPERMIG - INVERPULSE - For wire mm 1,2/1,6 FE
AVAILABLE €15.31
Details
Contact Nozzle mm 0,8X25 for Wire Weldings Telwin
Telwin s.p.a. SKU: 722416
Contact Nozzle mm 0,8X25 for Wire Weldings Telwin
Contact Nozzle mm 0,8X25 for Wire Weldings Telwin Genuine part Telwin, Contact nozzle Diameter mm 0,8X25 for Copper Wire, Welding Machines Telwin Can be used for the following Torches: - Torch MASTERMIG 220/2...
Last items in stock €1.59
Details
Diffuser Diffuser for Inverter Telwin Mastermig 220/2
Telwin s.p.a. SKU: 722326
Diffuser Insulation for Inverter Telwin Mastermig 220/2
Diffuser Insulation for Inverter Telwin Mastermig 220/2 Original spare part Telwin, Diffuser Insulation for Inverter Mastermig 220/2 - Mastermig 232 Duplex - Digital Mig 180 - Digital Mig 220 Part for the following products: -...
AVAILABLE €2.47
Details
Roller Fixing Screw for Welding Machines Telwin
Telwin s.p.a. SKU: 742397
Roller Fixing Screw for Welding Machines Telwin
Roller Fixing Screw for Welding Machines Telwin Genuine spare part Telwin, Roller Fixing Screw for Welding Machines Mastermig - Supermig - DIGITAL SUPERMIG - INVERPULSE. - Part for the following products: -  Mastermig 220/2 -...
AVAILABLE €1.29
Details
Telwin Mastermig 300 Torch Connection
Telwin s.p.a. SKU: 723229
Telwin Mastermig 300 Torch Connection
Telwin Mastermig 300 Torch Connection Genuine spare part Telwin, Torch Connection, MIG for welding, MASTERMIG 300 - MASTERMIG 400 - MASTERMIG 500. Part for the following items: - ...
on 10 Business Days Approx €37.02
Details
Telwin Technomig 215 DUAL SYNERGIC PCB Kit
Telwin s.p.a. SKU: 981494
Telwin Technomig 215 DUAL SYNERGIC PCB Kit
Telwin Technomig 215 DUAL SYNERGIC PCB Kit Complete Genuine part Telwin, PCB Kit Complete for Technomig 215 DUAL SYNERGIC 230V - Technomig 223 Treo Synergic. Part for the following products: - Technomig 223 Treo Synergic - 816058 -...
Last items in stock €366.26
Details
Telwin Mastermig 300 Wire Conduit
Telwin s.p.a. SKU: 742365
Telwin Mastermig 300 Wire Conduit
Telwin Welding Mastermig 300 Wire Conduit Genuine part Telwin, Wire Conduit Ø 2X5 for weldings Mastermig 300 - Electromig 220 Synergic. Part for the following products: -  Electromig 220...
AVAILABLE €6.49
Details
Comments (0)
