Telwin s.p.a.

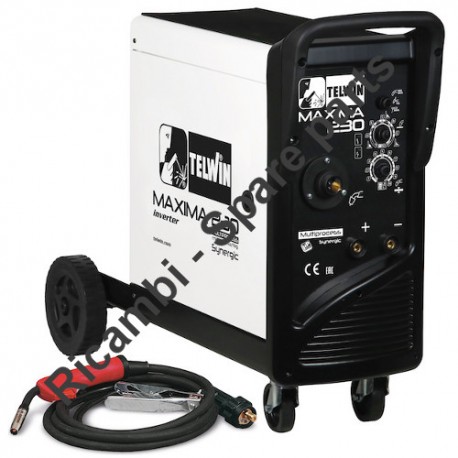

Telwin Spare Parts for Welding Inverter MAXIMA 230 Synergic

SKU: MAXIMA 230 Synergic - 816088 Condition: New
€1.83
VAT included

Telwin Spare Parts for Welding Inverter MAXIMA 230 Synergic

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter MAXIMA 230 Synergic - 816088.
Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT inverter wire welding machine.

MAXIMA 230 Synergic - 816088
settings 60 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
60 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

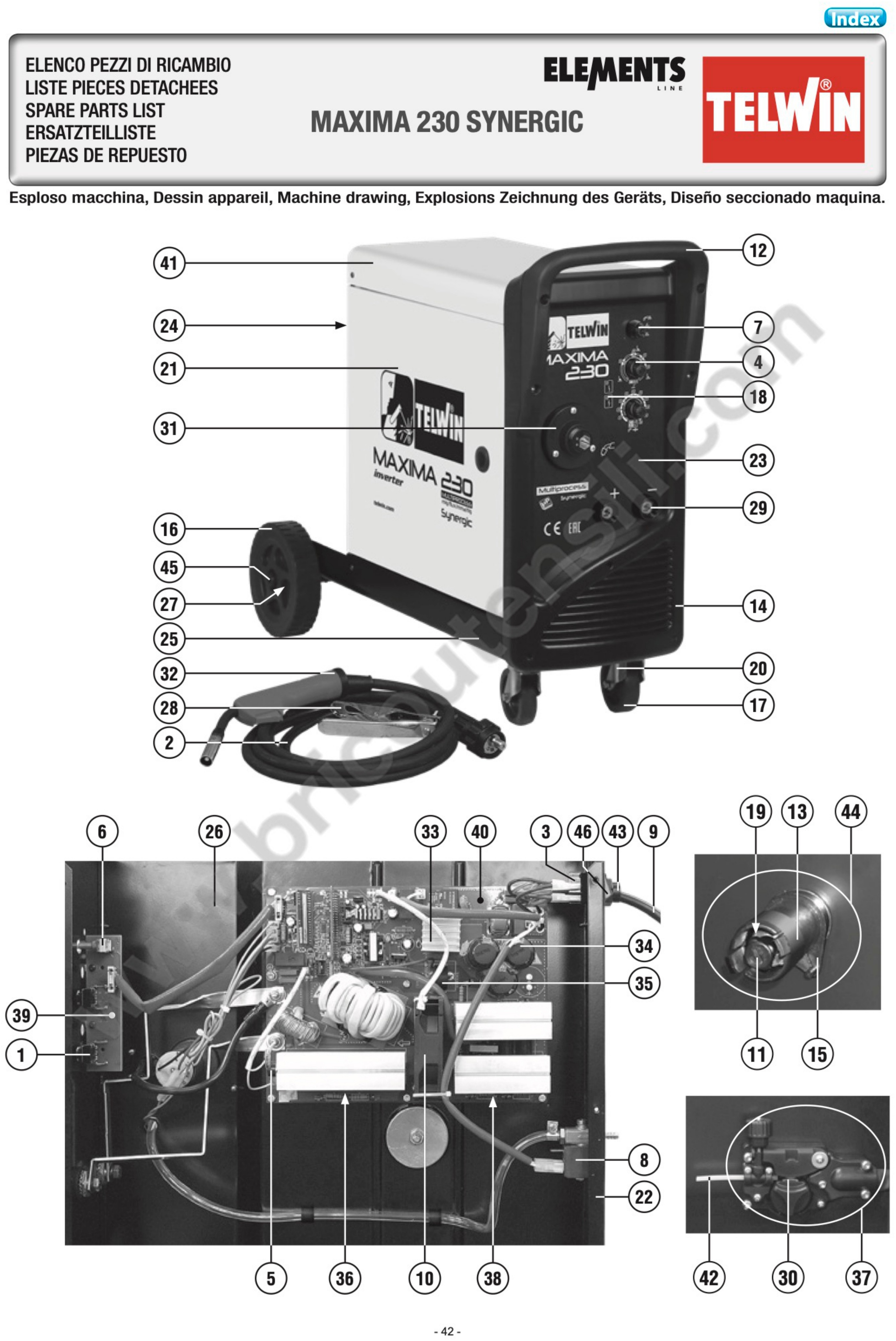

Esploso pagina 1
Pos. Item Price Buy
1
 Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €4.03
2
 photo_cameraImage coming soon 120602 CABLE 16 MMQ 1,8 M - 25 €16.11
3
 Green Switch for Inverter Telwin Tecnica 211/S-Technology 236 HD 121248 Green Switch for Inverter Telwin Tecnica 211/S-Technology 236 HD €5.42
4
 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex 121394 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex €0.40
5
 photo_cameraImage coming soon 121748 THERMOSTAT €3.09
6
 photo_cameraImage coming soon 121749 SWITCH €2.15
8
 photo_cameraImage coming soon 121800 ELECTROVALVE €20.26
9
 photo_cameraImage coming soon 132157 MAINS CABLE €12.80
10
 Fan for Inverter Telwin Infinity 170 152293 Fan for Inverter Telwin Infinity 170 €13.36
11
 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG 312137 Reel Kit Handbill for Welding Telwin MASTERMIG-DIGITAL MIG €16.94
12
 photo_cameraImage coming soon 312408 HANDLE €19.36
14
 photo_cameraImage coming soon 321296 BEVEL GEAR €89.34
15
 photo_cameraImage coming soon 322081 REEL €16.47
16
 Fixed Wheel D.175MM for Telwin Welding Machines 322201 Fixed Wheel D.175MM for Telwin Welding Machines €15.80
17
 Wheel D.80MM for Telwin Welding Machines 322245 Wheel D.80MM for Telwin Welding Machines €9.44
18
 Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.43
19
 Reel Spring for Welding Telwin MASTERMIG 452057 Reel Spring for Welding Telwin MASTERMIG €2.61
20
 photo_cameraImage coming soon 484688 SWIVEL SUPPORT + BRAKE €7.09
21
 photo_cameraImage coming soon 617530 DOOR €10.43
22
 photo_cameraImage coming soon 642662 BACK PANEL €11.00
23
 photo_cameraImage coming soon 642663 FRONT PANEL €18.41
24
 photo_cameraImage coming soon 645673 BOTTLE-HOLDER BRACKET €23.29
25
 photo_cameraImage coming soon 982031 BOTTOM KIT €24.51
26
 photo_cameraImage coming soon 645843 DIAPHRAGM €12.66
27
 photo_cameraImage coming soon 681065 WHEELS AXLE €1.56
28
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
29
 Socket DX 25 for Telwin Welding Machine 712035 Socket DX 25 for Telwin Welding Machine €3.47
30
 Feed Roll For Wire mm 0,6/0,8 FE for Welding Telwin Telmig 722019 Feed Roll For Wire mm 0,6/0,8 FE for Welding Telwin Telmig €2.53
31
 Connection Torch MaxMig for Wire Weldings Telwin TELMIG 723051 Connection Torch MaxMig for Wire Weldings Telwin TELMIG €21.50
32
 Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG 742180 Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG €94.31
33
 Telwin Infinity 180 Single Phase Bridge Kit 981581 Telwin Infinity 180 Single Phase Bridge Kit €6.08
34
 photo_cameraImage coming soon 981584 CONDENSER KIT SNAP-IN €24.98
35
 Telwin Maxima 190 Synergic Kit Mosfet 981585 Telwin Maxima 190 Synergic Kit Mosfet €5.36
36
 photo_cameraImage coming soon 981593 DIODE KIT €9.90
37
 photo_cameraImage coming soon 981831 MOTOR KIT €48.90
38
 photo_cameraImage coming soon 982027 NEEDLE BEARING (HK1010) €17.12
39
 photo_cameraImage coming soon 982028 FRONT PANEL CARD KIT €29.28
40
 photo_cameraImage coming soon 982029 COMPLETE CONTROL PCB KIT €227.00
41
 photo_cameraImage coming soon 982030 COVER KIT €20.36
42
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
43
 photo_cameraImage coming soon 990046 KIT CABLE BUSHING + RING NUT €8.93
44
 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG 990264 Reel Kit for Welding Telwin MASTERMIG-DIGITAL MIG €18.45
45
 Wheels Lock Cap for Inverter Welding Telwin 322102 Wheels Lock Cap for Inverter Welding Telwin €0.45
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 Torch Ring Nut for Torches Telwin MIG-MAG 722007 Torch Ring Nut for Torches Telwin MIG-MAG €9.91
2
 Sleeve Lock Nut for Torches Telwin MIG-MAG 722013 Sleeve Lock Nut for Torches Telwin MIG-MAG €3.92
3
 photo_cameraImage coming soon 722305 SWAN NECK DIFFUSER €17.75
5
 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG 722319 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG €1.38
6
 Diffuser Insulation for Inverter Telwin Mastermig 220/2 722326 Diffuser Insulation for Inverter Telwin Mastermig 220/2 €2.47
7
 photo_cameraImage coming soon 742172 TORCH HOLDER €7.07
8
 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin 722415 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin €1.59
8
 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin 722416 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin €1.59
10
 Cilindrical Nozzle 16 mm for Wire Weldings Telwin 722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin €3.04
10
 Conical Nozzle mm 12 for Wire Weldings Telwin 722423 Conical Nozzle mm 12 for Wire Weldings Telwin €4.17
11
 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG 722437 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG €9.91
11
 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG 722689 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG €9.91
13
 Torch Body for Torches Telwin MIG-MAG 722441 Torch Body for Torches Telwin MIG-MAG €26.35
14
 photo_cameraImage coming soon 742175 TORCH CONNECTION €13.98
15
 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 742171 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 €1.34
16
 photo_cameraImage coming soon 722325 TORCH CONNECTION €3.27
17
 Body Torch Insuleting for Torches Telwin MIG-MAG 722693 Body Torch Insuleting for Torches Telwin MIG-MAG €4.99

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter MAXIMA 230 Synergic

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter MAXIMA 230 Synergic - 816088.

Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT inverter wire welding machine.
It allows great versatility in the use of various types of materials (steel, stainless steel, aluminium) and in all possible applications, from maintenance to installation works.
The SYNERGIC adjustment of the welding parameters makes the products easy to use and grants excellent results, always, also for the less experienced operator.
Light and compact, it can be easily carried in any intervention place, both inside and outside.

Open PDF Diagram, check your spare part number position and then select it in the following table.
MAXIMA 230 Synergic - 816088

Welding Inverter MAXIMA 230 Synergic - 816088 Pag.1
1 112017 POTENTIOMETER
2 120602 CABLE 16 MMQ 1,8 M - 25
3 121248 SWITCH
4 121394 KNOB
5 121748 THERMOSTAT
6 121749 SWITCH
7 121751 KNOB
8 121800 ELECTROVALVE
9 132157 MAINS CABLE
10 152293 FAN
11 312137 REEL HANDWHEEL
12 312408 HANDLE
13 321210 REEL SPACER
14 321296 FRAME
15 322081 REEL
16 322201 FIXED WHEEL
17 322245 WHEEL
18 322898 LIGHT GUIDE
19 452057 REEL SPRING
20 484688 SWIVEL SUPPORT + BRAKE
21 617530 DOOR
22 642662 BACK PANEL
23 642663 FRONT PANEL
24 645673 BOTTLE-HOLDER BRACKET
25 982031 BOTTOM KIT
26 645843 DIAPHRAGM
27 681065 WHEELS AXLE
28 712030 TOLEDO 250 WORK CLAMP 250A
29 712035 SOCKET DX 25
30 722019 FEED ROLL D. 0,6-0,8 MM FE
31 723051 TORCH CONNECTION
32 742180 MT15 MIG TORCH 3M
33 981581 SINGLE PHASE BRIDGE KIT
34 981584 CONDENSER KIT SNAP-IN
35 981585 MOSFET FLYBACK KIT
36 981593 DIODE KIT
37 981831 MOTOR KIT
38 982027 KIT IGBT + DIODES
39 982028 FRONT PANEL CARD KIT
40 982029 COMPLETE CONTROL PCB KIT
41 982030 COVER KIT
42 990097 GAS HOSE KIT
43 990046 KIT CABLE BUSHING + RING NUT
44 990264 REEL KIT
45 322102 WHEEL LOCKING RING
46 122353 SWITCH COVER
Torch Parts Pag.2
1 722007 RING NUT
2 722013 LINER NUT
3 722305 SWAN NECK DIFFUSER
5 722319 NOZZLE SPRING
6 722326 DIFFUSER INSULATION
7 742172 TORCH HOLDER
8 722415 CONTACT TIP D. 0,6 MM FE
8 722416 CONTACT TIP D. 0,8 MM FE
10 722149 CYLINDRICAL NOZZLE
10 722423 CONICAL NOZZLE
11 722437 WIRE GUIDE HOSE Ø 0,6-0,8 MM 3 M BLUE
11 722689 WIRE GUIDE HOSE Ø 1,0-1,2 3 M RED
13 722441 TORCH ASSY
14 742175 TORCH CONNECTION
15 742171 TORCH RING NUT
16 722325 TORCH CONNECTION
17 722693 TORCH CONNECTION INSULATION
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MAXIMA 230 Synergic - 816088
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram MAXIMA 230 S.

Diagram MAXIMA 230 S.

Download (233.83KB)

You might also like

Contact Nozzle mm 0,6X25 for Wire Weldings Telwin
Telwin s.p.a. SKU: 722415
Contact Nozzle mm 0,6X25 for Wire Weldings Telwin
Contact Nozzle mm 0,6X25 for Wire Weldings Telwin Genuine part Telwin, Contact nozzle Diameter mm 0,6X25 for Copper Wire, Welding Machines Telwin Can be used for the following Torches: - Torch MASTERMIG 220/2 230-400V - Torch...
AVAILABLE €1.59
Details
Green Switch for Inverter Telwin Force 125-145-165-195
Telwin s.p.a. SKU: 122381
Green Switch for Inverter Telwin Force 125-145-165-195
Green Switch for Inverter Telwin Force 125-145-165-195 Genuine part Telwin, Green Switch for Inverter Telwin Force 125 - Force 145 - Force 165 - Force 195 - Tecnica 151-171/S - Force Tig 170-190 DC Lift - Advance 187 MV/PFC - Force 168...
AVAILABLE €5.42
Details
Potentiometer for Inverter Telwin Force 125-145-165
Telwin s.p.a. SKU: 112017
Potentiometer for Inverter Telwin Force 125-145-165
Potentiometer for Inverter Telwin Force 125-145-165 Genuine spare parts Telwin, Potentiometer for welding inverter Telwin Force 125 - Force 145 - Force 165 - Force 195 - Tecnica 151/S-171/S-211/S - Tecnica 151-171-211/S - Technology...
AVAILABLE €4.03
Details
Conical Nozzle mm 12 for Wire Weldings Telwin
Telwin s.p.a. SKU: 722423
Conical Nozzle mm 12 for Wire Weldings Telwin
Conical Nozzle mm 12 for Wire Weldings Telwin Genuine part TELWIN, Conical nozzle mm 12 for wire welding machine Torch Telwin. - Diameters avalaible : mm 12 - Codes : 722423 Can be used on the following Torches: - Torch MASTERMIG...
AVAILABLE €4.17
Details
Dinse Socket DX 25 for Telwin Welding Machine
Telwin s.p.a. SKU: 712035
Socket DX 25 for Telwin Welding Machine
Socket DX 25 for Telwin Welding Machine Genuine spare part Telwin, Socket DX 25 for Welding Machine, Tecnica Tig 160 - Technomig 215 - Master Mig 220-232 - Linear 220 - Quality 280 - Digital Mig 220-222 - Euroarc 310-322 -...
AVAILABLE €3.47
Details
Dinse Plug DX 25 for Telwin Welding Machine
Telwin s.p.a. SKU: 712039
Plug DX 25 for Telwin Welding Machine
Plug DX 25 for Telwin Welding Machine Original spare part Telwin, Plug DX 25 for Welding Machine, Tecnica Tig 190 - Technomig 215 - Master Mig 220-232 - Digital Mig 220-222 - Technology Tig 160-182-185-230. - Avalaible DX 25 - DX 50 -...
AVAILABLE €3.47
Details
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG
Telwin s.p.a. SKU: 742180
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG
Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG Genuine spare part Telwin, Torch Complete MT15 MIG 3 M 220 A, for welding, TELMIG 251/2 TURBO 230V - TELMIG 203/2 / 250/2 TURBO 230-400V - DIGITAL MIG 180/220/222 230V - TELMIG...
on 7/10 Business Days Approx. €94.31
Details
Connection Torch MaxMig for Wire Weldings Telwin TELMIG
Telwin s.p.a. SKU: 723051
Connection Torch MaxMig for Wire Weldings Telwin TELMIG
Connection Torch MaxMig for Wire Weldings Telwin TELMIG Genuine spare part Telwin, Connection Torch MAX MIG, for welding, TELMIG 251/2 TURBO 230V - TELMIG 203/2 / 250/2 TURBO 230-400V - DIGITAL MIG 180/220/222 230V - TELMIG 195/2 /...
Usually Ships in: 7/10 Business Days Approx. €21.50
Details
Cilindrical Nozzle 16 mm for Wire Weldings Telwin
Telwin s.p.a. SKU: 722149
Cilindrical Nozzle 16 mm for Wire Weldings Telwin
Cilindrical Nozzle 16 mm for Wire Weldings Telwin Genuine part TELWIN, Insuleted Cilindrical nozzle 16 mm for wire welding machine Torch Telwin. Part for the following products: - Torch TECHNOMIG 210 DUAL SYNERGIC 230V-816052 - Torch...
AVAILABLE €3.04
Details
Torch Ring Nut for Torches Telwin MIG-MAG-TIG-Plasma
Telwin s.p.a. SKU: 722007
Torch Ring Nut for Torches Telwin MIG-MAG
Torch Ring Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torch Ring Nut for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V...
AVAILABLE €9.91
Details
Torch Body for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722441
Torch Body for Torches Telwin MIG-MAG
Torch Body for Torches Telwin MIG-MAG Genuine part TELWIN, Torch Body for Torches MIG - MAG. Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG 400 230-400V - Torch...
AVAILABLE €26.35
Details
Body Torch Insuleting for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722693
Body Torch Insuleting for Torches Telwin MIG-MAG
Body Torch Insuleting for Torches Telwin MIG-MAG Genuine part TELWIN, Body Torches Insuleting for Torches MIG - MAG.  Parts for the following products: - Torch MASTERMIG 300 230-400V - Torch MASTERMIG 270/2 230-400V - Torch MASTERMIG...
AVAILABLE €4.99
Details
Sleeve Lock Nut for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722013
Sleeve Lock Nut for Torches Telwin MIG-MAG
Sleeve Lock Nut for Torches Telwin MIG-MAG Genuine part TELWIN, Sleeve Lock Nut for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V cod. 827003 - MASTERMIG 220/2 230-400V - MASTERMIG 270/2 230-400V -...
AVAILABLE €3.92
Details
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722437
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 0.6-0.8 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Wire Guide Sleeve mm 1.0-1.2 for Torches Telwin MIG-MAG
Telwin s.p.a. SKU: 722689
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG
Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG Genuine part TELWIN, Liner Wire Conduit Diameter mm 1.0-1.2 length 3.4 mt for Torches MIG - MAG. Parts for the following products: - MASTERMIG 300 230-400V - MASTERMIG 270/2...
AVAILABLE €9.91
Details
Gas Hose Kit for Inverter Telwin MIG-MAG
Telwin s.p.a. SKU: 990097
Gas Hose Kit for Inverter Telwin MIG-MAG
Gas Hose Kit for Inverter Telwin MIG-MAG Genuine part TELWIN, Gas Hose Kit for Inverter Telwin BIMAX 4.135 - 4.165 - 4.195 TURBO 230V - MASTERMIG 270/2 - 300 - 400 Parts for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €6.90
Details
Side Handle for Inverter Telwin BIMAX 4.165 TURBO
Telwin s.p.a. SKU: 322590
Side Handle for Inverter Telwin BIMAX 4.165 TURBO
Side Handle for Inverter Telwin BIMAX 4.165 TURBO Genuine spare parts Telwin, Side Handle for inverter Telwin, Telwin, BIMAX 4.165 TURBO 230V - BIMAX 132 TURBO 230V - BIMAX 152 TURBO 230V - TELMIG 150/1 TURBO - MASTERMIG 232 Part for...
AVAILABLE €4.03
Details
Contact Nozzle mm 0,8X25 for Wire Weldings Telwin
Telwin s.p.a. SKU: 722416
Contact Nozzle mm 0,8X25 for Wire Weldings Telwin
Contact Nozzle mm 0,8X25 for Wire Weldings Telwin Genuine part Telwin, Contact nozzle Diameter mm 0,8X25 for Copper Wire, Welding Machines Telwin Can be used for the following Torches: - Torch MASTERMIG 220/2 230-400V - Torch...
AVAILABLE €1.59
Details
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex
Telwin s.p.a. SKU: 121394
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex
Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex Telwin Original Part, Potentiometer Knob for Inverter Welding Mastermig 232 Duplex - echnomig 150 DUAL SYNERGIC - TECNICA TIG 160 DC-HF/LIFT. Part for the following products:...
AVAILABLE €0.40
Details
Diffuser Diffuser for Inverter Telwin Mastermig 220/2
Telwin s.p.a. SKU: 722326
Diffuser Insulation for Inverter Telwin Mastermig 220/2
Diffuser Insulation for Inverter Telwin Mastermig 220/2 Original spare part Telwin, Diffuser Insulation for Inverter Mastermig 220/2 - Mastermig 232 Duplex - Digital Mig 180 - Digital Mig 220 Part for the following products: -...
AVAILABLE €2.47
Details
Fan for Inverter Telwin Infinity 170
Telwin s.p.a. SKU: 152293
Fan for Inverter Telwin Infinity 170
Fan for Inverter Telwin Infinity 170 Genuine spare part Telwin, Cooler Fan Ass'y for Welding Inverter INFINITY 170 - 816080. Part for the following products: -  TELWIN INFINITY 170 - 816080 - ...
AVAILABLE €13.36
Details
Telwin Infinity 180 Single Phase Bridge Kit
Telwin s.p.a. SKU: 981581
Telwin Infinity 180 Single Phase Bridge Kit
Telwin Welding Infinity 180 Single Phase Bridge Kit Genuine part Telwin, Single Phase Bridge Kit for Welding Inverter Infinity 180 - Infinity 228 CE. Part for the following products: -  INFINITY 180 - 816081...
Last items in stock €6.08
Details
Telwin Maxima 190 Synergic Kit Mosfet
Telwin s.p.a. SKU: 981585
Telwin Maxima 190 Synergic Kit Mosfet
Telwin Welding Maxima 190 Synergic Kit Mosfet Genuine part Telwin, Mosfet Flyback Kit for Welding Inverter MAXIMA 190 Synergic - INFINITY 170. Part for the following products: -  Welding MAXIMA 190 Synergic -...
AVAILABLE €5.36
Details
Comments (0)
