Telwin s.p.a.

Telwin Spare Parts for Welding Inverter MAXIMA 200 Synergic

SKU: MAXIMA 200 Synergic - 816087
€1.83
VAT included

Telwin Spare Parts for Welding Inverter MAXIMA 200 Synergic

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter MAXIMA 200 Synergic - 816087.
Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT inverter wire welding machine.

MAXIMA 200 Synergic - 816087
Telwin Spare Parts for Welding Inverter MAXIMA 200 Synergic
  • Telwin Spare Parts for Welding Inverter MAXIMA 200 Synergic
  • Telwin Spare Parts for Welding Inverter MAXIMA 200 Synergic
  • Telwin Spare Parts for Welding Inverter MAXIMA 200 Synergic
Telwin s.p.a.

Telwin Spare Parts for Welding Inverter MAXIMA 200 Synergic

SKU: MAXIMA 200 Synergic - 816087 Condition: New
€1.83
VAT included

Telwin Spare Parts for Welding Inverter MAXIMA 200 Synergic

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter MAXIMA 200 Synergic - 816087.
Microprocessor controlled MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT inverter wire welding machine.

MAXIMA 200 Synergic - 816087
settings 54 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
54 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

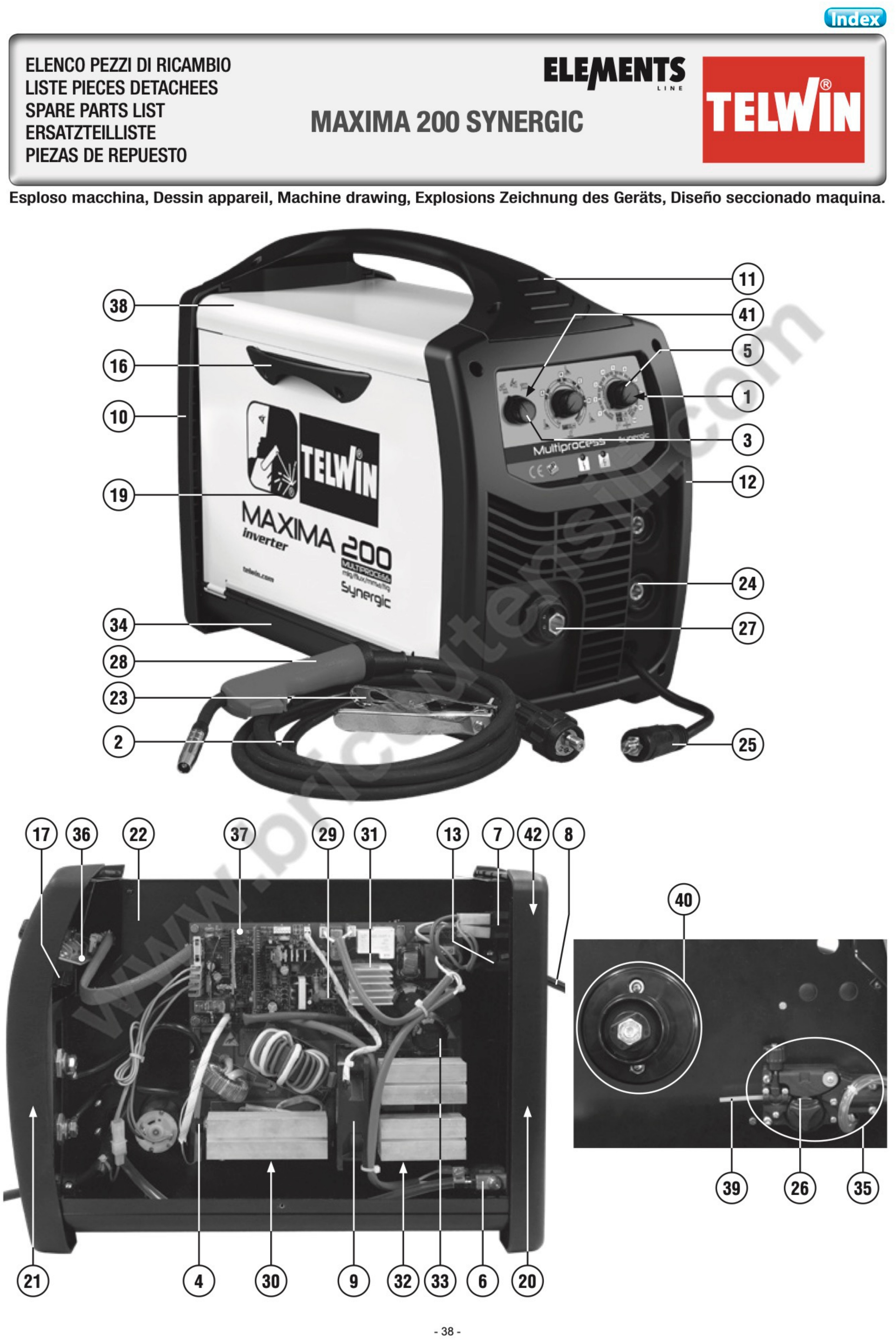

Esploso pagina 1
Pos. Item Price Buy
1
 Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €4.03
2
 photo_cameraImage coming soon 120602 CABLE 16 MMQ 1,8 M - 25 €16.11
4
 photo_cameraImage coming soon 121748 THERMOSTAT €3.09
5
 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex 121394 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex €0.40
6
 photo_cameraImage coming soon 121800 ELECTROVALVE €20.26
7
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
8
 photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
9
 Fan for Inverter Telwin Infinity 170 152293 Fan for Inverter Telwin Infinity 170 €13.36
10
 photo_cameraImage coming soon 321243 BACK PANEL €14.50
11
 photo_cameraImage coming soon 321244 HANDLE €6.51
12
 photo_cameraImage coming soon 321313 FRONT PANEL €16.10
13
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
16
 Side Handle for Inverter Telwin BIMAX 4.165 TURBO 322590 Side Handle for Inverter Telwin BIMAX 4.165 TURBO €4.03
17
 Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.43
19
 photo_cameraImage coming soon 617527 DOOR €14.91
20
 photo_cameraImage coming soon 642644 BACK PANEL €14.91
21
 photo_cameraImage coming soon 645828 FRONT PANEL €14.91
22
 photo_cameraImage coming soon 645829 DIAPHRAGM €10.53
23
 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin 712030 Toledo 250 Amp. Earth Clamp for Inverter and Plasma Telwin €3.18
24
 Socket DX 25 for Telwin Welding Machine 712035 Socket DX 25 for Telwin Welding Machine €3.47
25
 Plug DX 25 for Telwin Welding Machine 712039 Plug DX 25 for Telwin Welding Machine €3.47
26
 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin 722529 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin €3.21
27
 Connection Torch MaxMig for Wire Weldings Telwin TELMIG 723051 Connection Torch MaxMig for Wire Weldings Telwin TELMIG €21.50
28
 Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG 742180 Torch MT15 MIG 3 M 220 A for Wire Weldings Telwin TELMIG €94.31
29
 Telwin Maxima 190 Synergic Kit Mosfet 981585 Telwin Maxima 190 Synergic Kit Mosfet €5.36
30
 photo_cameraImage coming soon 981591 Diode Kit €13.39
31
 photo_cameraImage coming soon 981824 Hex. Hd. Tapping Screw D4x45 €4.37
32
 photo_cameraImage coming soon 981825 IGBT + DIODE KIT €17.15
33
 photo_cameraImage coming soon 981826 CONDENSER KIT SNAP-IN €16.10
34
 photo_cameraImage coming soon 981834 BOTTOM KIT €10.86
35
 Wire Drive Motor for Wire Welding Telwin MAXIMA 190 Synergic 981847 Wire Drive Motor for Wire Welding Telwin MAXIMA 190 Synergic €44.00
36
 photo_cameraImage coming soon 981971 FRONT PANEL CARD KIT €51.38
37
 photo_cameraImage coming soon 981972 COMPLETE CONTROL PCB KIT €256.49
38
 photo_cameraImage coming soon 981973 WASHER €16.65
39
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
40
 photo_cameraImage coming soon 981990 REEL KIT €11.70
41
 photo_cameraImage coming soon 121749 SWITCH €2.15
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

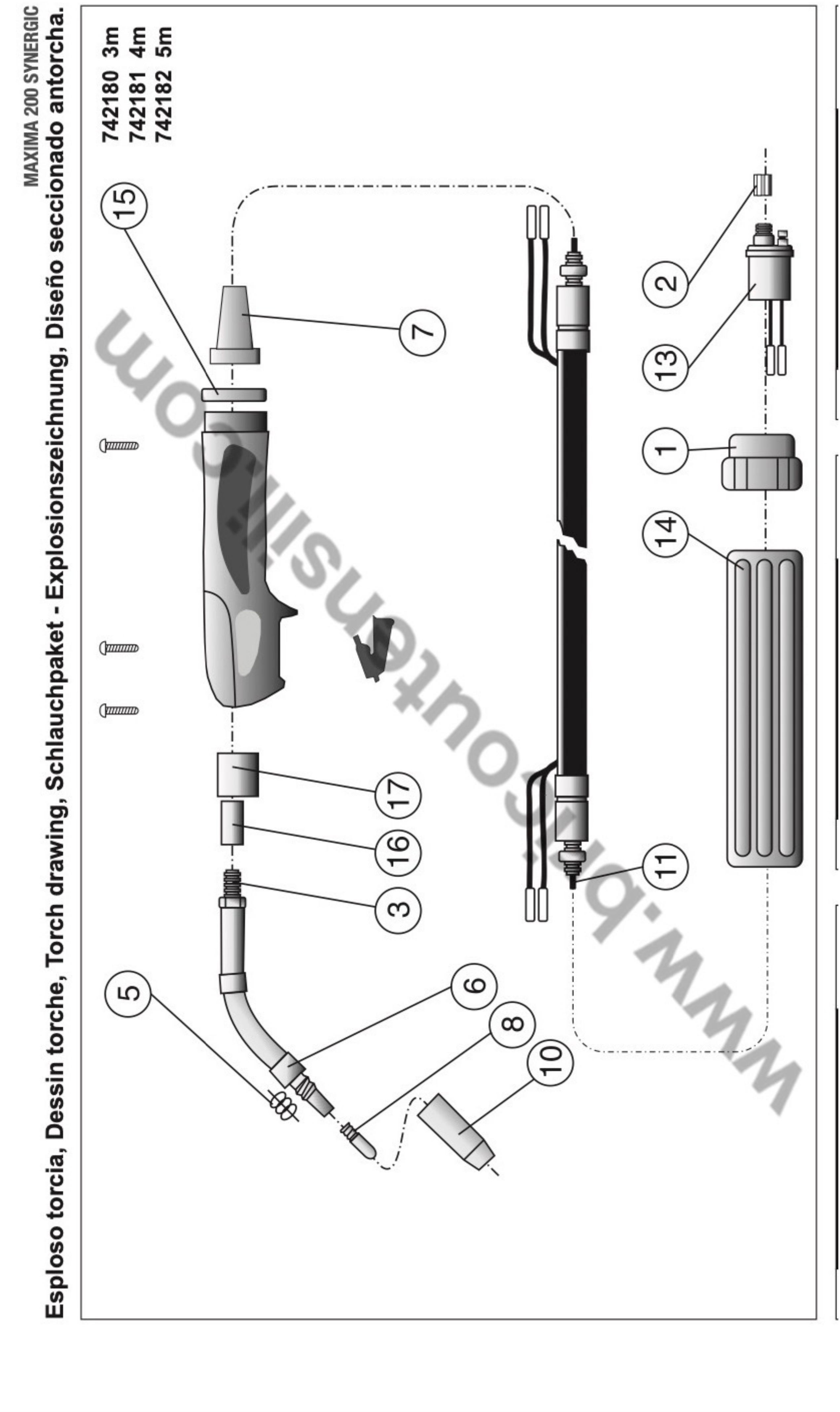

Esploso pagina 2
Pos. Item Price Buy
1
 Torch Ring Nut for Torches Telwin MIG-MAG 722007 Torch Ring Nut for Torches Telwin MIG-MAG €9.91
2
 Sleeve Lock Nut for Torches Telwin MIG-MAG 722013 Sleeve Lock Nut for Torches Telwin MIG-MAG €3.92
3
 photo_cameraImage coming soon 722305 SWAN NECK DIFFUSER €17.75
5
 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG 722319 Nozzle Spring for Torches Telwin TELMIG-TECHNOMIG-DIGITAL MIG €1.38
6
 Diffuser Insulation for Inverter Telwin Mastermig 220/2 722326 Diffuser Insulation for Inverter Telwin Mastermig 220/2 €2.47
7
 photo_cameraImage coming soon 742172 TORCH HOLDER €7.07
8
 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin 722415 Contact Nozzle mm 0,6X25 for Wire Weldings Telwin €1.59
8
 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin 722416 Contact Nozzle mm 0,8X25 for Wire Weldings Telwin €1.59
10
 Cilindrical Nozzle 16 mm for Wire Weldings Telwin 722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin €3.04
10
 Conical Nozzle mm 12 for Wire Weldings Telwin 722423 Conical Nozzle mm 12 for Wire Weldings Telwin €4.17
11
 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG 722437 Liner Wire Conduit mm 0.6-0.8 for Torches Telwin MIG-MAG €9.91
11
 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG 722689 Liner Wire Conduit mm 1.0-1.2 for Torches Telwin MIG-MAG €9.91
13
 Torch Body for Torches Telwin MIG-MAG 722441 Torch Body for Torches Telwin MIG-MAG €26.35
14
 photo_cameraImage coming soon 742175 TORCH CONNECTION €13.98
15
 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 742171 Handle Torch Ring for Torches Telwin Telmig 150/1 - 183/2 €1.34
16
 photo_cameraImage coming soon 722325 TORCH CONNECTION €3.27
17
 Body Torch Insuleting for Torches Telwin MIG-MAG 722693 Body Torch Insuleting for Torches Telwin MIG-MAG €4.99

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter MAXIMA 200 Synergic

Telwin Genuine spare parts or replacement parts for to fix Welding Inverter MAXIMA 200 Synergic - 816087.

Open PDF Diagram, check your spare part number position and then select it in the following table.
MAXIMA 200 Synergic - 816087

Welding Inverter MAXIMA 200 Synergic - 816087 Pag.1
# Part Num. Description
1 112017 POTENTIOMETER
2 120602 CABLE 16 MMQ 1,8 M - 25
3 121751 KNOB
4 121748 THERMOSTAT
5 121394 KNOB
6 121800 ELECTROVALVE
7 122381 SWITCH
8 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG
9 152293 FAN
10 321243 BACK PANEL
11 321244 HANDLE
12 321313 FRONT PANEL
13 322112 CABLE BUSHING
16 322590 HANDLE
17 322898 LIGHT GUIDE
19 617527 DOOR
20 642644 BACK PANEL
21 645828 FRONT PANEL
22 645829 DIAPHRAGM
23 712030 TOLEDO 250 WORK CLAMP 250A
24 712035 SOCKET DX 25
25 712039 PLUG DX 25
26 722529 FEED ROLL D. 0,6-0,9 MM FE/FLUX
27 723051 TORCH CONNECTION
28 742180 MT15 MIG TORCH 3M
29 981585 MOSFET FLYBACK KIT
30 981591 DIODE KIT
31 981824 SINGLE PHASE BRIDGE KIT
32 981825 IGBT + DIODE KIT
33 981826 CONDENSER KIT SNAP-IN
34 981834 BOTTOM KIT
35 981847 MOTOR KIT
36 981971 FRONT PANEL CARD KIT
37 981972 COMPLETE CONTROL PCB KIT
38 981973 COVER KIT
39 990097 GAS HOSE KIT
40 981990 REEL KIT
41 121749 SWITCH
42 122353 SWITCH COVER
Torch Parts Pag.2
1 722007 RING NUT
2 722013 LINER NUT
3 722305 SWAN NECK DIFFUSER
5 722319 NOZZLE SPRING
6 722326 DIFFUSER INSULATION
7 742172 TORCH HOLDER
8 722415 CONTACT TIP D. 0,6 MM FE
8 722416 CONTACT TIP D. 0,8 MM FE
10 722149 CYLINDRICAL NOZZLE
10 722423 CONICAL NOZZLE
11 722437 WIRE GUIDE HOSE Ø 0,6-0,8 MM 3 M BLUE
11 722689 WIRE GUIDE HOSE Ø 1,0-1,2 3 M RED
13 722441 TORCH BODY ASSY
14 742175 TORCH CONNECTION
15 742171 TORCH RING NUT
16 722325 TORCH CONNECTION
17 722693 TORCH CONNECTION INSULATION
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MAXIMA 200 Synergic - 816087
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin MAXIMA 200 S.

Diagram Telwin MAXIMA 200 S.

Download (184.69KB)
