Telwin s.p.a.

Telwin Spare Parts for Welding Inverter MAXIMA 160 Synergic

SKU: MAXIMA 160 Synergic - 816085
€1.83
VAT included

Telwin Spare Parts for Welding Inverter MAXIMA 160 Synergic

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter MAXIMA 160 Synergic - 816085.
Microprocessor controlled MIG-MAG/FLUX/BRAZING inverter wire welding machine

Telwin MAXIMA 160 Synergic - 816085
Telwin Spare Parts for Welding Inverter MAXIMA 160 Synergic
  • Telwin Spare Parts for Welding Inverter MAXIMA 160 Synergic
  • Telwin Spare Parts for Welding Inverter MAXIMA 160 Synergic
  • Telwin Spare Parts for Welding Inverter MAXIMA 160 Synergic
Telwin s.p.a.

Telwin Spare Parts for Welding Inverter MAXIMA 160 Synergic

SKU: MAXIMA 160 Synergic - 816085 Condition: New
€1.83
VAT included

Telwin Spare Parts for Welding Inverter MAXIMA 160 Synergic

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter MAXIMA 160 Synergic - 816085.
Microprocessor controlled MIG-MAG/FLUX/BRAZING inverter wire welding machine

Telwin MAXIMA 160 Synergic - 816085
settings 42 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:: TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
41 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

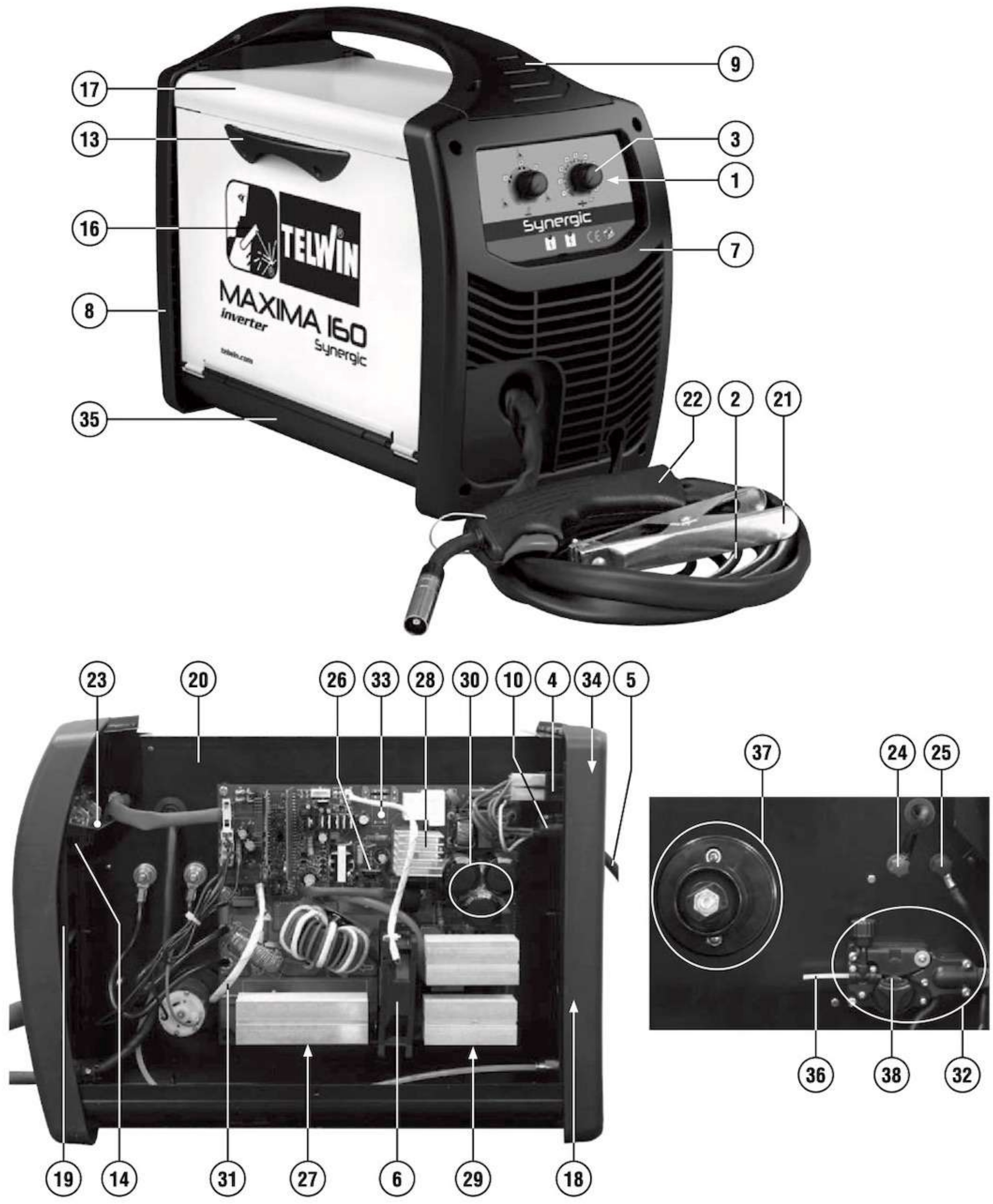

Esploso pagina 1
Pos. Item Price Buy
1
 Potentiometer for Inverter Telwin Force 125-145-165 112017 Potentiometer for Inverter Telwin Force 125-145-165 €4.03
2
 photo_cameraImage coming soon 120301 CABLE 10 MMQ 1.8 M €10.71
3
 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex 121394 Potentiometer Knob for Inverter Telwin Mastermig 232 Duplex €0.40
4
 Green Switch for Inverter Telwin Force 125-145-165-195 122381 Green Switch for Inverter Telwin Force 125-145-165-195 €5.42
5
 photo_cameraImage coming soon 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG €12.34
6
 Fan for Inverter Telwin Infinity 170 152293 Fan for Inverter Telwin Infinity 170 €13.36
7
 photo_cameraImage coming soon 321242 FRONT PANEL €13.70
8
 photo_cameraImage coming soon 321243 BACK PANEL €14.50
9
 photo_cameraImage coming soon 321244 HANDLE €6.51
10
 Cable Busching for Inverter Welding and Battery Charger Telwin 322112 Cable Busching for Inverter Welding and Battery Charger Telwin €2.44
13
 Side Handle for Inverter Telwin BIMAX 4.165 TURBO 322590 Side Handle for Inverter Telwin BIMAX 4.165 TURBO €4.03
14
 Light Guide for Inverter Telwin Force 125 - 145 - 165 322898 Light Guide for Inverter Telwin Force 125 - 145 - 165 €2.43
16
 photo_cameraImage coming soon 617520 DOOR €8.55
17
 photo_cameraImage coming soon 981858 COVER KIT €8.71
18
 photo_cameraImage coming soon 642526 BACK PANEL €11.58
19
 photo_cameraImage coming soon 645828 FRONT PANEL €14.91
20
 photo_cameraImage coming soon 645764 DIAPHRAGM €10.95
21
 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin 712001 Colorado 150B Earth Clamp 150A for Inverter and Plasma Telwin €2.43
22
 Torch for Wire Weldings Telwin Bimax 742402 Torch for Wire Weldings Telwin Bimax €74.87
23
 photo_cameraImage coming soon 981308 KIT PANEL BOARD €33.95
24
 Red Charging Clamp Kit for Inverter Telwin MAXIMA 160 Synergic 981309 Red Charging Clamp Kit for Inverter Telwin MAXIMA 160 Synergic €6.57
25
 Kit Black Charging Clamp for Inverter Telwin MAXIMA 160 Synergic 981310 Kit Black Charging Clamp for Inverter Telwin MAXIMA 160 Synergic €6.57
26
 Telwin Maxima 190 Synergic Kit Mosfet 981585 Telwin Maxima 190 Synergic Kit Mosfet €5.36
27
 photo_cameraImage coming soon 981591 Diode Kit €13.39
28
 photo_cameraImage coming soon 981824 Hex. Hd. Tapping Screw D4x45 €4.37
29
 photo_cameraImage coming soon 981825 IGBT + DIODE KIT €17.15
30
 photo_cameraImage coming soon 981826 CONDENSER KIT SNAP-IN €16.10
32
 Wire Drive Motor for Wire Welder Telwin Bimax-Technomig 981828 Wire Drive Motor for Wire Welder Telwin Bimax-Technomig €34.90
33
 photo_cameraImage coming soon 981829 COMPLETE CONTROL PCB KIT €285.65
35
 photo_cameraImage coming soon 981834 BOTTOM KIT €10.86
36
 Gas Hose Kit for Inverter Telwin MIG-MAG 990097 Gas Hose Kit for Inverter Telwin MIG-MAG €6.90
37
 photo_cameraImage coming soon 981990 REEL KIT €11.70
38
 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin 722529 Feed Roll For wire mm 0,6/0,9 FE-FLUX for Flux Welding Telwin €3.21
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

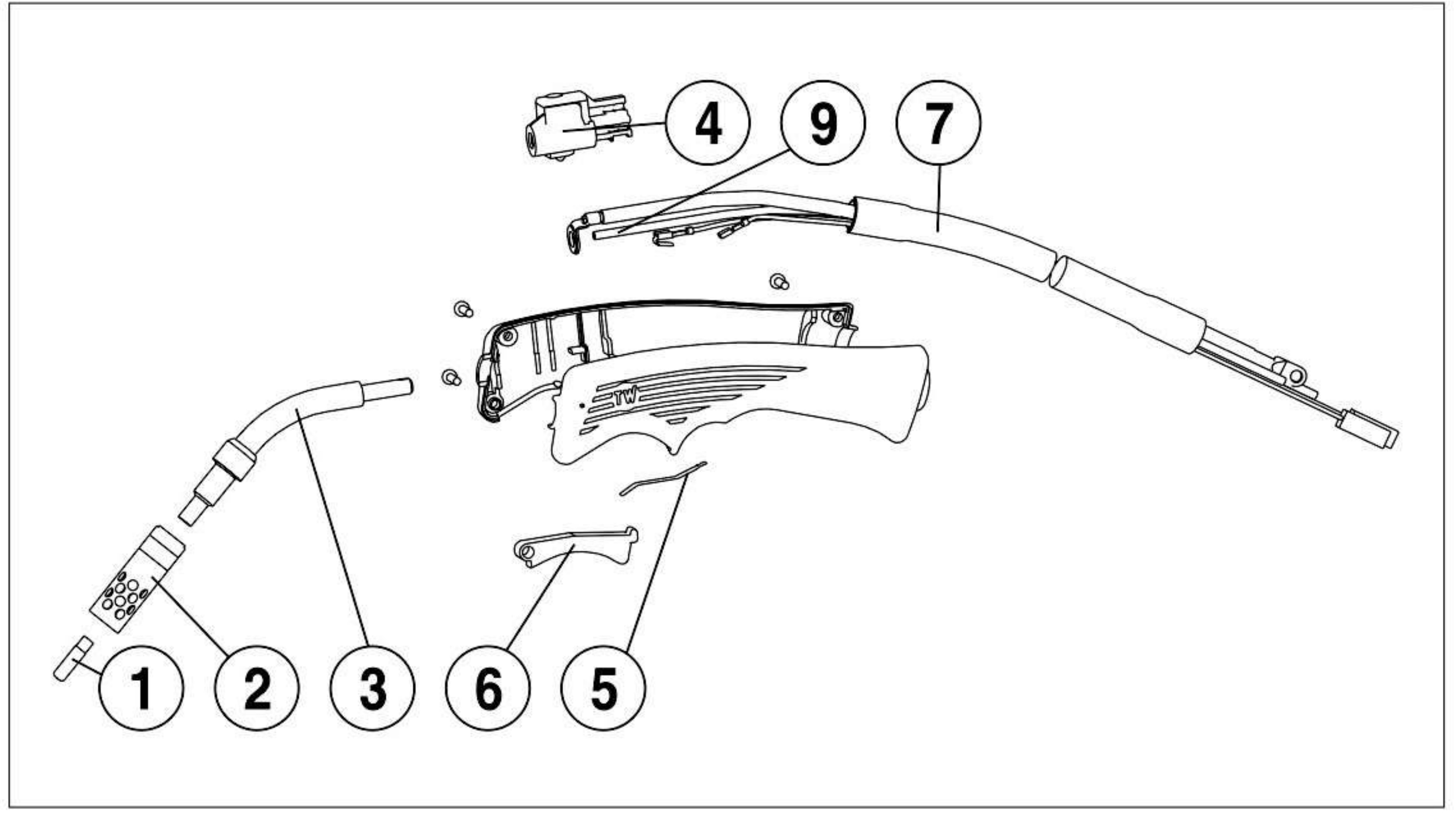

Esploso pagina 2
Pos. Item Price Buy
1
 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin 722552 Contact Nozzle mm 1,0X25 for Wire Weldings Telwin €1.85
2
 Cilindrical Nozzle 16 mm for Wire Weldings Telwin 722149 Cilindrical Nozzle 16 mm for Wire Weldings Telwin €3.04
3
 photo_cameraImage coming soon 722078 SWAN NECK DIFFUSER €15.13
4
 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig 990464 Valve Torch for Welding Telwin Bimax-TELMIG-Technomig €13.79
5
 Button Spring Contact for Torch Telwin MIG 452097 Button Spring Contact for Torch Telwin MIG €2.44
6
 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 322295 Torch Lever for Inverter Telwin Bimax 105-4.135-4.165-4.195 €2.44
7
 photo_cameraImage coming soon 990602 KIT HARNESS 10mmq €38.91
9
 Steel Lines for Torches Telwin MIG-MAG 722077 Steel Lines for Torches Telwin MIG-MAG €4.03

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Telwin Spare Parts for Welding Inverter MAXIMA 160 Synergic

Telwin Genuine spare parts or replacement parts for to repair Welding Inverter MAXIMA 160 Synergic - 816085.

Open PDF Diagram, check your spare part number position and then select it in the following table.
Telwin MAXIMA 160 Synergic - 816085

Welding Inverter MAXIMA 160 Synergic - 816085 Pag.1
# Part Num. Description
1 112017 POTENTIOMETER
2 120301 CABLE 10 MMQ 1,8 M
3 121394 KNOB
4 122381 SWITCH
5 132155 MAINS CABLE 3G1.5 2 M SCHUKO PLUG
6 152293 FAN
7 321242 FRONT PANEL
8 321243 BACK PANEL
9 321244 HANDLE
10 322112 CABLE BUSHING
13 322590 HANDLE
14 322898 LIGHT GUIDE
16 617520 DOOR
17 981858 COVER KIT
18 642526 BACK PANEL
19 645828 FRONT PANEL
20 645764 DIAPHRAGM
21 712001 COLORADO 150B WORK CLAMP 150A
22 742402 TW160 MIG TORCH 2M
23 981308 KIT FRONT PANEL CARD
24 981309 RED CHARGING CLAMP KIT
25 981310 KIT BLACK CHARGING CLAMP
26 981585 MOSFET FLYBACK KIT
27 981591 DIODE KIT
28 981824 SINGLE PHASE BRIDGE KIT
29 981825 IGBT + DIODE KIT
30 981826 CONDENSER KIT SNAP-IN
32 981828 MOTOR KIT
33 981829 COMPLETE CONTROL PCB KIT
34 122353 SWITCH COVER
35 981834 BOTTOM KIT
36 990097 GAS HOSE KIT
37 981990 REEL KIT
38 722529 FEED ROLL D. 0,6-0,9 MM FE/FLUX
Torch Parts Pag.2
1 722552 CONTACT NOZZLE D. 1 MM AL/FLUX
2 722149 CYLINDRICAL NOZZLE
3 722078 SWAN NECK DIFFUSER
4 990464 VALVE
5 452097 CONTACT SPRING FOR MIG TORCH
6 322295 PUSHBUTTON
7 990602 KIT CABLE SET 10 MMQ
9 722077 GUIDE HOSE D.0,6-0,8MM 2M FE/INOX/FLUX
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Telwin websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Telwin brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
MAXIMA 160 Synergic - 816085
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK ITEM OR S/N CODE TELWIN:
TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS

Specific References

New

Download

Diagram Telwin MAXIMA 160 S.

Diagram Telwin MAXIMA 160 S.

Download (174.35KB)
