Telwin Spare Parts for Welding Machine TECHNOMIG 260 DUAL SYNERGIC
€0.12
VAT included
Telwin Spare Parts for Welding Machine TECHNOMIG 260 DUAL SYNERGIC
TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine TECHNOMIG 260 DUAL SYNERGIC 816056.
Telwin Spare Parts for Welding Machine TECHNOMIG 260 DUAL SYNERGIC
€0.12
VAT included
Telwin Spare Parts for Welding Machine TECHNOMIG 260 DUAL SYNERGIC
TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine TECHNOMIG 260 DUAL SYNERGIC 816056.
settings
76 Spare parts
description
2 exploded views
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
76 spare parts

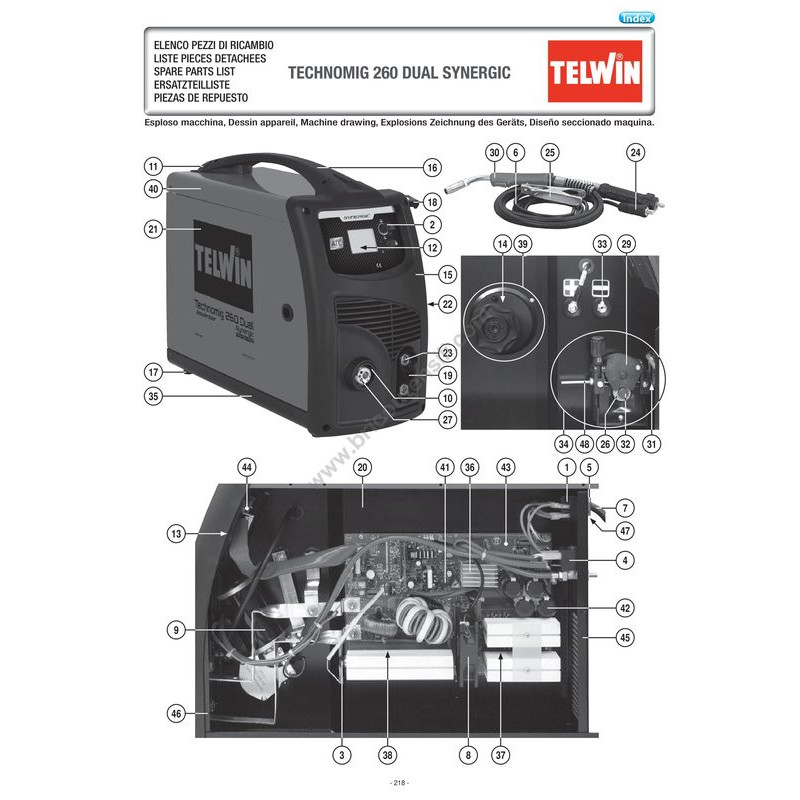

Page 1
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Shipping and delivery information will be available shortly.
Telwin Spare Parts for Welding Machine TECHNOMIG 260 DUAL SYNERGIC
Telwin genuine spare parts for replacing or repairing Welding Machine TECHNOMIG 260 DUAL SYNERGIC – 816056.
In the following table, find the model and its corresponding spare part code.
| Telwin TECHNOMIG 260 DUAL SYNERGIC | ||
| # | Part Num. | Description |
| 1 | 121248 | Switch |
| 2 | 121315 | Encoder knob d.15 |
| 3 | 121748 | Thermostat |
| 4 | 121800 | Electrovalve |
| 5 | 122353 | Switch cover |
| 6 | 124887 | Cable |
| 7 | 132345 | Mains cable 3g04.00 2.00 M |
| 8 | 152293 | Fan |
| 9 | 153033 | Motor |
| 10 | 312105 | Torch connection protection |
| 11 | 321142 | Handlecover |
| 12 | 321194 | Shield |
| 13 | 321196 | Card holder |
| 14 | 321210 | Reel spacer |
| 15 | 321215 | Front panel |
| 16 | 322883 | Handle |
| 17 | 323001 | Foot |
| 18 | 645704 | Torch hook |
| 19 | 645728 | Dinse holder |
| 20 | 645920 | Diaphragm |
| 21 | 656253 | Door |
| 22 | 656254 | Side panel |
| 23 | 712036 | Dinse socket dx 50 |
| 24 | 712040 | Dinse plug dx 50 |
| 25 | 712231 | Toledo 300 work clamp 300a |
| 26 | 722112 | Feed roll d. 0,6-0,8 Mm fe |
| 27 | 723229 | Torch connection |
| 28 | 742090 | Feed roll d. 0,8-1 Mm al |
| 29 | 742096 | Anchor for pressure roller |
| 30 | 742183 | Mt25 mig torch 3 m |
| 31 | 742365 | Wire conduit ø 2x5 |
| 32 | 742397 | Rollerfixing screw |
| 33 | 981383 | Clamp kit |
| 34 | 981496 | Kit 2 rolls wirefeeder |
| 35 | 981498 | Bottom kit |
| 36 | 981581 | Single phase bridge kit |
| 37 | 981582 | Kit igbt + diodes |
| 38 | 981583 | Diode kit |
| 39 | 981703 | Reel kit 15kg |
| 40 | 981996 | Cover kit |
| 41 | 982126 | Mosfet flyback kit |
| 42 | 982183 | Condenser kit snap-in |
| 43 | 982185 | Complete control pcb kit |
| 44 | 982187 | Kit scheda pannello |
| 45 | 982188 | Back panel kit |
| 46 | 982189 | Front panel kit |
| 47 | 990046 | Kit cable bushing + ring nut |
| 48 | 990097 | Gas hose kit |
| TECHNOMIG 260 DUAL SYNERGIC Pag.2 | ||
| Torch spare parts list | ||
| # | Part Num. | Description |
| 1 | 722007 | Ring Nut |
| 2 | 722013 | Liner Nut |
| 3 | 742175 | Torch Connection |
| 4 | 722415 | Contact Tip D. 0,6 Mm |
| 4 | 722552 | Al/flux Contact Tip D. 1 Mm |
| 4 | 722553 | Al/flux Contact Tip D. 1,2 Mm |
| 4 | 722680 | Contact Tip D.0,8 |
| 4 | 722681 | Contact Tip D. 1 Mm |
| 4 | 722682 | Contact Tip D. 1,2 Mm |
| 5 | 722437 | Liner D. 0,6-0,8 3M |
| 5 | 722516 | Wire Guide Hose D. 1-1,2 Mm Al |
| 5 | 722689 | Liner D. 1-1,2 Mm 3 M |
| 6 | 722684 | Cylindrical Nozzle |
| 6 | 722685 | Conical Nozzle |
| 6 | 722686 | Thin Headed Nozzle |
| 6 | 722687 | Spot Welding Nozzle D. 18 Mm |
| 7 | 722598 | Wire Guide Locking Nipples |
| 8 | 722601 | Or Ring |
| 8 | 722606 | Or Ring |
| 10 | 722600 | Wire Guide Locking Tube |
| 11 | 722688 | Gas Diffuser |
| 13 | 722690 | Nozzle Spring |
| 15 | 722693 | Torch Connection Insulation |
| 16 | 722696 | Swan Neck |
| 17 | 722441 | Torch Assy |
| 18 | 742171 | Torch Ring Nut |
| 19 | 742173 | Torch Holder + Spring |
| 20 | 742174 | Torch Spring |
All product specifications in this catalog are based on information obtained from official sources, including the official Telwin manufacturer websites, which we consider reliable. Unfortunately, even official documents may contain mistakes or printing errors, and we cannot confirm that all the data are accurate or fully reflect the facts. Most manufacturers reserve the right to change product specifications or amend descriptions without notice. We strongly recommend using the published information as a general reference, subject to review by the Telwin brand. Please verify any important specifications with a sales assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or reproduction, in whole or in part, without a reference to the source page is prohibited.
816056
Data sheet
- SHIPPING IN
- Usually Ships in 10 BUSYNESS DAYS
- CHECK ITEM CODE OR S/N
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM OR S/N CODE TELWIN
- TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
- Machine Type
- Welding Machine
