Telwin Spare Parts for Welding Machine TECHNOMIG 180 DUAL SYNERGIC EURO
Telwin genuine spare parts for replacing or repairing Welding Machine TECHNOMIG 180 DUAL SYNERGIC EURO – 816054.
In the following table, find the model and its corresponding spare part code.

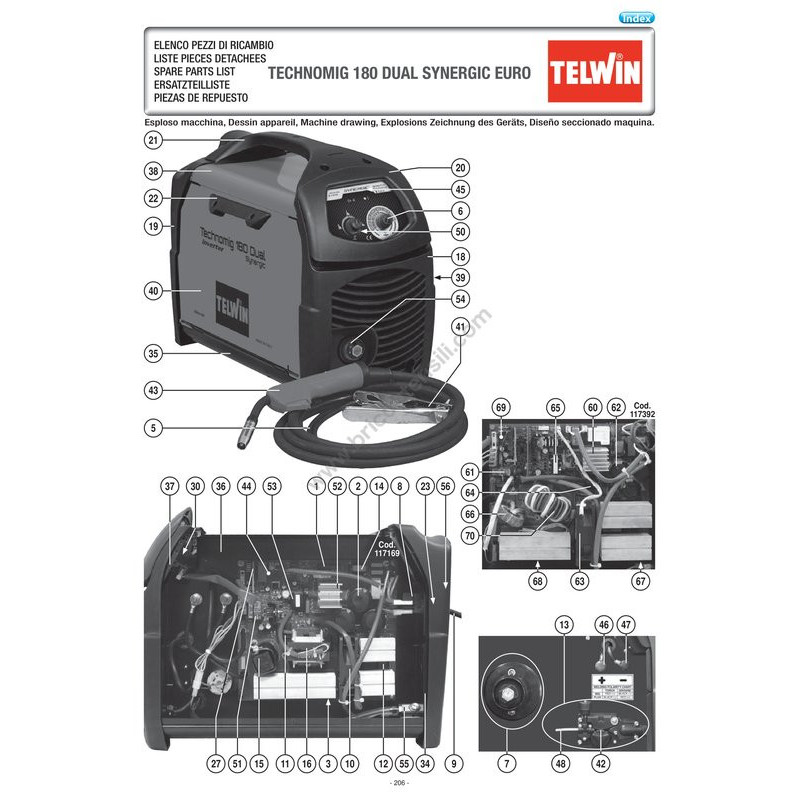

| Telwin TECHNOMIG 180 DUAL SYNERGIC EURO | ||
| # | Part Num. | Description |
| 1 | 112048 | Resistance |
| 2 | 112514 | Capacitor |
| 3 | 116839 | Diode |
| 5 | 120302 | Cable 16 mmq 1,8 m |
| 6 | 121394 | Knob |
| 7 | 981990 | Reel kit |
| 8 | 122381 | Switch |
| 9 | 132155 | Mains cable 3g1.5 2 M schuko plug |
| 10 | 152006 | Fan |
| 11 | 152230 | Current transformer |
| 12 | 981293 | Kit igbt + diode |
| 13 | 981847 | Motor kit |
| 14 | 164741 | Filter inductance |
| 15 | 169781 | Output inductance |
| 16 | 169869 | Power transformer |
| 18 | 321091 | Front panel |
| 19 | 321093 | Back panel |
| 20 | 321094 | Front protection |
| 21 | 321095 | Handle |
| 22 | 321102 | Door knob |
| 23 | 322112 | Cable bushing |
| 27 | 981491 | Pcb kit plug-in |
| 30 | 322898 | Guide |
| 34 | 642680 | Back panel |
| 35 | 981631 | Bottom kit |
| 36 | 645862 | Diaphragm |
| 37 | 645913 | Front panel |
| 38 | 651189 | Cover |
| 39 | 656103 | Side panel |
| 40 | 656105 | Door |
| 41 | 712030 | Toledo 250 work clamp 250a |
| 42 | 722529 | Feed roll d. 0,6-0,9 Mm fe/flux |
| 43 | 742180 | Mt15 mig torch 3 m |
| 44 | 981426 | Complete pcb kit |
| 45 | 981308 | Kit front panel card |
| 46 | 981309 | Red charging clamp kit |
| 47 | 981310 | Kit black charging clamp |
| 48 | 990097 | Gas hose kit |
| 50 | 112017 | Potentiometer |
| 51 | 116320 | Relais |
| 52 | 116346 | Rectifier |
| 53 | 169700 | Transformer x flyback |
| 54 | 723051 | Torch connection |
| 55 | 121800 | Electrovalve |
| 56 | 122353 | Switch cover |
| 60 | 111458 | Single phase bridge |
| 61 | 113630 | Relais |
| 62 | 116866 | Condenser |
| 63 | 152293 | Fan |
| 64 | 152308 | Ta 1/200 |
| 65 | 169890 | Flyback auxiliary transformer |
| 66 | 169907 | Inductance |
| 67 | 981825 | Igbt + diode kit |
| 68 | 111331 | Diode |
| 69 | 982277 | Complete control pcb kit |
| 70 | 169939 | Power transformer |
| TECHNOMIG 180 DUAL SYNERGIC EURO Pag.2 | ||
| Torch spare parts list | ||
| # | Part Num. | Description |
| 1 | 722007 | Ring Nut |
| 2 | 722013 | Liner Nut |
| 3 | 722305 | Swan Neck Diffuser |
| 5 | 722319 | Nozzle Spring |
| 6 | 722326 | Diffuser Insulation |
| 7 | 742172 | Torch Holder |
| 8 | 722415 | Contact Tip D. 0,6 Mm |
| 8 | 722416 | Contact Tip D. 0,8 Mm |
| 10 | 722149 | Cylindrical Nozzle |
| 10 | 722423 | Conical Nozzle |
| 11 | 722437 | Liner D. 0,6-0,8 3M |
| 11 | 722689 | Liner D. 1-1,2 Mm 3 M |
| 13 | 722441 | Torch Assy |
| 14 | 742175 | Torch Connection |
| 15 | 742171 | Torch Ring Nut |
| 16 | 722325 | Torch Connection |
| 17 | 722693 | Torch Connection Insulation |
