Telwin genuine spare parts for replacing or repairing Welding Machine TECHNOLOGY PLASMA 54 XT KOMPRESSOR – 816147.

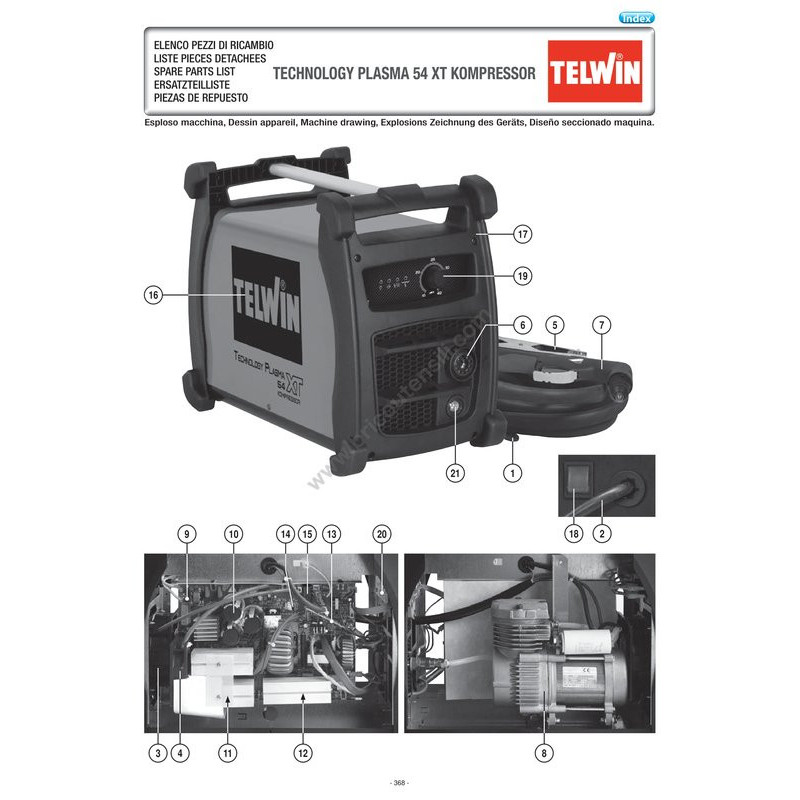

In the following table, find the model and its corresponding spare part code.![]()
| Telwin TECHNOLOGY PLASMA 54 XT KOMPRESSOR | ||
| # | Part Num. | Description |
| 1 | 125241 | Cable tw05v-f 1x006 l=03,00m/dinse |
| 2 | 132155 | Mains cable 3g1.5 2 M schuko plug |
| 3 | 152149 | Fan |
| 4 | 152294 | Fan |
| 5 | 712231 | Toledo 300 work clamp 300a |
| 6 | 742896 | Torch connection |
| 7 | 804156 | Pk plasma torch 4m |
| 8 | 980256 | Compressor kit |
| 9 | 982231 | Power board kit |
| 10 | 981584 | Condenser kit snap-in |
| 11 | 981588 | Kit igbt + diodes |
| 12 | 982237 | Diodes kit |
| 13 | 982238 | Control pcb kit |
| 14 | 982248 | Kit power supply components |
| 15 | 982249 | Kit aux. Components |
| 16 | 982251 | Kit metal sheet |
| 17 | 982252 | Kit plastic parts |
| 18 | 982253 | Kit switch |
| 19 | 982254 | Kit potentiometer |
| 20 | 982255 | Front panel card kit |
| 21 | 982256 | Kit dinse |
| TECHNOLOGY PLASMA 54 XT KOMPRESSOR Pag.2 | ||
| Torch spare parts list | ||
| # | Part Num. | Description |
| 1 | 321301 | Cable-Bushing |
| 2 | 802420 | Kit 5 Electrodes |
| 3 | 802422 | Kit 5 Insulating Diffusers |
| 4 | 802423 | Kit 5 Nozzles |
| 5 | 802485 | Kit 2 Torch Safety Caps |
| 6 | 802428 | Kit 5 Long Electrodes |
| 7 | 802429 | Kit 5 Long Nozzles |
| 8 | 742935 | Knob Kit |
