Telwin Spare Parts for Welding Machine TECHNOLOGY PLASMA 54 KOMPRESSOR
Telwin genuine spare parts for replacing or repairing Welding Machine TECHNOLOGY PLASMA 54 KOMPRESSOR – 815088.

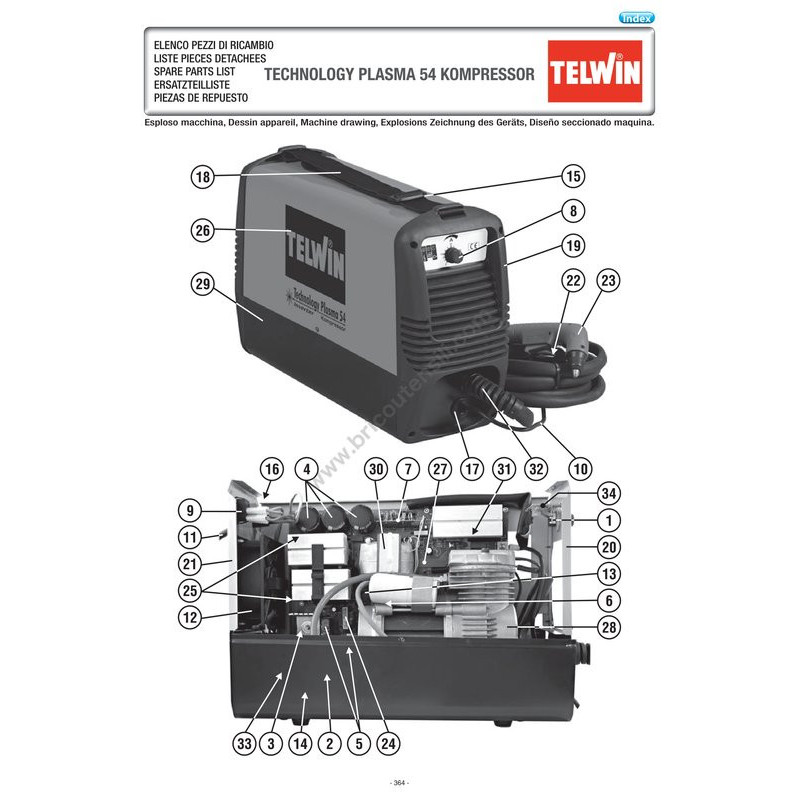

In the following table, find the model and its corresponding spare part code.
| Telwin TECHNOLOGY PLASMA 54 KOMPRESSOR | ||
| # | Part Num. | Description |
| 1 | 112017 | Potentiometer |
| 2 | 112048 | Resistance |
| 3 | 112357 | Single-phase rectifier |
| 4 | 113122 | Capacitor |
| 5 | 113233 | Relais |
| 6 | 111199 | Pwm controller |
| 7 | 980526 | Control board kit |
| 8 | 121394 | Knob |
| 9 | 121248 | Switch |
| 10 | 123422 | Cable 6 mmq 3 m |
| 11 | 132155 | Mains cable 3g1.5 2 M schuko plug |
| 12 | 152101 | Fan |
| 13 | 152230 | Current transformer |
| 14 | 169503 | Inductance |
| 15 | 322065 | Belt buckle |
| 16 | 322112 | Cable bushing |
| 17 | 322138 | Cable bushing |
| 18 | 322408 | Belt |
| 19 | 322508 | Frame |
| 20 | 638044 | Front panel |
| 21 | 639527 | Back panel |
| 22 | 712231 | Toledo 300 work clamp 300a |
| 23 | 742381 | Pk plasma torch 4m |
| 24 | 980170 | Transformer kit |
| 25 | 980253 | Kit igbt + diode |
| 26 | 980254 | Cover kit |
| 27 | 980255 | Board kit |
| 28 | 980256 | Compressor kit |
| 29 | 980257 | Base bottom kit |
| 30 | 980258 | Transformer kit |
| 31 | 981273 | Diode kit |
| 32 | 980259 | Cable- bushing kit |
| 33 | 164741 | Filter inductance |
| 34 | 982191 | Kit front panel card |
| TECHNOLOGY PLASMA 54 KOMPRESSOR Pag.2 | ||
| Torch spare parts list | ||
| # | Part Num. | Description |
| 1 | 722677 | Pushbutton |
| 2 | 990983 | Safety Pins Kit |
| 3 | 802420 | Kit 5 Electrodes |
| 4 | 802422 | 5 Torch Diffusers Kit |
| 5 | 802423 | Kit 5 Nozzles |
| 6 | 802485 | Kit 2 Torch Safety Caps |
| 7 | 742036 | Torch Body |
