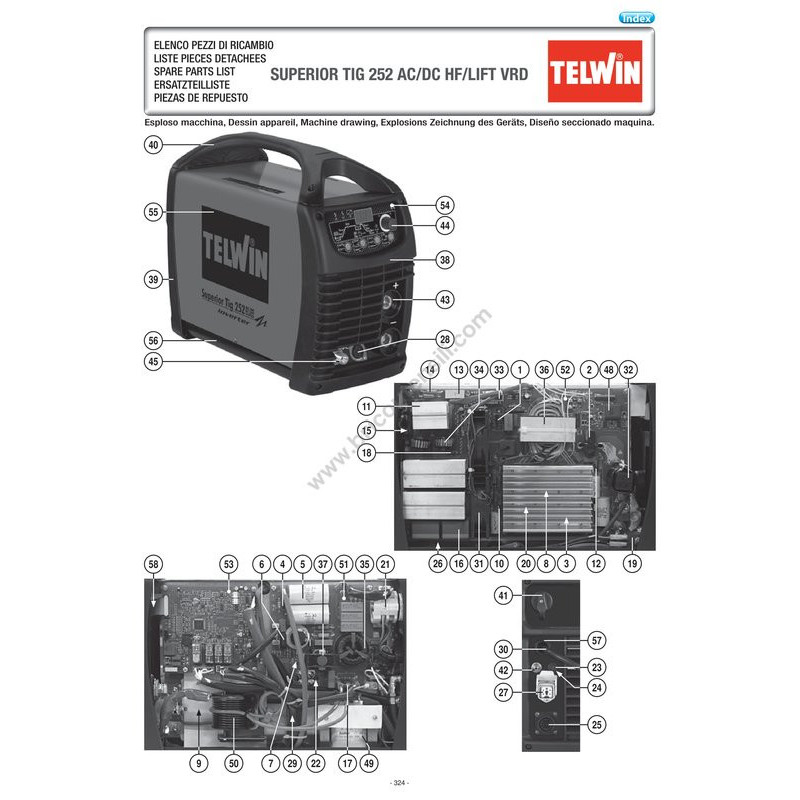

Page 1
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Page 2
zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Shipping and delivery information will be available shortly.
Telwin Spare Parts for Welding Machine SUPERIOR TIG 252 AC_DC HF_LIFT VRD
Telwin genuine spare parts for replacing or repairing Welding Machine SUPERIOR TIG 252 AC_DC HF_LIFT VRD – 816417.
In the following table, find the model and its corresponding spare part code.
| Telwin SUPERIOR TIG 252 AC_DC HF_LIFT VRD | ||
| # | Part Num. | Description |
| 1 | 111095 | Igbt |
| 2 | 111191 | Sensor hall |
| 3 | 111193 | Igbt |
| 4 | 112689 | Diode |
| 5 | 112895 | Cond.Mkp ass. 5u 700v c4g |
| 6 | 112949 | Single-phase rectifier |
| 7 | 113072 | Diode by228 3a 1500v |
| 8 | 113747 | Diode |
| 9 | 116443 | Resistance |
| 10 | 116486 | Diode |
| 11 | 111259 | Single phase bridge |
| 12 | 116733 | Voltage suppressor |
| 13 | 116738 | Relais 24vdc 17ma 250v 16a 1no |
| 14 | 116752 | Resistance |
| 15 | 116760 | Varistor |
| 16 | 116882 | Condenser |
| 17 | 116904 | Gas discharger 400v |
| 18 | 116962 | Resistance 10r 2w 5% fuse |
| 19 | 121800 | Electrovalve |
| 20 | 121261 | Thermal switch |
| 21 | 121556 | Switch |
| 22 | 111197 | Igbt 50a 1200v sot227 |
| 23 | 122159 | Fuse holder |
| 24 | 122437 | Fuse |
| 25 | 124105 | Control cable/c.A.D. |
| 26 | 124656 | Resistance cable |
| 27 | 124657 | G.R.A. Cable |
| 28 | 124658 | Torch button cable |
| 29 | 124668 | Fan cable |
| 30 | 132237 | Mains cable 4g1.5 2 M |
| 31 | 152269 | Fan |
| 32 | 169556 | Inductance |
| 33 | 169627 | Transformateur complet |
| 34 | 169746 | Inductance |
| 35 | 169747 | Filter inductor |
| 36 | 169789 | Power trafo |
| 37 | 169795 | Trasfo flyback hf |
| 38 | 321117 | Front panel |
| 39 | 321118 | Back panel |
| 40 | 321119 | Handle |
| 41 | 323101 | Switch knob set |
| 42 | 602376 | Raccordo 1/8 d.6 Chiave 12 |
| 43 | 712036 | Dinse socket dx 50 |
| 44 | 121547 | Potentiometer knob |
| 45 | 980548 | Gas pipe connector kit |
| 46 | 981370 | Igbt + diode kit |
| 47 | 981371 | Kit igbt + pulse transformer |
| 48 | 981372 | Kit pulse transformer |
| 49 | 981401 | Auxiliary transformer kit |
| 50 | 981402 | Hf transformer kit |
| 51 | 981403 | Filter card kit |
| 52 | 981404 | Power board kit |
| 53 | 981405 | Control card kit |
| 54 | 981406 | Keypad card kit |
| 55 | 981407 | Cover kit |
| 56 | 981408 | Bottom kit |
| 57 | 990046 | Kit cable bushing + ring nut |
| 58 | 981535 | Kit front panel card |
| SUPERIOR TIG 252 AC_DC HF_LIFT VRD Pag.2 | ||
| Torch spare parts list | ||
| # | Part Num. | Description |
| 1 | 802244 | Kit 10 Ceramic Nozzles Nr.4 |
| 1 | 802245 | Kit 10 Ceramic Nozzles Nr.6 |
| 1 | 802246 | Kit 10 Ceramic Nozzles Nr.7 |
| 1 | 802247 | Kit 10 Ceramic Nozzles Nr.8 |
| 1 | 802248 | Kit 10 Ceramic Nozzles Nr.10 |
| 2 | 722248 | Insulator |
| 4 | 802220 | Kit 10 Cerium-tungsten Electr. D.1 Mm |
| 4 | 802222 | Kit 10 Cerium-tungsten Electr. D.1,6 Mm |
| 4 | 802232 | Kit 10 Cerium-tungsten Electr. D.2,4 Mm |
| 4 | 802233 | Kit 10 Cerium-tungsten Electr. D.3,2 Mm |
| 4 | 802235 | Kit 10 Pure Tungsten Electr. D.1,6 Mm |
| 4 | 802236 | Kit 10 Pure Tungsten Electr. D.2,4 Mm |
| 4 | 802237 | Kit 10 Pure Tungsten Electr. D.3,2 Mm |
| 4 | 802238 | Kit 10 Pure Tungsten Electr. D. 4 Mm |
| 5 | 802239 | Kit 3 Electrode Holder Clamps D.1,0 Mm |
| 5 | 802240 | Kit 3 Electrode Holder Clamps D.1,6 Mm |
| 5 | 802241 | Kit 3 Electrode Holder Clamps D.2,4 Mm |
| 5 | 802242 | Kit 3 Electrode Holder Clamps D.3,2 Mm |
| 5 | 802243 | Kit 3 Electrode Holder Clamps D.4 Mm |
| 6 | 722192 | Short Cap |
| 7 | 722193 | Long Cap |
| 9 | 981443 | Dinse 50 Connection Kit |
| 12 | 742599 | 5P Plug |
| 14 | 452089 | Pushbotton Contact |
| 16 | 722061 | Or Ring |
| 17 | 742042 | Pushbotton |
| 18 | 722944 | Torch Body |
| 19 | 802249 | Kit 3 Electrode Diffusers D.1 Mm |
| 19 | 802250 | Kit 3 Electrode Diffusers D.1,6 Mm |
| 19 | 802251 | Kit 3 Electrode Diffusers D.2,4 Mm |
| 19 | 802252 | Kit 3 Electrode Diffusers D.3,2 Mm |
| 19 | 802253 | Kit 3 Electrode Diffusers D.4 Mm |
