Telwin Spare Parts for Welding Machine MOTOINVERTER 174 CE
€0.12
VAT included
Telwin Spare Parts for Welding Machine MOTOINVERTER 174 CE
TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine MOTOINVERTER 174 CE 815791.
Telwin Spare Parts for Welding Machine MOTOINVERTER 174 CE
€0.12
VAT included
Telwin Spare Parts for Welding Machine MOTOINVERTER 174 CE
TELWIN authorized service center and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Welding Machine MOTOINVERTER 174 CE 815791.
settings
31 Spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
31 spare parts
Page 1

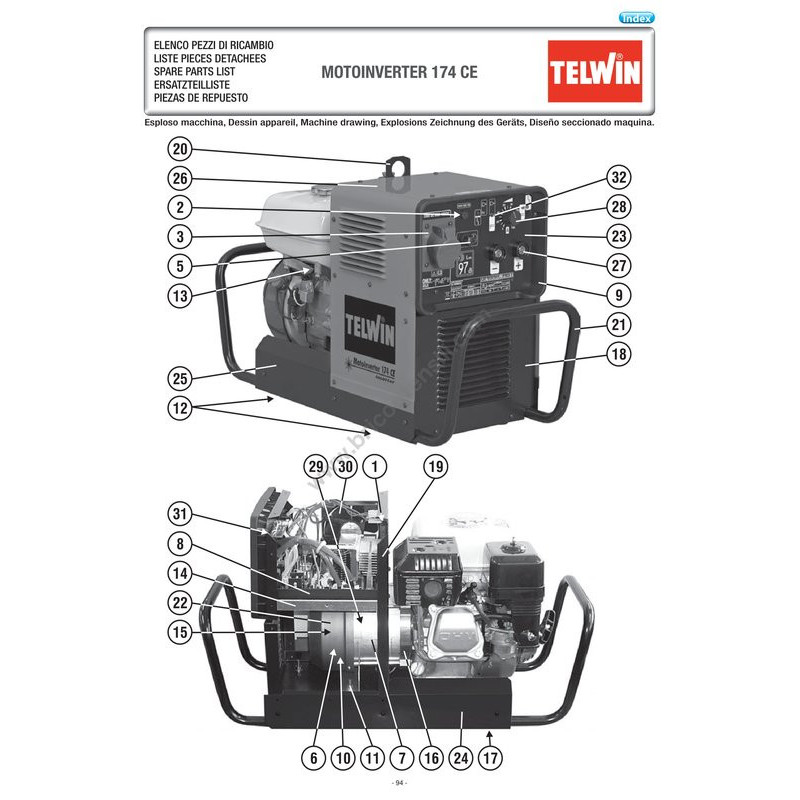

zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Shipping and delivery information will be available shortly.
Telwin Spare Parts for Welding Machine MOTOINVERTER 174 CE
Telwin genuine spare parts for replacing or repairing Welding Machine MOTOINVERTER 174 CE – 815791.
In the following table, find the model and its corresponding spare part code.
| Telwin MOTOINVERTER 174 CE | ||
| # | Part Num. | Description |
| 1 | 116369 | Rectifier |
| 2 | 121010 | Fuse |
| 3 | 121220 | Socket |
| 5 | 990073 | Kit black charging clamp |
| 6 | 242125 | Threaded tie rod |
| 7 | 314175 | Stator kit |
| 8 | 980238 | Card kit |
| 9 | 322665 | Frame |
| 10 | 322722 | Fan blade |
| 11 | 322723 | Vibration damper |
| 12 | 322724 | Vibration damper |
| 13 | 452127 | Honda engine spring |
| 14 | 483485 | Diaphragm |
| 15 | 522042 | Generator cover |
| 16 | 522043 | Flange |
| 17 | 645132 | Bottom |
| 18 | 645133 | Front panel |
| 19 | 645358 | Back panel |
| 20 | 645136 | Ring |
| 21 | 645137 | Handle |
| 22 | 645142 | Fan cover |
| 23 | 649905 | Dashboard |
| 24 | 645178 | Left side |
| 25 | 645179 | Right side panel |
| 26 | 655931 | Cover |
| 27 | 712035 | Dinse socket dx 25 |
| 28 | 980771 | Black knob kit |
| 29 | 990975 | Complete rotor kit |
| 30 | 990976 | Fan kit |
| 31 | 112017 | Potentiometer |
| 32 | 121193 | Switch |
All product specifications in this catalog are based on information obtained from official sources, including the official Telwin manufacturer websites, which we consider reliable. Unfortunately, even official documents may contain mistakes or printing errors, and we cannot confirm that all the data are accurate or fully reflect the facts. Most manufacturers reserve the right to change product specifications or amend descriptions without notice. We strongly recommend using the published information as a general reference, subject to review by the Telwin brand. Please verify any important specifications with a sales assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or reproduction, in whole or in part, without a reference to the source page is prohibited.
815791
Data sheet
- SHIPPING IN
- Usually Ships in 10 BUSYNESS DAYS
- CHECK ITEM CODE OR S/N
- CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
- CHECK ITEM OR S/N CODE TELWIN
- TELWIN PRODUCT CODE STARTS WITH (8....) AND HAVE 6 DIGITS
- Machine Type
- Welding Machine
Specific References
