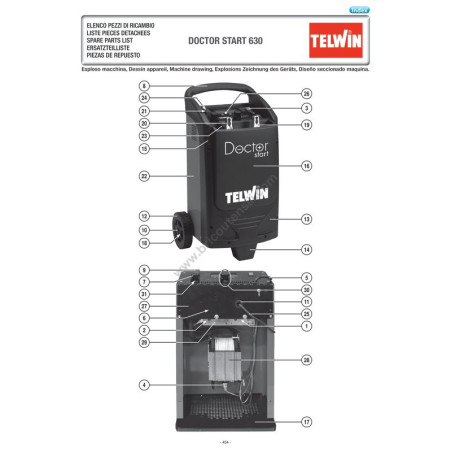

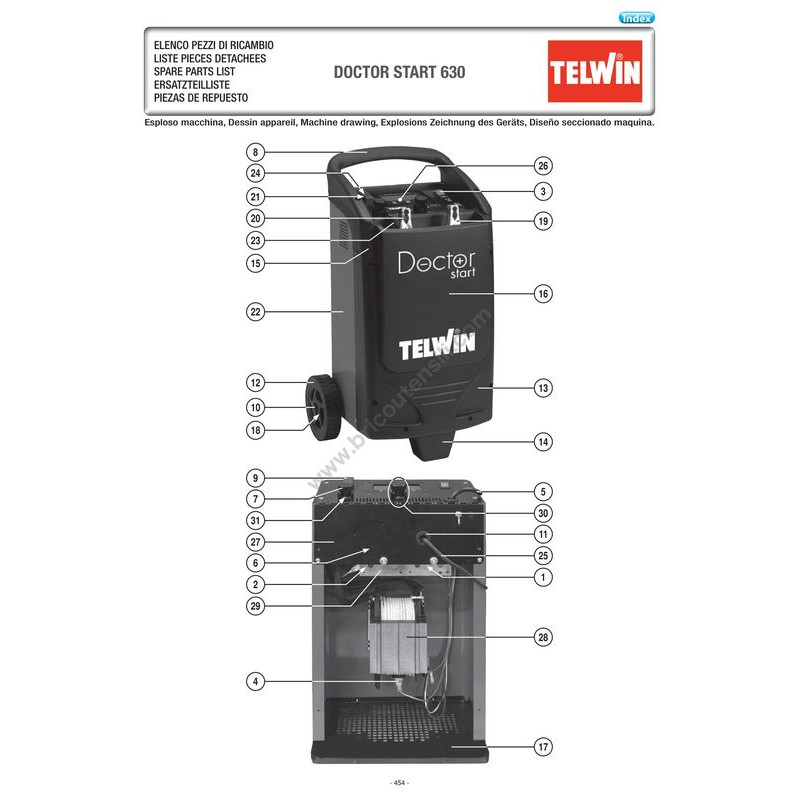

zoom_in View exploded
local_shipping Usually Ships in 10 BUSYNESS DAYS
Shipping and delivery information will be available shortly.
Telwin Spare Parts for Jump Starter DOCTOR START 630
Telwin genuine spare parts for replacing or repairing Jump Starter DOCTOR START 630 – 829342.
In the following table, find the model and its corresponding spare part code.
| Telwin DOCTOR START 630 | ||
| # | Part Num. | Description |
| 1 | 112183 | Rectifier protection |
| 2 | 982004 | Kit thermostat |
| 3 | 121248 | Switch |
| 4 | 121716 | Thermostat |
| 5 | 132193 | Mains cable 3g2.5 2 M |
| 6 | 152017 | Shunt |
| 7 | 312053 | Handwheel |
| 8 | 312399 | Handle |
| 9 | 322051 | Fuse cover |
| 10 | 322102 | Wheel locking ring |
| 11 | 322112 | Cable bushing |
| 12 | 322201 | Fixed wheel |
| 13 | 322796 | Front panel |
| 14 | 322798 | Foot |
| 15 | 322799 | Frame |
| 16 | 362058 | |
| 17 | 644783 | Bottom |
| 18 | 681055 | Wheels axle |
| 19 | 712001 | Colorado 150b work clamp 150a |
| 20 | 712002 | Colorado 150r positive clamp 150a |
| 21 | 802029 | Kit 20 fuses 100a |
| 22 | 980302 | Back panel kit |
| 23 | 980318 | Cable 16mmq 2m- positive |
| 24 | 990595 | Fuse clamp kit |
| 25 | 981575 | Cable kit 16mmq 2m |
| 26 | 982014 | Power board kit + display |
| 27 | 981905 | Dashboard kit |
| 28 | 981906 | Transformer kit |
| 29 | 981909 | Rectifier kit |
| 30 | 990162 | Complete terminal kit d.33mm |
| 31 | 990163 | Insulating washers kit |
